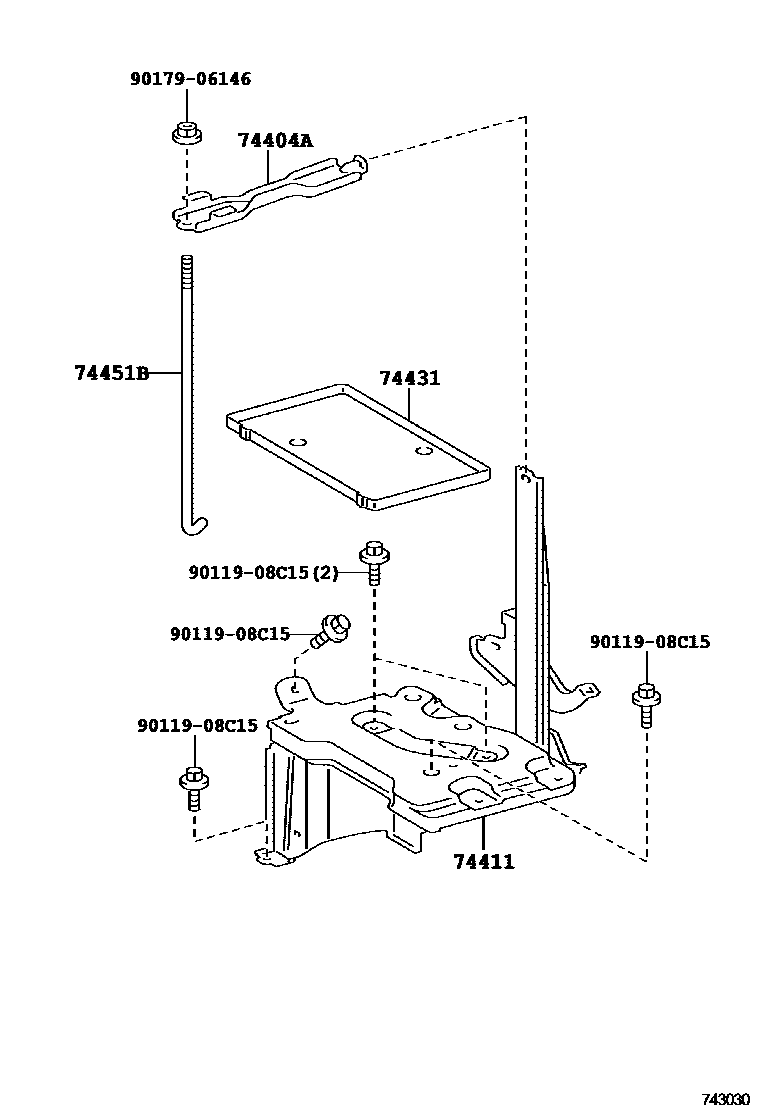

Toyota YARIS battery holder — Figure 7402
Toyota YARIS EPC diagram 7402, battery holder, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 74404A | Battery clip sub-assembly | 74404-52040 |
| 74411 | battery holder | 74410-52010 · 74410-52020 |
| 74431 | battery tray | 74431-52100 · 74431-52101 |
| 74451B | Battery clamp bolt | 74451-52070 |
