Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

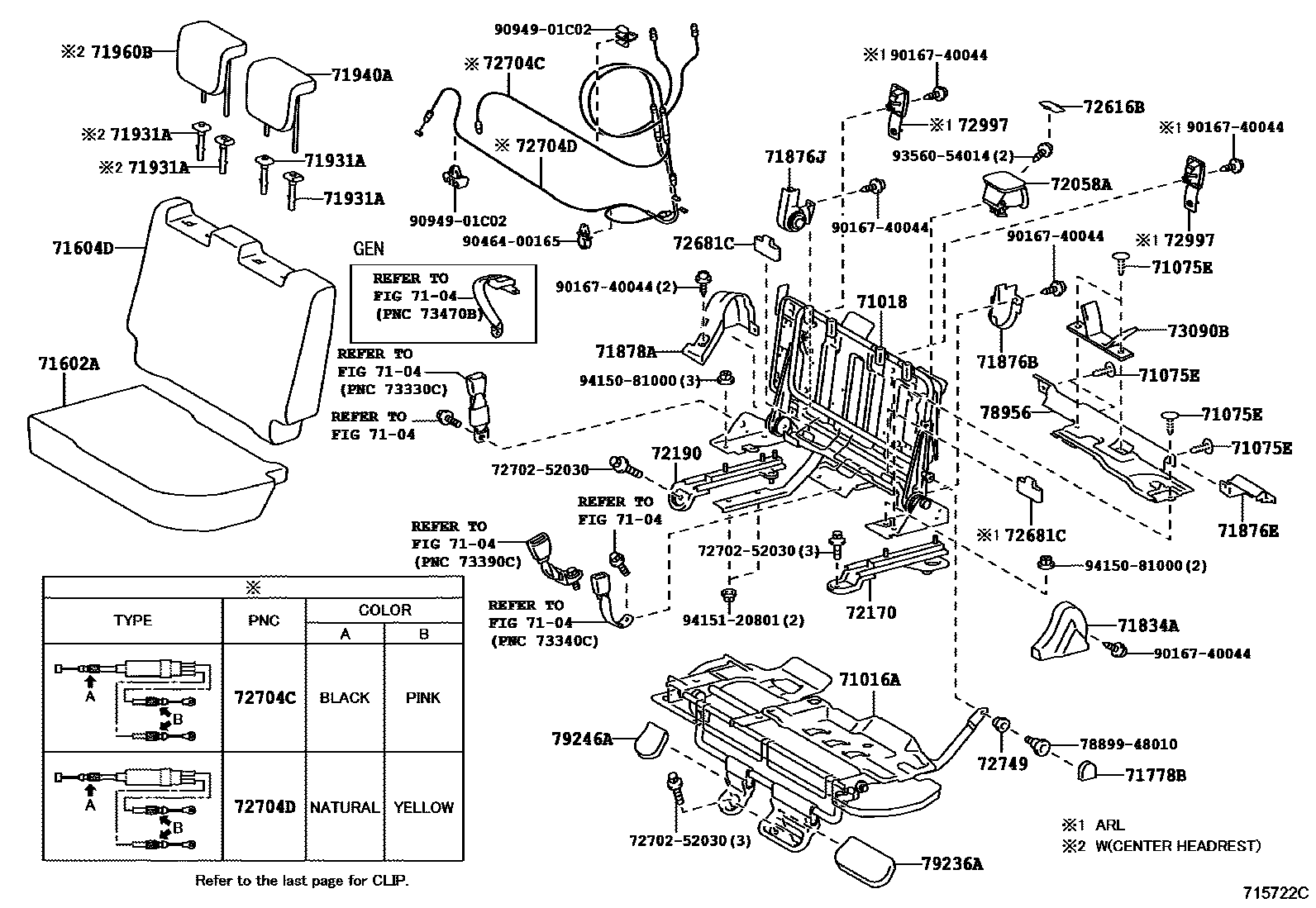

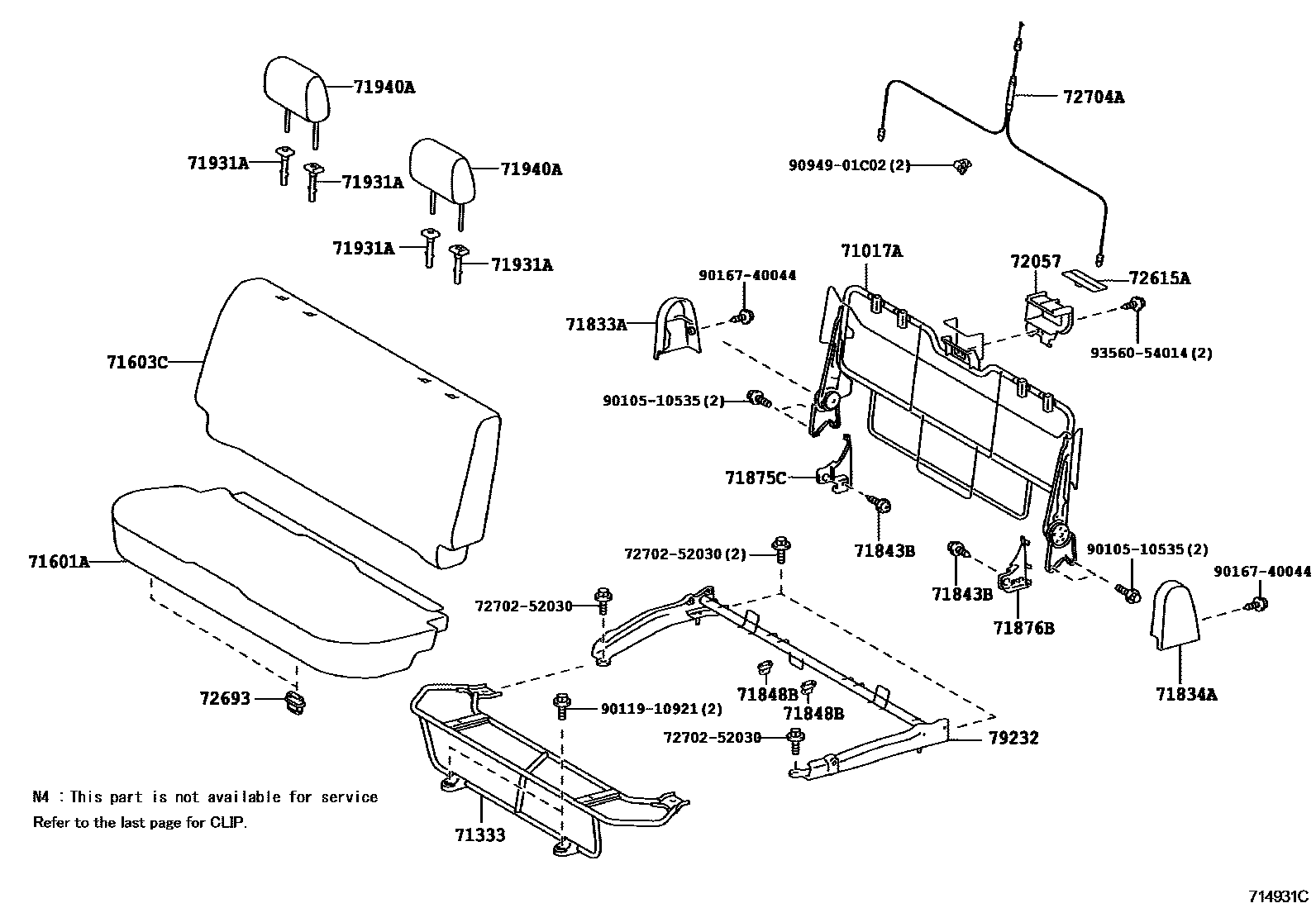

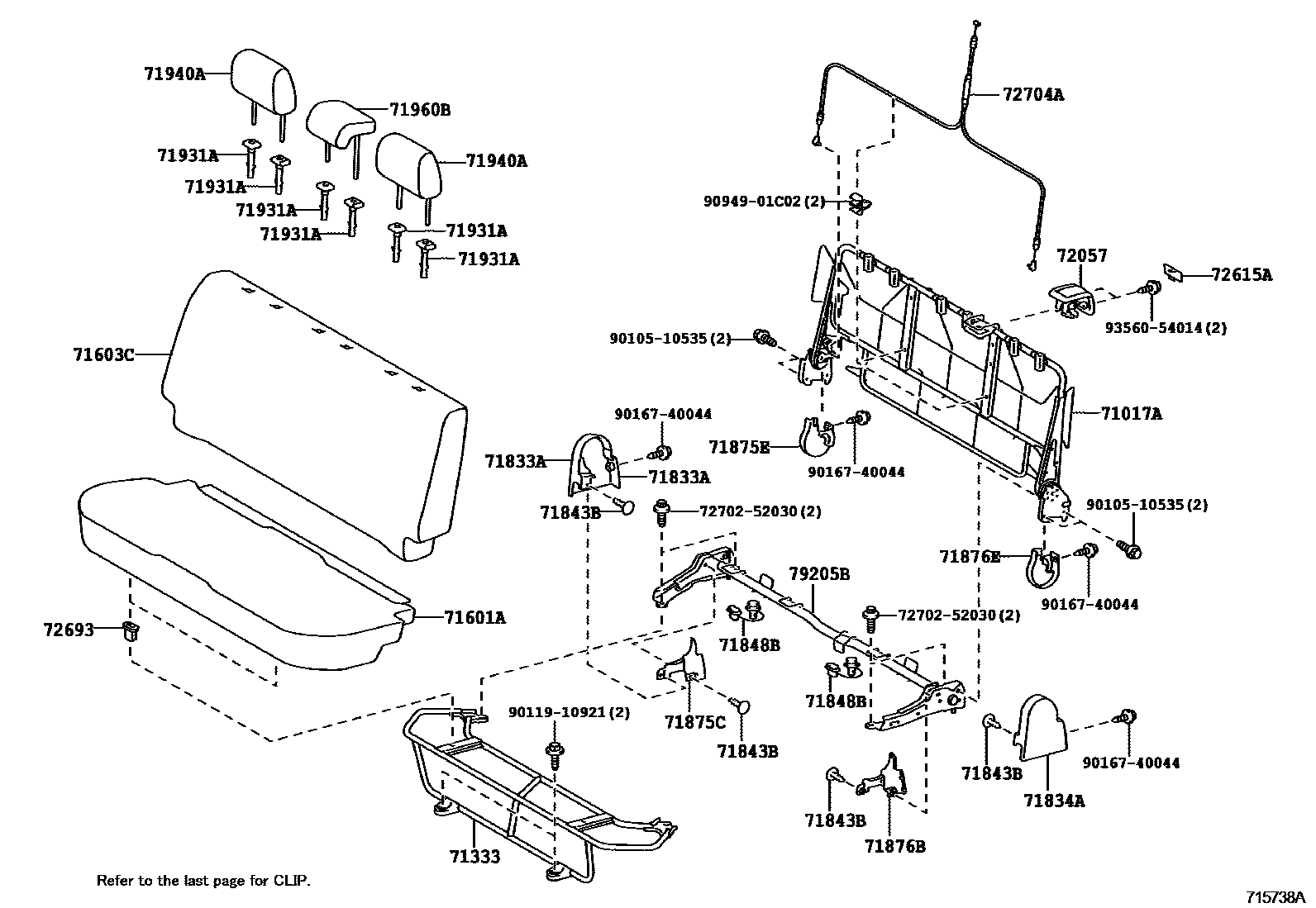

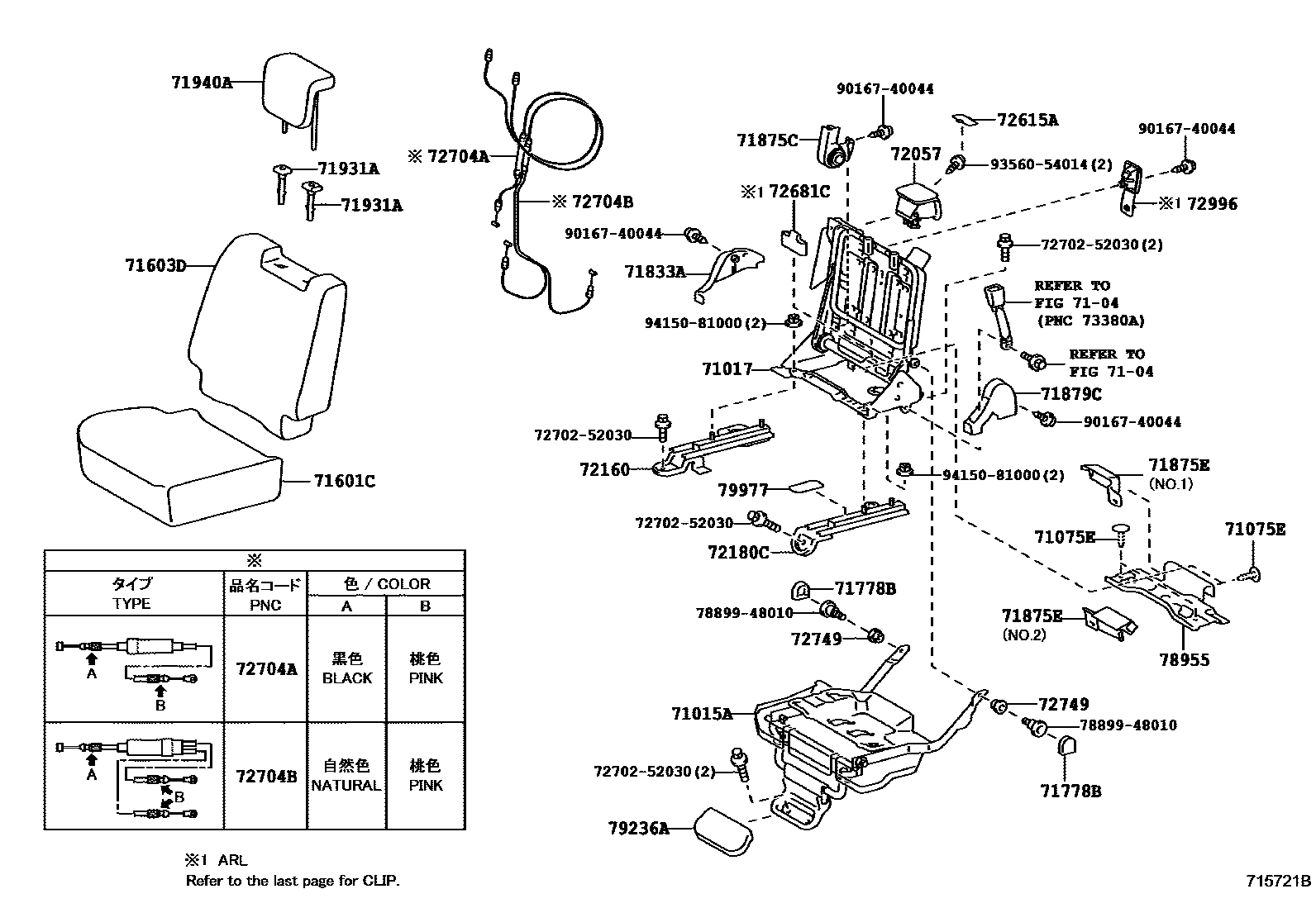

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 5 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71015A | Rear right seat cushion frame sub-assembly | 71015-52310 |
| 71016A | Rear left seat cushion frame sub-assembly | 71016-52060 |
| 71017 | Right rear seat back frame sub-assembly | 71017-52400 · 71017-52401 · 71017-52520 · 71017-52521 |
| 71017A | Rear seat back frame sub-assembly | 71017-52361 · 71017-52590 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52310 · 71018-52311 · 71018-52330 · 71018-52331 · 71018-52380 · 71018-52381 |
| 71075E | Clip (for rear seats) | 90467-06085 |
| 71333 | Rear seat No. 1 seat cushion and legs | 71333-52040 |
| 71778B | Rear right side seat hinge outer cover | 71778-52010 |
| 71833A | Rear right No. 1 seat back recliner cover | 71833-52060 |
| 71834A | Rear left seat back recliner cover No. 1 | 71834-52060 |
| 71848B | Right seat adjuster cover | 71848-52030 |
| 71875C | Right backrest tilt adjuster inner cover | 71875-52121 |
| 71875E | Right backrest tilt adjuster inner cover | 71875-52130 · 71876-52140 |
| 71876B | Left backrest tilt adjuster inner cover | 71876-52121 |
| 71876E | Left backrest tilt adjuster inner cover | 71876-52130 |
| 71876J | Left backrest tilt adjuster inner cover | 71875-52141 |
| 71878A | Rear right seat backrest recliner inner cover | 71878-52070 |
| 71879C | Rear left seat backrest recliner inner cover | 71879-52090 |
| 72057 | Rear right seat lock control lever sub-assembly | 72057-52010 |
| 72058A | Rear left seat lock control lever sub-assembly | 72058-52010 |
| 72160 | Rear right seat outer slide rail assembly | 72160-52020 |
| 72170 | Rear left seat outer slide rail assembly | 72170-52030 |
| 72180C | Rear right seat inner slide rail assembly | 72170-52020 |
| 72190 | Rear left seat inner slide rail assembly | 72160-52030 |
| 72615A | Rear right seat back lock cover | 72615-52070 |
| 72616B | Rear seat lock cover | 72615-52070 |
| 72681C | Rear seat backrest lower hook | 72681-52010 |
| 72693 | Rear seat cushion hook | 72693-12080 |
| 72704A | Rear seat backrest tilt control cable | 72704-52020 · 72704-52030 · 72704-52110 |
| 72704B | Rear No. 2 seat backrest inclination control cable | 72704-52050 |
| 72704C | Rear No. 2 seat backrest inclination control cable | 72704-52040 |
| 72704D | Rear No. 2 seat backrest inclination control cable | 72704-52060 |
| 72749 | Rear seat backrest tilt cushion | 72749-48010 |
| 72996 | Right rear seat back cover | 72996-52010 |
| 72997 | Rear left seat back cover | 72996-52010 |
| 73090B | Seat belt anchor plate assembly | 73090-52010 |
| 78955 | Rear right seat bottom cover | 78955-52010 |
| 78956 | Rear left seat bottom cover | 78955-52020 |
| 79205B | Right No. 2 seat support sub-assembly | 79205-52010 |
| 79232 | Right leg support for rear seat No. 2 | 79232-52010 |
| 79977 | Seat back felt pad | 79977-52060 |
