Toyota YARIS 前排座椅和座椅滑轨 — Figure 7101

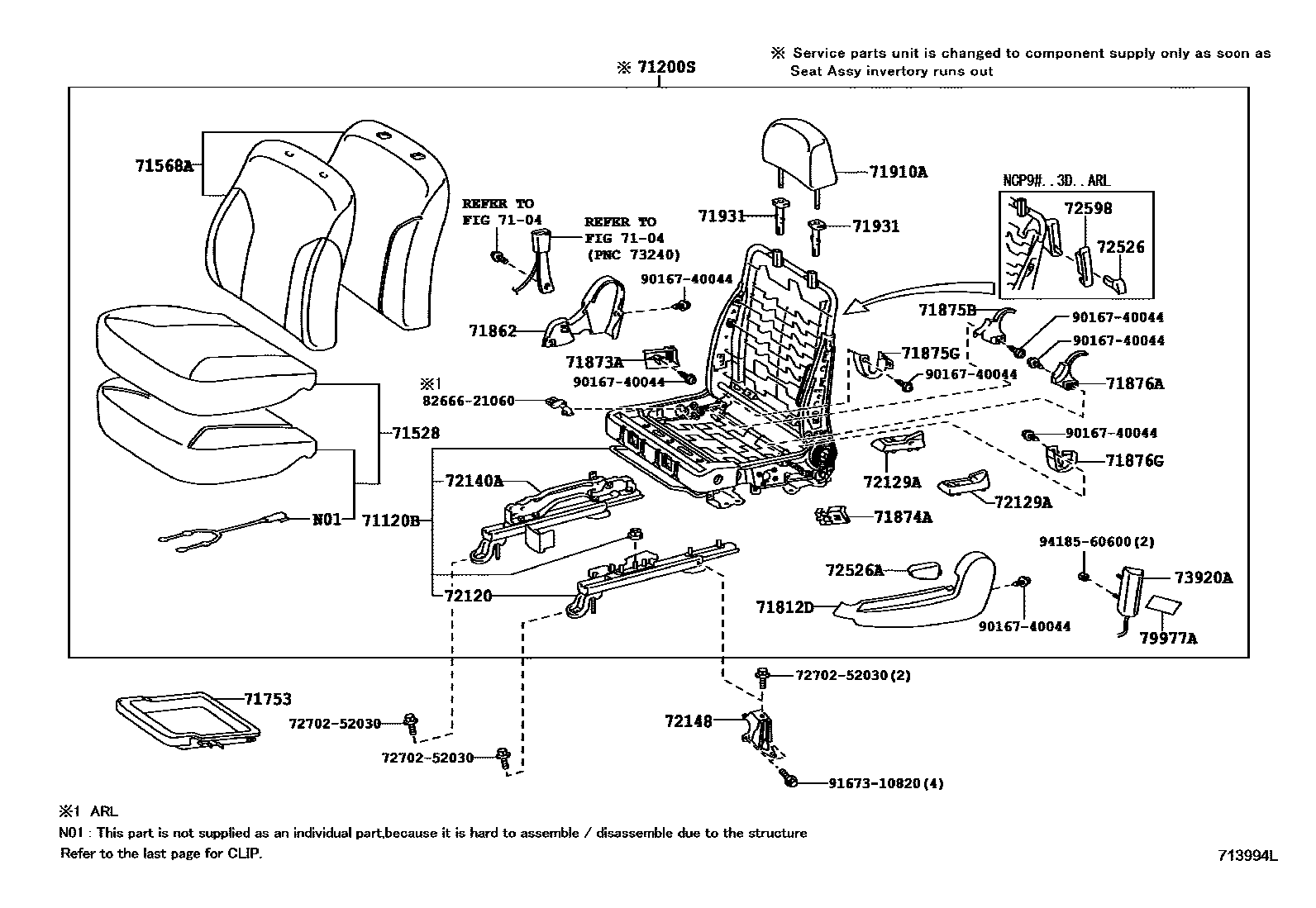

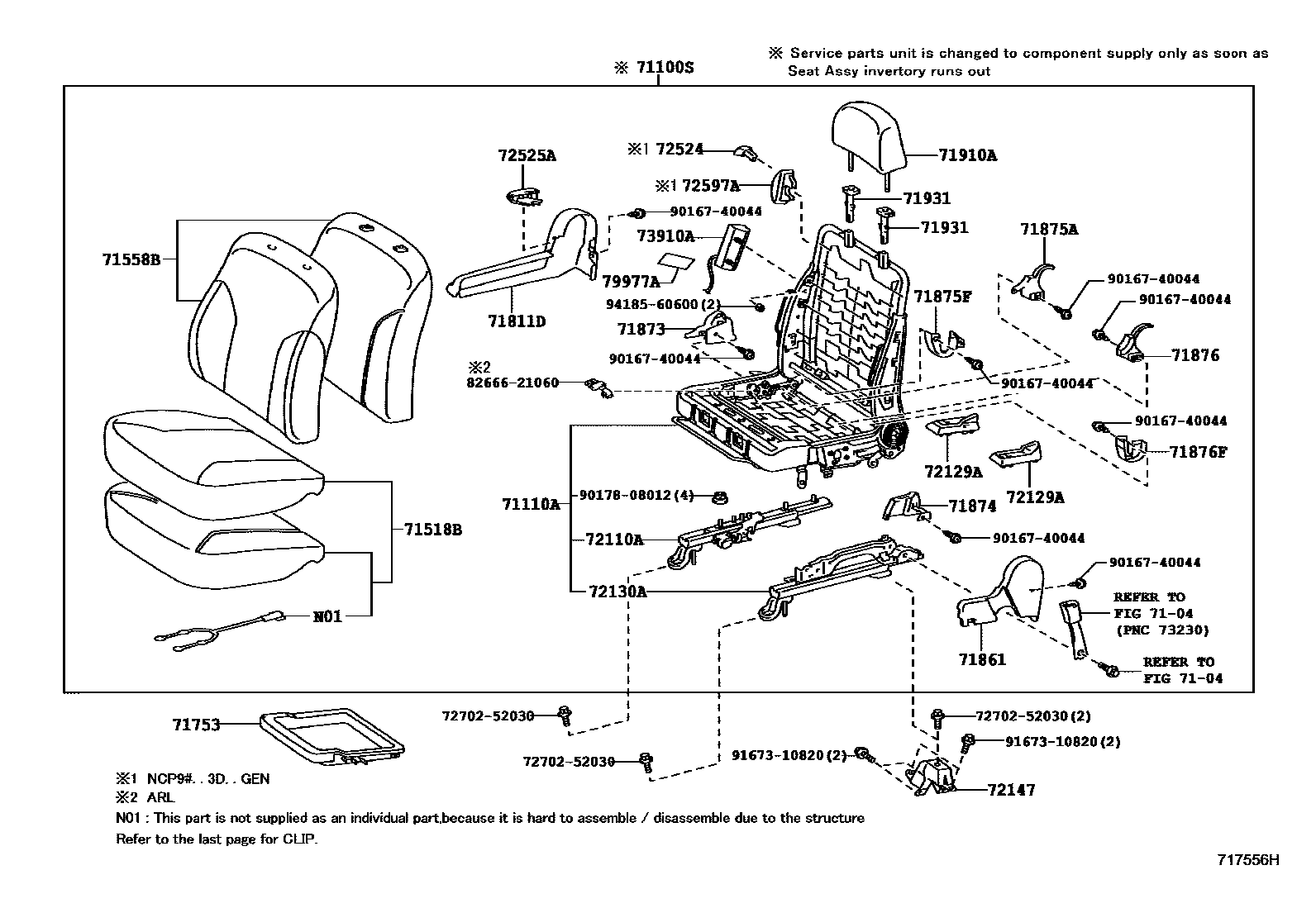

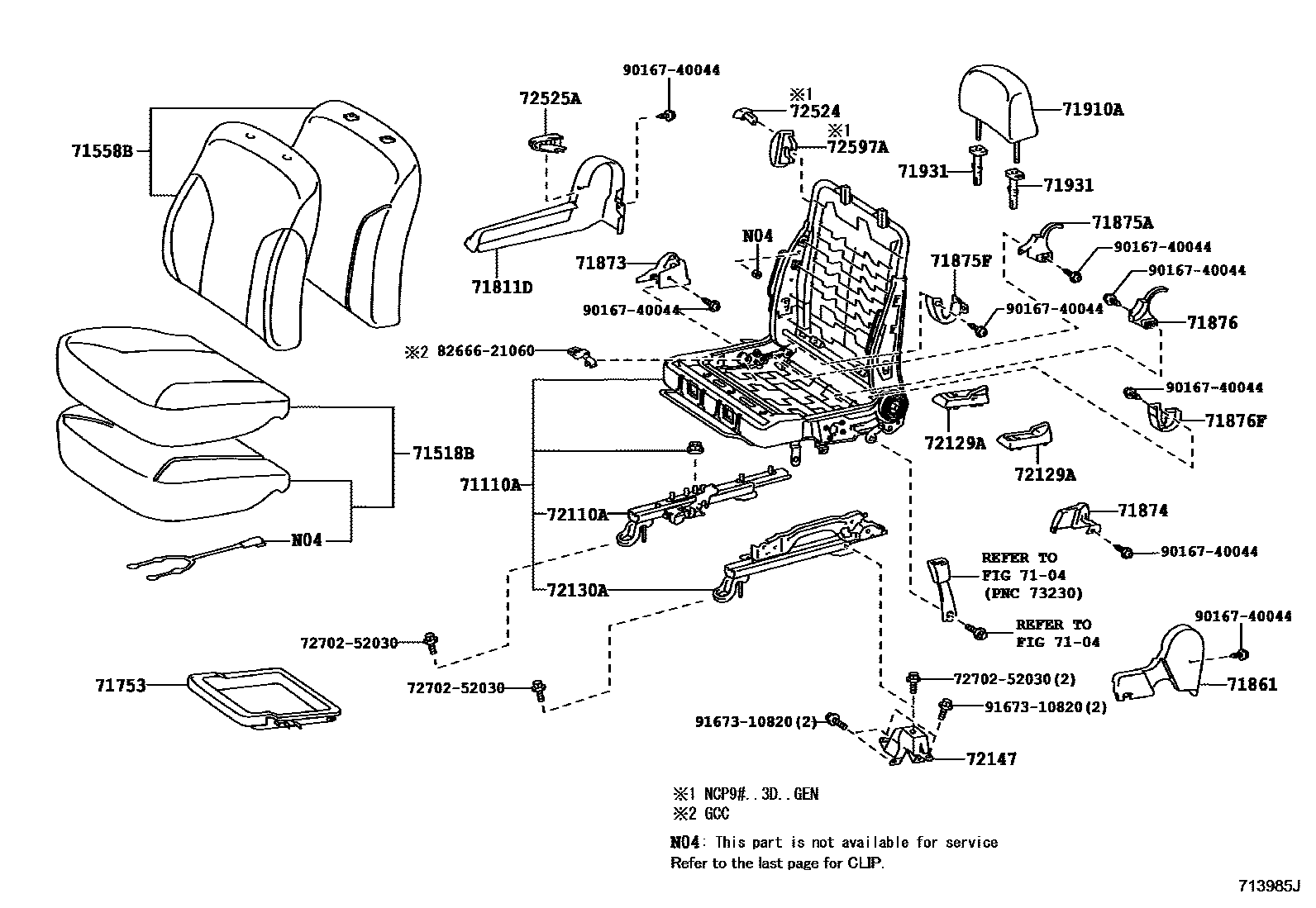

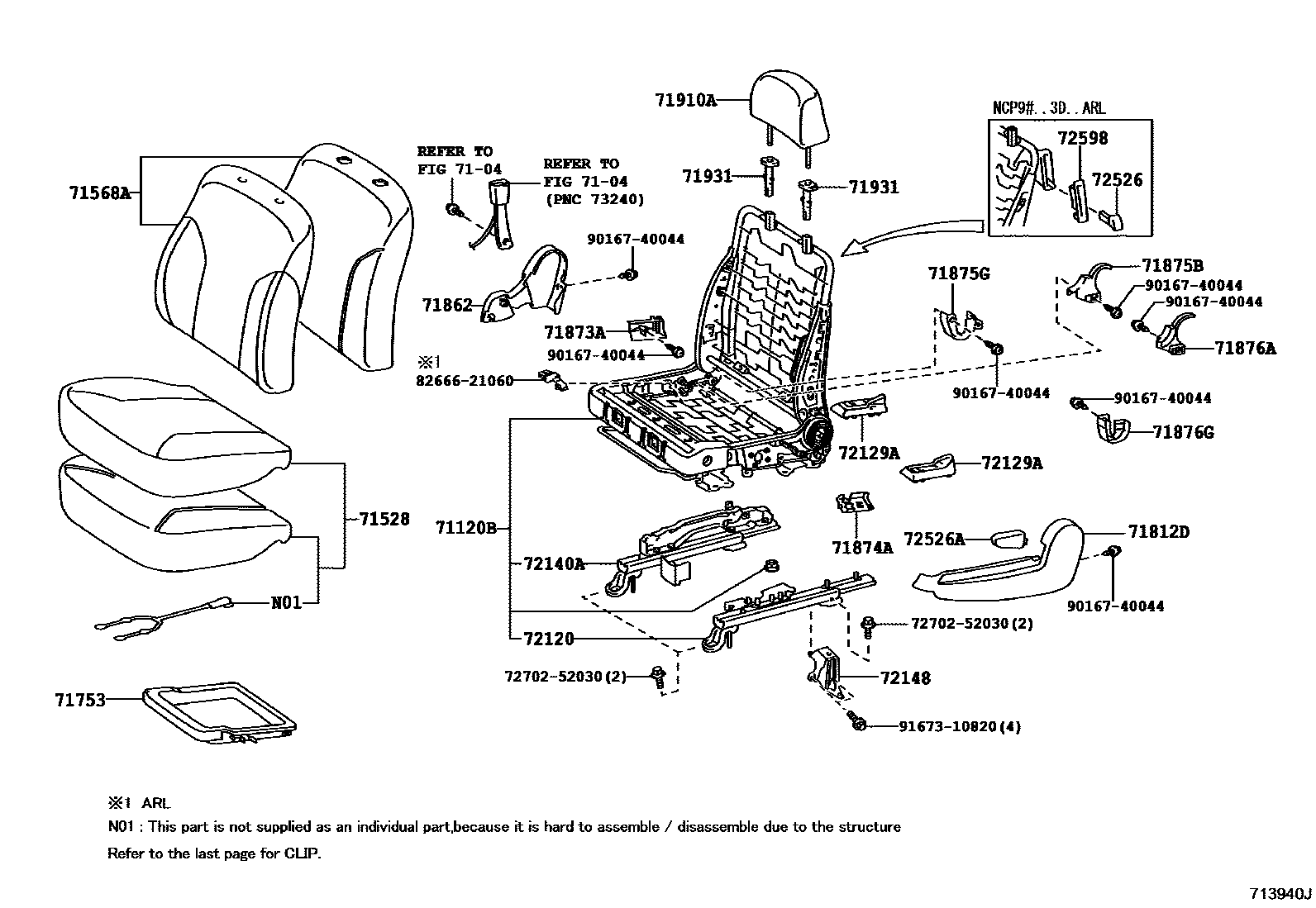

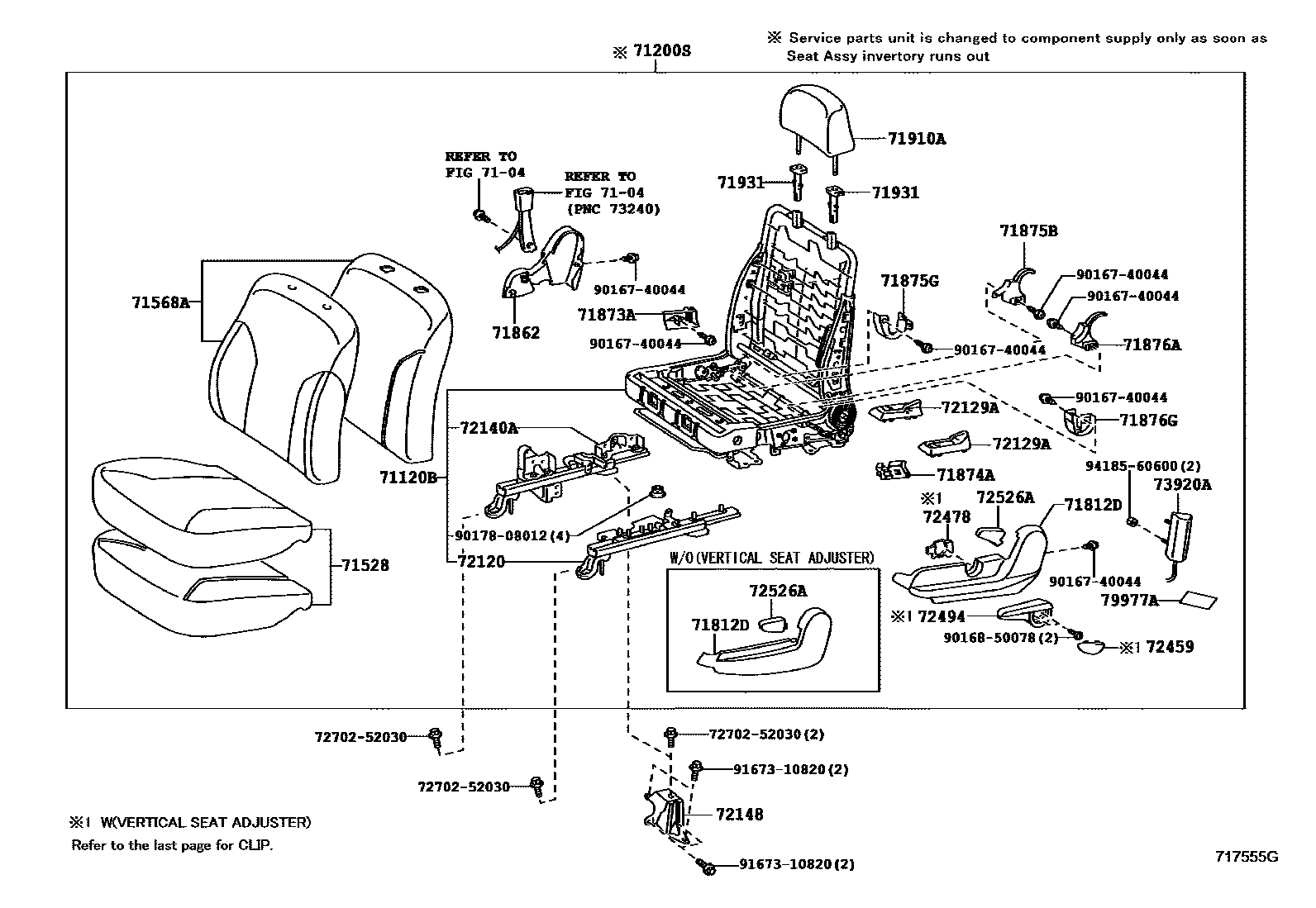

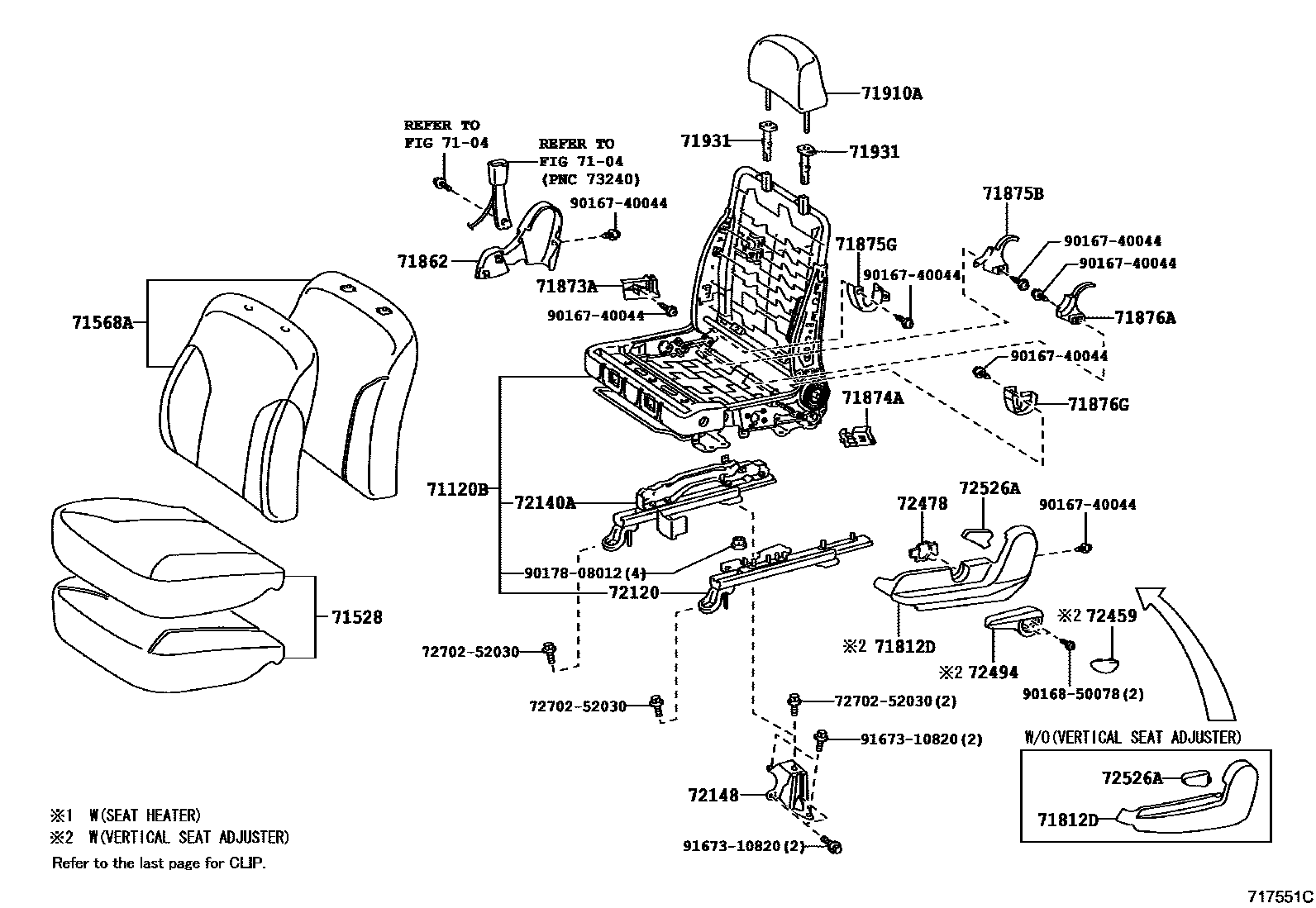

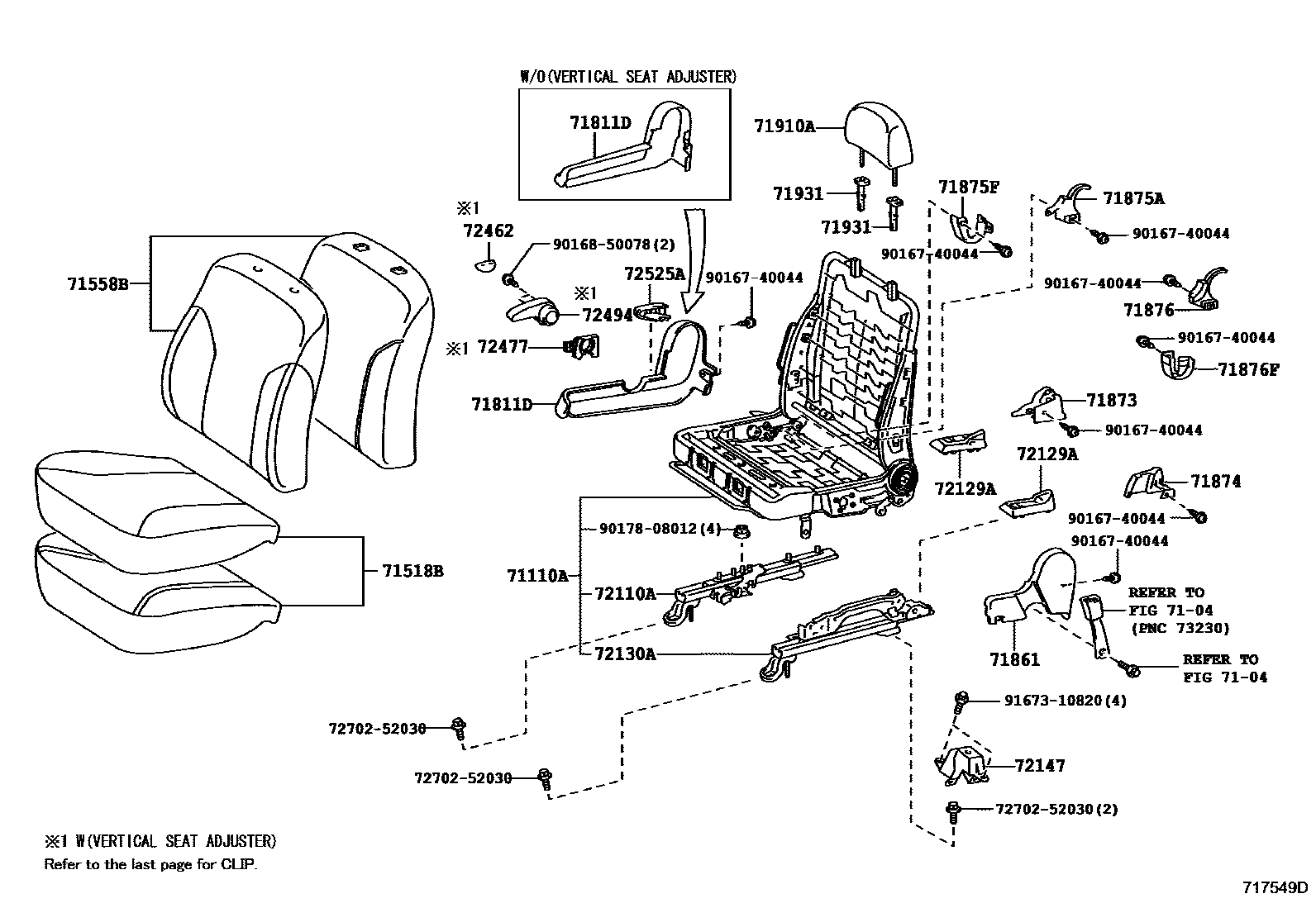

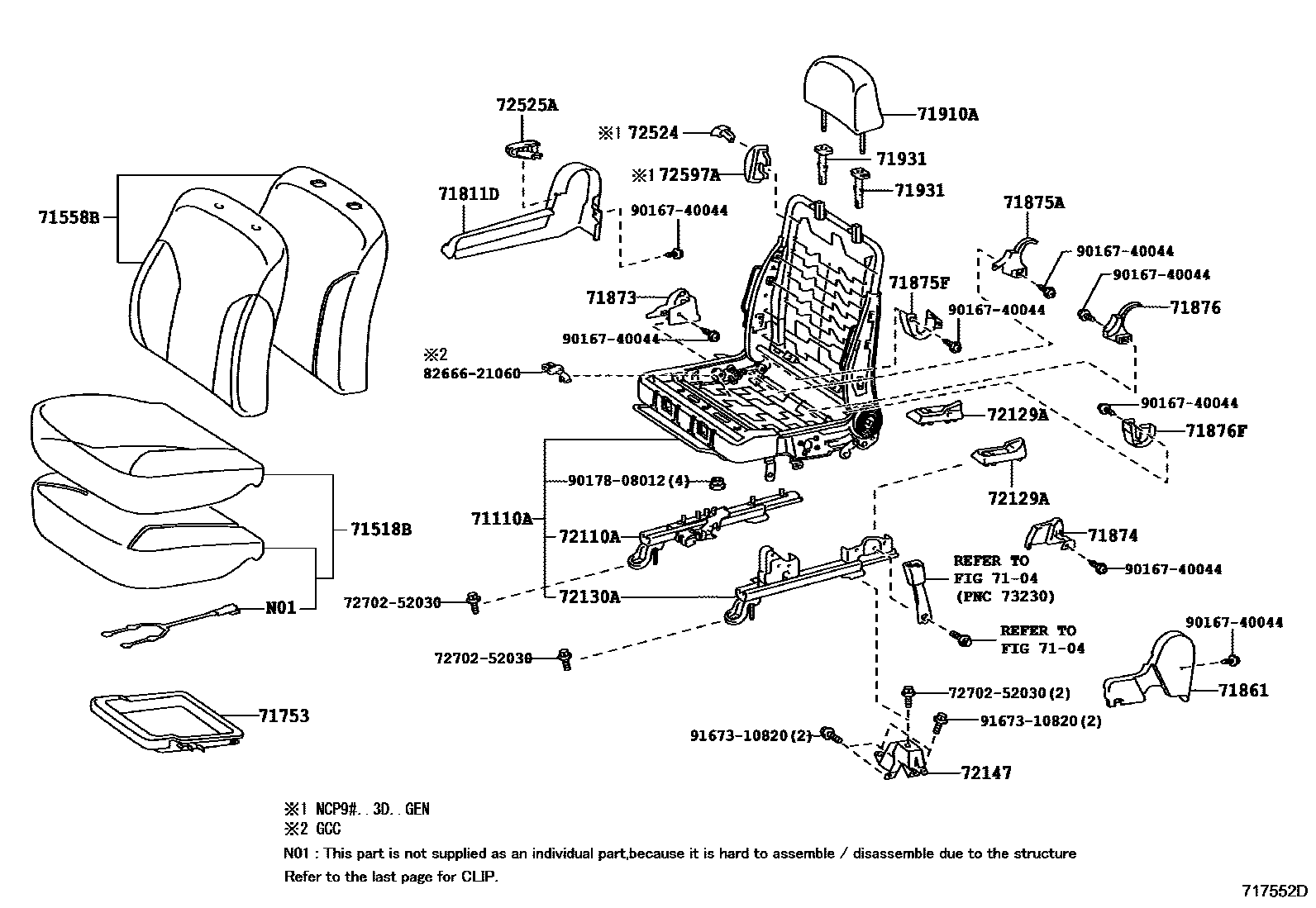

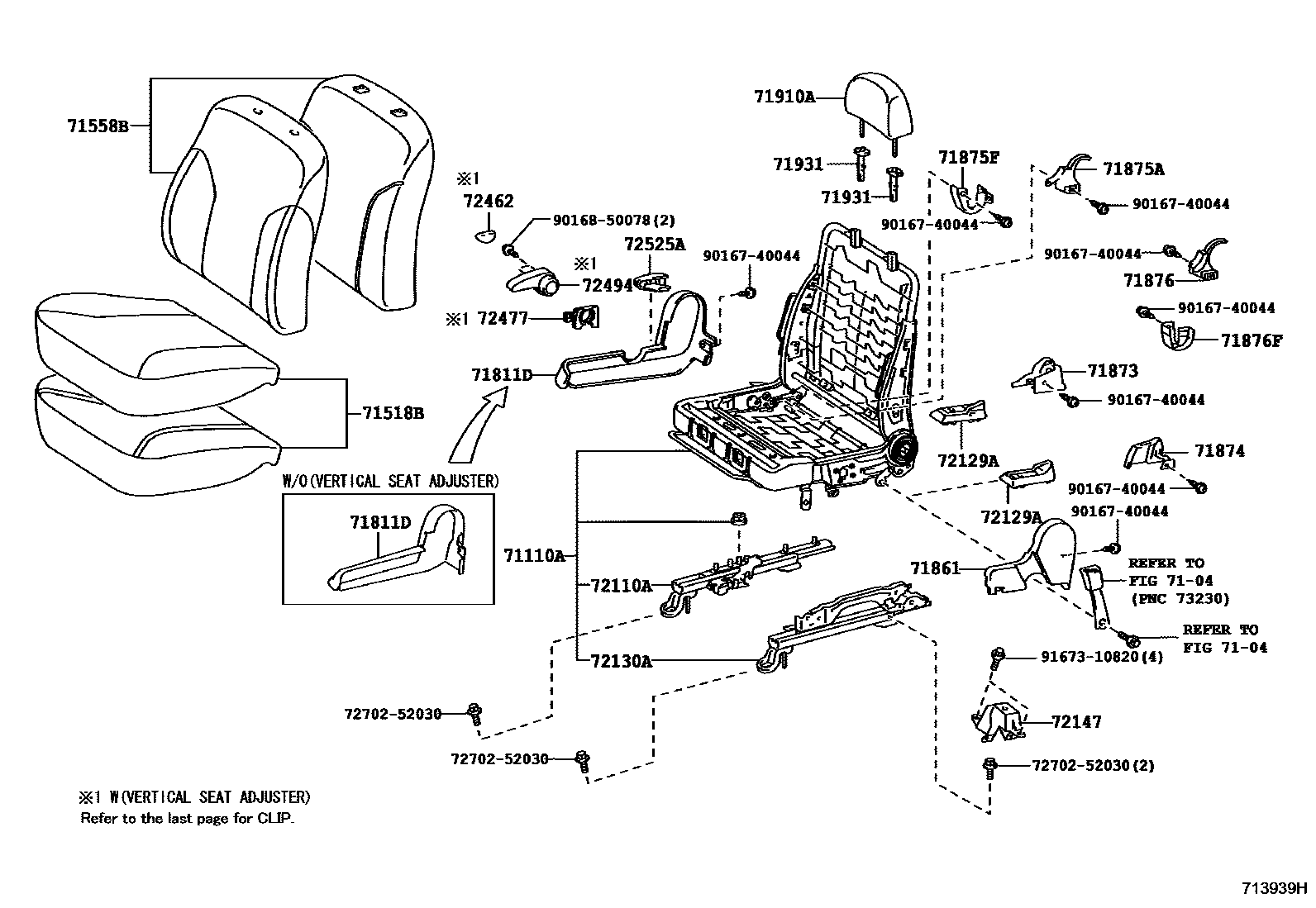

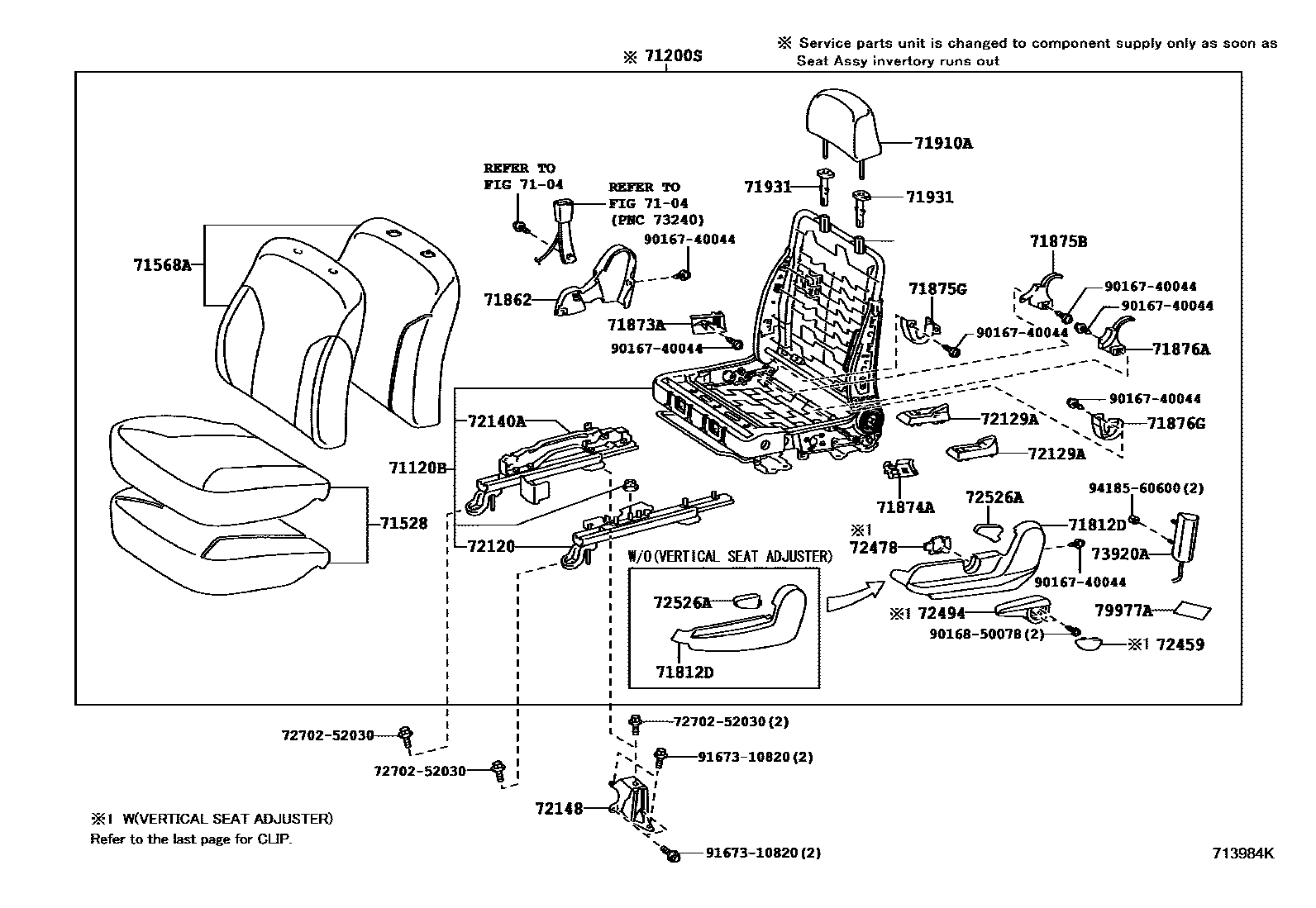

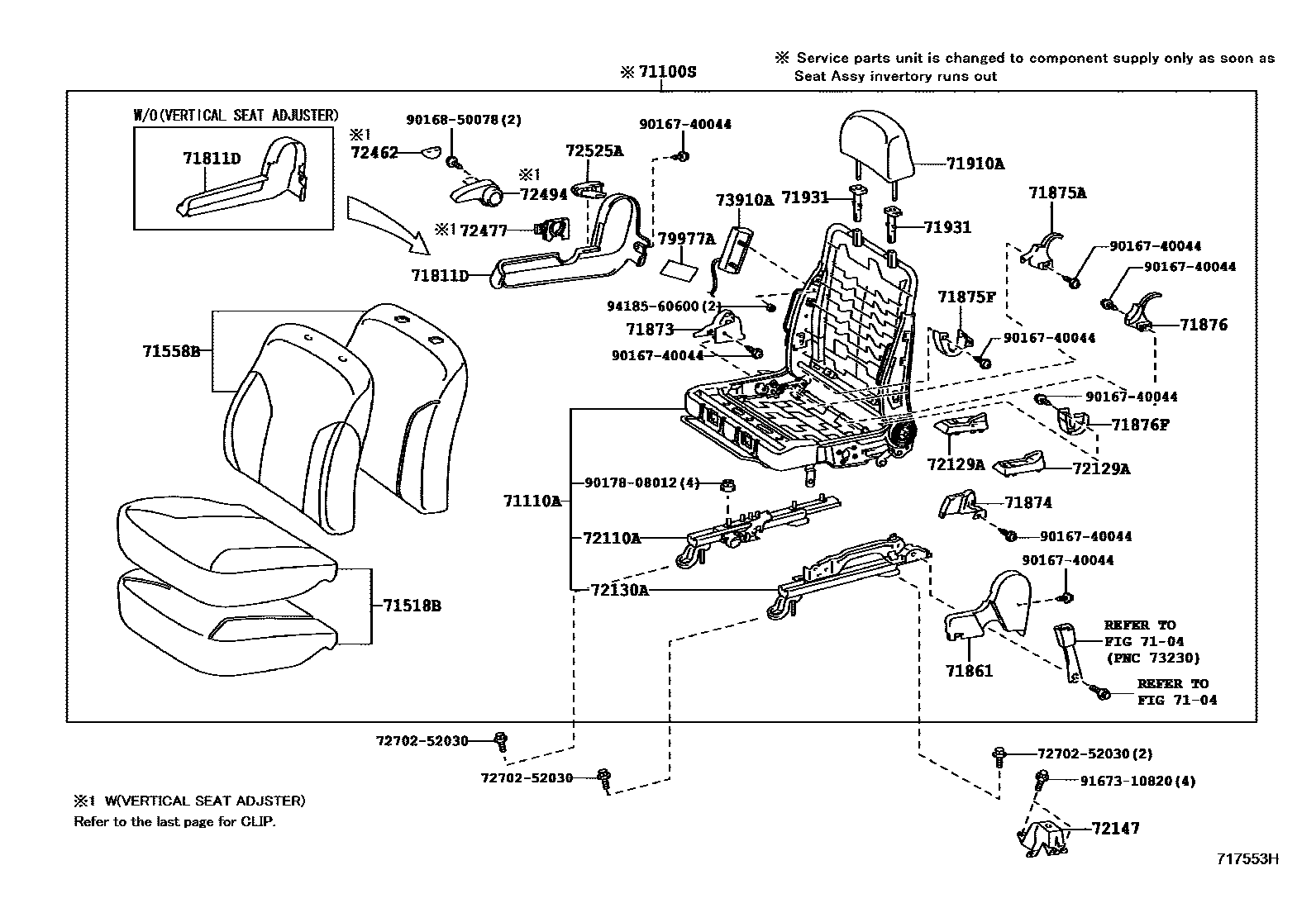

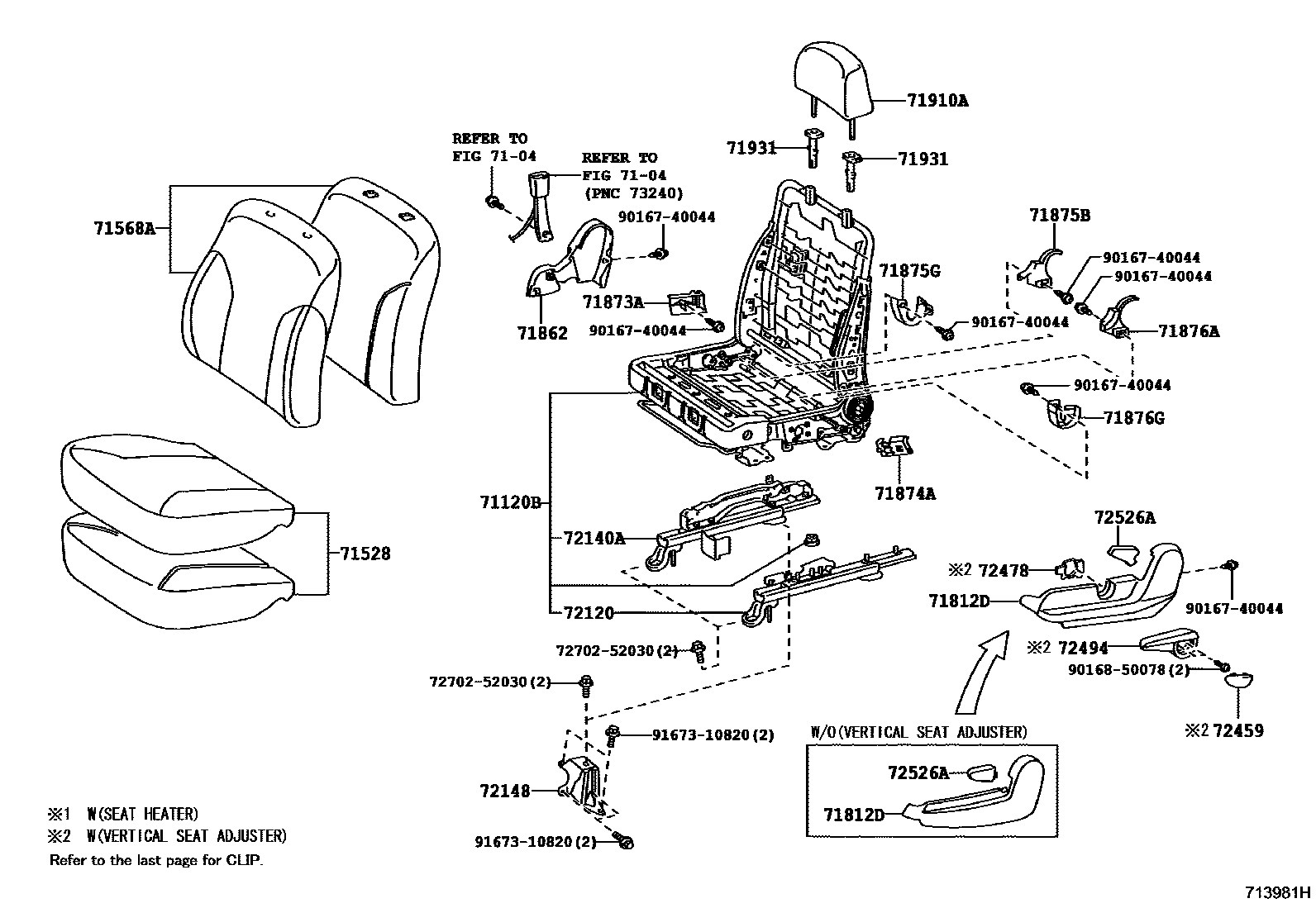

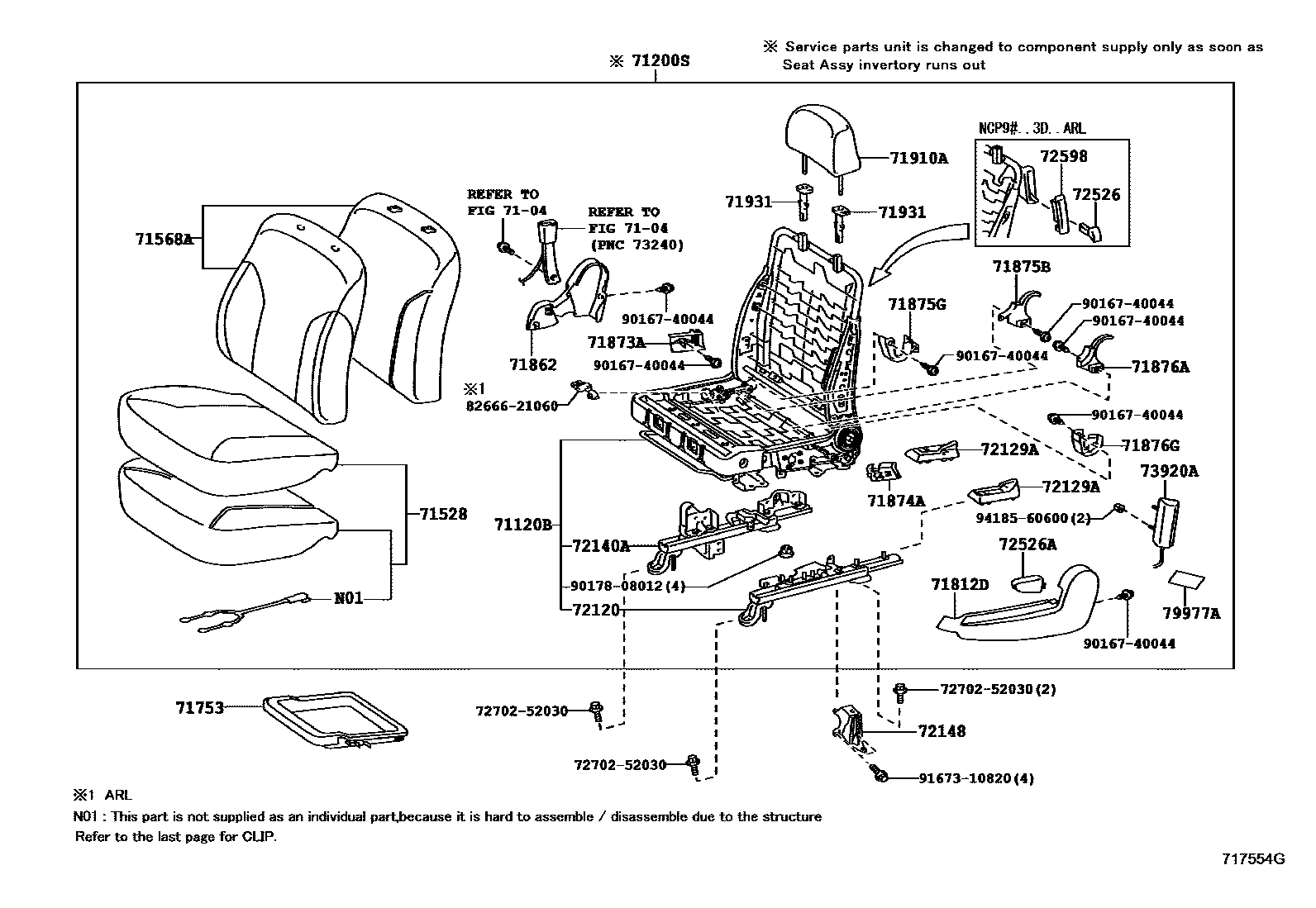

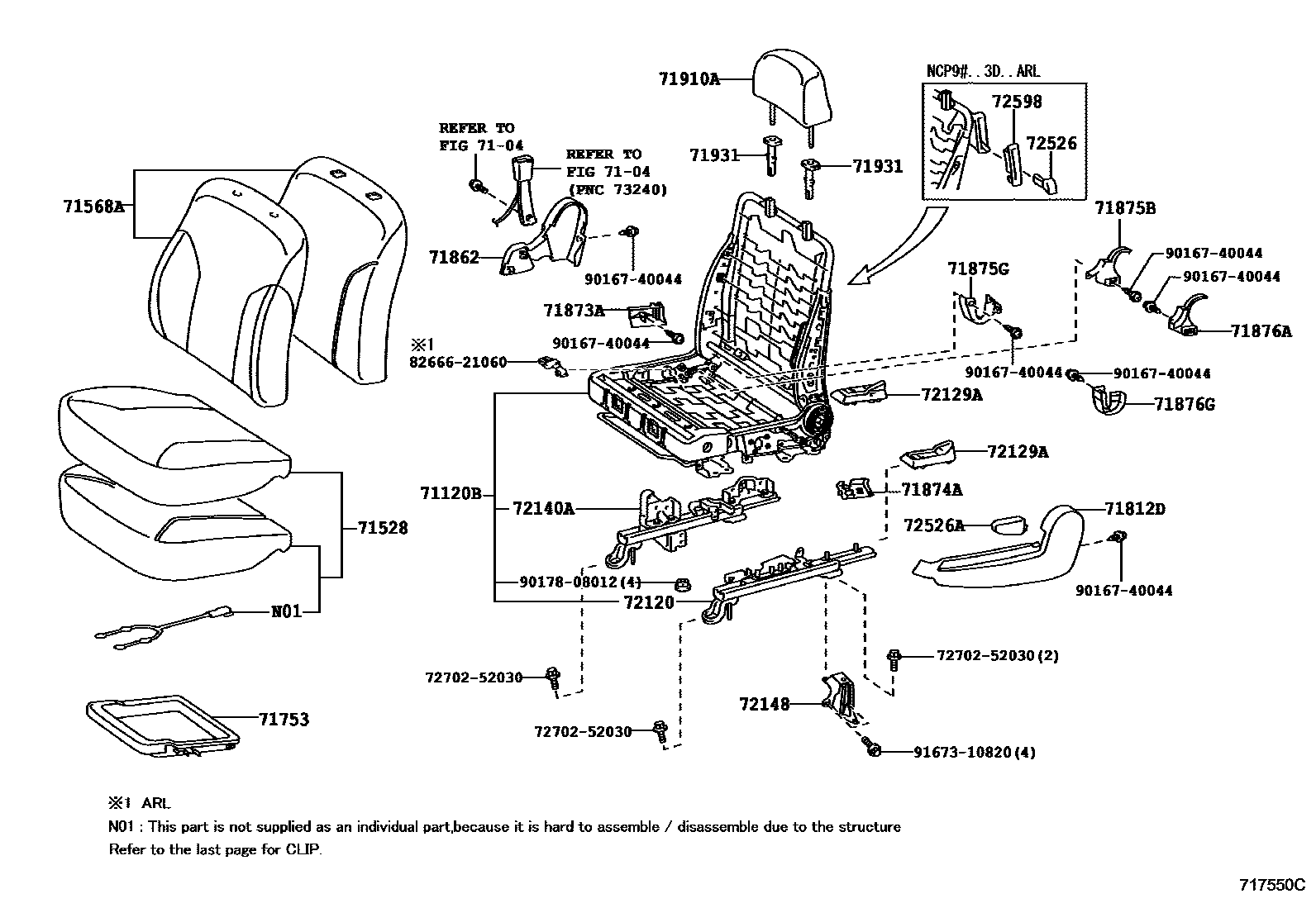

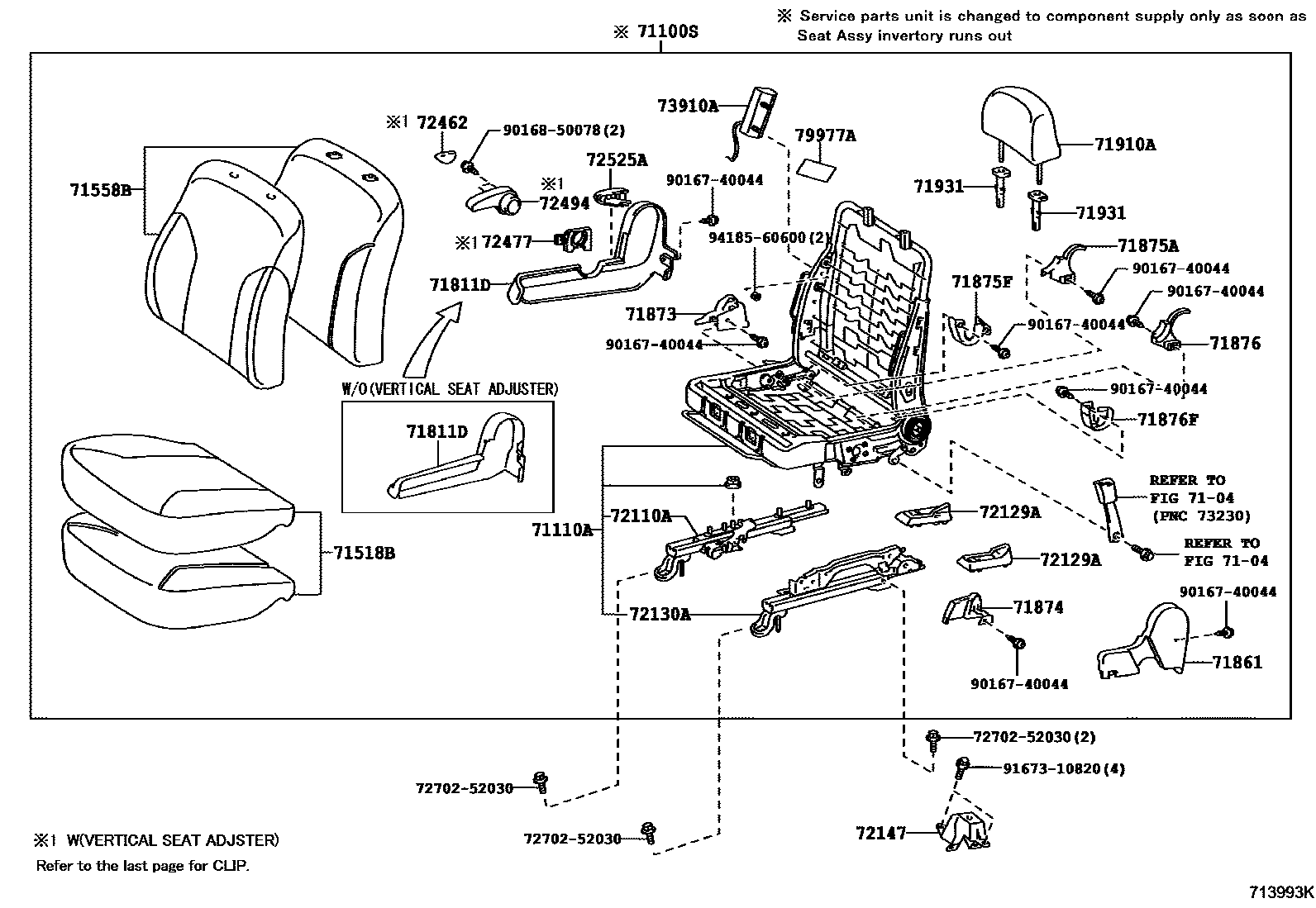

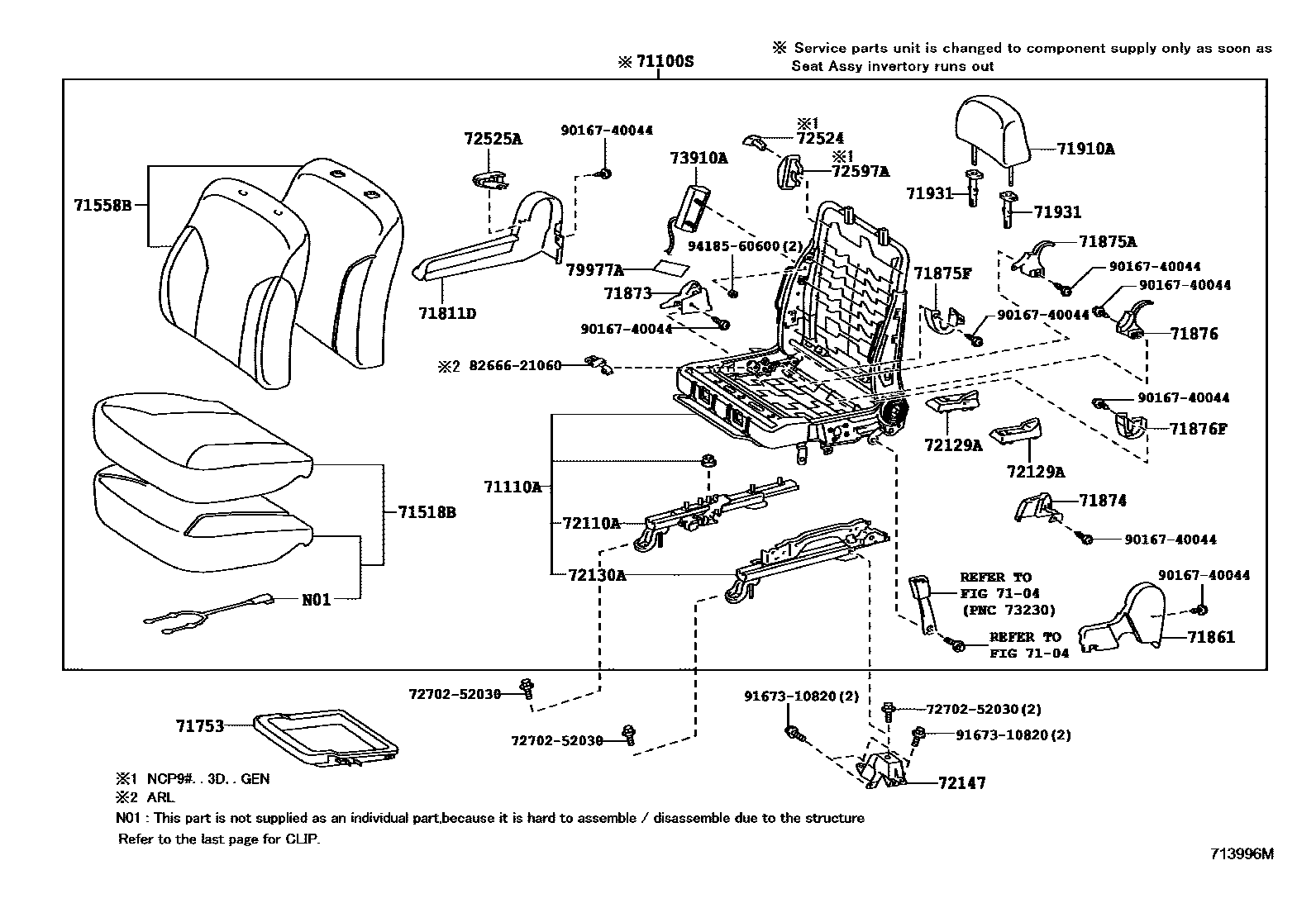

Toyota YARIS EPC diagram 7101, 前排座椅和座椅滑轨, with 17 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71110A | Front right seat (with adjuster) frame assembly | 71110-52190 · 71110-52192 · 71110-52200 · 71110-52202 · 71110-52220 · 71110-52222 · 71110-52280 · 71110-52282 · 71110-52290 · 71110-52292 |
| 71120B | Front left seat (with adjuster) frame assembly | 71120-52130 · 71120-52132 · 71120-52140 · 71120-52142 · 71120-52190 · 71120-52192 · 71120-52240 · 71120-52242 · 71120-52250 · 71120-52252 |
| 71753 | Front seat bottom bracket | 71753-52030 |
| 71811D | Front right seat cushion guard | 71811-52200 |
| 71812D | Front left seat cushion guard | 71812-52190 · 71812-52200 |
| 71861 | Front seat cushion right inner guard panel | 71861-52190 |
| 71862 | Front seat cushion left inner guard panel | 71862-52140 · 71862-52150 |
| 71873 | Front right seat cushion lower guard panel | 71873-52210 |
| 71873A | Front seat cushion lower guard | 71873-52100 · 71873-52190 |
| 71874 | Front left seat cushion lower guard | 71874-52200 |
| 71874A | Front left seat cushion lower guard | 71874-52070 · 71874-52120 |
| 71875A | Right backrest tilt adjuster inner cover | 71875-52090 |
| 71875B | Right backrest tilt adjuster inner cover | 71875-52090 |
| 71875F | Right backrest recliner inner cover (for right seat) | 71875-52170 |
| 71875G | Right backrest recliner inner cover (for left seat) | 71875-52170 |
| 71876 | Left backrest tilt adjuster inner cover | 71876-52090 |
| 71876A | Left backrest tilt adjuster inner cover | 71876-52090 |
| 71876F | Left backrest recliner inner cover (for right seat) | 71876-52160 |
| 71876G | Left backrest recliner inner cover (for left seat) | 71876-52160 |
| 72110A | Front right seat outer slide rail assembly | 72110-52020 · 72110-52021 · 72110-52070 · 72110-52090 · 72110-52091 · 72110-52150 |
| 72120 | Front left seat outer slide rail assembly | 72120-52050 · 72120-52051 · 72120-52080 · 72120-52081 · 72120-52150 · 72120-52170 |
| 72129A | No. 2 seat slide rail lower rail ring protective cover | 72129-52030 |
| 72130A | Front right seat inner slide rail assembly | 72130-52100 · 72130-52102 · 72130-52140 · 72130-52142 · 72130-52170 · 72130-52172 · 72130-52230 · 72130-52250 · 72130-52280 |
| 72140A | Front left seat inner slide rail assembly | 72140-52060 · 72140-52062 · 72140-52070 · 72140-52072 · 72140-52140 · 72140-52170 · 72140-52172 · 72140-52260 · 72140-52280 |
| 72147 | Front right seat inner slide rail rear lower bracket | 72147-52020 |
| 72148 | Front left seat inner slide rail rear lower bracket | 72148-52010 |
| 72459 | Seat height adjuster knob cover | 72459-60010 |
| 72477 | Height adjuster spacer | 72477-58010 |
| 72478 | height adjuster bushing | 72478-60010 |
| 72494 | Right height adjuster handle | 72494-52030 |
| 72525A | Right seat back recliner release handle | 72525-58030 |
| 72526A | Left seat back recliner release handle | 72526-58040 |
| 73910A | Front right seat airbag assembly | 73910-52060 · 73910-52150 |
| 73920A | Front left seat airbag assembly | 73920-52060 · 73920-52150 |
| 79977A | Seat back felt pad | 79977-52070 |
