Toyota YARIS 锁芯组件 — Figure 6712

Toyota YARIS EPC diagram 6712, 锁芯组件, with 2 images and 15 PNC and OE references.

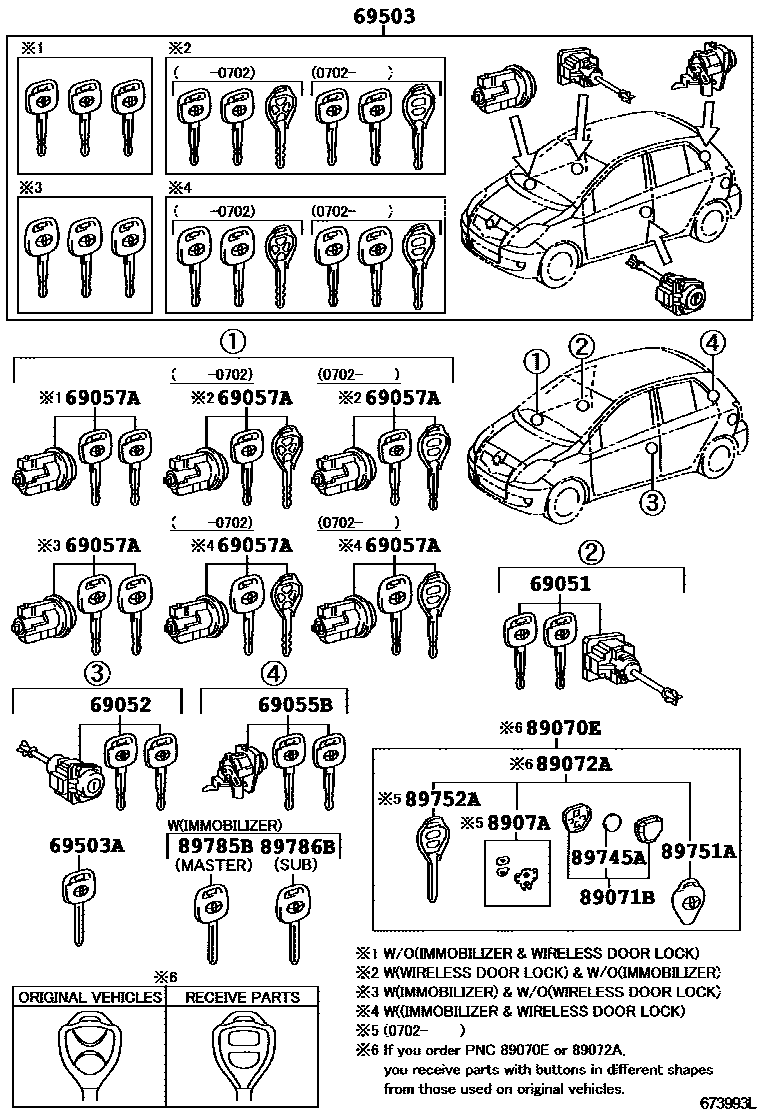

Toyota YARIS 锁芯组件 EPC diagram — 673993L
锁芯组件 — 673993L (200508 – 200808)

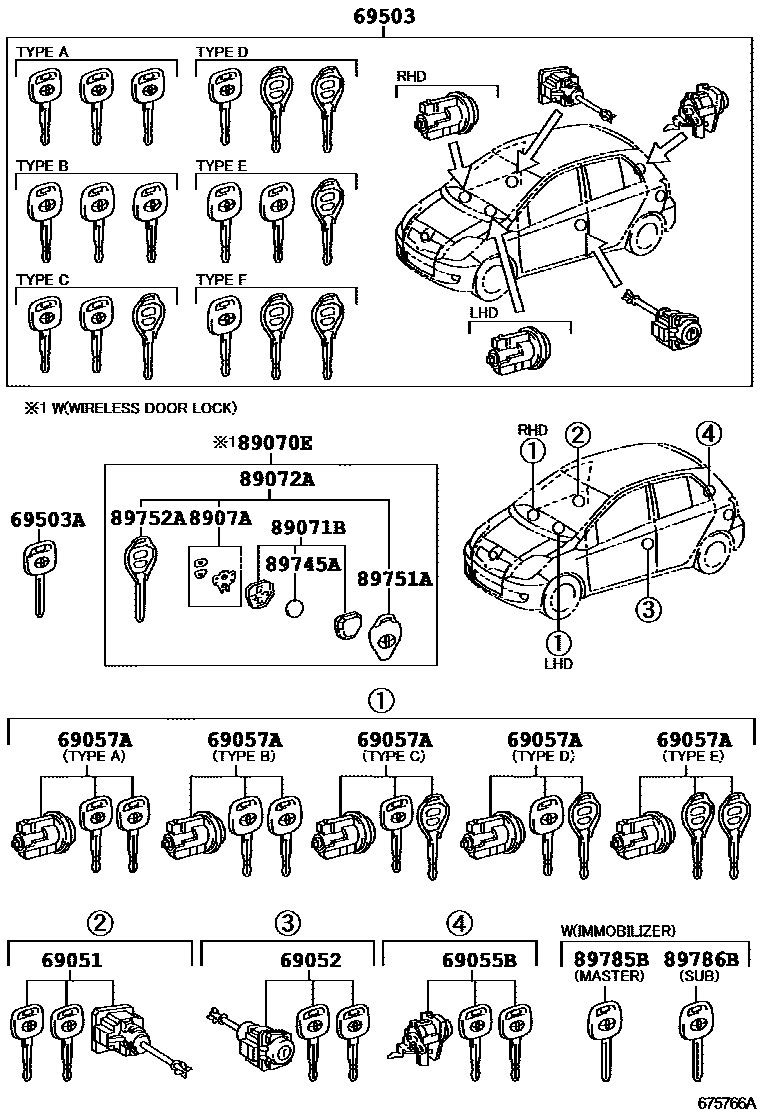

Toyota YARIS 锁芯组件 EPC diagram — 675766A
锁芯组件 — 675766A (200808 – 999999)

PNC and OE references

PNCPart nameOE numbers
69051Right door lock cylinder and key assembly69051-52400 · 69051-52420
69052Left door lock cylinder and key assembly69052-52330
69055BRear door lock cylinder and key assembly69055-52450
69057AIgnition switch lock cylinder and key assembly69057-12730 · 69057-12750 · 69057-28370 · 69057-52510 · 69057-52520 · 69057-52530 · 69057-52610 · 69057-52611
69503Door lock cylinder components69005-52A50 · 69005-52A60 · 69005-52A61 · 69005-52A90 · 69005-52B40 · 69005-52B41 · 69005-52G30 · 69005-52G40
69503Aexternal tooth key90999-00199
89070ERemote key assembly89070-52750 · 89070-52751 · 89070-52752 · 89070-52760 · 89070-52761 · 89070-52770 · 89070-52771 · 89070-52790 · 89070-52791 · 89070-52792 · 89070-52A50 · 89070-52B50 · 89070-52E40
89071BRemote key sub-assembly module assembly89071-52100 · 89071-52140 · 89071-71010 · 89071-71050 · 89071-71051 · 89071-71060 · 89071-71080
89072ARemote key shell assembly89072-52420 · 89072-52470 · 89072-52720 · 89072-52760
8907ATransmitter switch assembly8907A-71010
89745ATransmitter battery89745-71010
89751ATransmitter housing cover89751-52120 · 89751-52140 · 89751-52200 · 89751-52220
89752Atransmitter housing89752-12080 · 89752-28050
89785Btransceiver key master transmitter89785-60160
89786Btransceiver key secondary transmitter89786-60170
