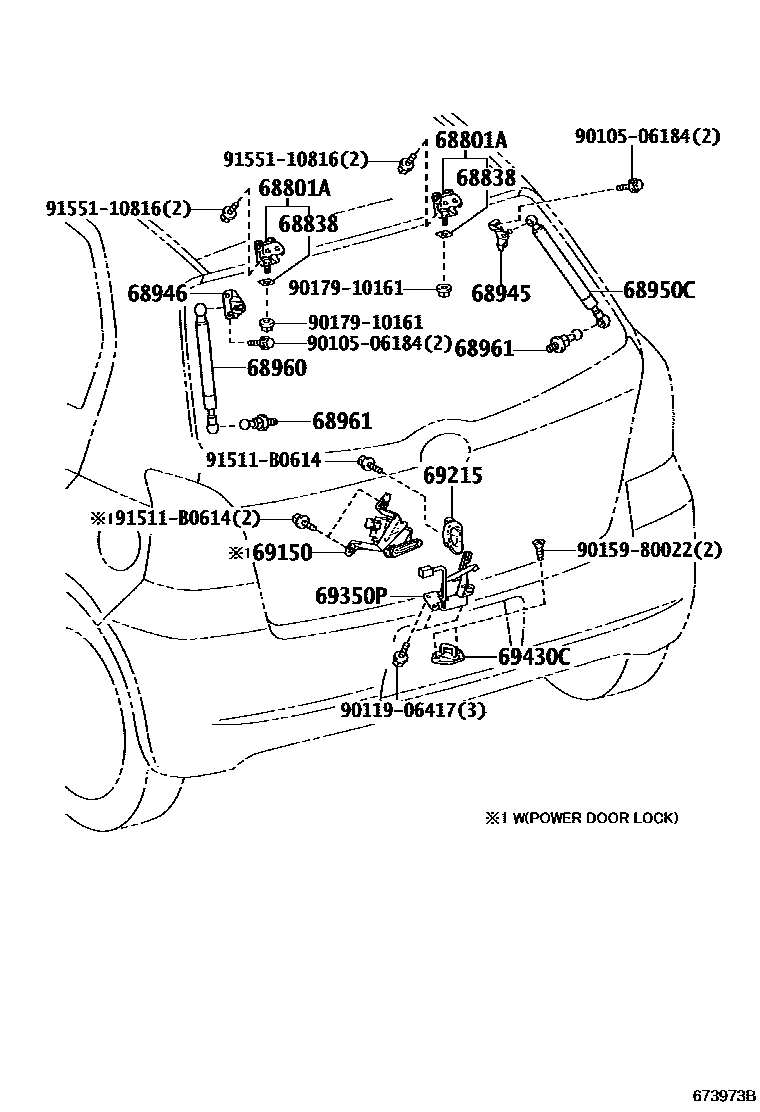

Toyota YARIS 背门锁和背门把手 — Figure 6709
Toyota YARIS EPC diagram 6709, 背门锁和背门把手, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 68801A | Back door upper hinge sub-assembly | 68801-52010 |
| 68838 | Back door hinge No. 1 gasket | 68838-10020 · 68838-52010 |
| 68945 | Back door right damping stay upper bracket | 68945-52050 |
| 68946 | Rear door left damping strut upper bracket | 68945-52050 |
| 68950C | Back door right support rod assembly | 68950-0D020 · 68950-0D021 · 68950-0D022 |
| 68960 | Back door left support rod assembly | 68960-0D010 · 68960-0D011 · 68960-0D012 |
| 68961 | Rear door support rod bolts | 68961-10030 |
| 69150 | Rear door lock actuator assembly | 69150-52070 |
| 69215 | Back door outer handle | 69215-52060 |
| 69350P | Back door with door control light switch lock assembly | 69350-52260 · 69350-52261 |
| 69430C | Back door lock assembly | 69430-20160 |
