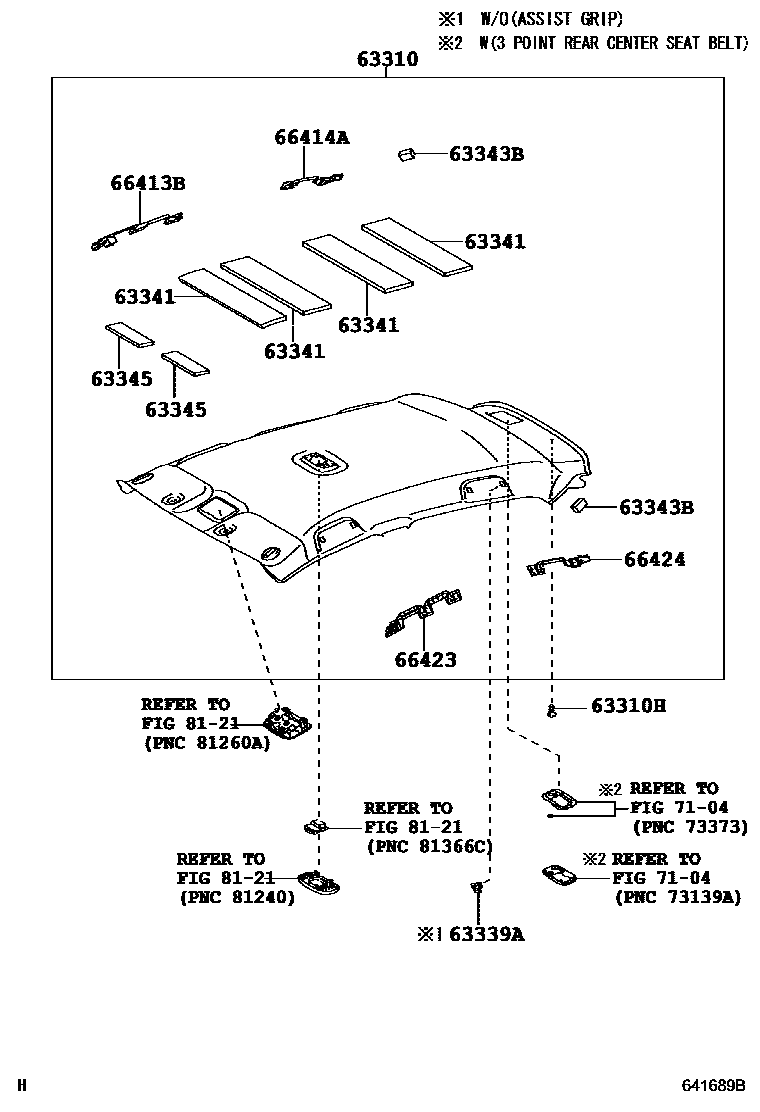

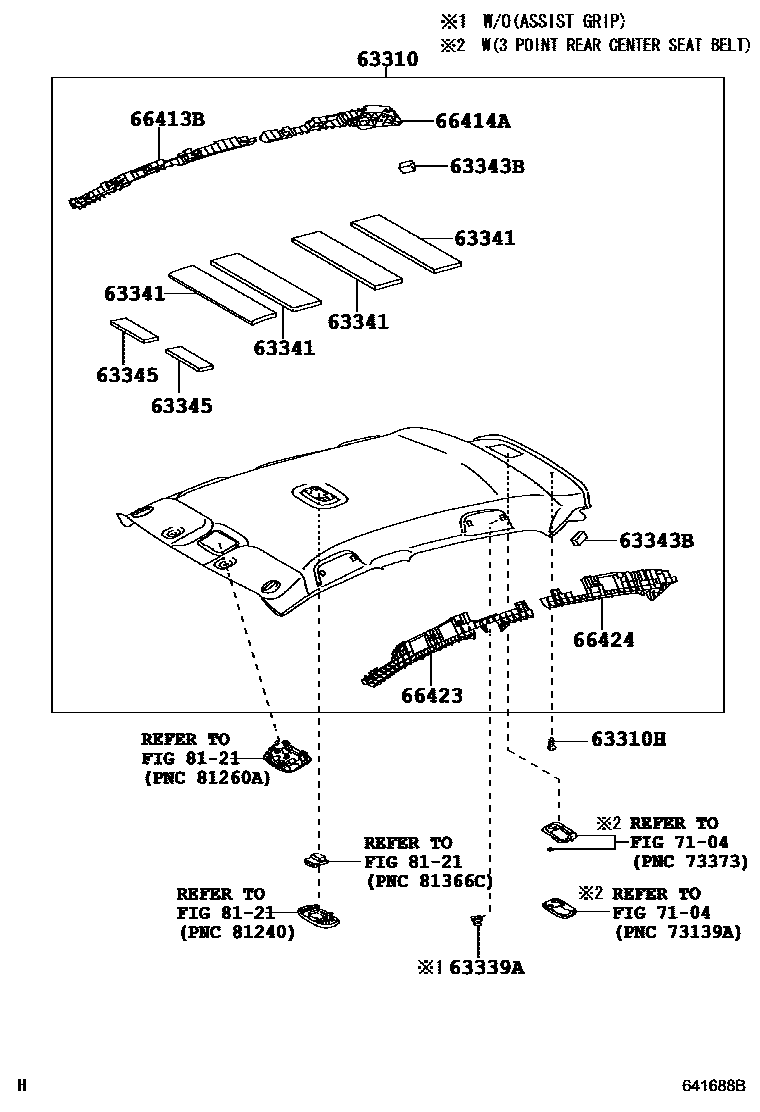

Toyota YARIS 车顶内衬和消声垫 — Figure 6402
Toyota YARIS EPC diagram 6402, 车顶内衬和消声垫, with 2 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63341 | No. 1 roof silencer mat | 63341-52150 |
| 63343B | Rear roof silencer pad | 63343-52040 |
| 63345 | No. 5 roof silencer mat | 63345-52030 |
| 66413B | Right front longitudinal member spacer | 66413-52160 · 66413-52180 · 66413-52190 |
| 66414A | Right rear longitudinal member spacer | 66414-52190 · 66414-52200 · 66414-52210 |
| 66423 | Left front longitudinal member spacer | 66423-52170 · 66423-52180 · 66423-52190 |
| 66424 | Left rear longitudinal member spacer | 66424-52180 · 66424-52190 · 66424-52200 |
