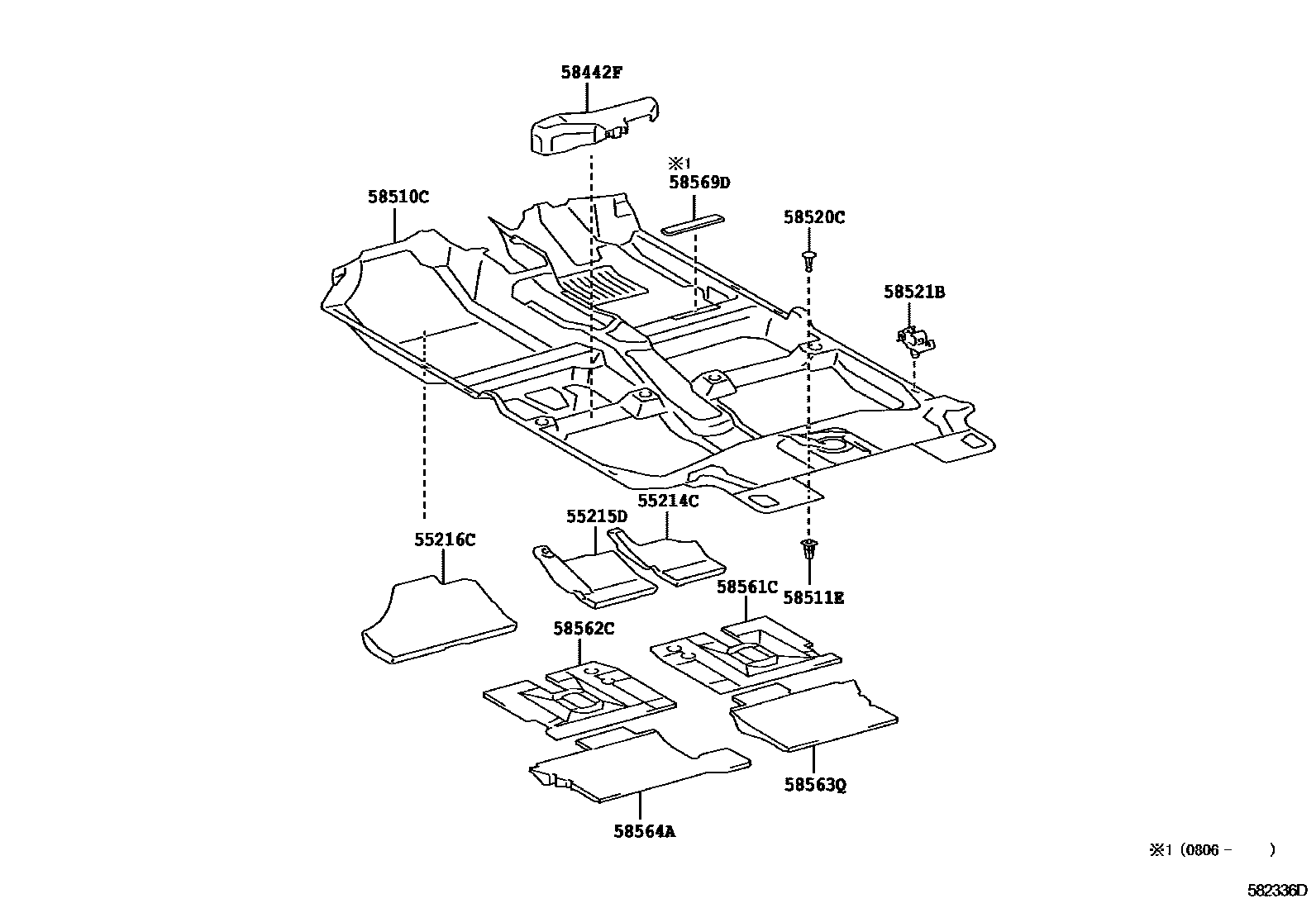

Toyota YARIS 地板垫和地毯 — Figure 5804
Toyota YARIS EPC diagram 5804, 地板垫和地毯, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55214C | No. 2 insulation pad for front wall panel | 55214-52130 · 55214-52140 |
| 55215D | No. 3 insulation pad for front wall panel | 55215-52100 · 55215-52101 · 55215-52110 |
| 55216C | No. 4 heat insulation pad for front wall | 55216-52010 · 55216-52020 · 55216-52021 |
| 58442F | jack cover | 58442-52060 |
| 58511E | Clip (for front floor mat) | 90467-10023 |
| 58521B | carpet hook | 58521-52040 |
| 58561C | Front floor silencer No. 1 | 58561-52130 |
| 58562C | Front floor silencer No. 2 | 58562-52090 |
| 58563Q | Front floor silencer No. 3 | 58563-52070 |
| 58564A | Front floor silencer No. 4 | 58564-52080 |
