Toyota YARIS 前围板和挡风玻璃 — Figure 5503

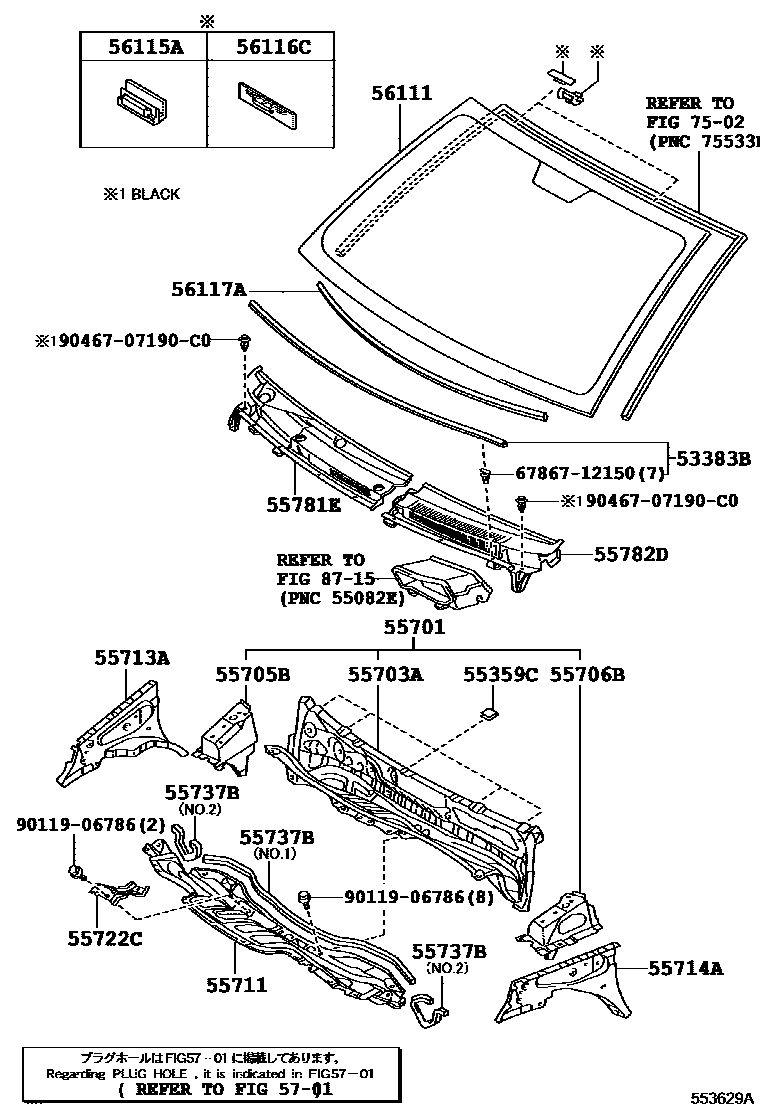

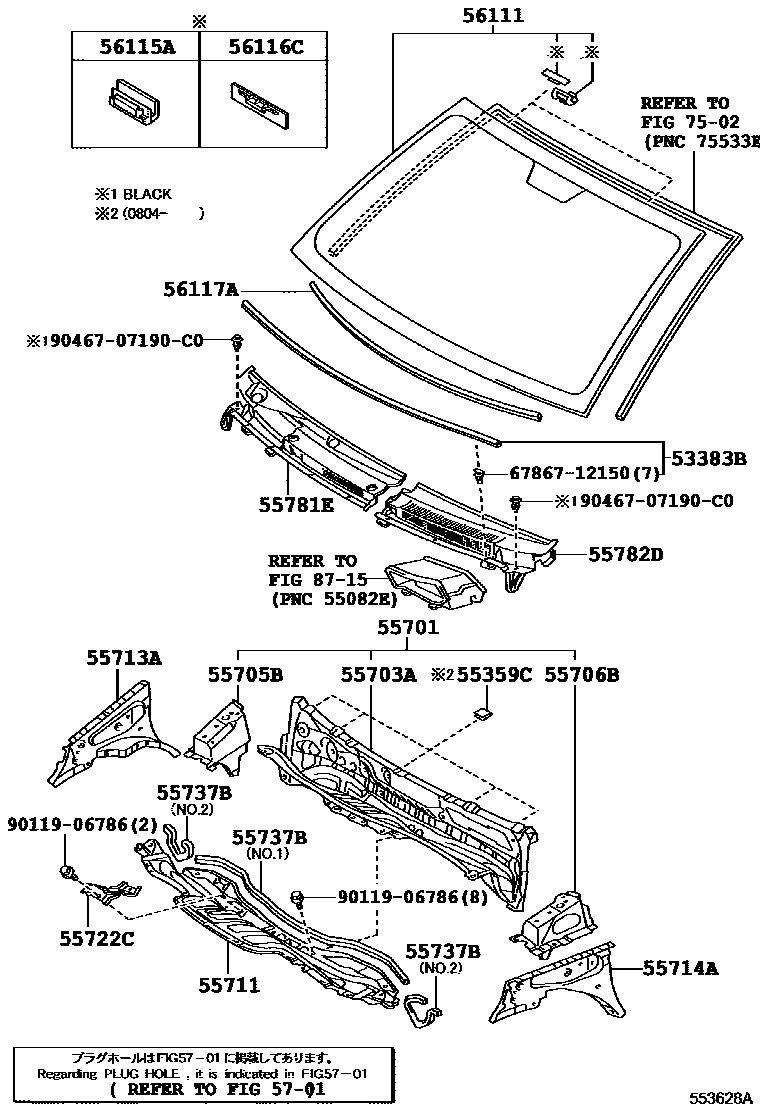

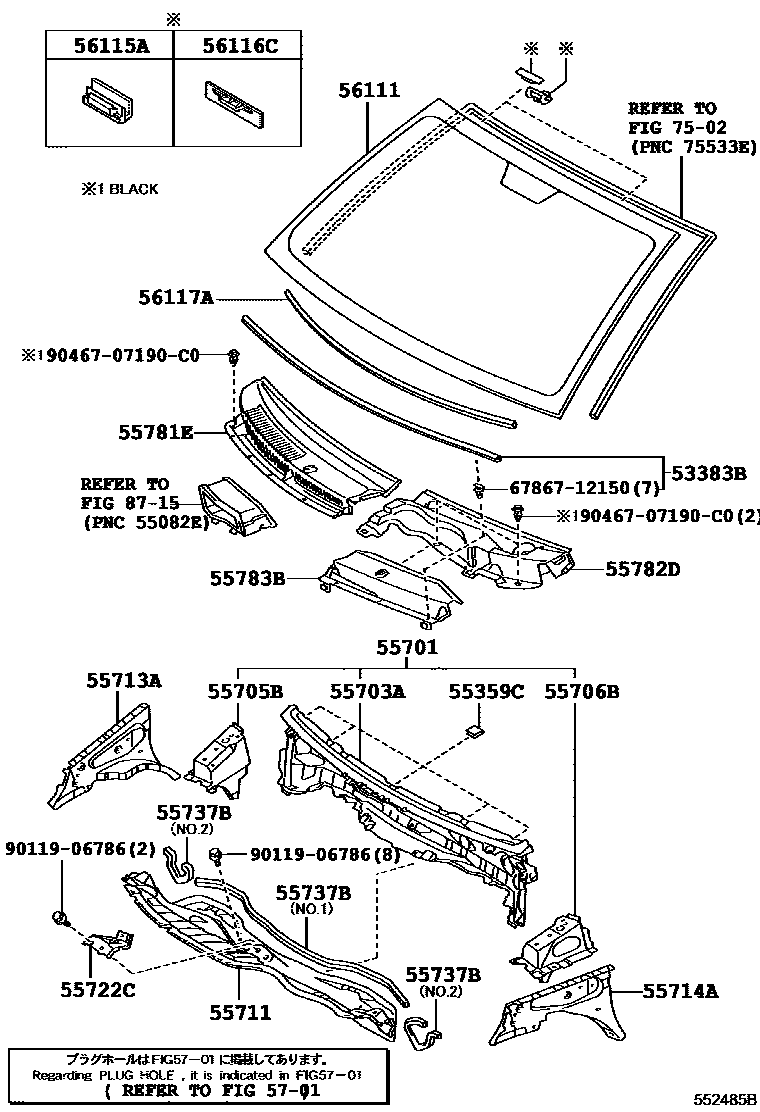

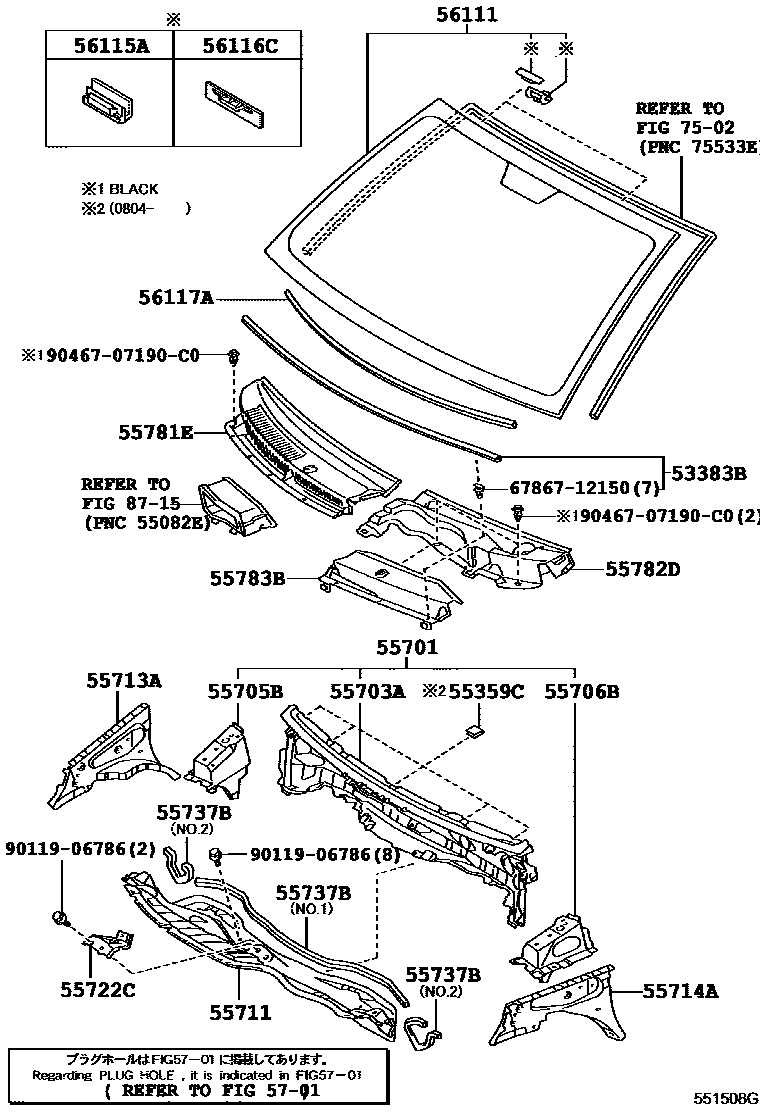

Toyota YARIS EPC diagram 5503, 前围板和挡风玻璃, with 4 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53383B | Engine cover to cowl upper cover seal | 53383-52050 |
| 55359C | Dashboard No. 5 Cushion Pad | 55359-52160 · 55359-52170 |
| 55701 | Front apron sub-assembly | 55700-52180 · 55700-52190 · 55700-52200 |
| 55703A | Front wall upper inner panel sub-assembly | 55703-52090 · 55703-52170 · 55703-52180 |
| 55705B | Right front wall upper side panel sub-assembly | 55705-52090 |
| 55706B | Left front wall upper side panel sub-assembly | 55706-52090 |
| 55711 | Front outer panel | 55701-52160 · 55701-52170 |
| 55713A | Right front wall upper side panel | 55713-52090 |
| 55714A | Left front wall upper side panel | 55714-52090 |
| 55722C | From the cowl upper cover to the cowl inner bracket | 55722-52020 · 55722-52030 |
| 55737B | Heater duct splash guard seal No. 1 | 55737-52010 · 55737-52050 |
| 55781E | Ventilation grille sub-assembly on front apron | 55708-52040 · 55708-52050 |
| 55782D | Ventilation grille on left front apron | 55709-52040 · 55709-52050 |
| 55783B | Ventilation grille on center cowl No. 1 | 55783-52180 |
| 56111 | windshield | 56101-52240 · 56101-52260 · 56101-52490 · 56101-52491 · 56101-52560 · 56101-52922 · 56101-52924 |
| 56115A | Windshield block No. 1 | 56115-30100 |
| 56116C | Windshield block 2 | 56116-22050 |
| 56117A | Window glass adhesive seals | 56117-52130 |
