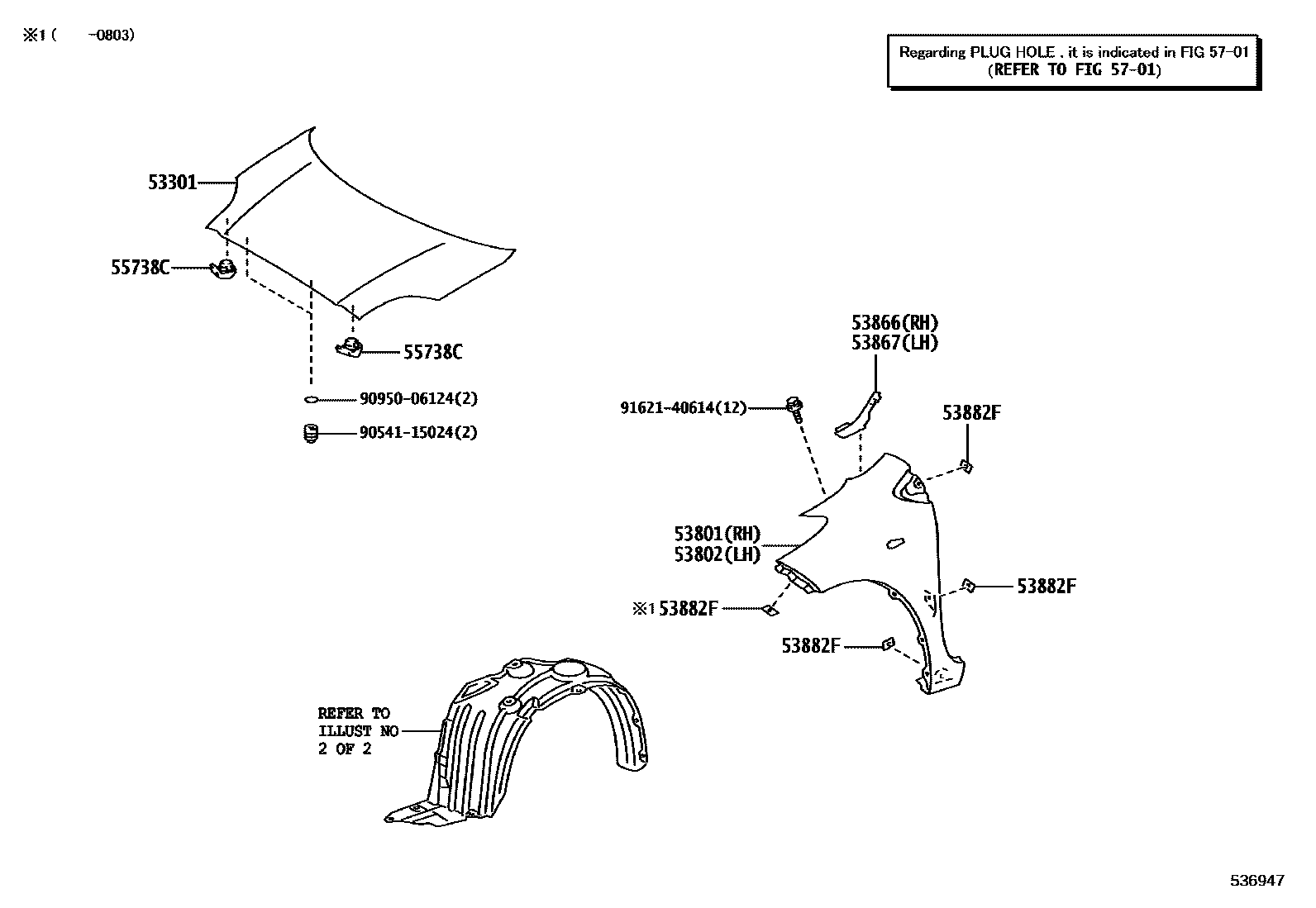

Toyota YARIS 发动机盖和前翼子板 — Figure 5302
Toyota YARIS EPC diagram 5302, 发动机盖和前翼子板, with 2 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53301 | Engine cover sub-assembly | 53301-52230 |
| 53801 | Right front fender sub-assembly | 53811-52210 · 53811-52410 |
| 53802 | Left front fender sub-assembly | 53812-52210 · 53812-52380 |
| 53851C | No. 1 front fender outer panel pad | 53851-52120 |
| 53852B | Left front fender exterior panel pad | 53852-52140 |
| 53866 | Right front fender to cowl side seal | 53866-52080 |
| 53867 | Left front fender to cowl side seal | 53867-52080 |
| 53875A | Right front fender lining | 53875-52140 · 53875-52141 |
| 53875C | Front fender lining clip | 90467-05114 |
| 53875P | Screw No. 1 | 90159-60590 |
| 53876A | Left front fender lining | 53876-52140 · 53876-52141 |
| 53879A | Front fender lining fixing parts | 53879-52040 |
| 53882F | front fender seal | 53882-16030 |
| 55738C | Engine cover right block | 55738-52050 · 55738-52060 |
