Toyota YARIS Rear Spring & Shock Absorber — Figure 4804

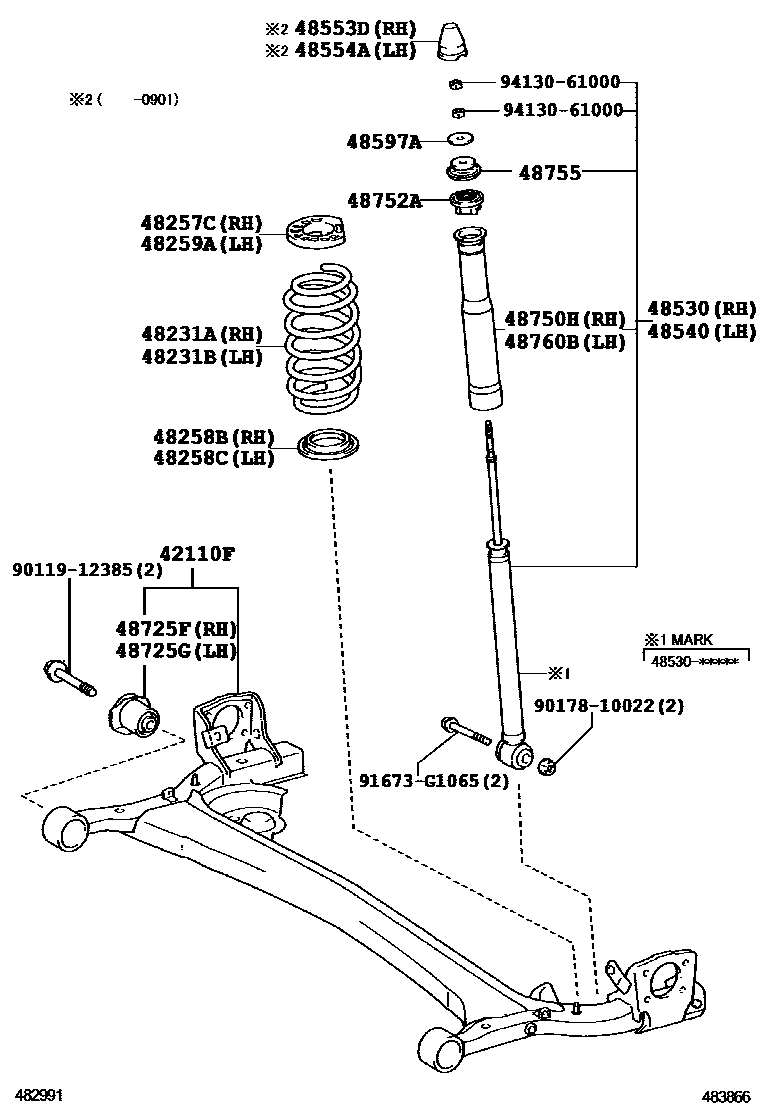

Toyota YARIS EPC diagram 4804, Rear Spring & Shock Absorber, with 1 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42110F | rear axle assembly | 42110-52250 · 42110-52260 · 42110-52331 · 42110-52332 · 42110-52351 · 42110-52352 |
| 48231A | Right rear coil spring | 48231-52A20 · 48231-52A30 · 48231-52A40 |
| 48231B | Left rear coil spring | 48231-52A20 · 48231-52A30 · 48231-52A40 |
| 48257C | Right rear coil spring upper vibration isolation pad | 48257-52010 |
| 48258B | Right rear coil spring lower vibration isolation pad | 48258-52030 |
| 48258C | Left rear coil spring lower vibration isolation pad | 48258-52030 |
| 48259A | Left rear coil spring upper vibration isolation pad | 48257-52010 |
| 48530 | Right rear shock absorber assembly | 48530-80283 · 48530-80384 |
| 48540 | Left rear shock absorber assembly | 48530-80283 · 48530-80384 |
| 48553D | Right rear shock absorber cover | 48553-52010 |
| 48554A | Left rear shock absorber cover | 48553-52010 |
| 48597A | Rear shock absorber buffer pad | 90201-10320 |
| 48725F | Right rear axle bracket bushing | 48725-52060 |
| 48725G | Left rear axle bracket bushing | 48725-52060 |
| 48750H | Right rear suspension support assembly | 48750-52100 · 48750-52160 |
| 48752A | Rear suspension mount block | 48752-52010 |
| 48755 | rear suspension mount | 48755-52010 |
| 48760B | Left rear suspension support assembly | 48750-52100 · 48750-52160 |
