Toyota YARIS Front Spring & Shock Absorber — Figure 4803

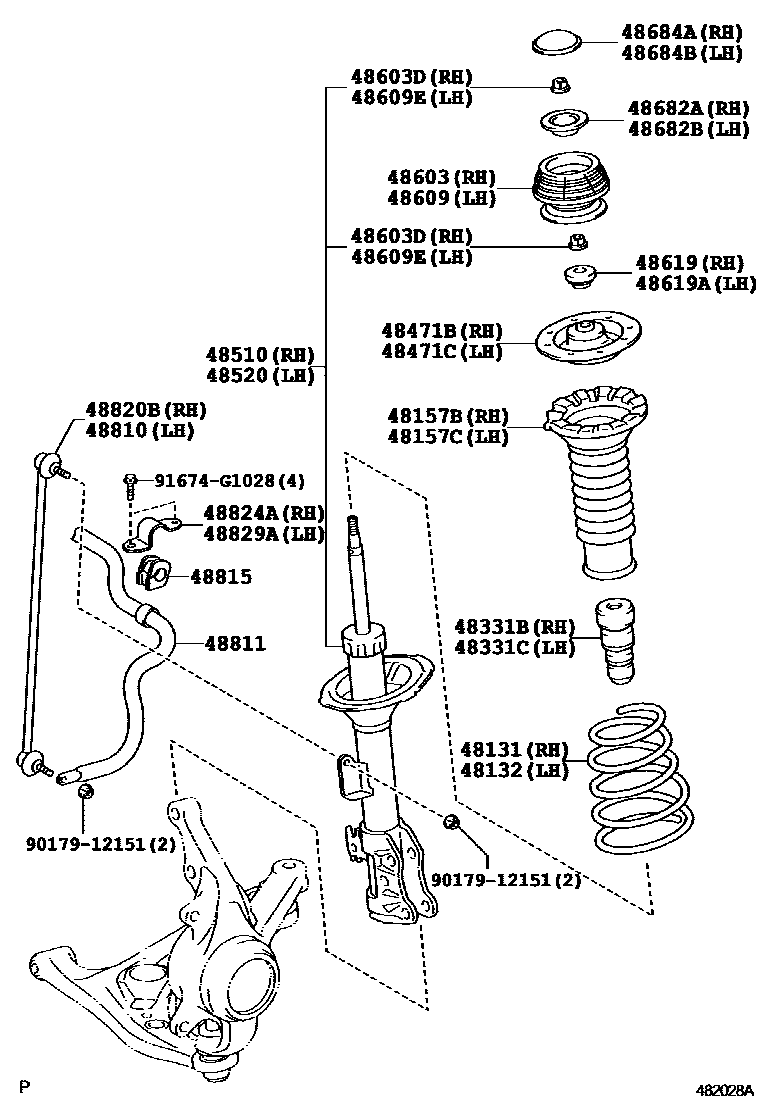

Toyota YARIS EPC diagram 4803, Front Spring & Shock Absorber, with 1 images and 26 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 48131 | Right front coil spring | 48131-52A40 · 48131-52A90 |
| 48132 | Left front coil spring | 48131-52A40 · 48131-52A90 |
| 48157B | Front coil spring upper right vibration isolation pad | 48157-52030 |
| 48157C | Front coil spring upper left vibration isolation pad | 48157-52030 |
| 48331B | Right front spring buffer block | 48331-52080 |
| 48331C | Left front spring buffer block | 48331-52080 |
| 48471B | Front coil spring upper right seat | 48471-52030 |
| 48471C | Front coil spring upper left seat | 48471-52030 |
| 48510 | Right front shock absorber assembly | 48510-80190 |
| 48520 | Left front shock absorber assembly | 48520-59135 |
| 48603 | Right front suspension bearing sub-assembly | 48609-52100 |
| 48603D | Nut (for front mount to right front shock absorber) | 90179-12145 |
| 48609 | Left front suspension bearing sub-assembly | 48609-52100 |
| 48609E | Nut (for front mount to left front shock absorber) | 90179-12145 |
| 48619 | Bearing installed on the right sliding column | 48619-0D010 · 48619-0D011 |
| 48619A | Bearing installed on the left sliding column | 48619-0D010 · 48619-0D011 |
| 48682A | No. 2 right front suspension support | 48682-52040 |
| 48682B | No. 2 left front suspension support | 48682-52040 |
| 48684A | Right front suspension support dust cover | 48684-52020 |
| 48684B | Left front suspension support dust cover | 48684-52020 |
| 48810 | Left front stabilizer bar link assembly | 48820-52030 |
| 48811 | front stabilizer bar | 48811-52170 |
| 48815 | Front stabilizer bar bushing No. 1 | 48815-52090 |
| 48820B | Right front stabilizer bar link assembly | 48820-52030 |
| 48824A | Right front stabilizer bar bracket No. 1 | 48824-52060 |
| 48829A | Left front stabilizer bar bracket No. 1 | 48824-52060 |
