Toyota YARIS Brake Pedal & Bracket — Figure 4701

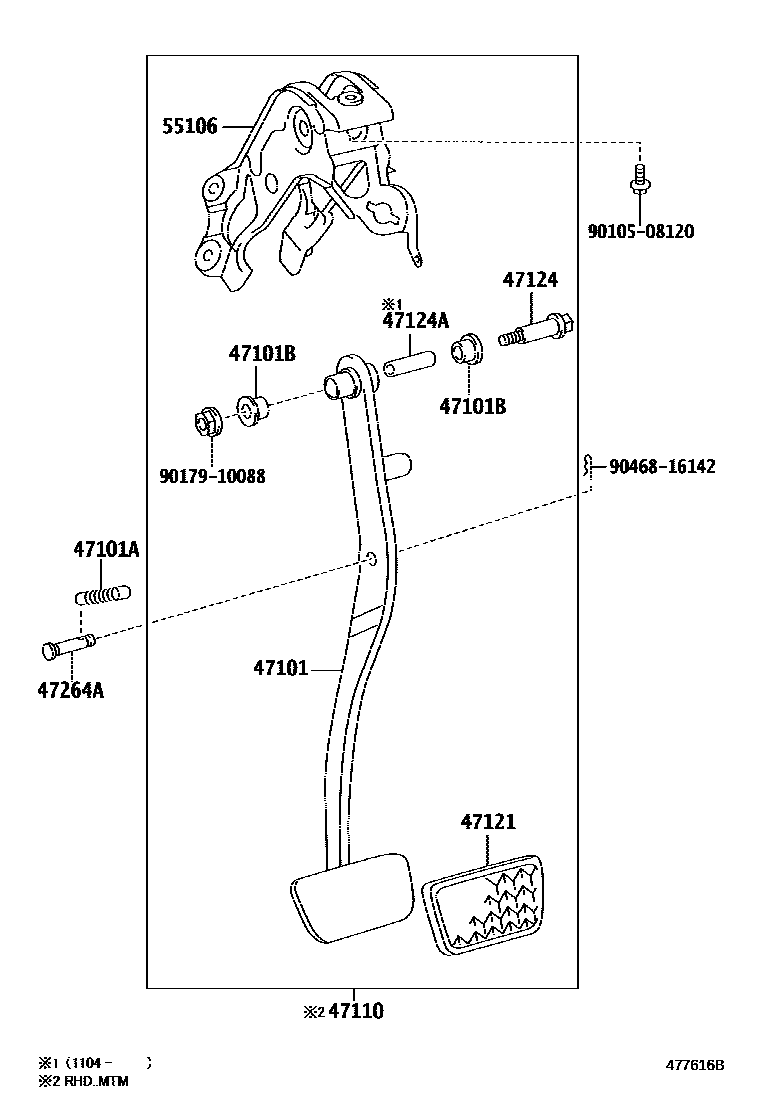

Toyota YARIS EPC diagram 4701, Brake Pedal & Bracket, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 47101 | Brake pedal sub-assembly | 47101-52240 · 47101-52250 · 47101-52260 · 47101-52270 |
| 47101A | Spring (for brake pedal return) | 90506-14077 |
| 47101B | Bushing (for brake pedal) | 90386-13015 |
| 47110 | Brake pedal bracket assembly | 47110-52260 |
| 47121 | brake pedal pad | 31321-52010 · 47121-52010 |
| 47124 | brake pedal shaft | 90105-10444 · 90109-10167 |
| 47124A | Collar (for brake pedal shaft) | 90387-10003 |
| 47264A | Pin (for push rod) | 90249-08051 |
| 55106 | Brake pedal bracket sub-assembly | 55106-52130 · 55106-52131 · 55106-52160 · 55106-52161 · 55106-52170 · 55106-52171 |
