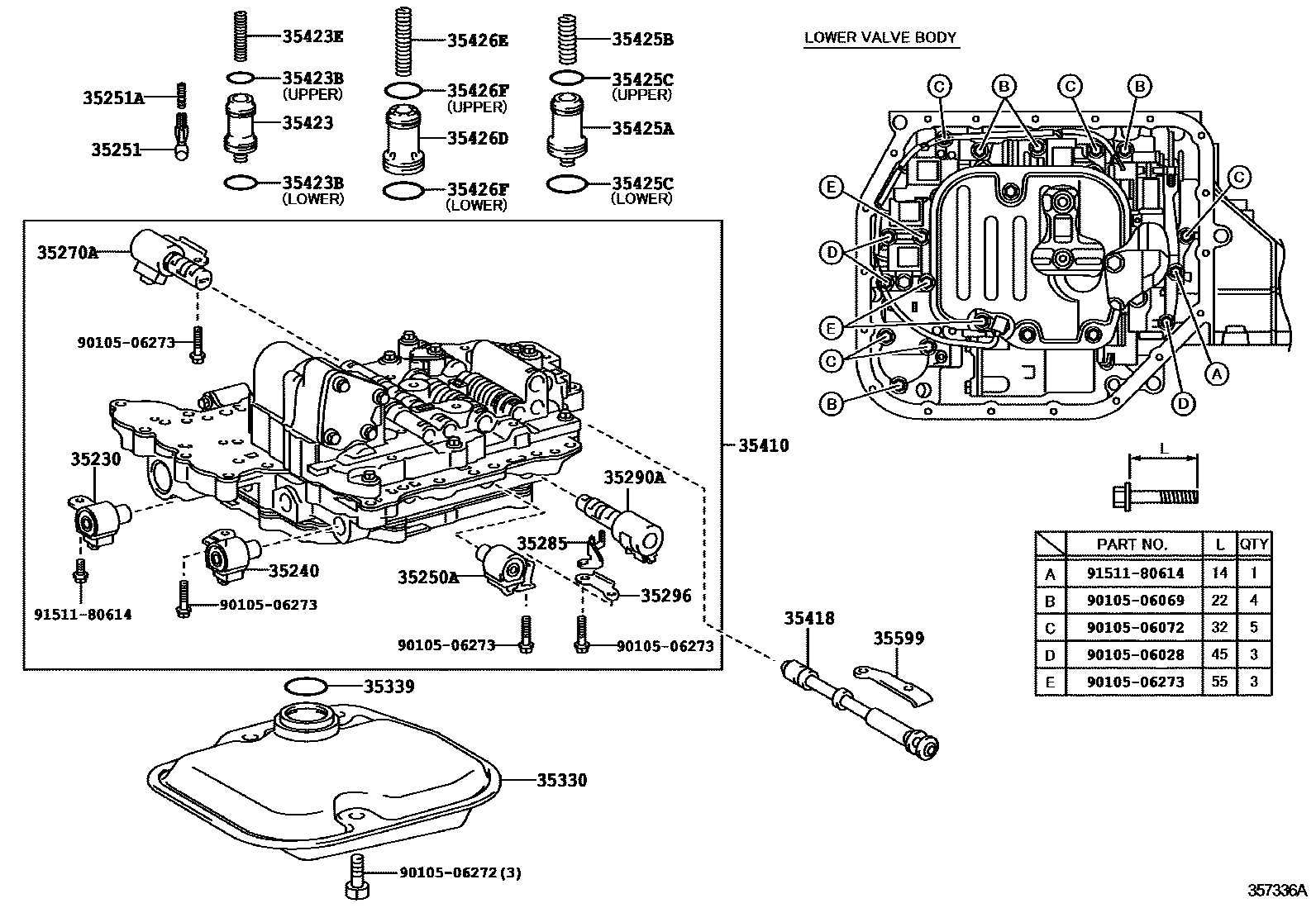

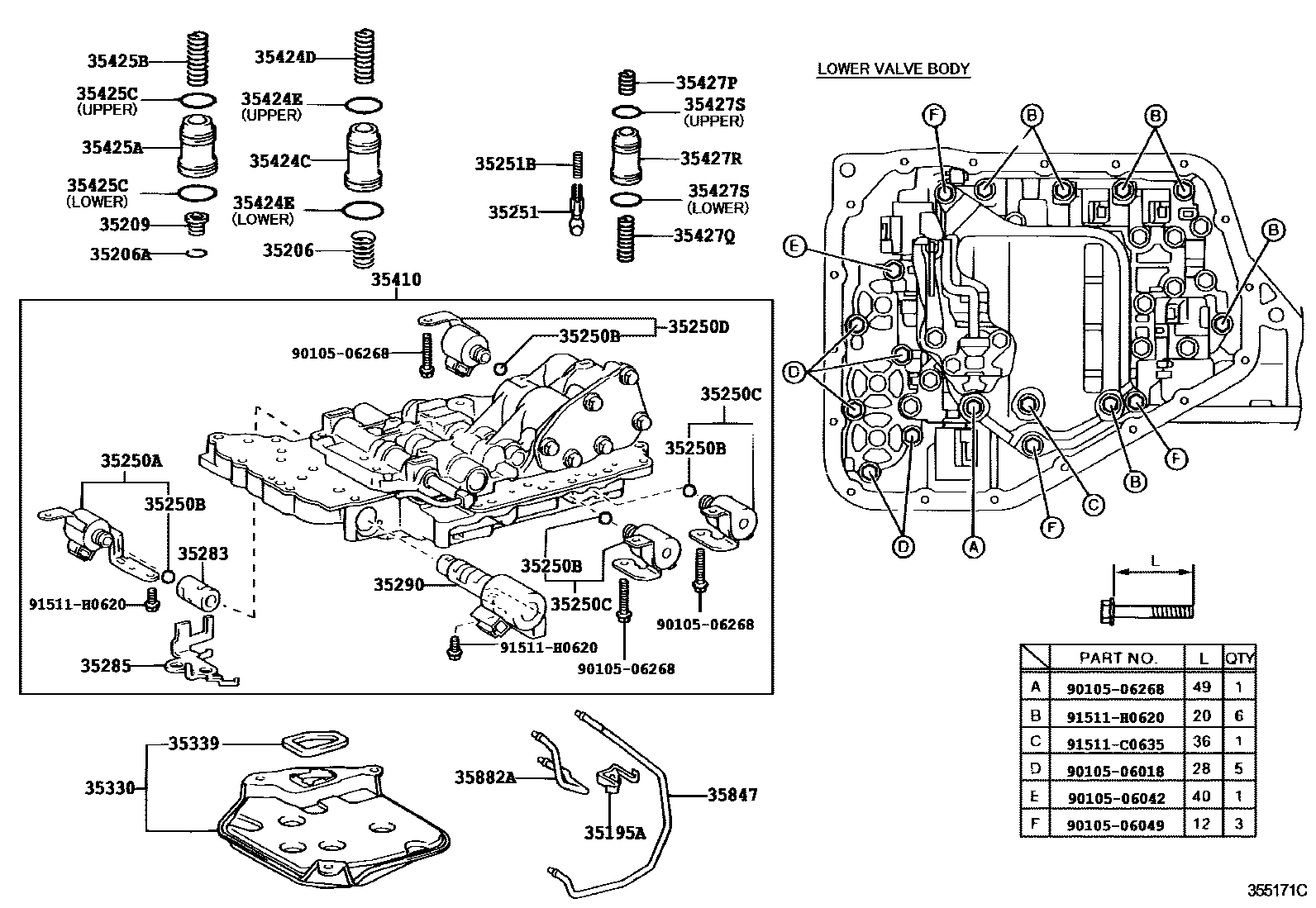

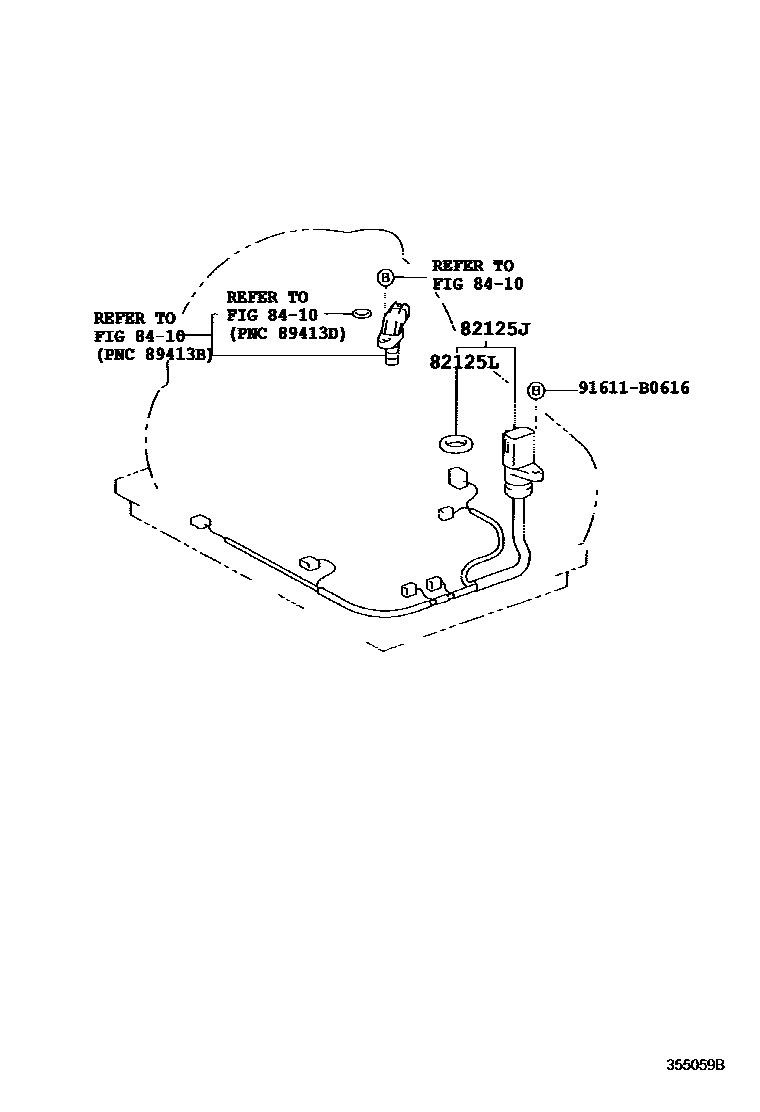

Toyota YARIS 阀体和滤油网(ATM) — Figure 3512
Toyota YARIS EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 45 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35195A | No. 1 transmission axle fuel supply pipe clamp | 35195-52010 |
| 35206 | C-1 Accumulator spring sub-assembly | 90905-01083 |
| 35206A | Hole snap ring (for C-1 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-52010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-52020 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-52050 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-52060 · 35250-52070 · 35250-52080 |
| 35250B | No. 3 O-ring (for transmission solenoid valve) | 90301-06004 |
| 35250C | No. 1 transmission solenoid valve assembly | 35250-52020 |
| 35250D | No. 2 transmission solenoid valve assembly | 35250-52050 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90501-03005 |
| 35251B | Compression spring (for ball check valve body) | 90501-03005 |
| 35270A | Transmission three-way lock solenoid valve assembly | 35270-52011 |
| 35283 | Lock control solenoid valve sleeve | 35283-52010 |
| 35285 | Solenoid valve lock plate | 35285-52010 · 35285-52030 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-52010 |
| 35290A | Pipe pressure control solenoid valve assembly | 35290-52040 |
| 35296 | No. 3 solenoid valve locking plate | 35296-12010 |
| 35330 | Valve body oil filter assembly | 35330-0W020 · 35330-52010 |
| 35339 | Oil filter gasket | 35339-52010 · 90301-32010 |
| 35410 | Transmission valve body assembly | 35410-52030 · 35410-52140 · 35410-52141 |
| 35418 | Manual valve | 35418-52020 |
| 35423 | B-2 Accumulator Piston | 35403-52020 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-20010 · 90301-29011 |
| 35423E | Compression spring (for B-2 accumulator piston) | 90501-20158 |
| 35424C | C-1 Accumulator Piston | 35424-52010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-22046 |
| 35424E | O-ring (for C-1 accumulator piston) | 90301-21011 · 90301-29012 |
| 35425A | C-2 Accumulator Piston | 35405-52020 · 35425-52010 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22042 · 90501-24036 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-21011 · 90301-22010 · 90301-29012 · 90301-35004 |
| 35426D | C-3 Accumulator Piston | 35426-52020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-25057 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-24016 · 90301-29011 |
| 35427P | No. 1 compression spring (for B-1 accumulator piston) | 90501-16165 |
| 35427Q | No. 2 compression spring (for B-1 accumulator piston) | 90501-21029 |
| 35427R | B-1 Accumulator Piston | 35427-52010 |
| 35427S | O-ring (for B-1 accumulator piston) | 90301-19016 · 90301-29012 |
| 35482B | temperature sensor clip | 35482-52020 |
| 35599 | Manual locking spring cover | 35599-52010 |
| 35847 | Transmission lubricant supply pipe | 35847-52010 |
| 35882A | Differential gear lubricant oil supply pipe | 35882-52010 |
| 82125J | Transmission wiring harness | 82125-52020 · 82125-52080 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 |
