Toyota YARIS RADIATOR & WATER OUTLET — Figure 1603

Toyota YARIS EPC diagram 1603, RADIATOR & WATER OUTLET, with 2 images and 32 PNC and OE references.

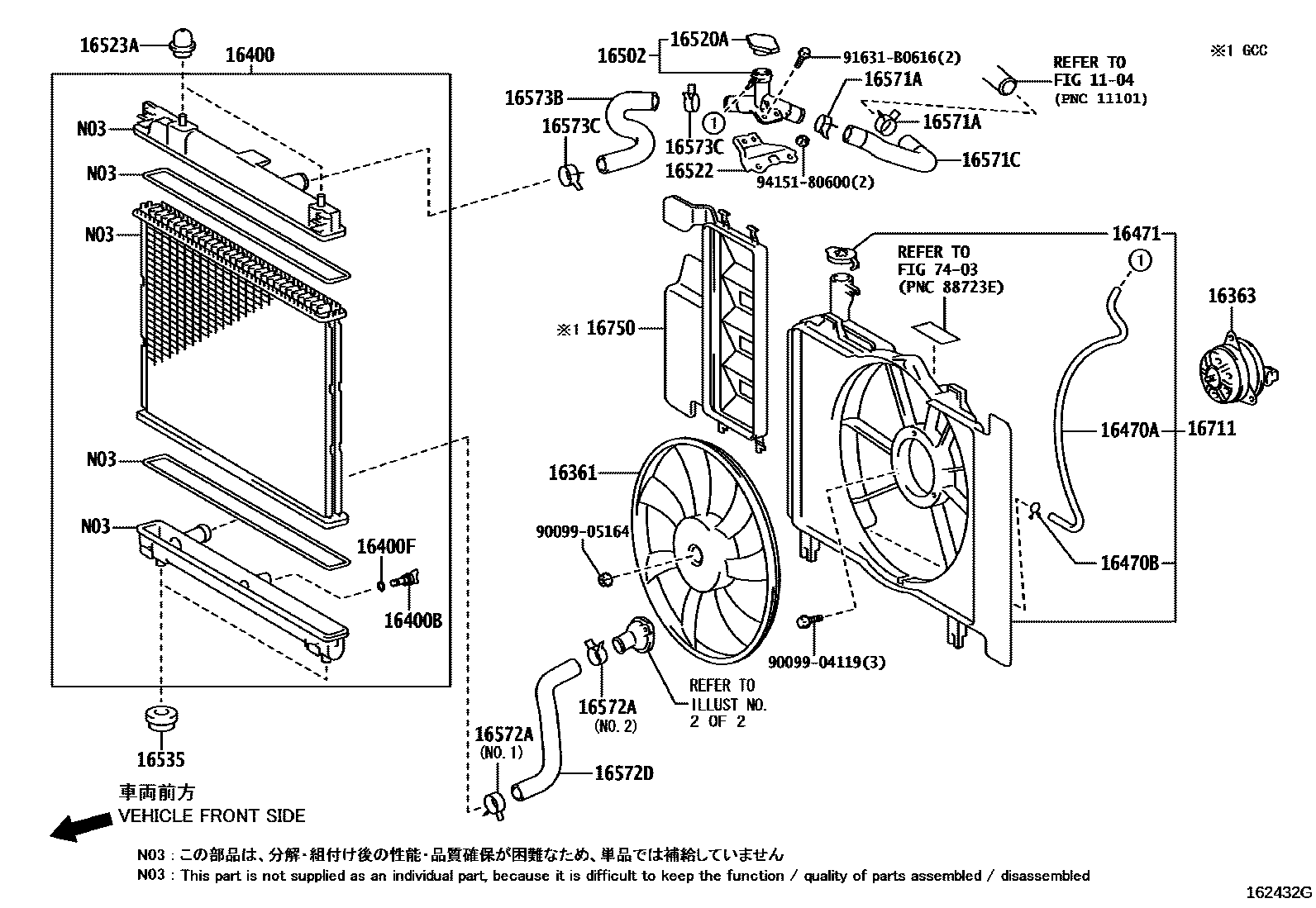

Toyota YARIS RADIATOR & WATER OUTLET EPC diagram — 162432G
RADIATOR & WATER OUTLET — 162432G (200508 – 999999)

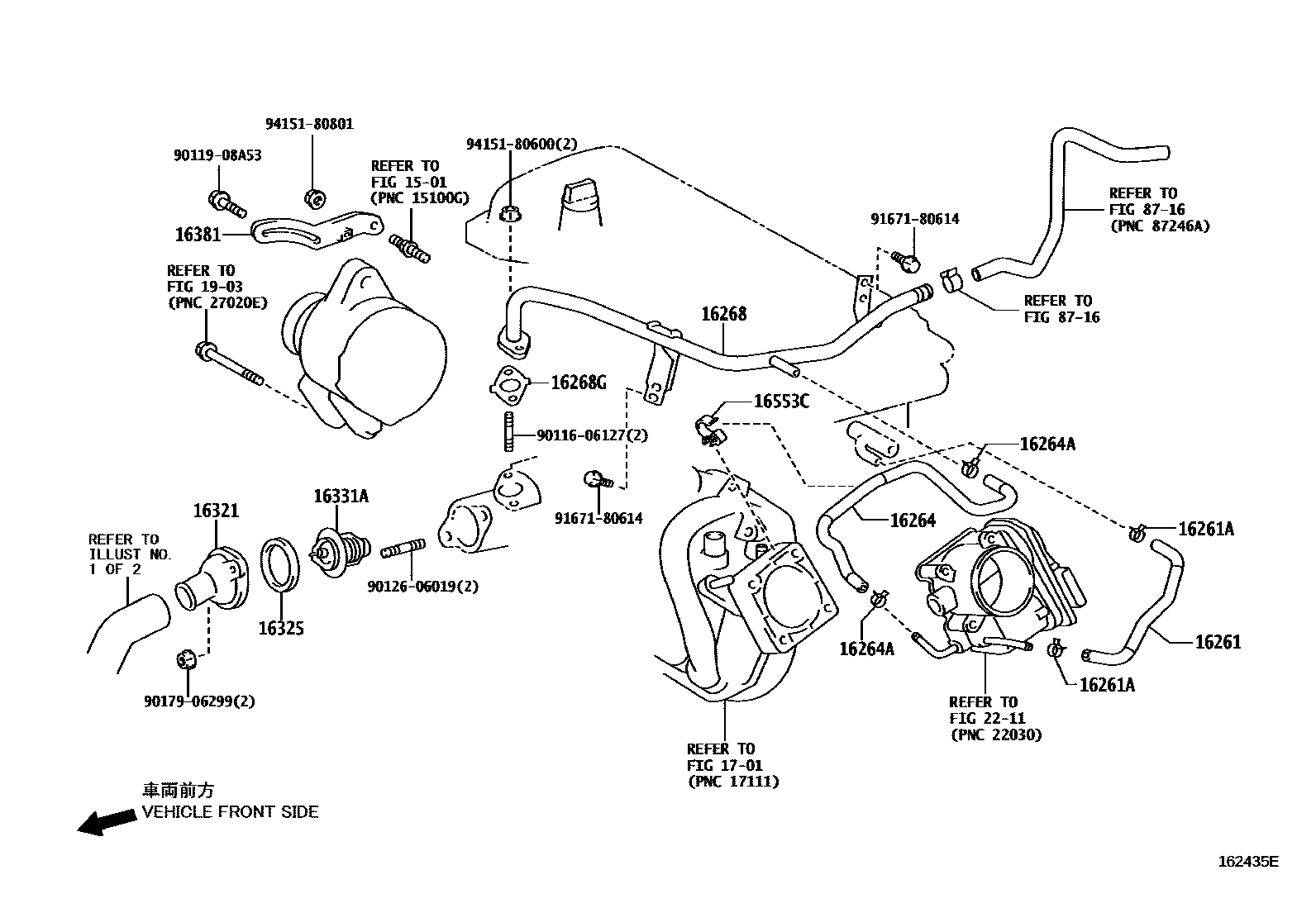

Toyota YARIS RADIATOR & WATER OUTLET EPC diagram — 162435E
RADIATOR & WATER OUTLET — 162435E (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
16261HOSE, WATER BY-PASS16261-21090
16261ACLAMP OR CLIP, WATER BY-PASS HOSE90467-13054
16264HOSE, WATER BY-PASS, NO.216264-21070
16264ACLAMP OR CLIP, WATER BY-PASS HOSE NO.290467-13054
16268PIPE, WATER BY-PASS, NO.116268-21022
16268GGasket (for water bypass pipe)16258-21020 · 16258-21021
16321water inlet16321-21020
16325GASKET, WATER INLET HOUSING, NO.116325-62010
16331Athermostat90916-03093
16361Fan16361-21090 · 16361-21100
16363cooling fan motor16363-28150 · 16363-28160
16381Fan belt adjustment lever16381-21020 · 16381-21030
16400Radiator assembly16400-21260 · 16400-21270 · 16400-21300 · 16400-21310
16400BRadiator drain switch screw plug16417-21280
16400FSeal (for radiator drain switch)16492-21050
16470AHoses or tubes (for radiator reservoir)16377-21200
16470BClip or clip (for radiator reservoir hose)90467-11085
16471Liquid storage tank cover sub-assembly16471-23030
16502Water injection port sub-assembly16502-21060
16520AWater injection port cover sub-assembly16401-31480 · 16401-62100
16522Water injection port bracket16522-21010
16523ARadiator bracket cushion16523-21030
16535Radiator lower support90480-22025
16553Chose clamp16581-21010
16571AHose clamp or clip (for radiator water inlet)90467-33006
16571CRadiator hose No. 116571-21120
16572AHose clamp or clip (for radiator outlet No. 1)90467-33006 · 90467-34004
16572DRadiator hose No. 216572-21090
16573BRadiator hose No. 316573-21040 · 16573-21060
16573CNo. 3 radiator hose clamp or clip90467-33006
16711fan cover16711-21110
16750Fan cover ventilation duct assembly16750-21020
