Toyota YARIS Crankshaft & Piston — Figure 1301

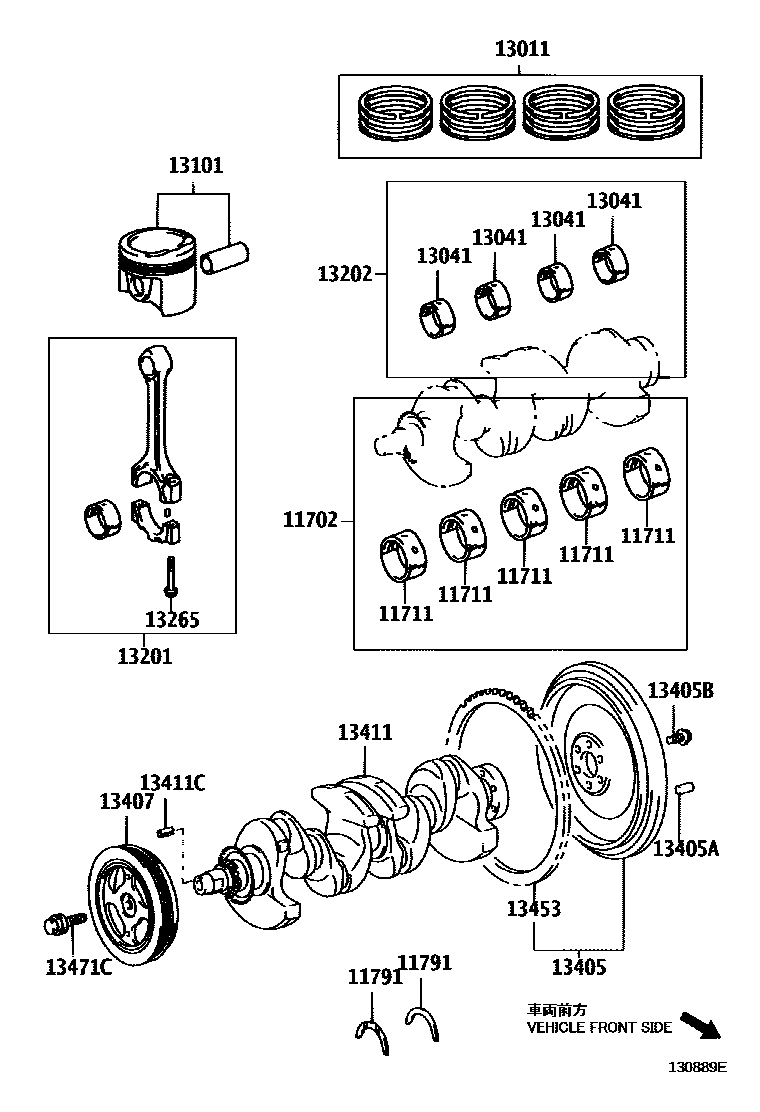

Toyota YARIS EPC diagram 1301, Crankshaft & Piston, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11702 | crankshaft bearing assembly | 11704-21031 |
| 11791 | Thrust washer on crankshaft | 11791-37010 · 11792-22020 · 11793-22020 |
| 13011 | Piston ring assembly | 13011-21041 · 13011-21050 · 13011-21060 |
| 13101 | Piston sub-assembly with pin | 13101-21050 · 13101-21070 · 13101-21080 |
| 13201 | Connecting rod sub-assembly | 13201-29715 · 13201-29735 |
| 13202 | Connecting rod bearing assembly | 13204-21022 |
| 13265 | Connecting rod bolts | 13265-21020 |
| 13405 | Flywheel sub-assembly | 13405-21020 · 13405-21030 |
| 13405A | Direct sales (for flywheel) | 90250-08120 |
| 13405B | Flywheel fixing bolt | 90913-01024 |
| 13407 | Crankshaft damper sub-assembly | 13407-21031 |
| 13411 | crankshaft | 13401-21020 · 13401-21030 |
| 13411C | Direct sales (for crankshaft) | 90254-03025 |
| 13453 | flywheel ring gear | 13453-10010 |
| 13471C | Bolt (for crankshaft pulley assembly) | 90119-12345 |
