Toyota YARIS Engine Mounting — Figure 1107

Toyota YARIS EPC diagram 1107, Engine Mounting, with 2 images and 9 PNC and OE references.

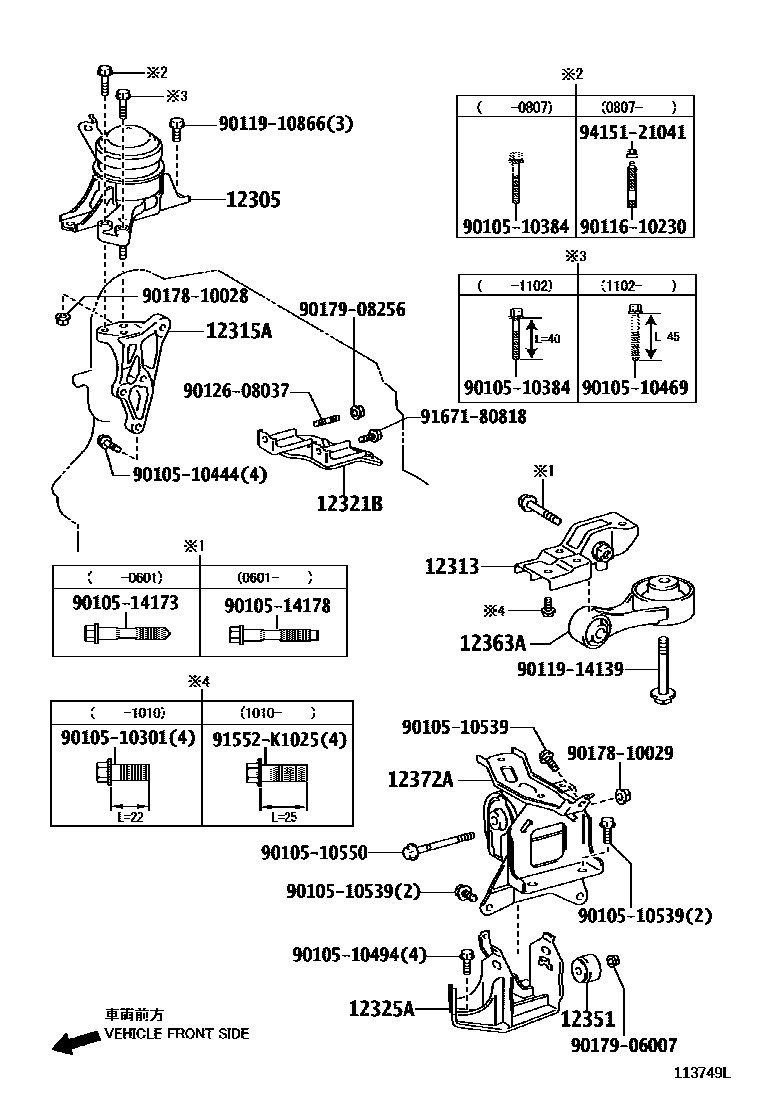

Toyota YARIS Engine Mounting EPC diagram — 113749L
Engine Mounting — 113749L (200508 – 999999)

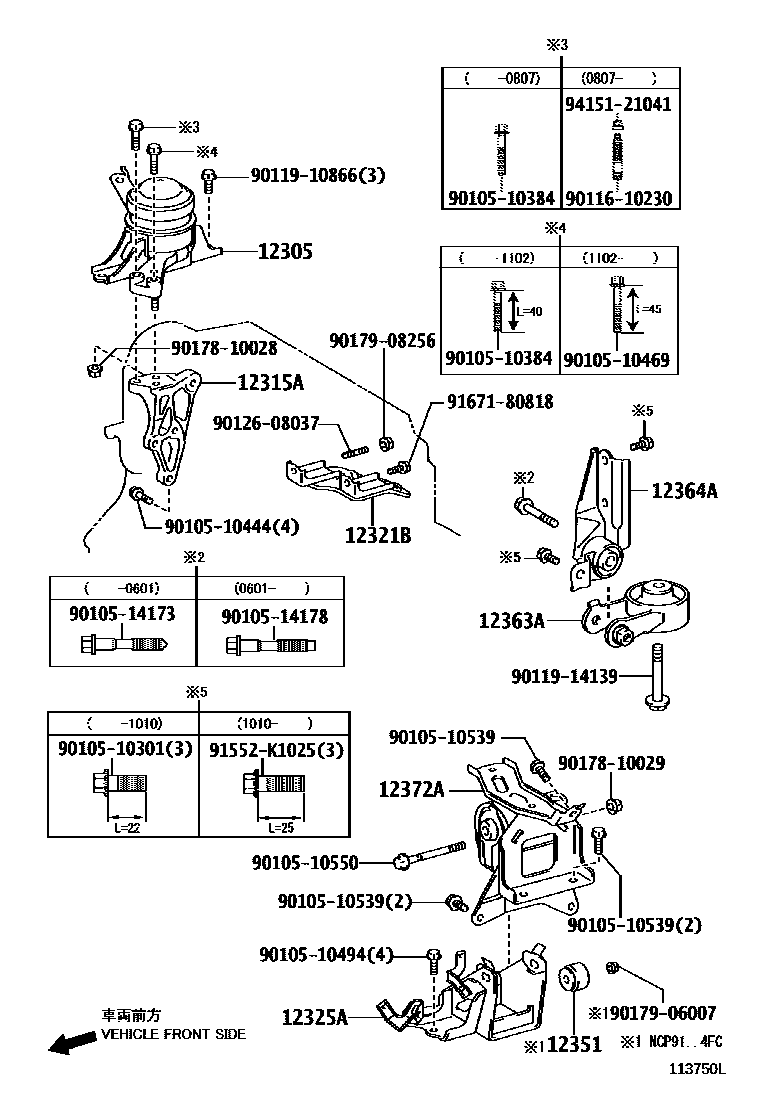

Toyota YARIS Engine Mounting EPC diagram — 113750L
Engine Mounting — 113750L (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
12305Engine right side mounting vibration isolation pad sub-assembly12305-21200 · 12305-21220
12313Engine mount control bracket (for transversely mounted engines)12313-21040
12315AEngine right side mounting bracket (for transversely mounted engine)12315-21030 · 12315-21031 · 12315-21032 · 12315-21033 · 12315-21040 · 12315-21041 · 12315-21042 · 12315-21043
12321BDrive shaft heat insulation pad sub-assembly43409-52020
12325AEngine left side mounting bracket (for transversely mounted engine)12325-21180 · 12325-21190 · 12325-21230
12351engine mount shock absorber12351-21090
12363AEngine movement control lever12363-21040 · 12363-21060
12364AEngine lateral control lever12364-21020
12372AEngine left-side mounting vibration isolation pad (for transversely mounted engines)12372-21130 · 12372-21131 · 12372-21150
