Toyota YARIS Partial Engine Assembly — Figure 1101

Toyota YARIS EPC diagram 1101, Partial Engine Assembly, with 1 images and 1 PNC and OE references.

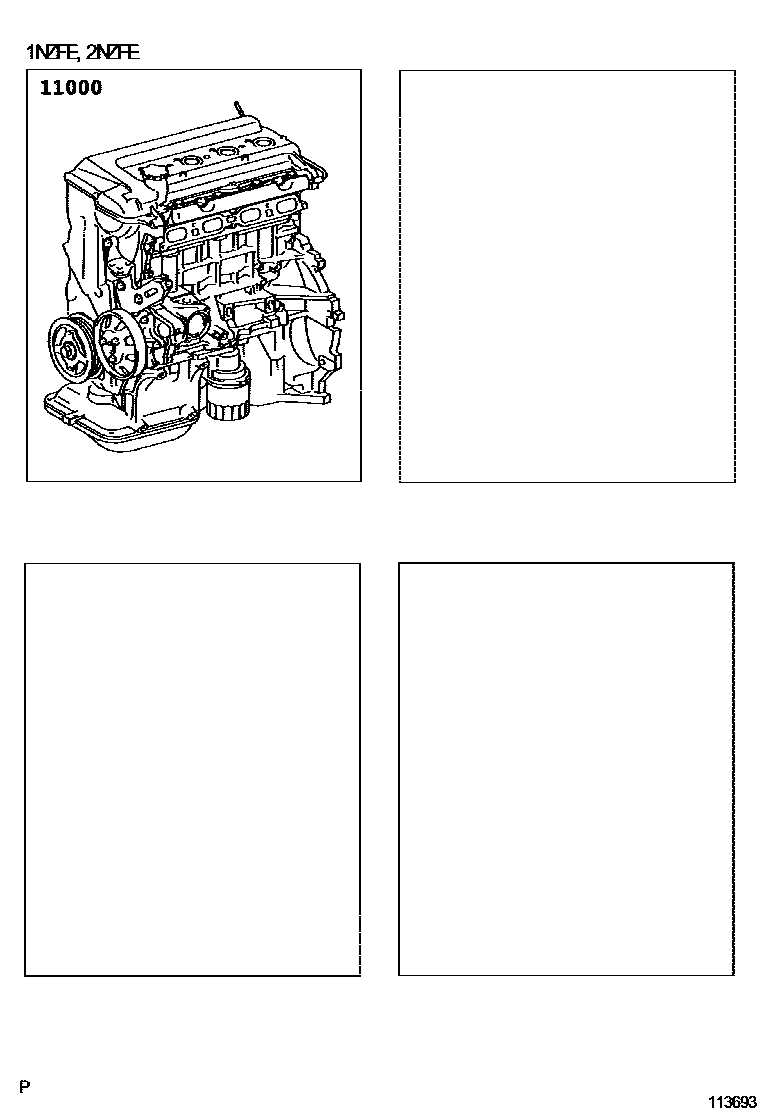

Toyota YARIS Partial Engine Assembly EPC diagram — 113693
Partial Engine Assembly — 113693 (200508 – 999999)

PNC and OE references

PNCPart nameOE numbers
11000Partial Engine Assembly19000-21830 · 19000-21831 · 19000-21840 · 19000-21870 · 19000-21B91 · 19000-21C02 · 19000-21C30
