Toyota YARIS Heating & Air Conditioning - Compressor — Figure 8719

Toyota YARIS EPC diagram 8719, Heating & Air Conditioning - Compressor, with 2 images and 8 PNC and OE references.

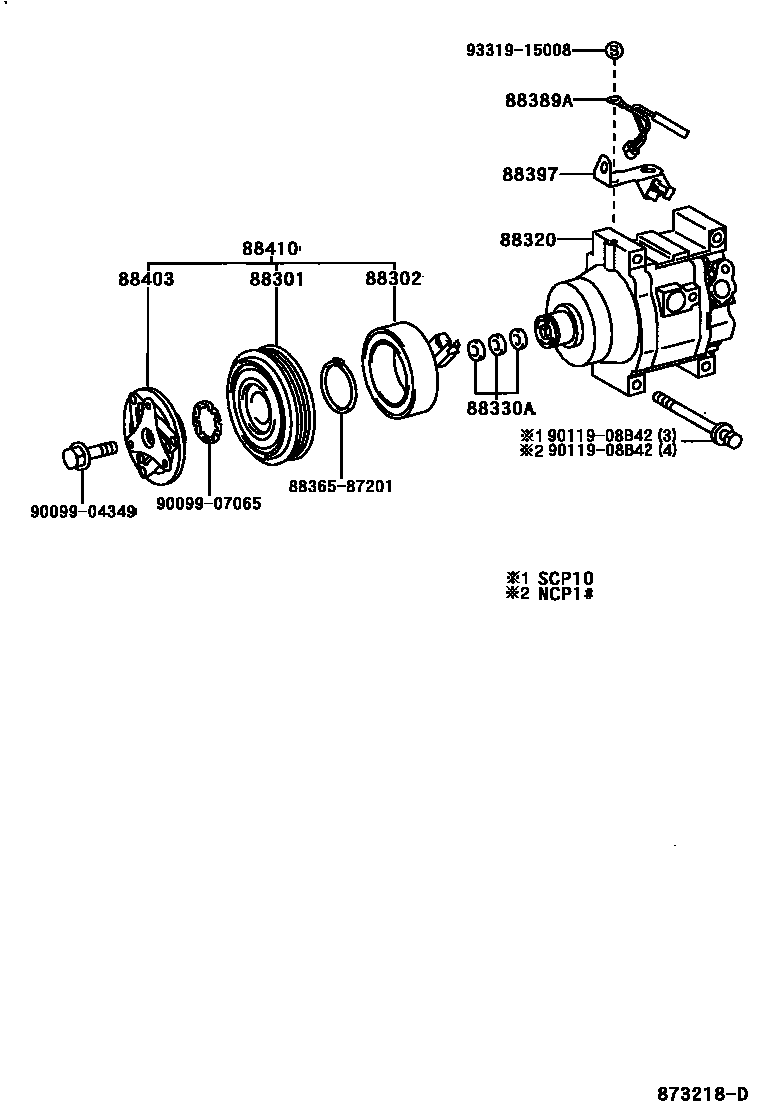

Toyota YARIS Heating & Air Conditioning - Compressor EPC diagram — 873218D
Heating & Air Conditioning - Compressor — 873218D (199903 – 200212)

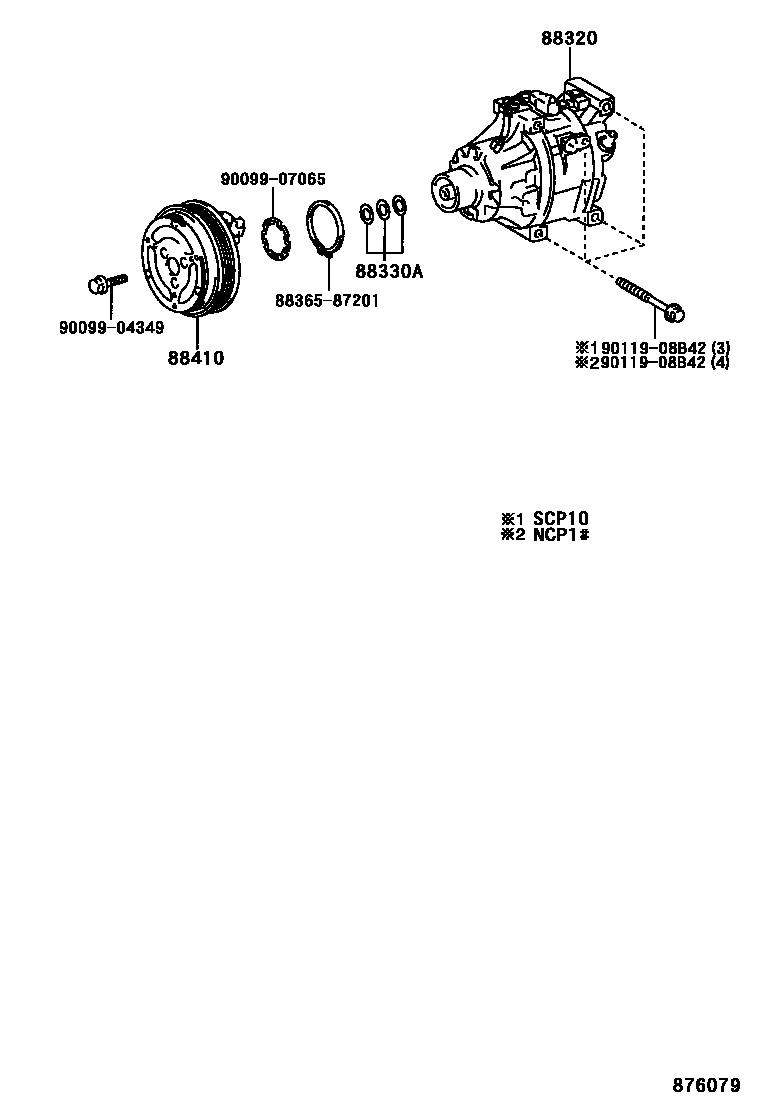

Toyota YARIS Heating & Air Conditioning - Compressor EPC diagram — 876079
Heating & Air Conditioning - Compressor — 876079 (200212 – 999999)

PNC and OE references

PNCPart nameOE numbers
88301Electromagnetic clutch rotor sub-assembly88412-52010 · 88412-52030 · 88412-52060 · 88412-52070
88302Electromagnetic clutch stator sub-assembly88411-16070 · 88411-1A050
88320Cooler Compressor Assembly88320-52010 · 88320-52090 · 88320-52120 · 88320-52130 · 88320-52160 · 88320-52340 · 88320-52400 · 88320-52430
88330AWasher (for electromagnetic clutch)88335-14020
88389ACompressor wiring harness88389-10020 · 88389-52010 · 88389-52020
88397Sensor clip88397-52010 · 88397-52020
88403Electromagnetic clutch hub sub-assembly88403-16020 · 88403-1A020
88410Magnetic Clutch Assembly88410-2B260 · 88410-2B280 · 88410-52010 · 88410-52030 · 88410-52070 · 88410-52080 · 88410-52140 · 88410-52141 · 88410-52150 · 88410-52160 · 88410-52230 · 88410-52240 · 88410-52260
