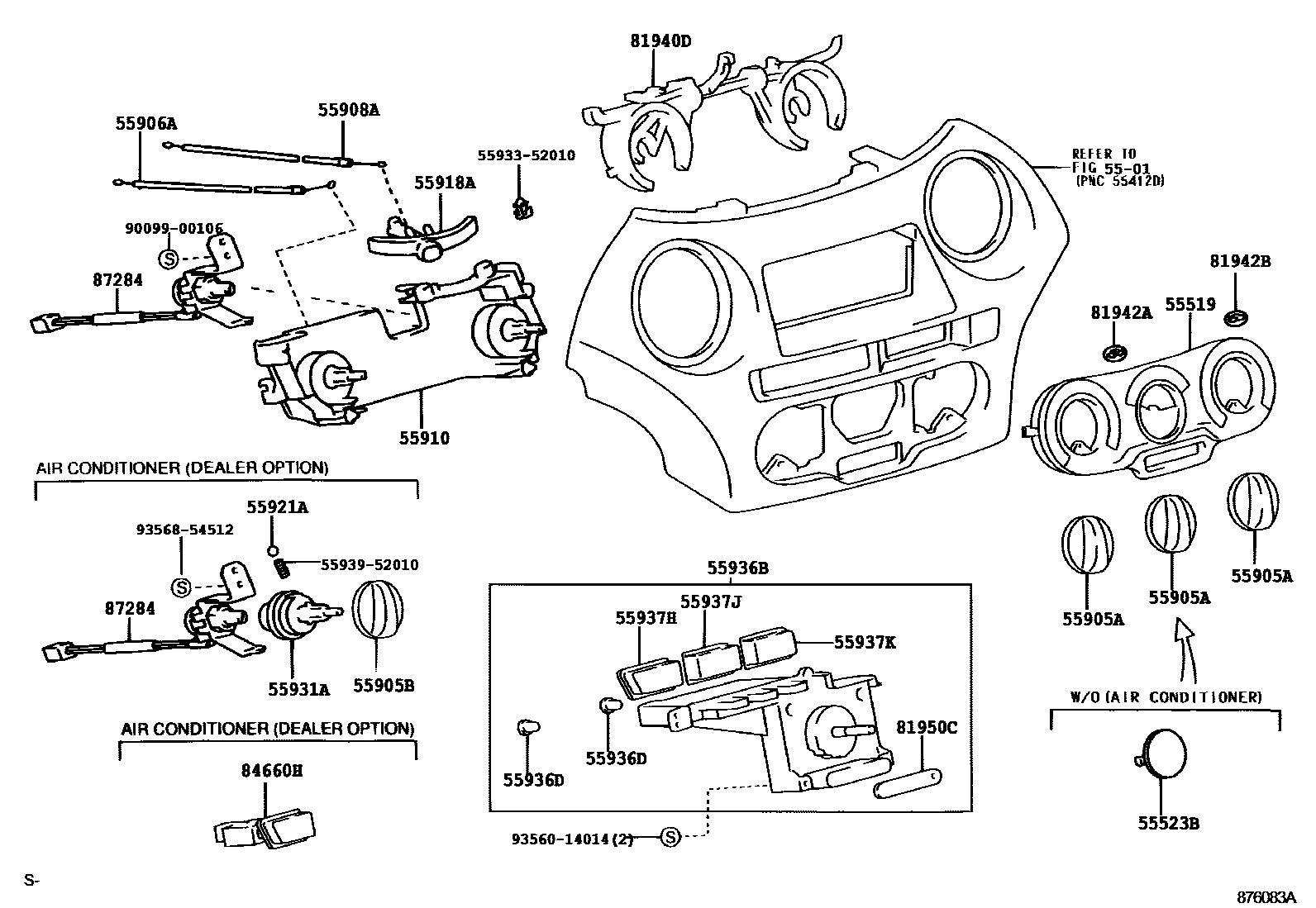

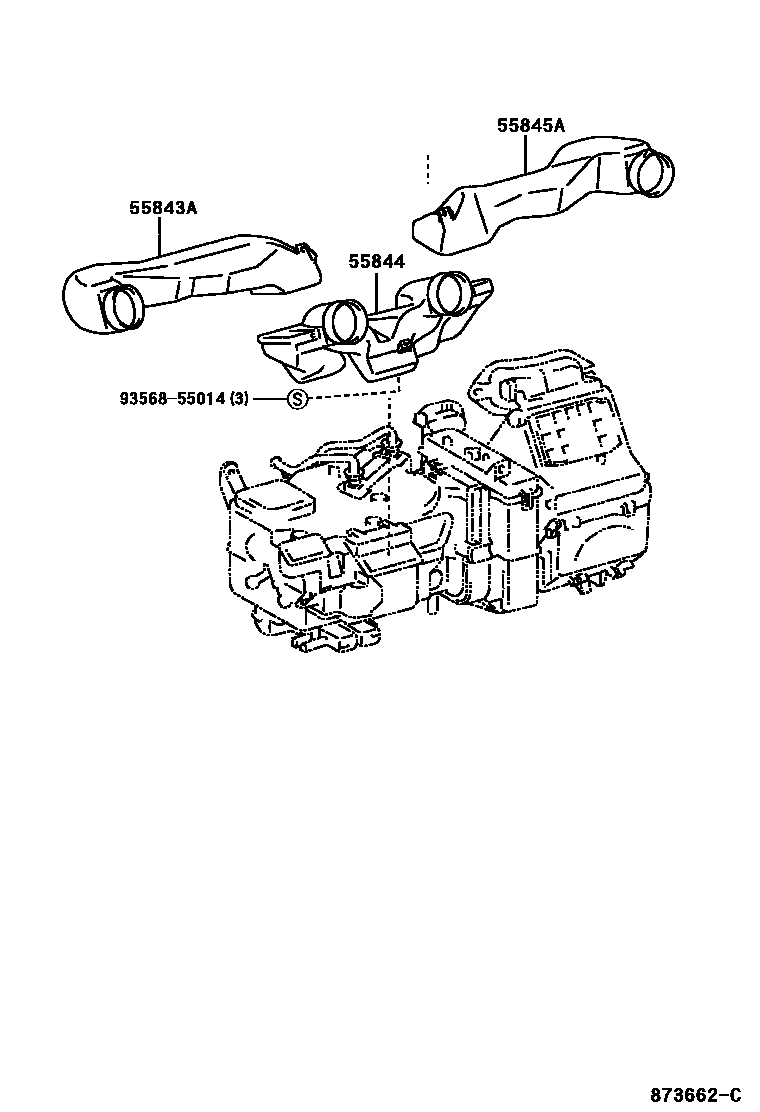

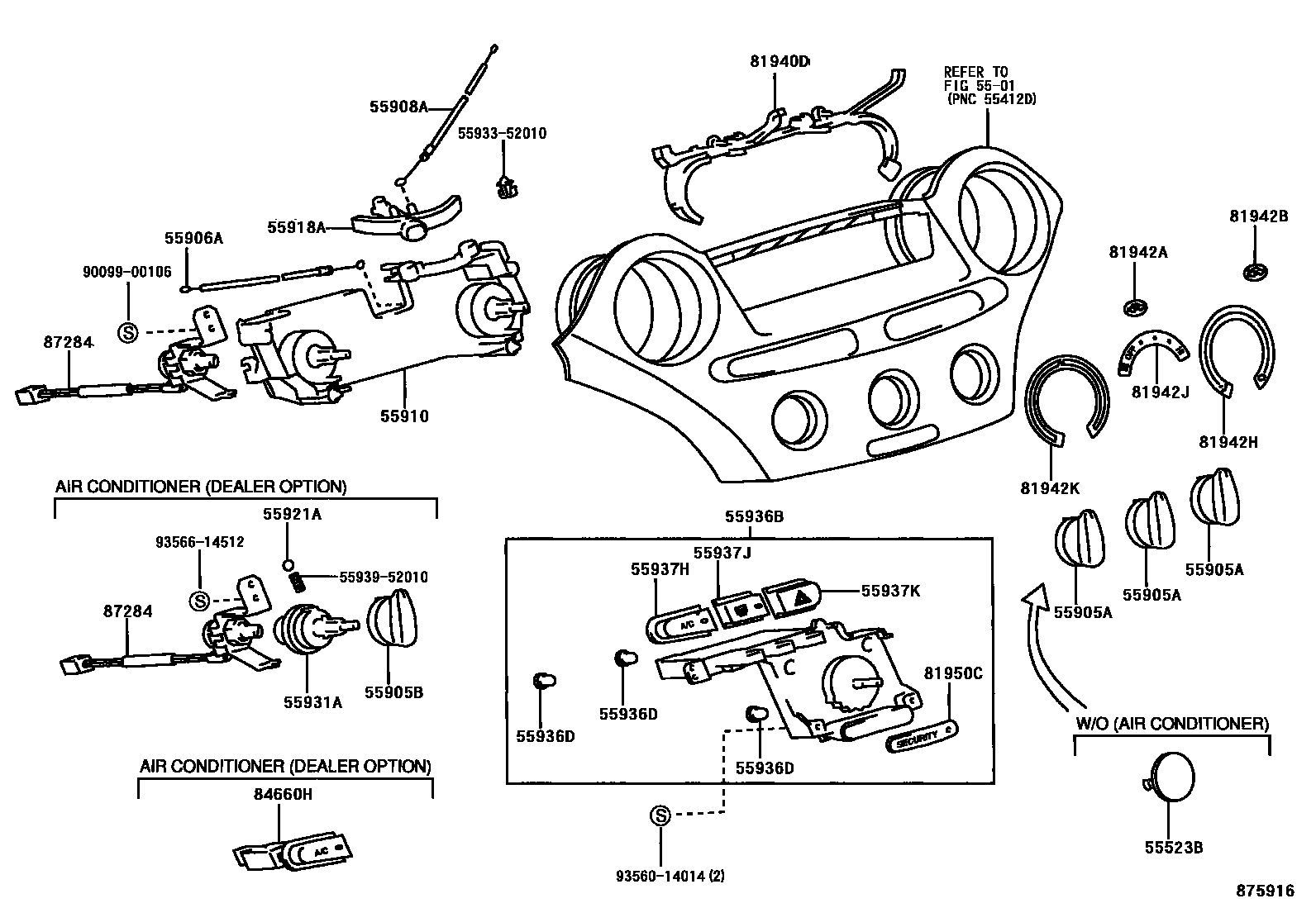

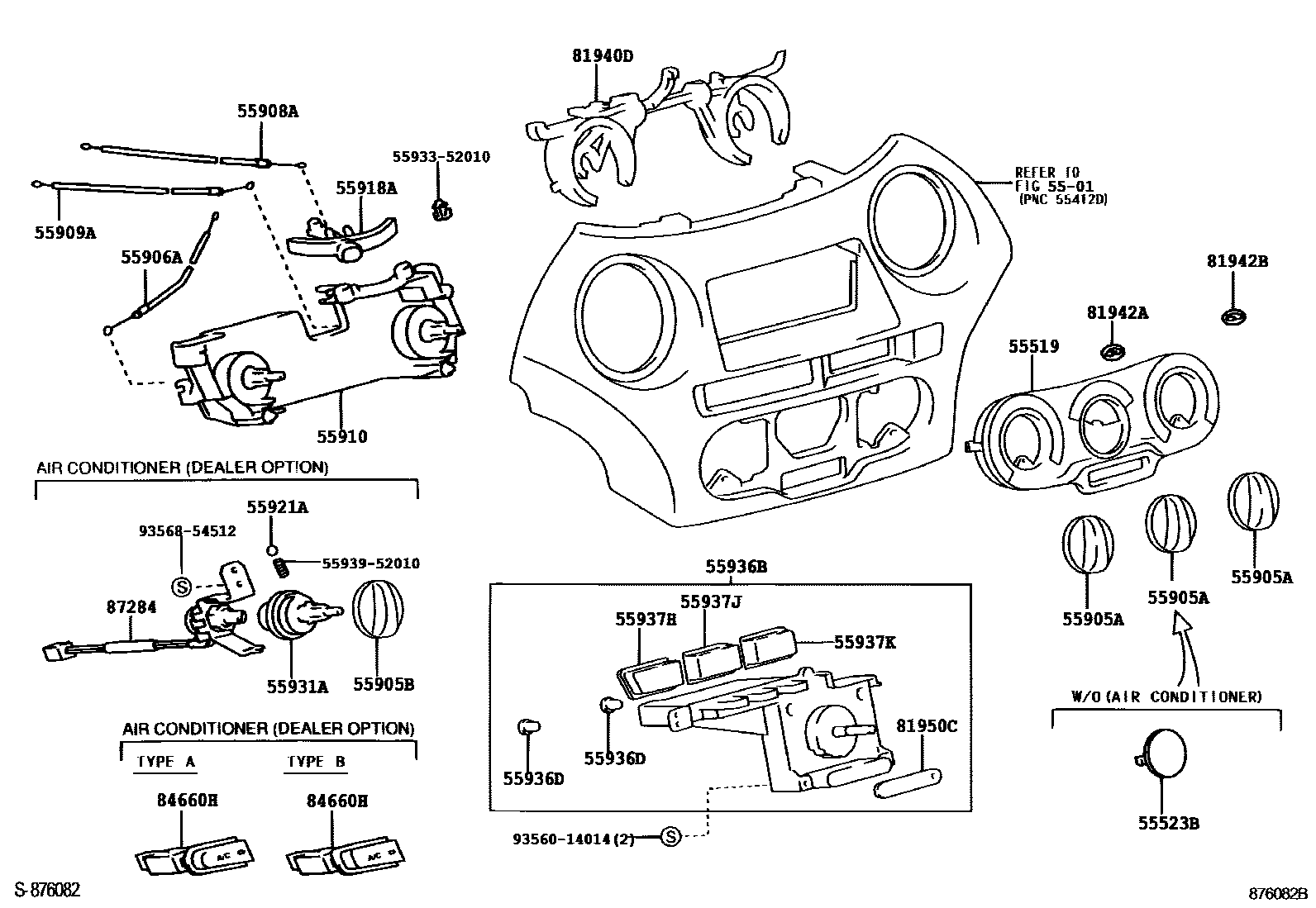

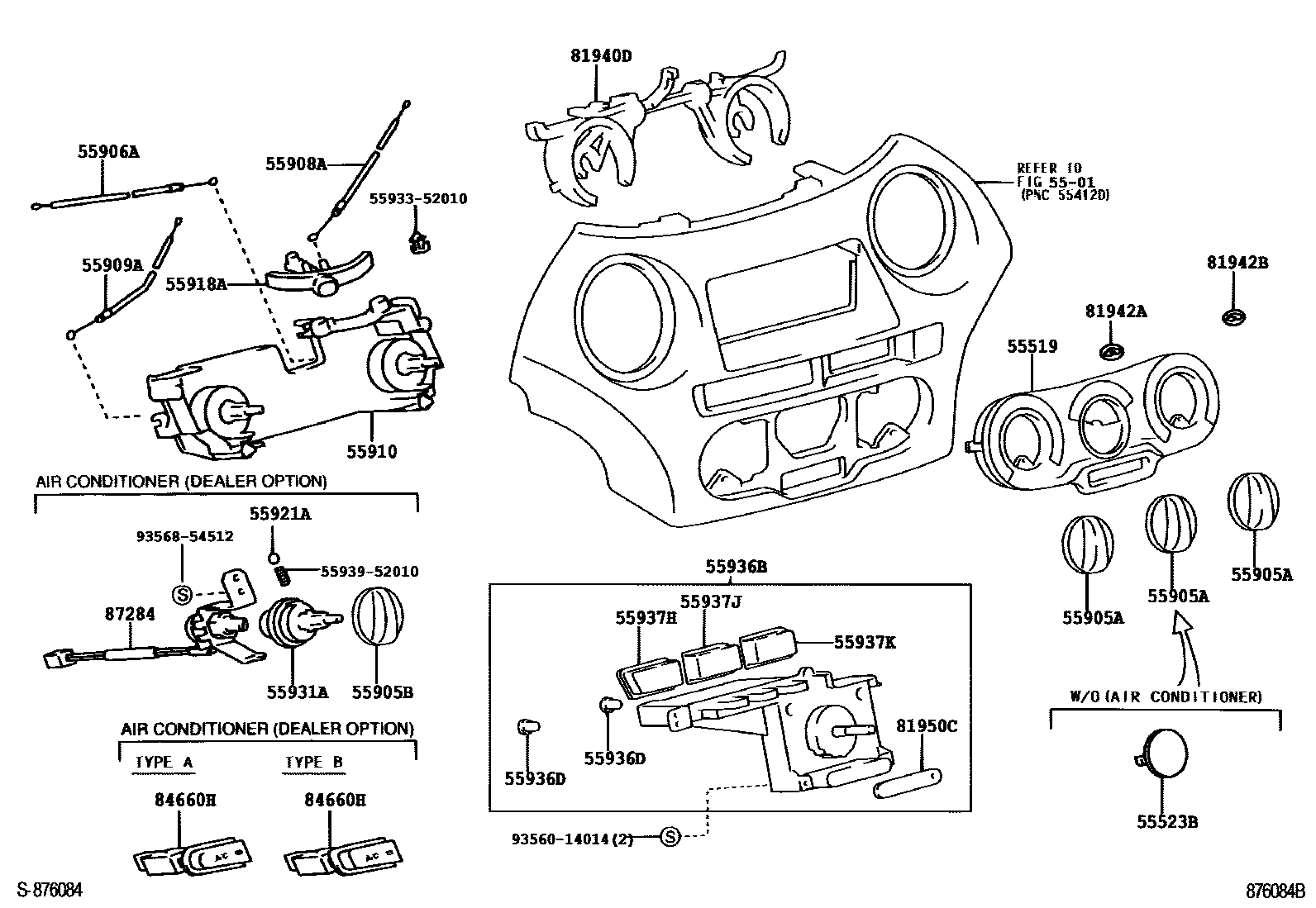

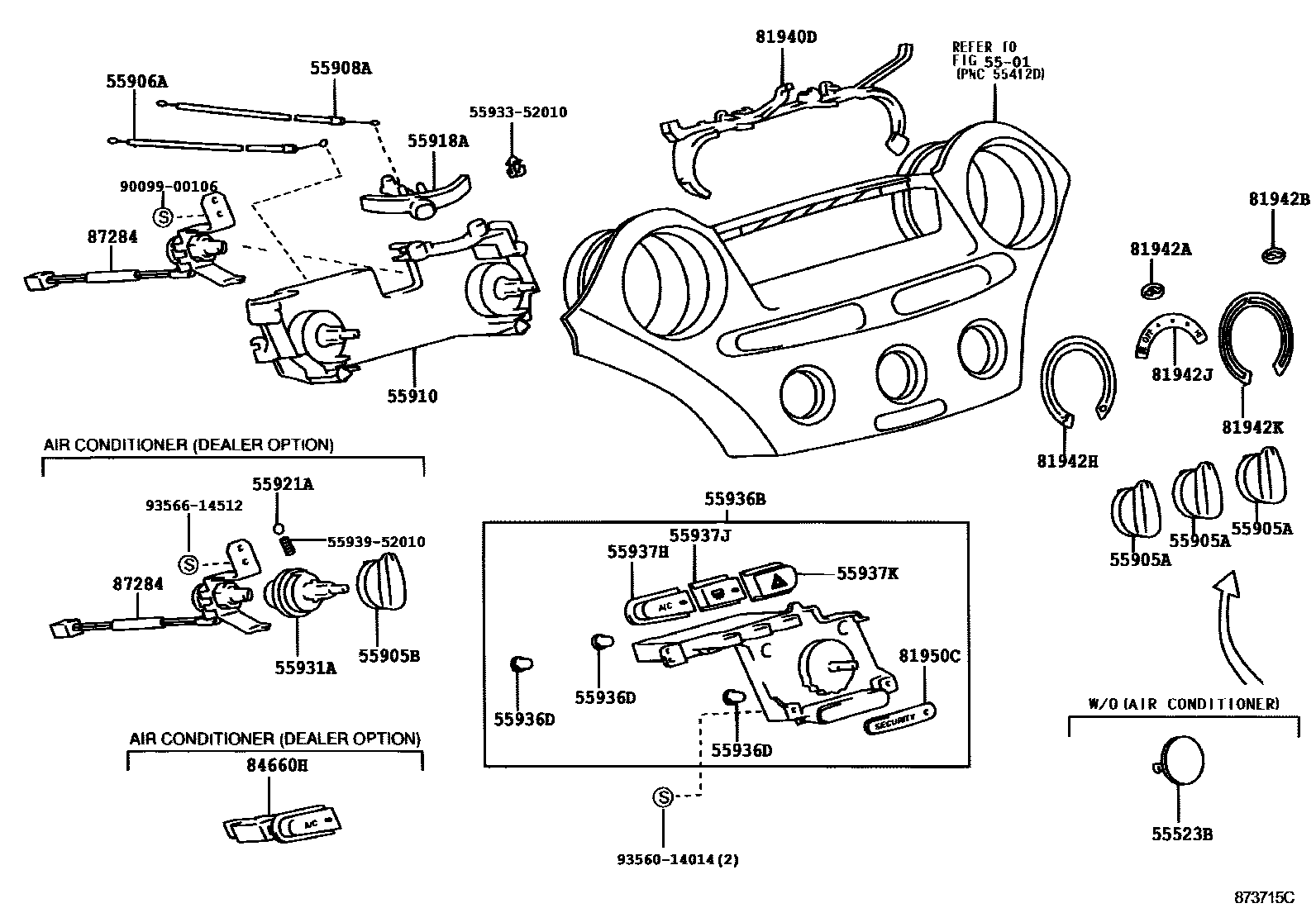

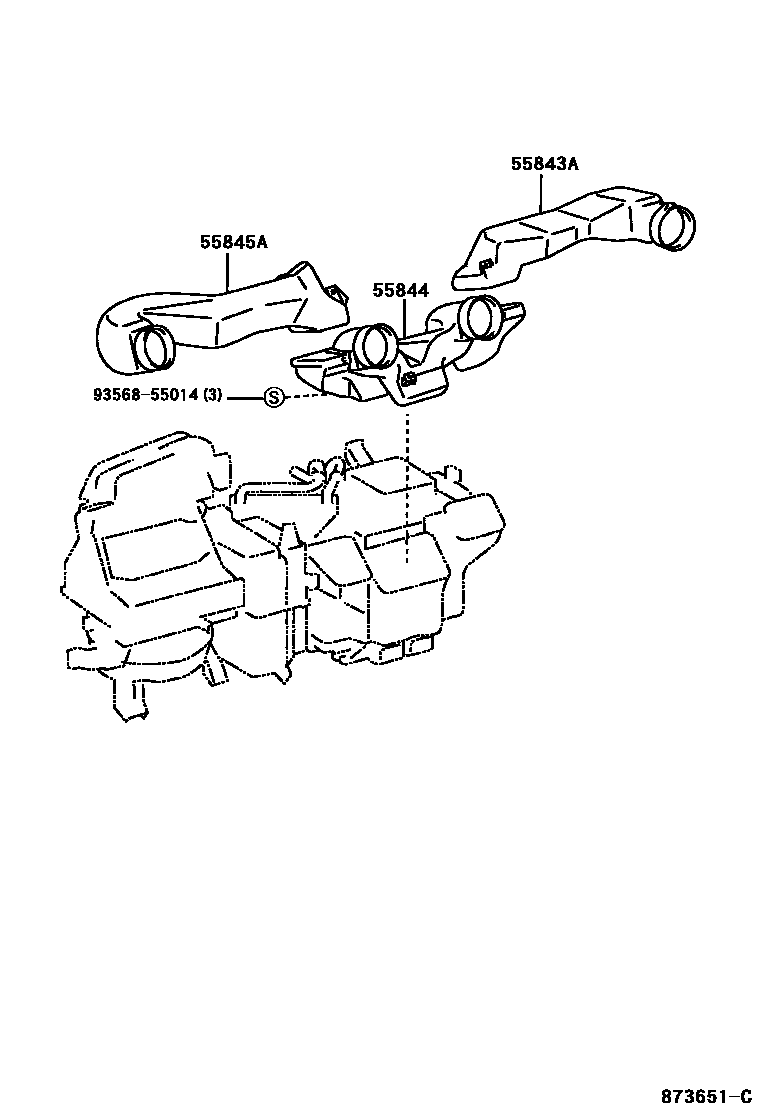

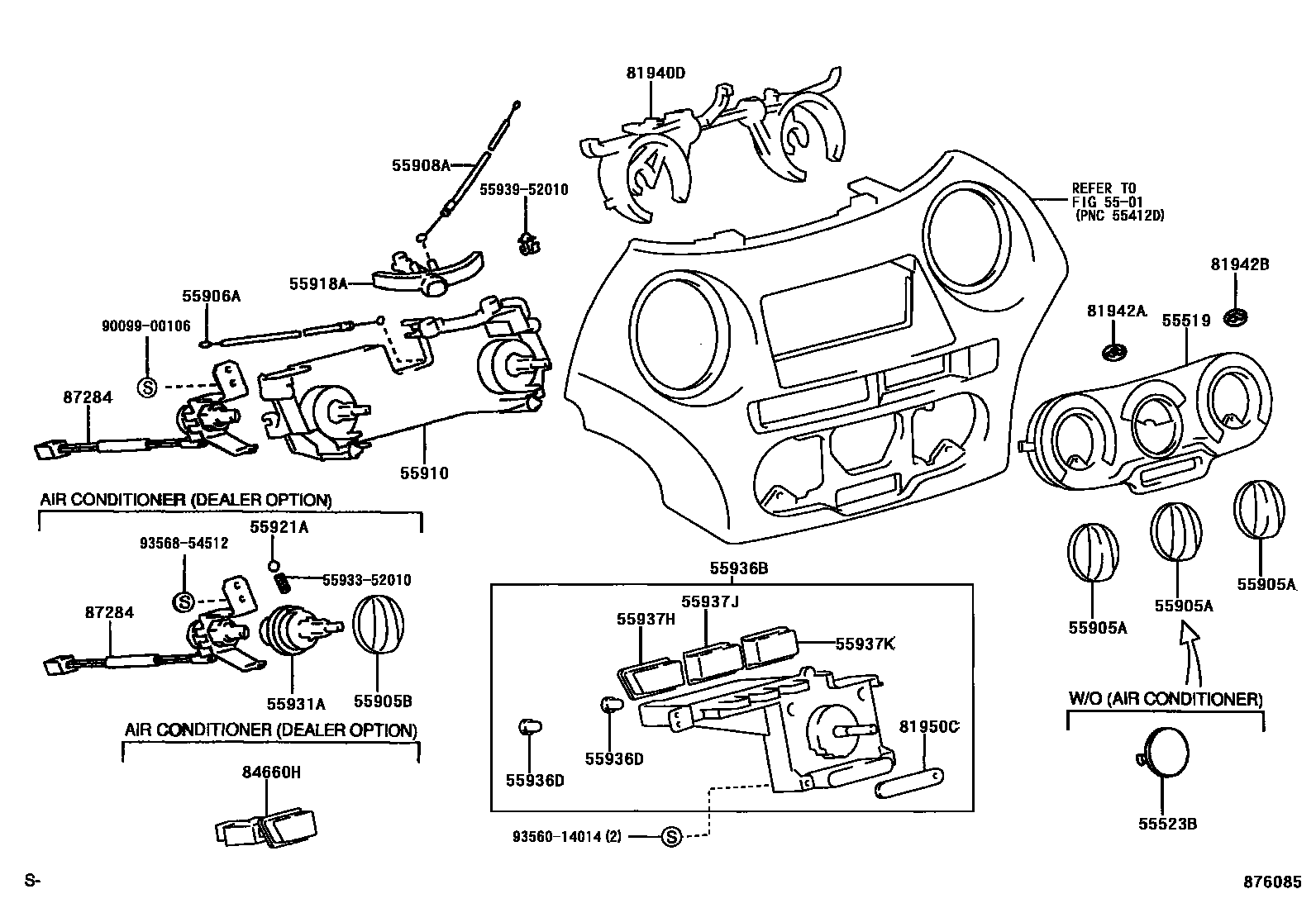

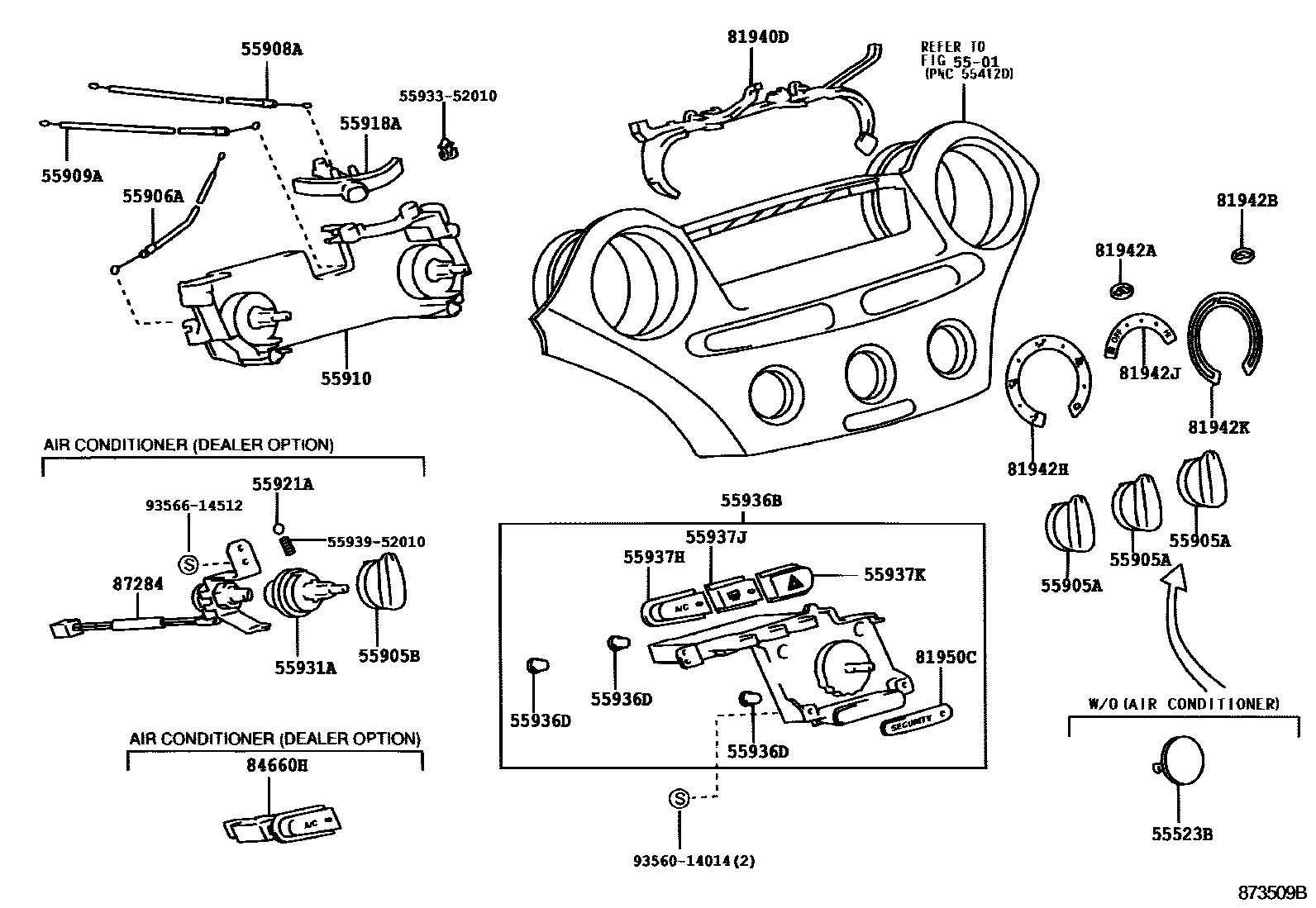

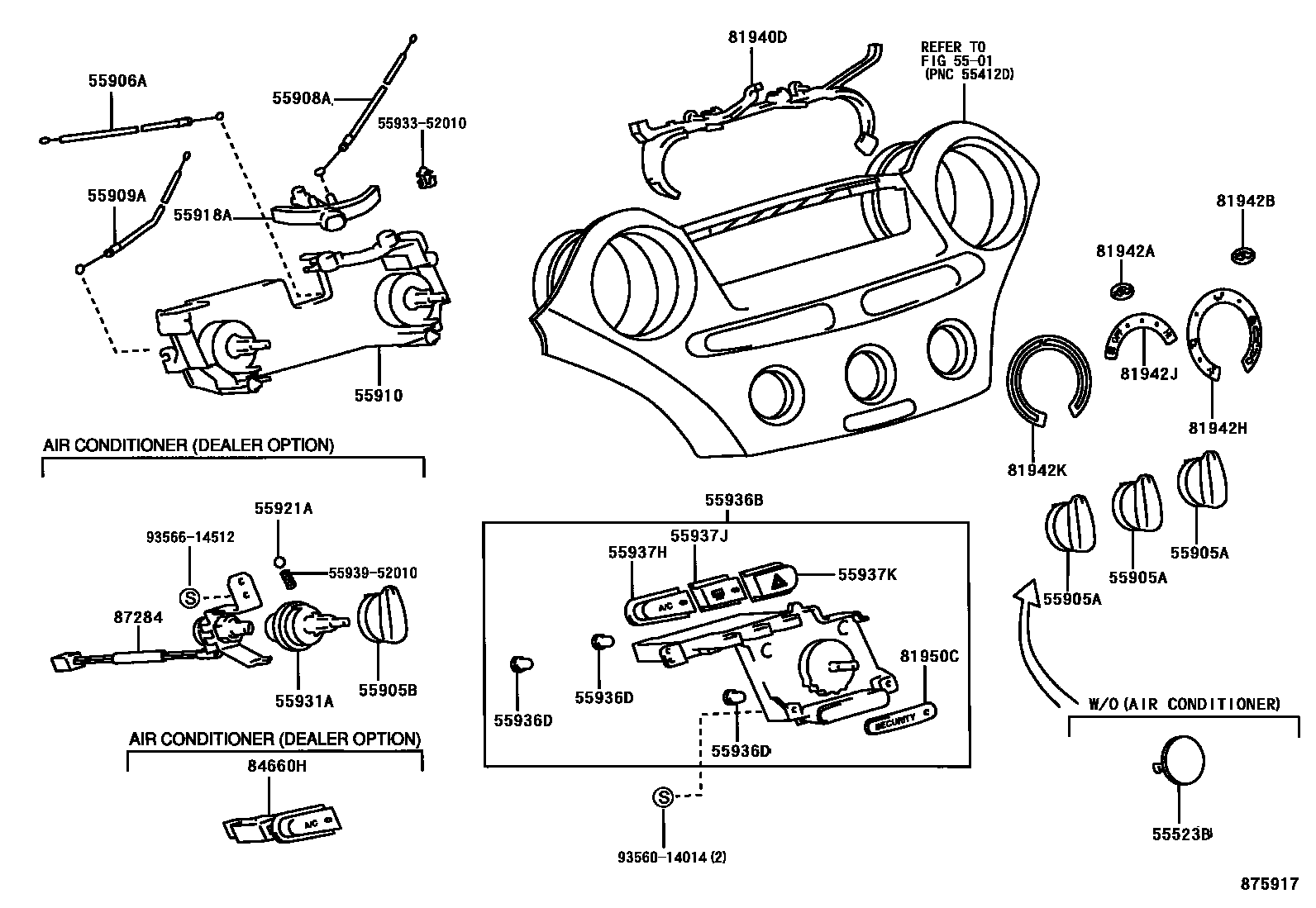

Toyota YARIS 暖风和空调系统 - 控制器和风管 — Figure 8715
Toyota YARIS EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 10 images and 23 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-52010 · 55519-52050 · 55519-52060 · 55519-52090 · 55519-52100 |
| 55523B | Heater control opening cover | 55523-52040 |
| 55843A | Air duct No. 1 from heater to air register | 55843-52010 · 55843-52020 · 55843-52110 · 55843-52120 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-52010 · 55844-52020 · 55844-52110 · 55844-52120 |
| 55845A | Air duct No. 3 from heater to air regulator | 55845-52010 · 55845-52020 · 55845-52090 · 55845-52100 |
| 55905A | Heater control button | 55905-52010 · 55905-52030 · 55905-52080 · 55905-52090 |
| 55905B | Heater control button 2 | 55905-52010 · 55905-52080 |
| 55906A | Defroster damper control cable sub-assembly | 55906-52010 |
| 55908A | Intake air valve control cable sub-assembly | 55908-52010 · 55908-52020 |
| 55909A | Air mix damper control cable sub-assembly | 55909-52010 · 55909-52020 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-52010 · 55910-52020 · 55910-52030 · 55910-52040 · 55910-52060 · 55910-52070 |
| 55918A | Intake air door control lever | 55918-52010 · 55918-52060 · 55918-52070 |
| 55921A | Heater Controller Fixing | 55921-52010 |
| 55931A | Heater control lever shaft | 55931-52010 |
| 55936B | Central instrument cluster module switch | 84010-52020 · 84010-52040 · 84010-52060 · 84010-52080 · 84010-52100 · 84010-52120 · 84010-52130 · 84010-52140 · 84010-52150 · 84010-52170 · 84010-52370 · 84010-52380 · 84010-52390 · 84010-52400 · 84010-52410 · 84010-52420 · 84010-52430 · 84010-52440 |
| 55936D | Center instrument cluster module switch bulb | 84999-10490 · 84999-10530 · 90010-01047 |
| 55937H | No. 5 central instrument cluster module button | 55937-52010 · 55937-52020 · 55937-52260 · 55937-52300 |
| 55937J | No. 6 central instrument cluster module button | 55937-52030 · 55937-52050 · 55937-52290 · 55937-52310 |
| 55937K | No. 7 central instrument cluster module button | 55937-52060 · 55937-52270 |
| 81940D | Heater controller lampshade assembly | 81940-52020 · 81940-52080 |
| 81950C | Central instrument cluster module indicator lamp shade assembly | 81950-52010 · 81950-52020 · 81950-52030 · 81950-52080 · 81950-52090 |
| 84660H | Cooler control switch assembly | 84660-52010 · 84660-52020 |
| 87284 | Variable resistor sub-assembly | 88032-52010 · 88032-52020 |
