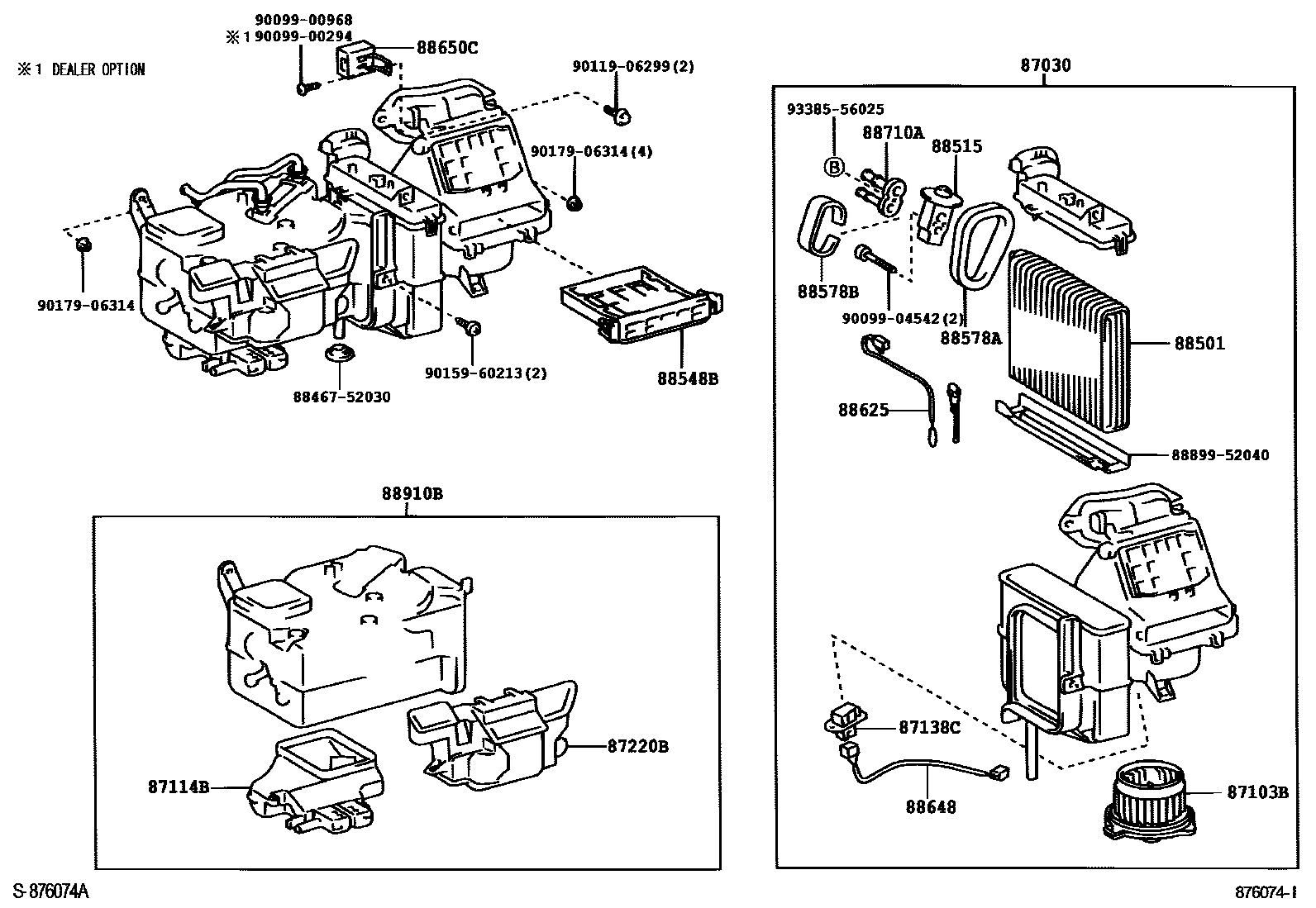

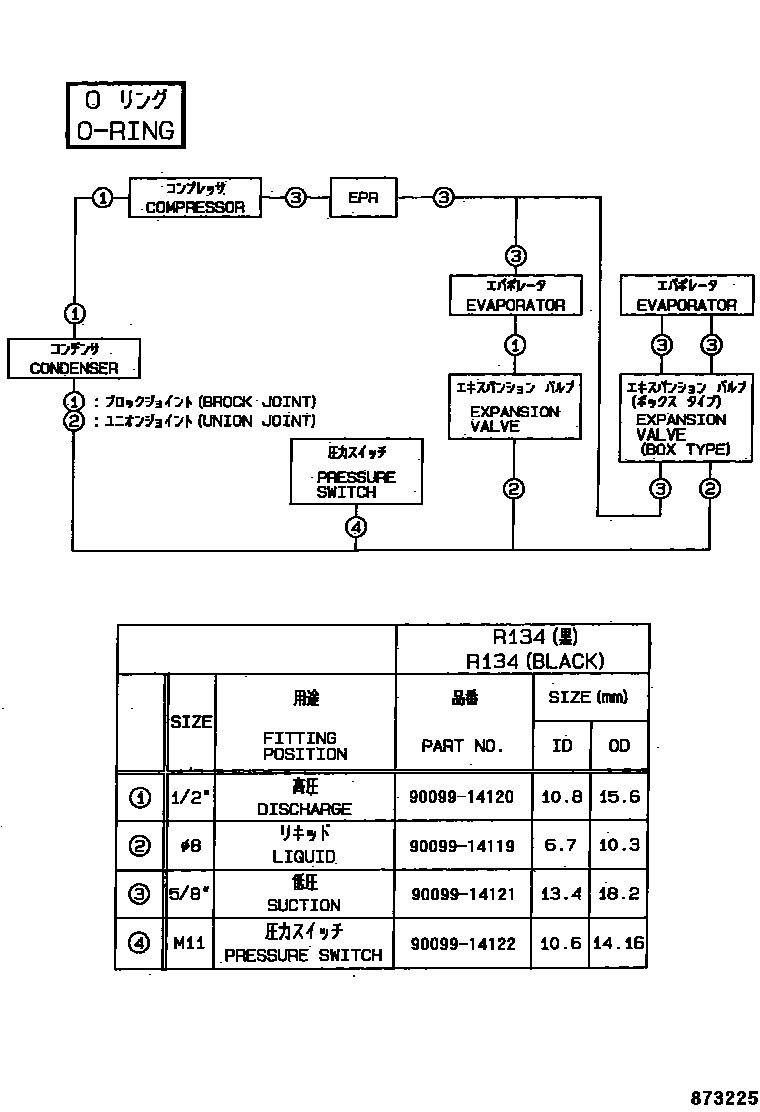

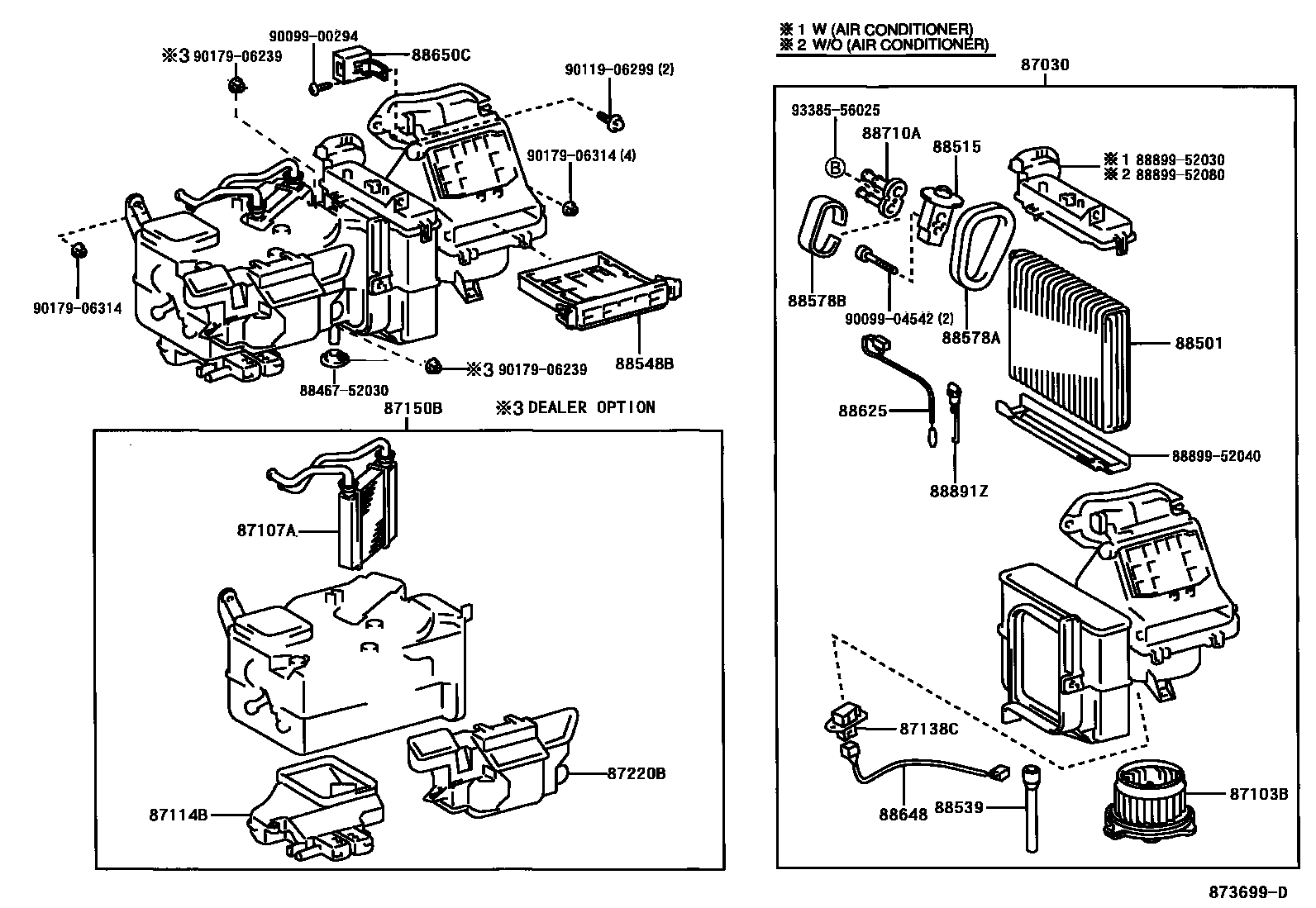

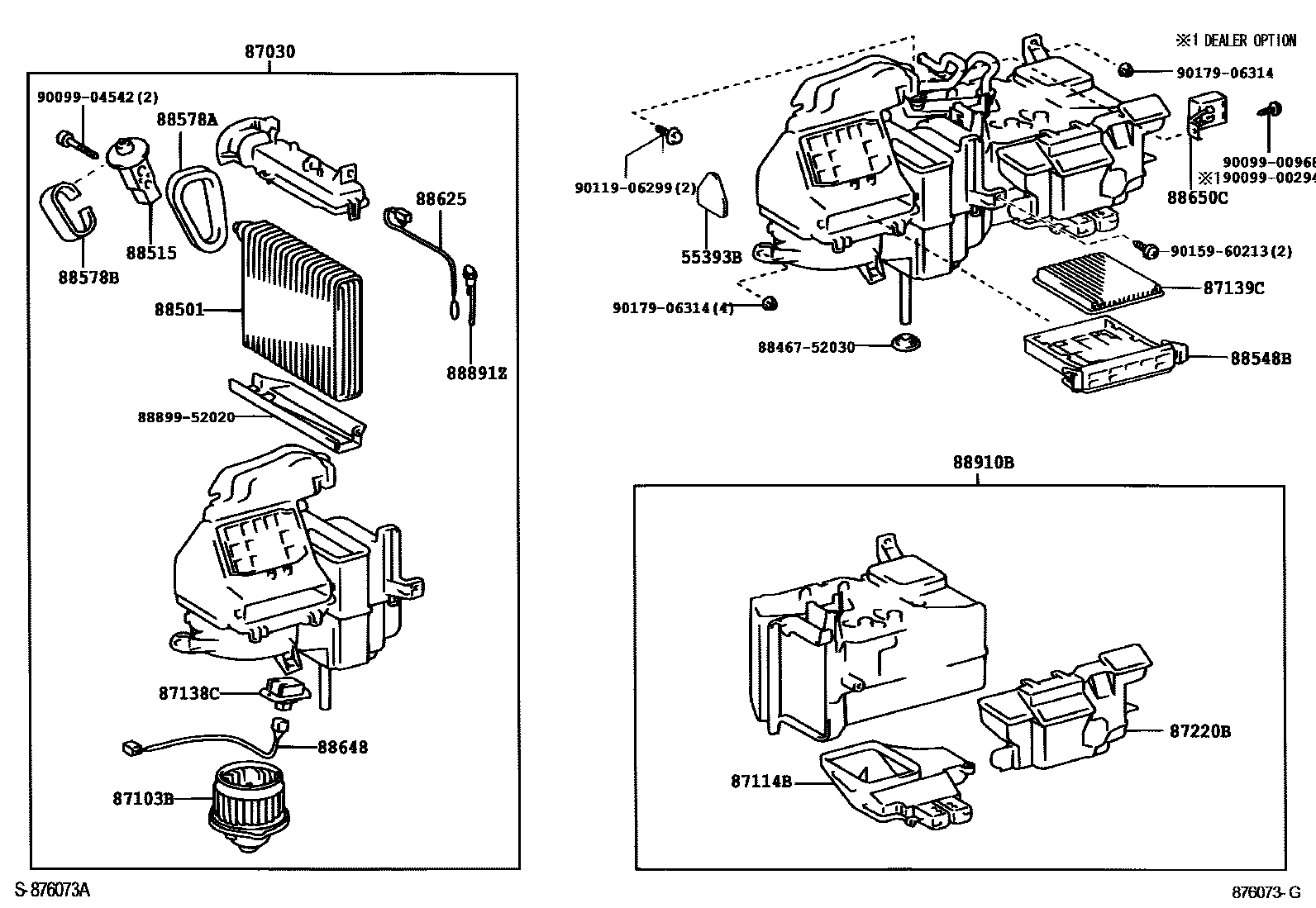

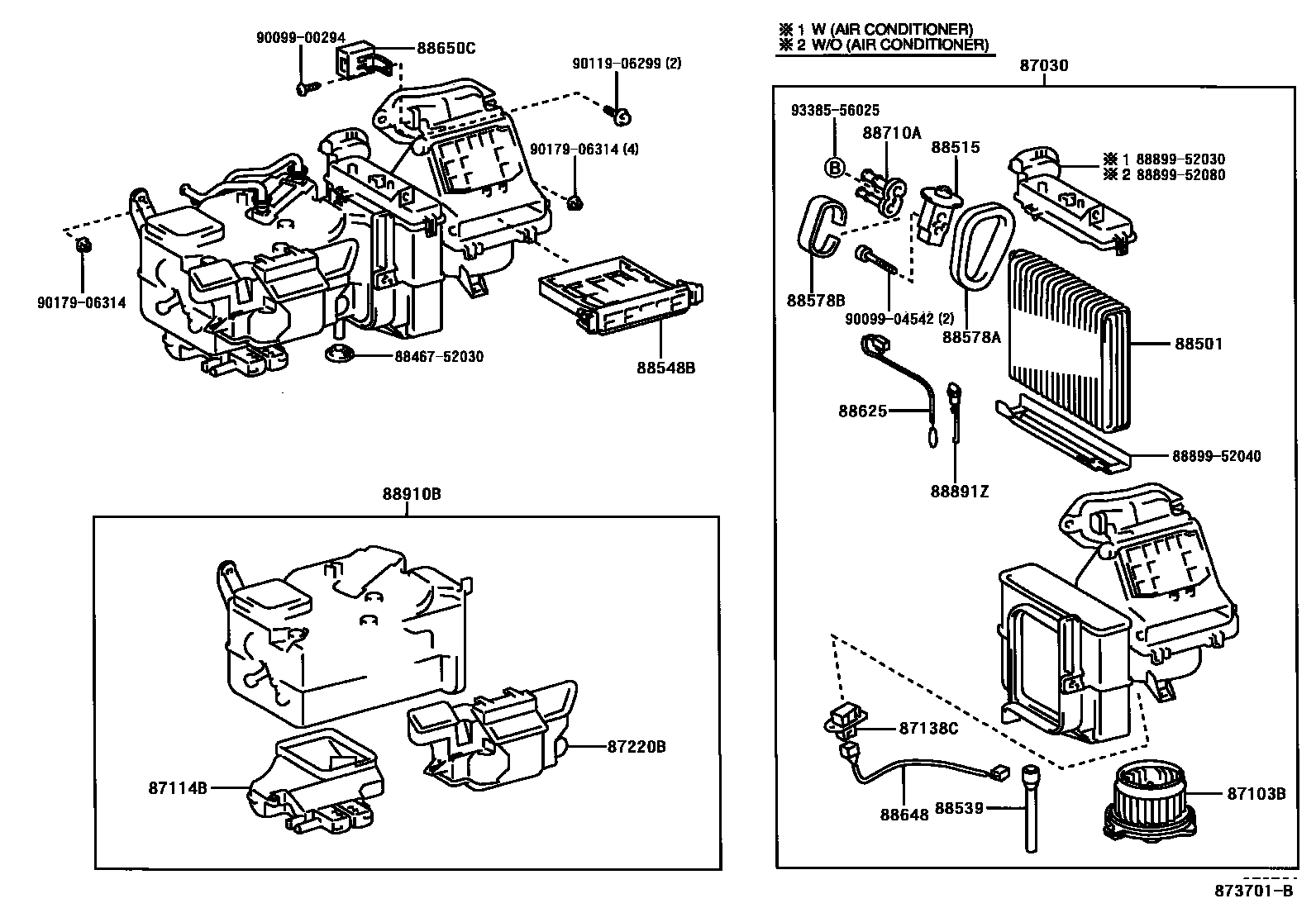

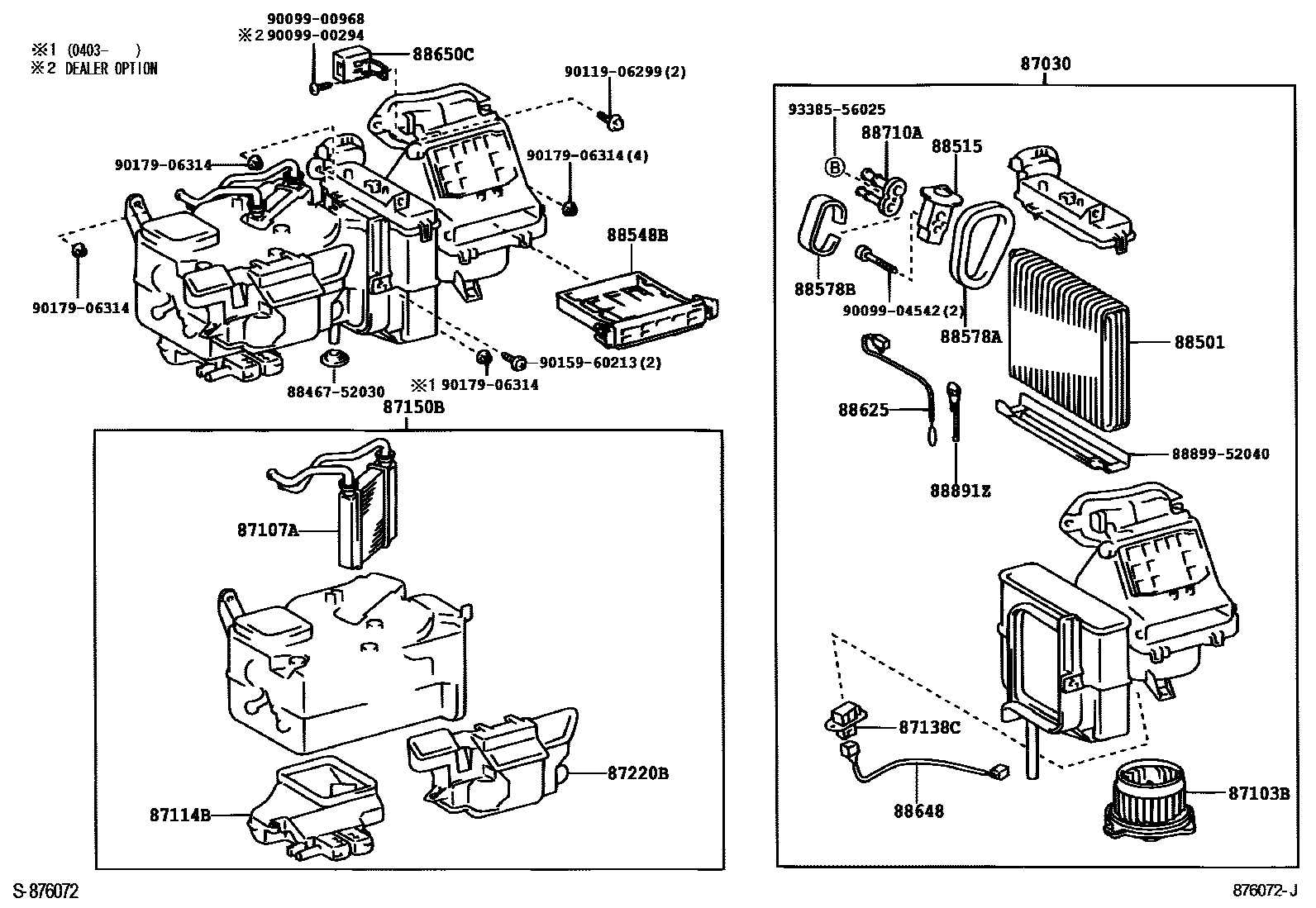

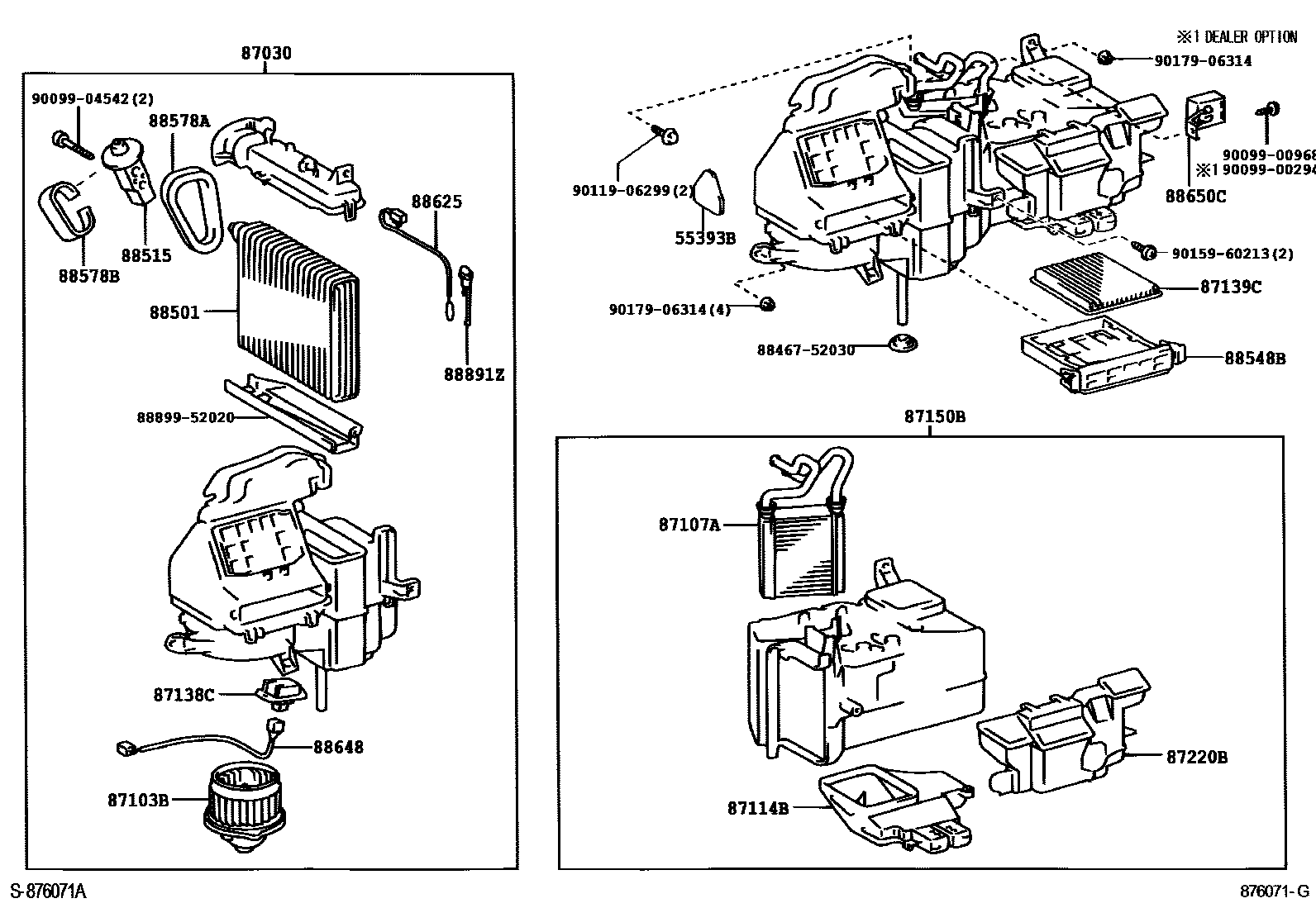

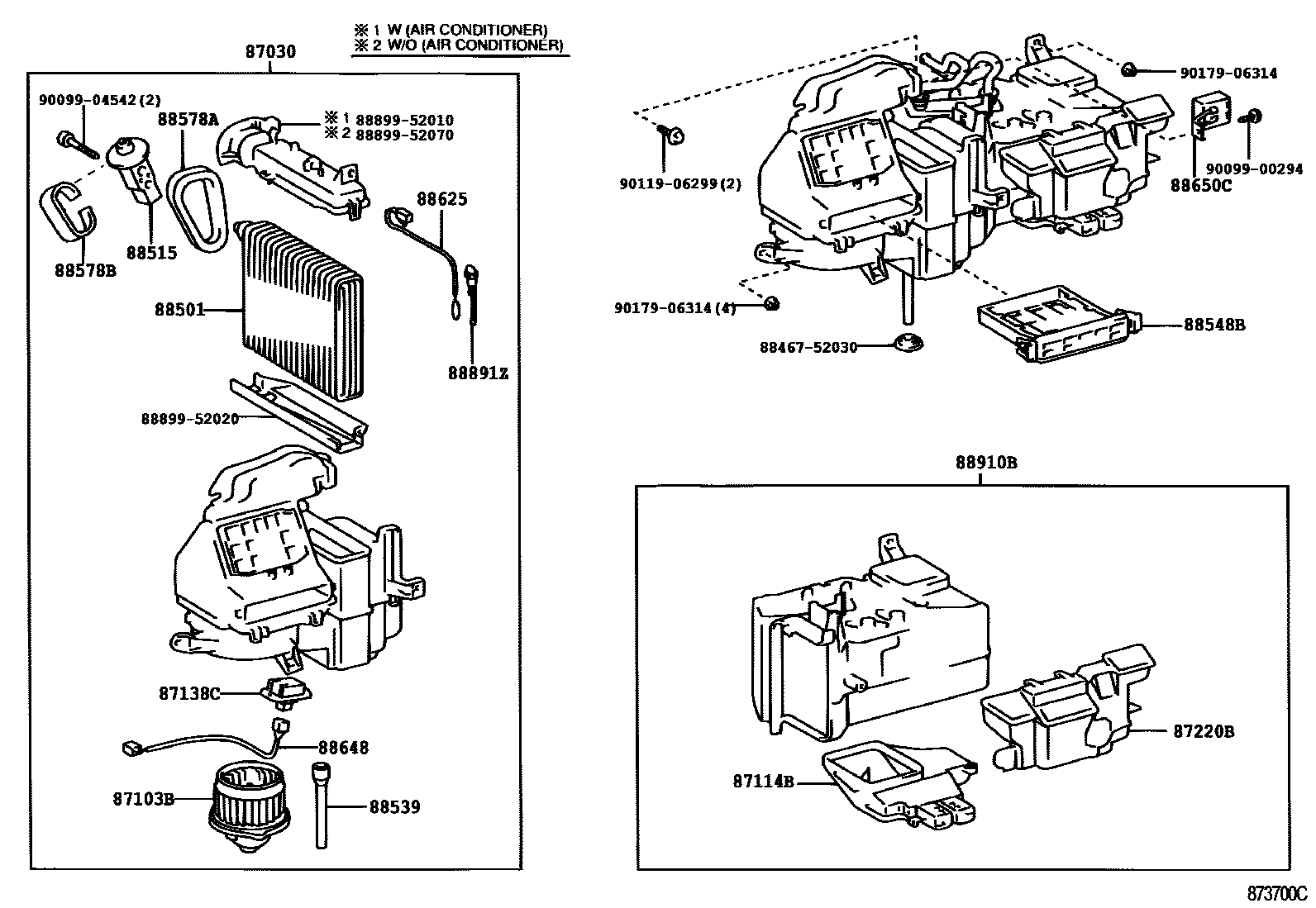

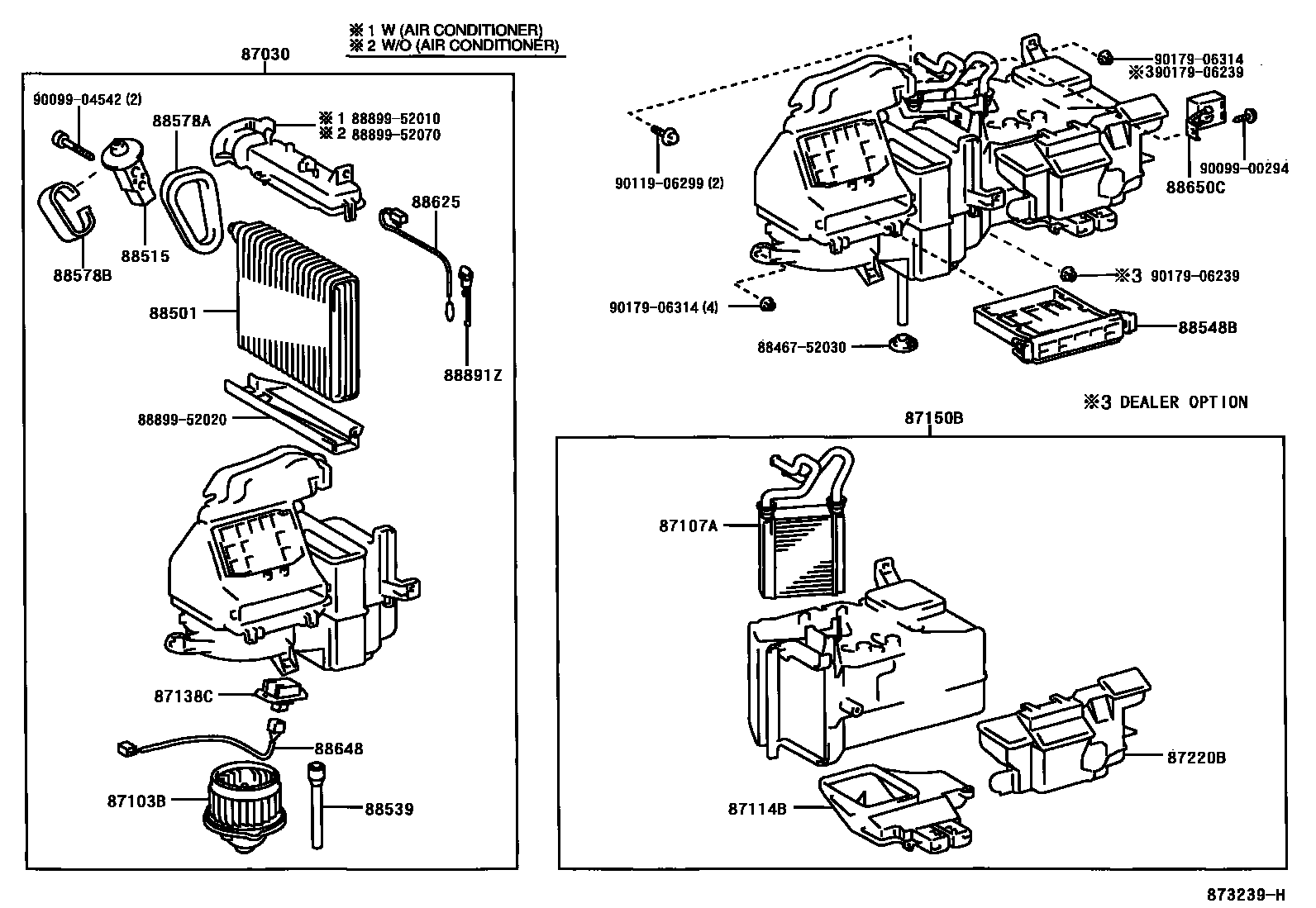

Toyota YARIS 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota YARIS EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 9 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55393B | Air conditioning cooler unit cushion pad | 55393-52010 |
| 87030 | Air conditioning blower assembly | 87030-52010 · 87030-52011 · 87030-52030 · 87030-52170 · 87030-52171 · 87030-52172 · 87030-52180 |
| 87103B | Blower motor sub-assembly with fan | 87103-52010 · 87103-52050 · 87103-52060 · 87103-52110 |
| 87107A | Heater radiator device sub-assembly | 87107-52010 · 87107-52020 |
| 87114B | heater cover | 87114-52010 · 87114-52040 |
| 87138C | Blower resistor | 87138-52010 |
| 87139C | air purification filter | 88568-52010 |
| 87150B | Heater radiator assembly | 87150-52010 · 87150-52070 · 87150-52071 |
| 87220B | Air duct assembly | 87220-52010 · 87220-52020 · 87220-52040 · 87220-52050 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-52010 · 88501-52030 · 88501-52040 · 88501-52041 · 88501-52070 · 88501-52080 |
| 88515 | Cooler expansion valve | 88515-52010 · 88515-52020 · 88515-52040 · 88515-52050 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-52010 |
| 88548B | air filter housing | 88508-52040 · 88548-52010 |
| 88578A | Cooler stabilized amplifier seal | 88578-52010 · 88578-52020 |
| 88578B | Cooling unit seal No. 1 | 88578-52030 |
| 88625 | Cooler No. 1 Thermistor | 88625-52020 · 88625-52070 · 88625-52090 · 88625-52100 |
| 88648 | No. 1 cooler wiring harness | 88648-52020 · 88648-52240 |
| 88650C | Air conditioning amplifier sub-assembly | 88650-52050 · 88650-52110 |
| 88710A | Air conditioning pipe assembly | 88710-52010 |
| 88891Z | Cooler thermistor bracket | 88891-20240 |
| 88910B | Auxiliary ventilation device assembly | 88910-52010 · 88910-52020 |
