Toyota YARIS antenna — Figure 8604

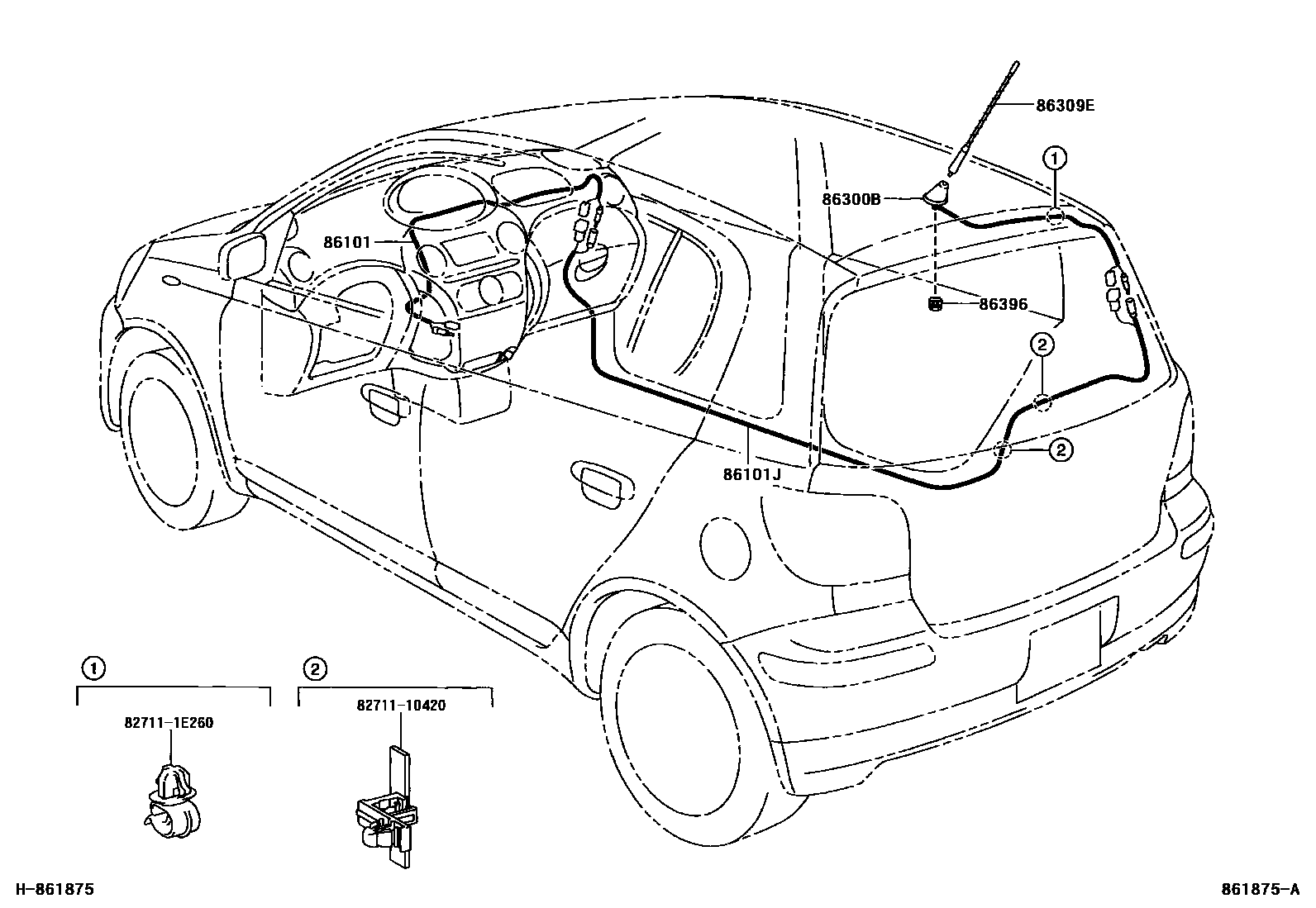

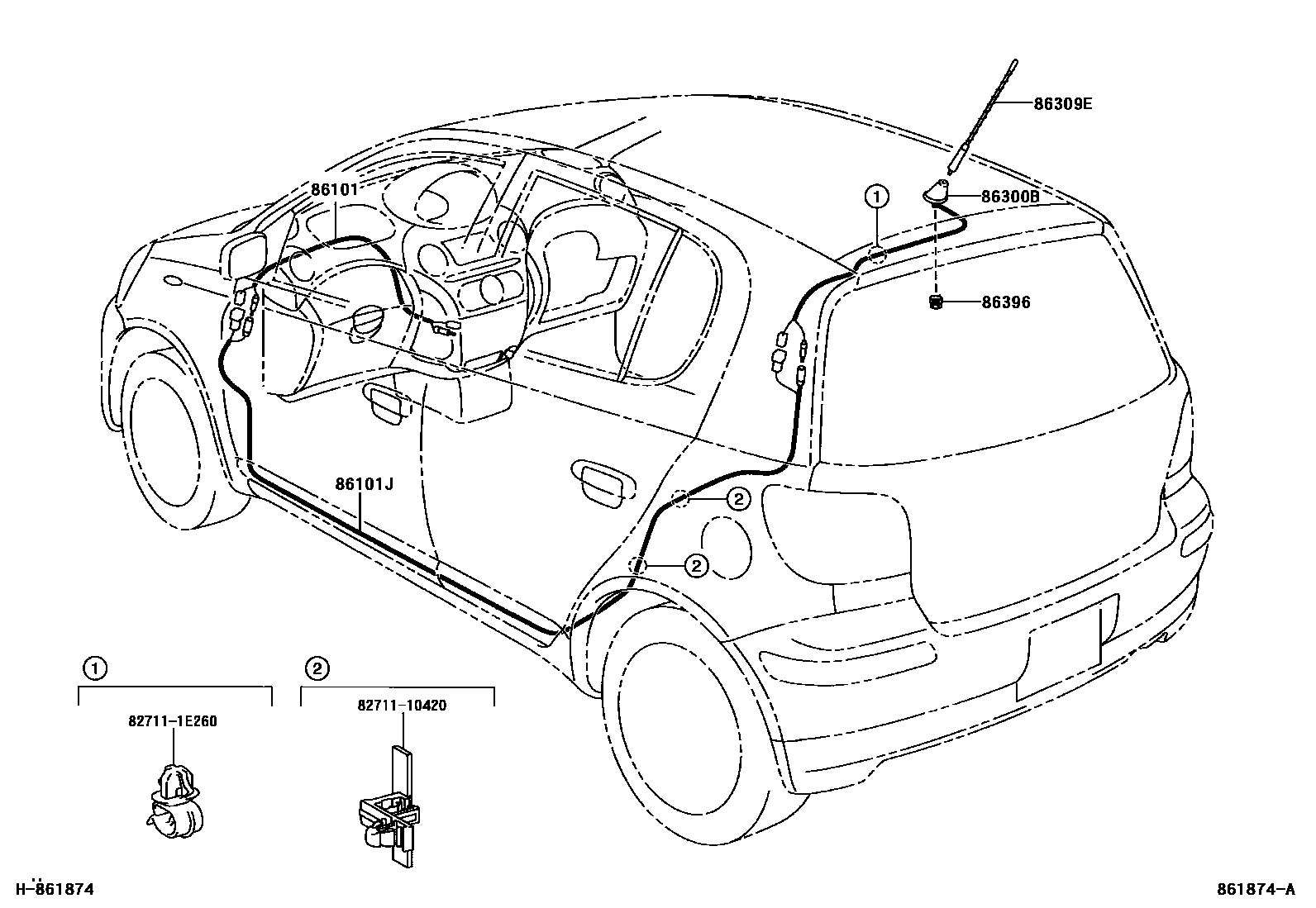

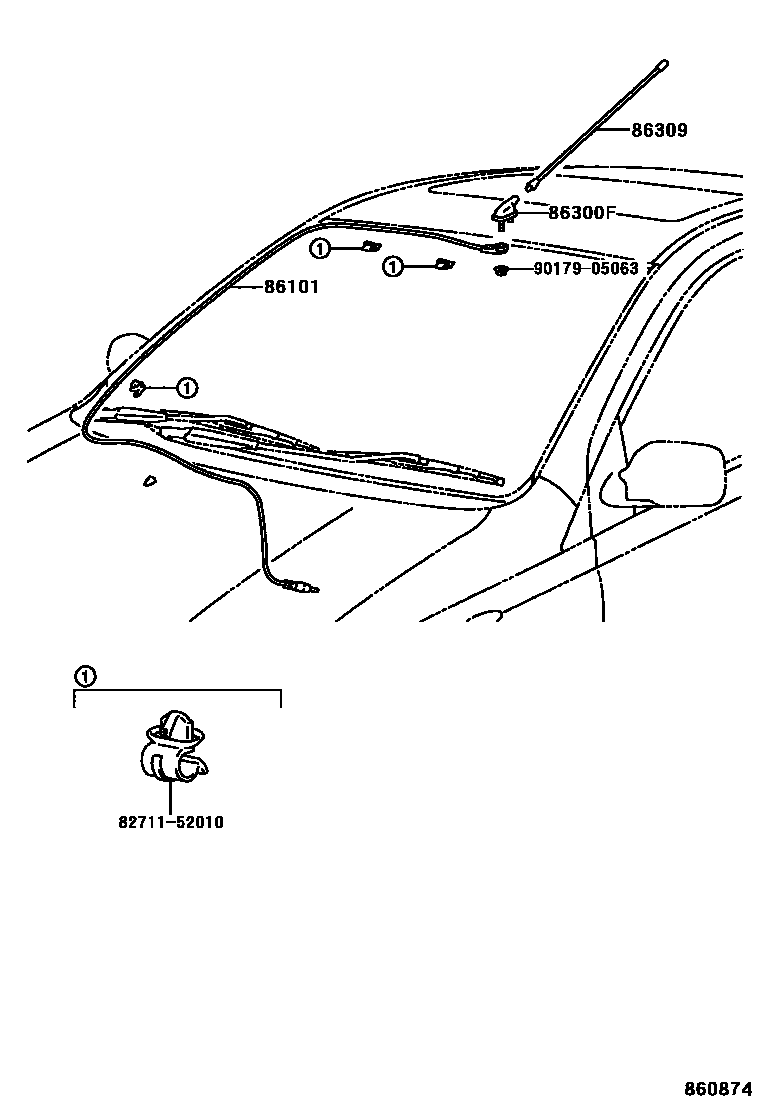

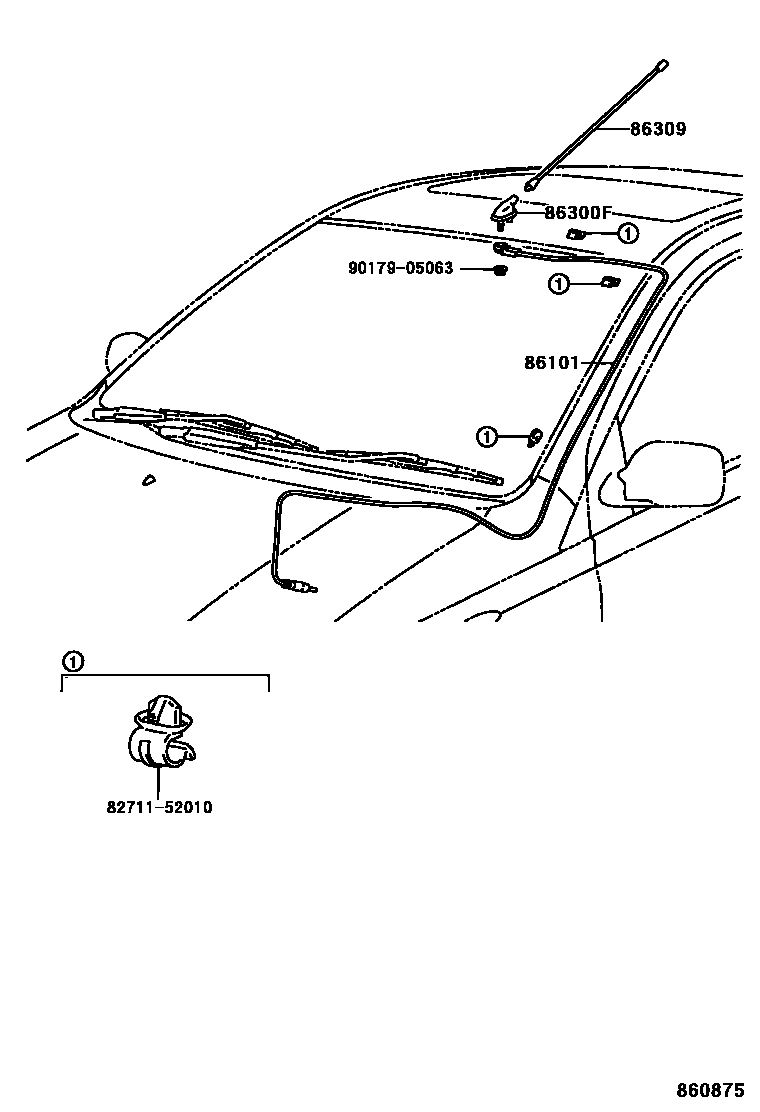

Toyota YARIS EPC diagram 8604, antenna, with 4 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86101 | Antenna wire sub-assembly | 86101-0W010 · 86101-0W020 · 86101-52120 |
| 86101J | Antenna No. 2 wire sub-assembly | 86101-52271 · 86101-52281 · 86101-52291 |
| 86300B | No. 1 amplifier antenna assembly | 86300-52160 |
| 86300F | Antenna fixing assembly (wire/antenna mast separation type) | 86300-0W020 |
| 86309 | Cylindrical antenna sub-assembly | 86309-0W020 · 86309-0W040 |
| 86309E | Roof antenna sub-assembly | 86309-52040 |
| 86396 | Antenna nut | 86396-20040 |
