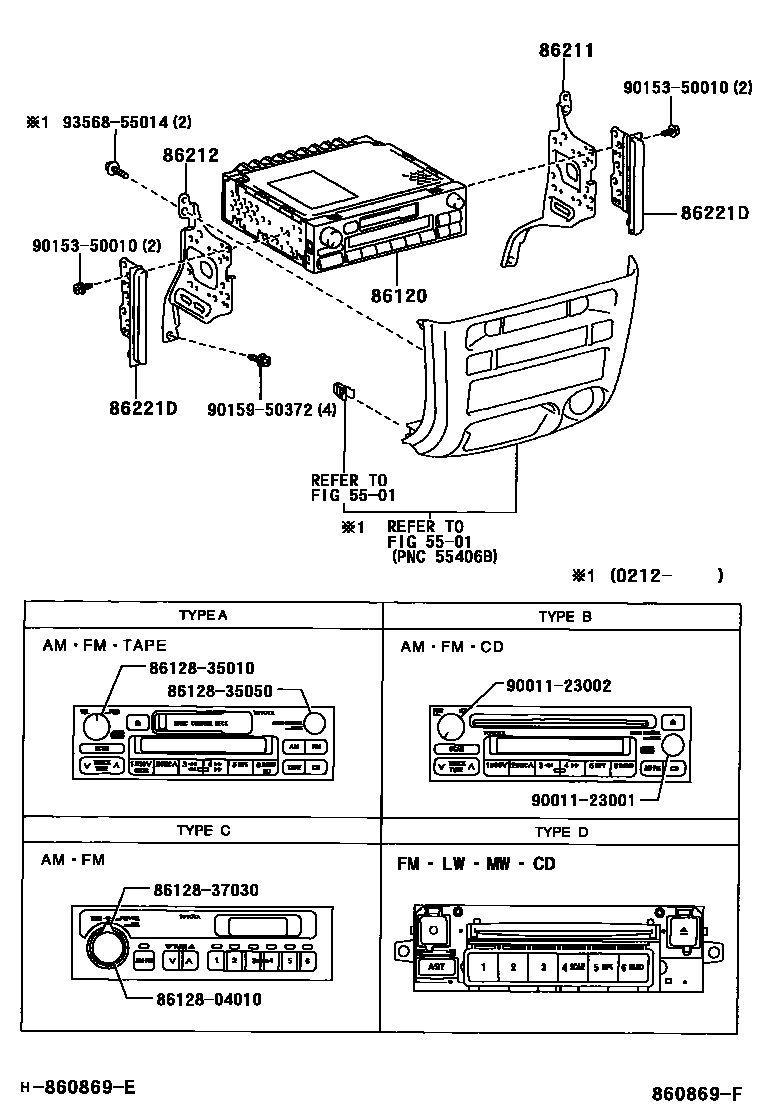

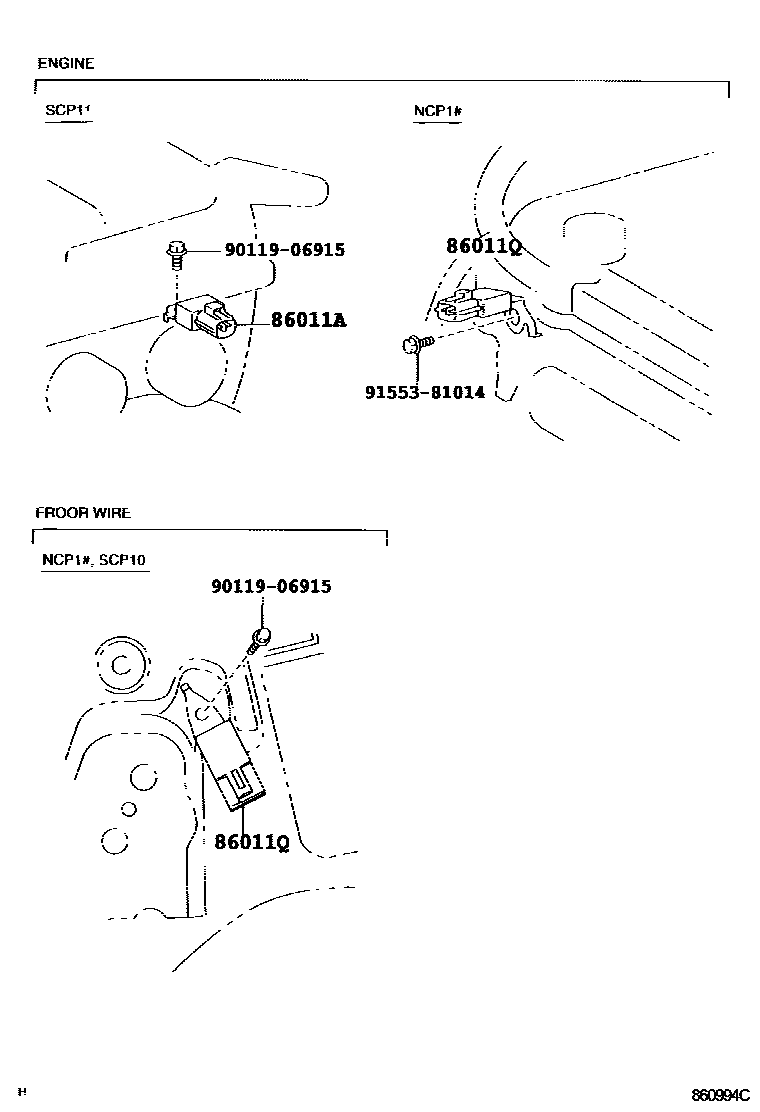

Toyota YARIS 收音机、放大器和冷凝器 — Figure 8601
Toyota YARIS EPC diagram 8601, 收音机、放大器和冷凝器, with 2 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86011A | radio settings phase modulator | 90980-04140 |
| 86011Q | radio settings phase modulator | 90980-04141 · 90980-04148 |
| 86120 | Radio assembly | 86120-08020 · 86120-16650 · 86120-2B610 · 86120-2B620 · 86120-52390 |
| 86211 | No. 1 radio bracket | 86211-52010 · 86211-52140 |
| 86212 | No. 2 radio bracket | 86212-52010 · 86212-52130 |
| 86221D | radio panel | 86221-52050 · 86221-52060 |
