Toyota YARIS 后刮水器 — Figure 8502

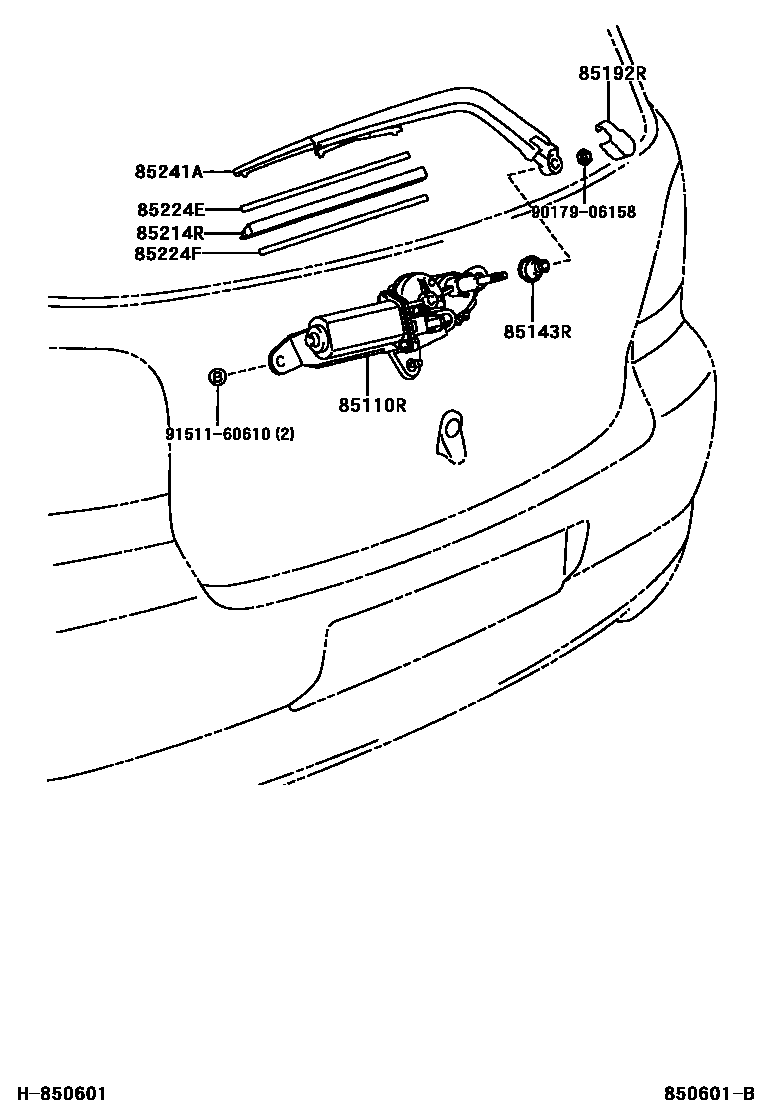

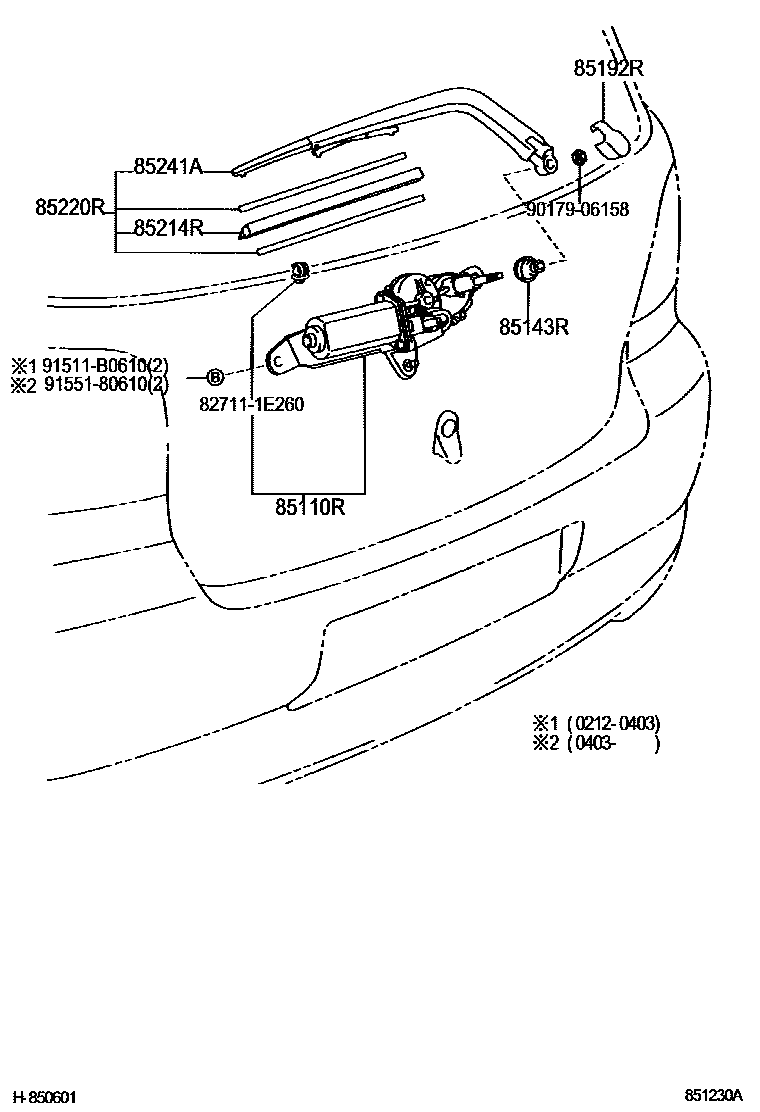

Toyota YARIS EPC diagram 8502, 后刮水器, with 2 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-52010 |
| 85143R | Rear wiper motor seal | 85143-52010 |
| 85192R | Rear wiper arm cover | 85244-52010 |
| 85214R | Rear wiper rubber strip | 85214-52020 |
| 85220R | Rear wiper blade assembly | 85240-52010 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-52020 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-52020 |
| 85241A | rear wiper arm | 85241-52010 |
