Toyota YARIS 空气囊 — Figure 8421

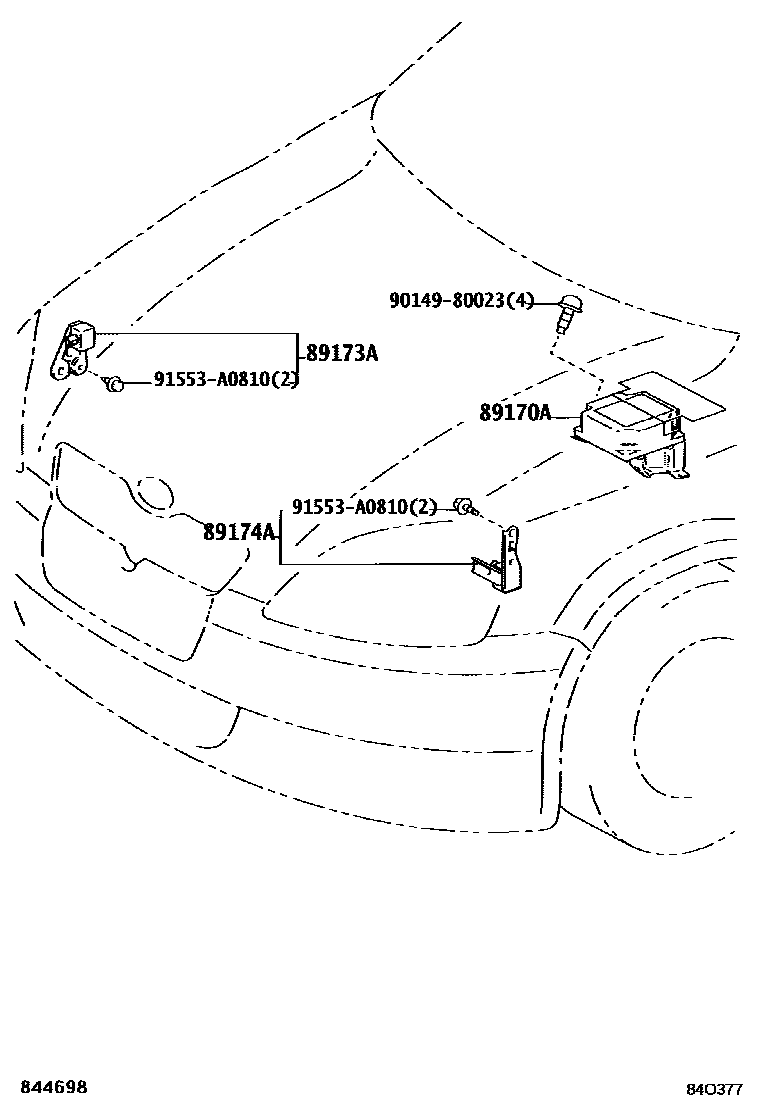

Toyota YARIS EPC diagram 8421, 空气囊, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170A | Air bag ECU assembly | 89170-52030 · 89170-52040 · 89170-52130 · 89170-52140 · 89170-52440 · 89170-52450 · 89170-52510 · 89170-52520 |
| 89173A | Right front air bag sensor | 89173-59055 · 89173-59125 · 89173-59225 |
| 89174A | Left front air bag sensor | 89174-59015 · 89174-59065 · 89174-59155 |
