Toyota YARIS 遥控门锁 — Figure 8420

Toyota YARIS EPC diagram 8420, 遥控门锁, with 4 images and 7 PNC and OE references.

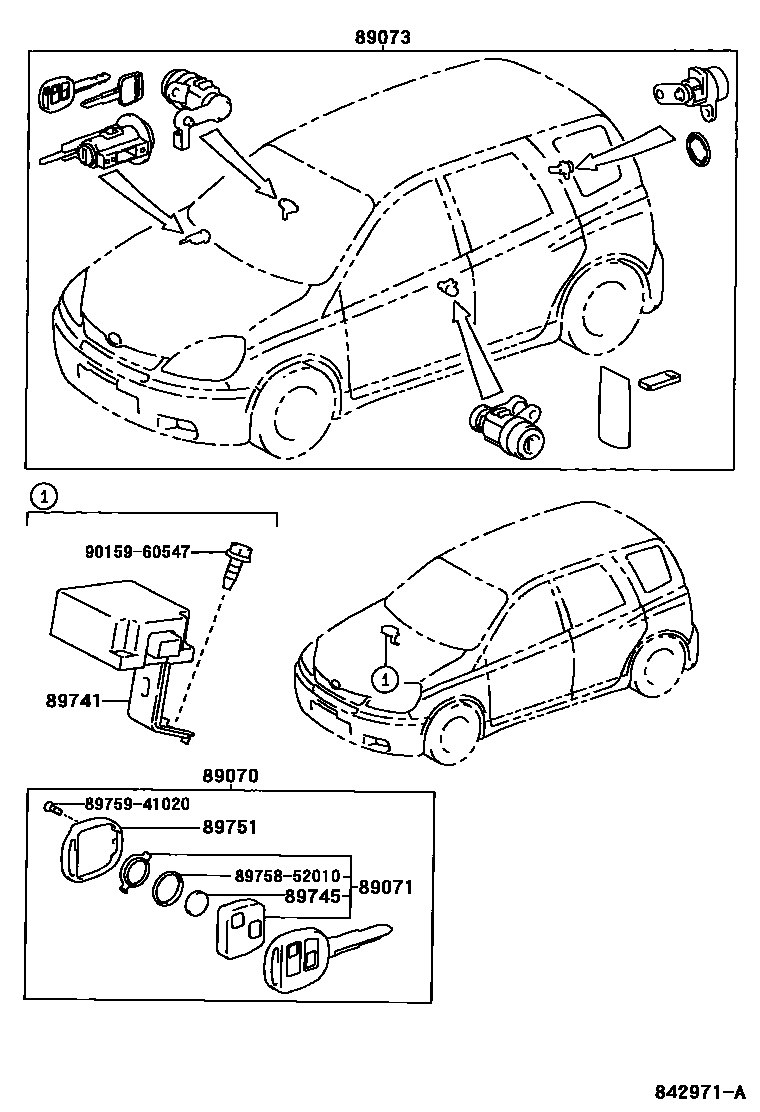

Toyota YARIS 遥控门锁 EPC diagram — 842971A
遥控门锁 — 842971A (199908 – 200212)

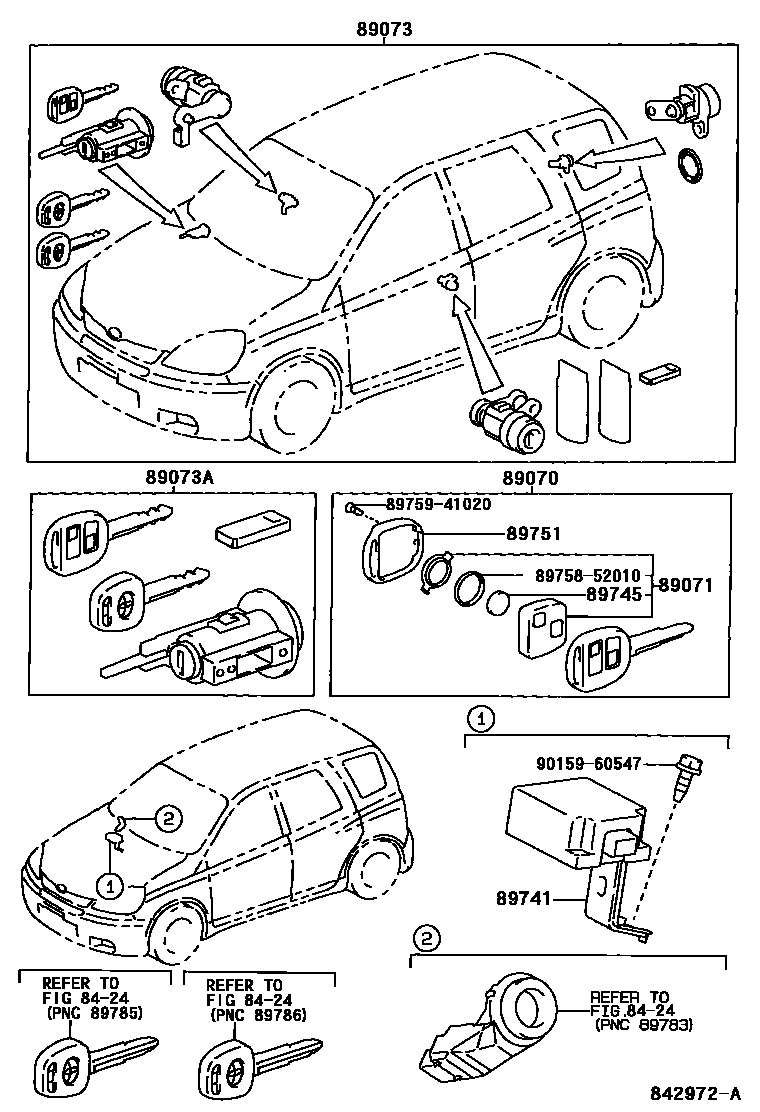

Toyota YARIS 遥控门锁 EPC diagram — 842972A
遥控门锁 — 842972A (199908 – 200212)

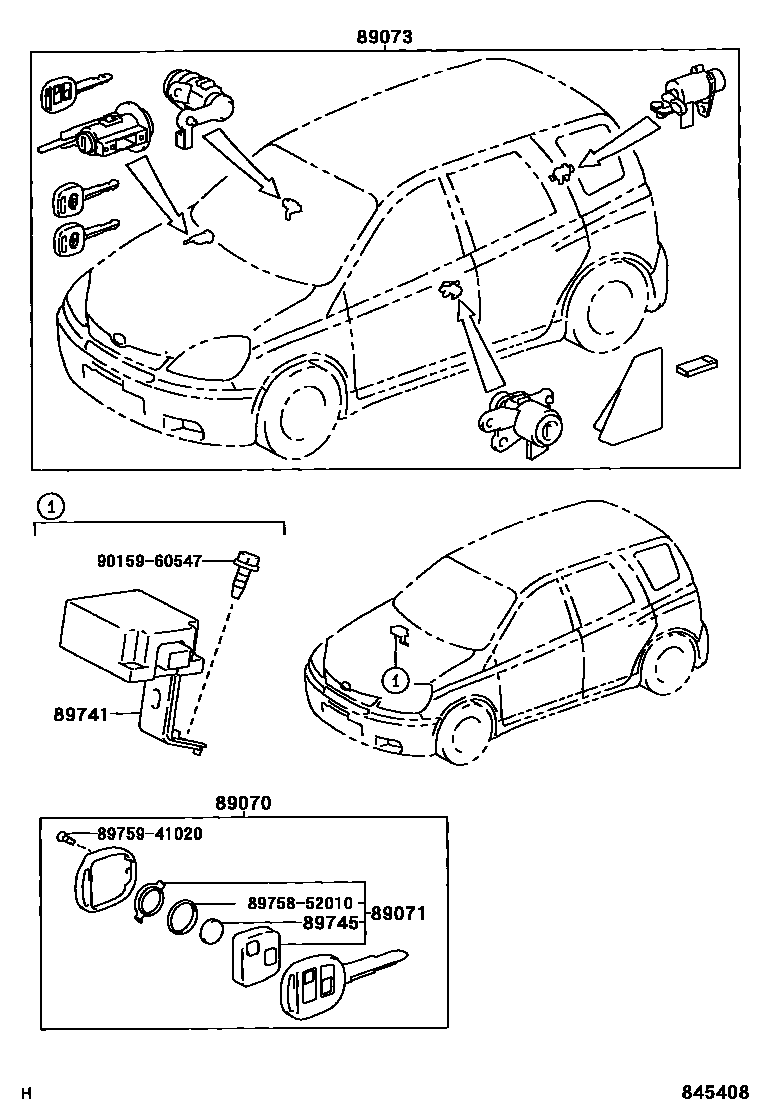

Toyota YARIS 遥控门锁 EPC diagram — 845408
遥控门锁 — 845408 (200212 – 999999)

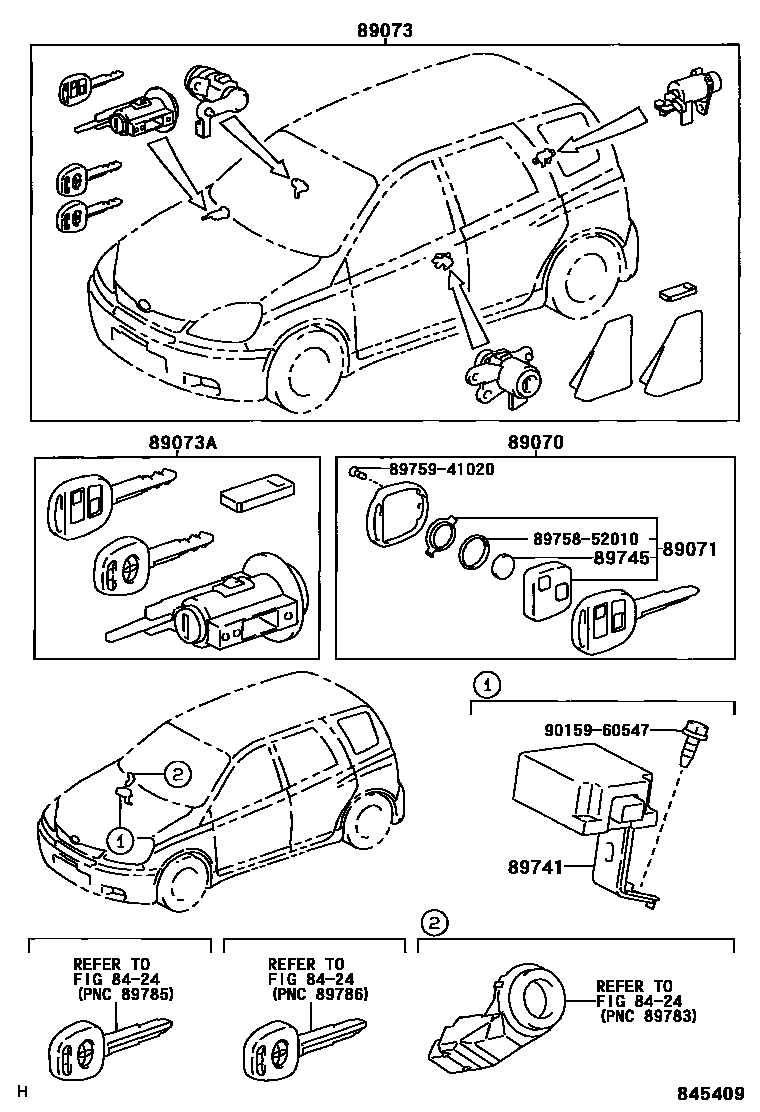

Toyota YARIS 遥控门锁 EPC diagram — 845409
遥控门锁 — 845409 (200212 – 999999)

PNC and OE references

PNCPart nameOE numbers
89070Remote key assembly89070-47101 · 89070-47160 · 89070-52080 · 89070-52081 · 89070-52110 · 89070-52120 · 89070-52340
89071Remote key sub-assembly module assembly89071-52020 · 89071-52021 · 89071-52030 · 89071-52040
89073Lock cylinder assembly with transmitter housing (without module)69005-52860 · 69005-52880 · 89073-52060 · 89073-52061 · 89073-52062 · 89073-52090 · 89073-52091 · 89073-52100 · 89073-52101 · 89073-52460 · 89073-52470 · 89073-52480
89073AIgnition lock cylinder assembly with transmitter housing (internal toothed key)89073-52010 · 89073-52011 · 89073-52040 · 89073-52430 · 89073-52440
89741door control receiver89741-52020 · 89741-52021 · 89741-52040
89745Transmitter battery89745-52010
89751Transmitter housing cover89751-20010 · 89751-20020 · 89751-52020
