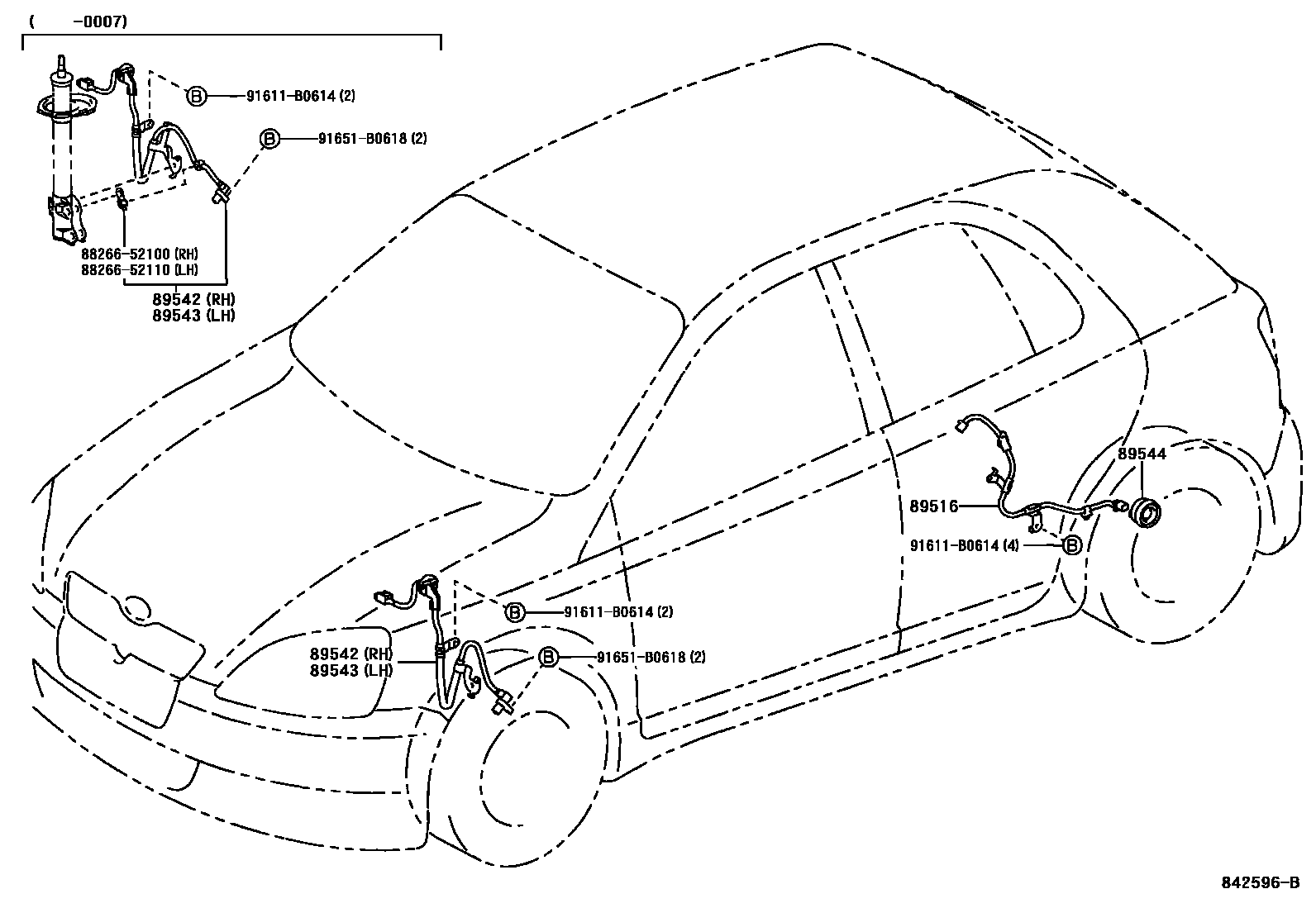

Toyota YARIS ABS 和 VSC — Figure 8414
Toyota YARIS EPC diagram 8414, ABS 和 VSC, with 1 images and 4 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89516 | Anti-skid control sensor wiring harness | 89516-52010 · 89516-52020 |
| 89542 | Right front wheel speed sensor | 04895-52010 · 89542-52010 |
| 89543 | Left front wheel speed sensor | 04895-52020 · 89543-52010 |
| 89544 | Anti-skid control sensor | 89544-12010 · 89544-52010 · 89544-52020 · 89544-52030 |
