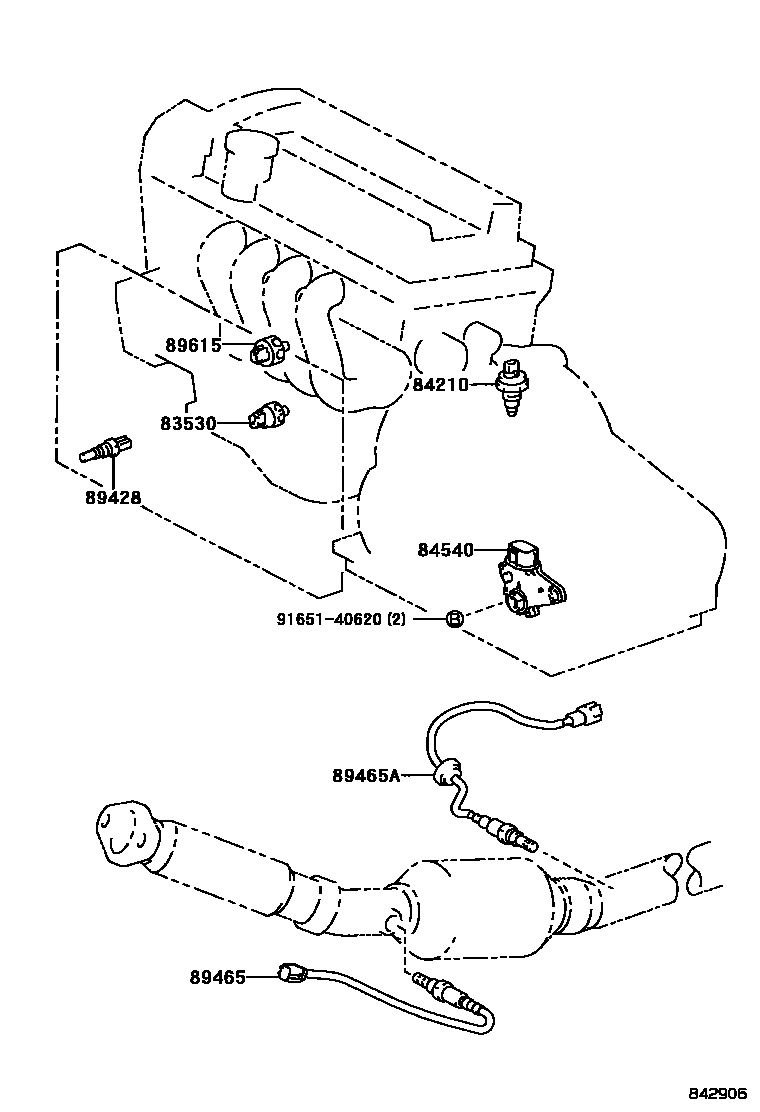

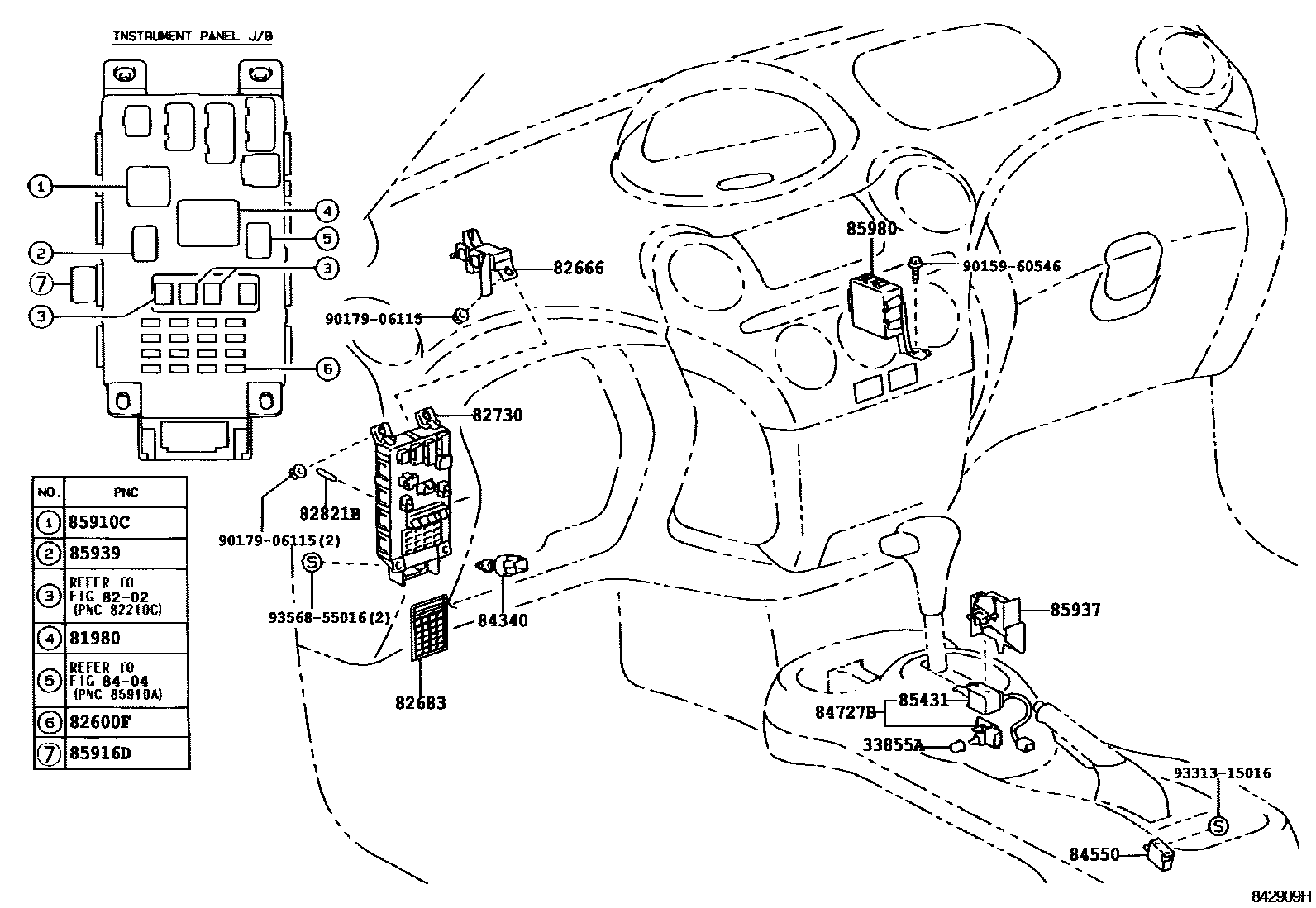

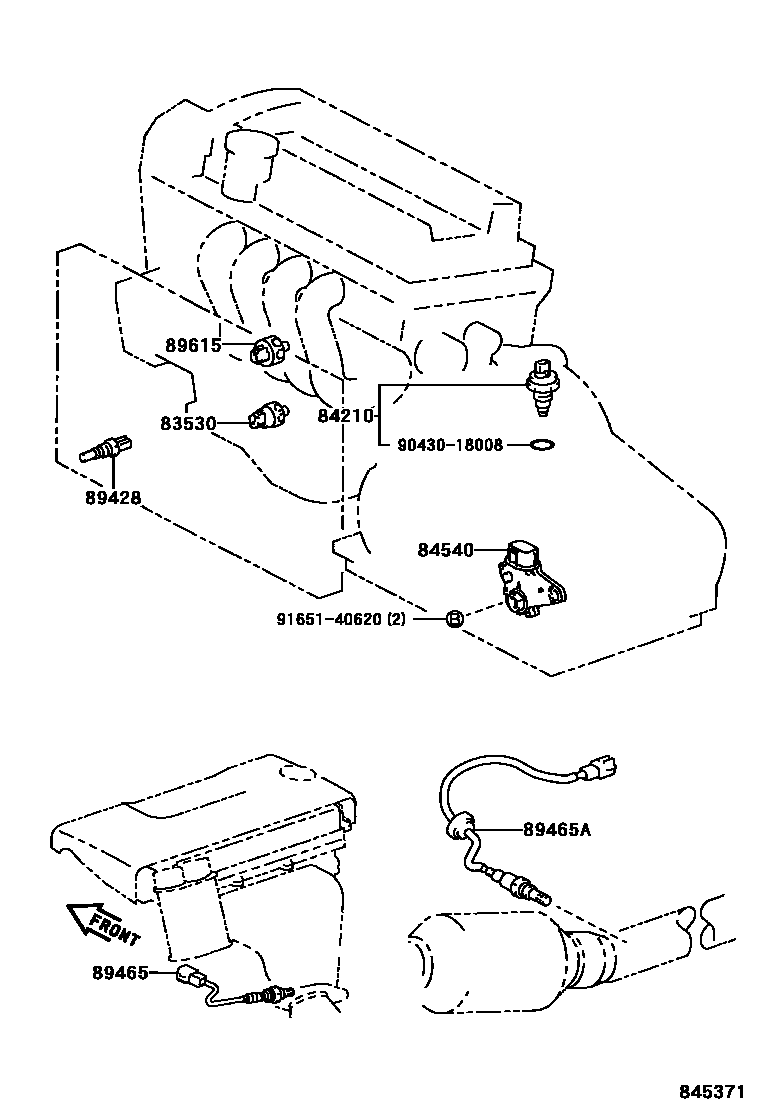

Toyota YARIS 开关和继电器和ECU — Figure 8401

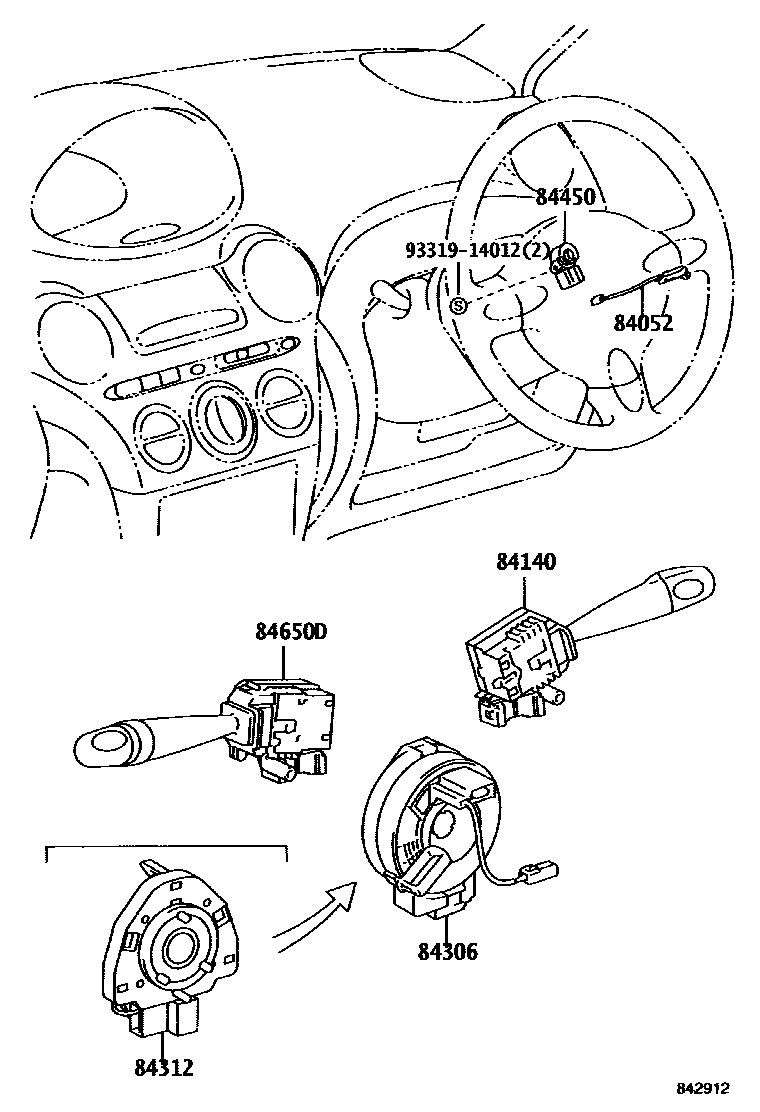

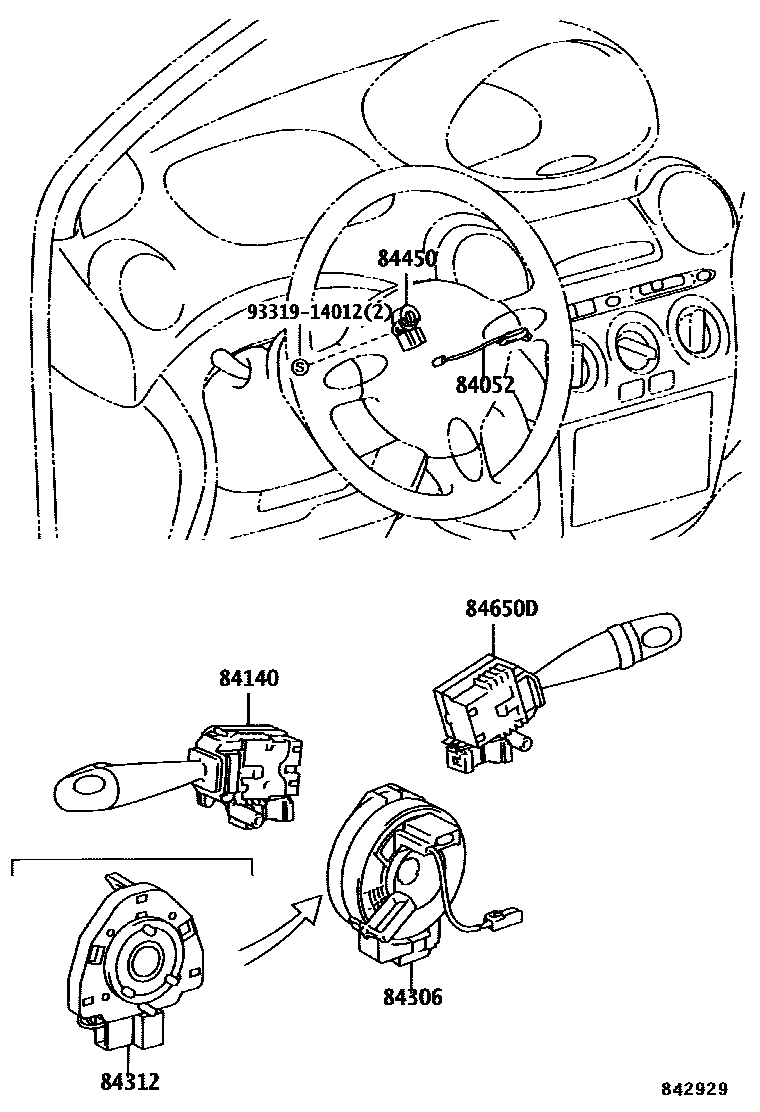

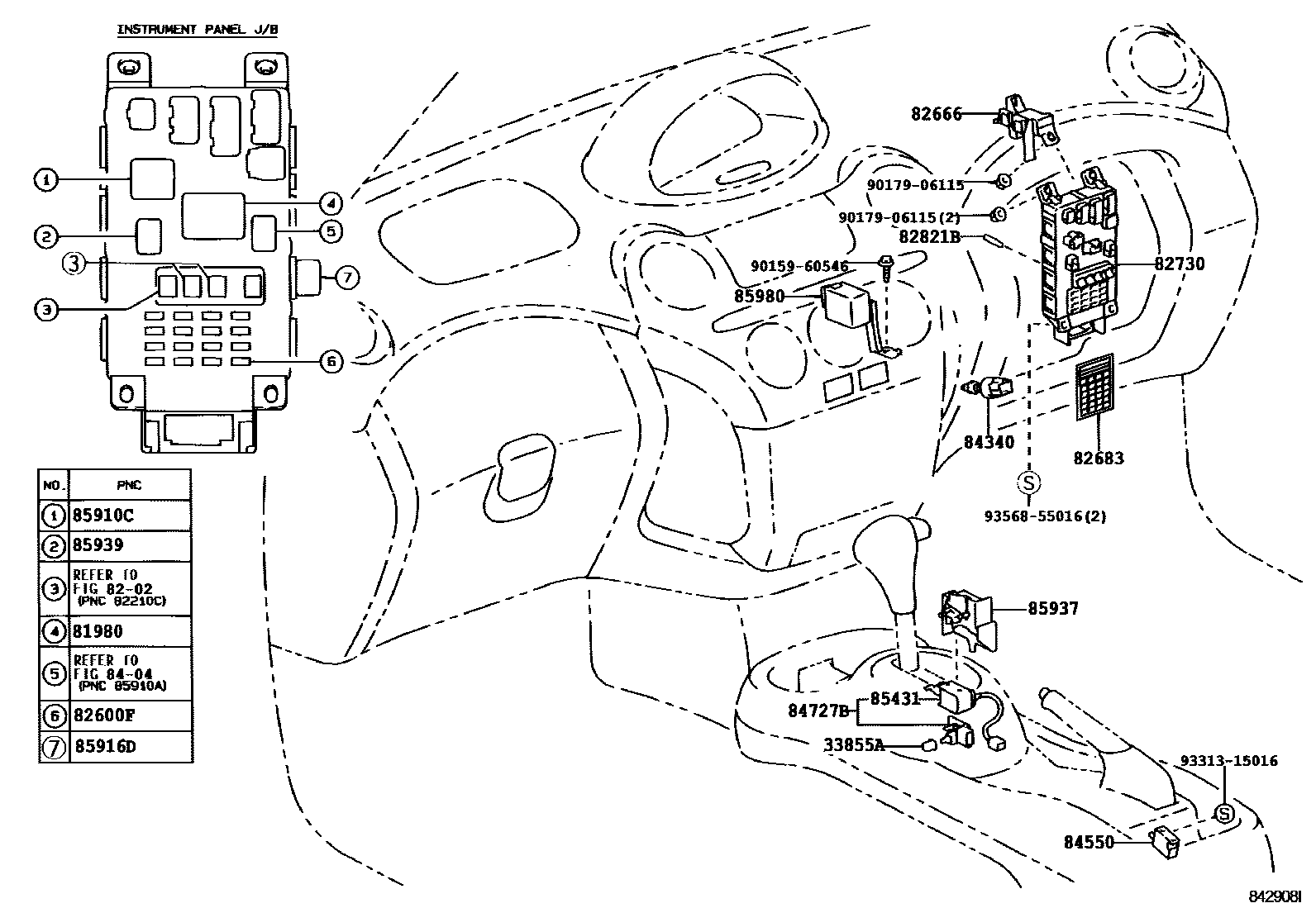

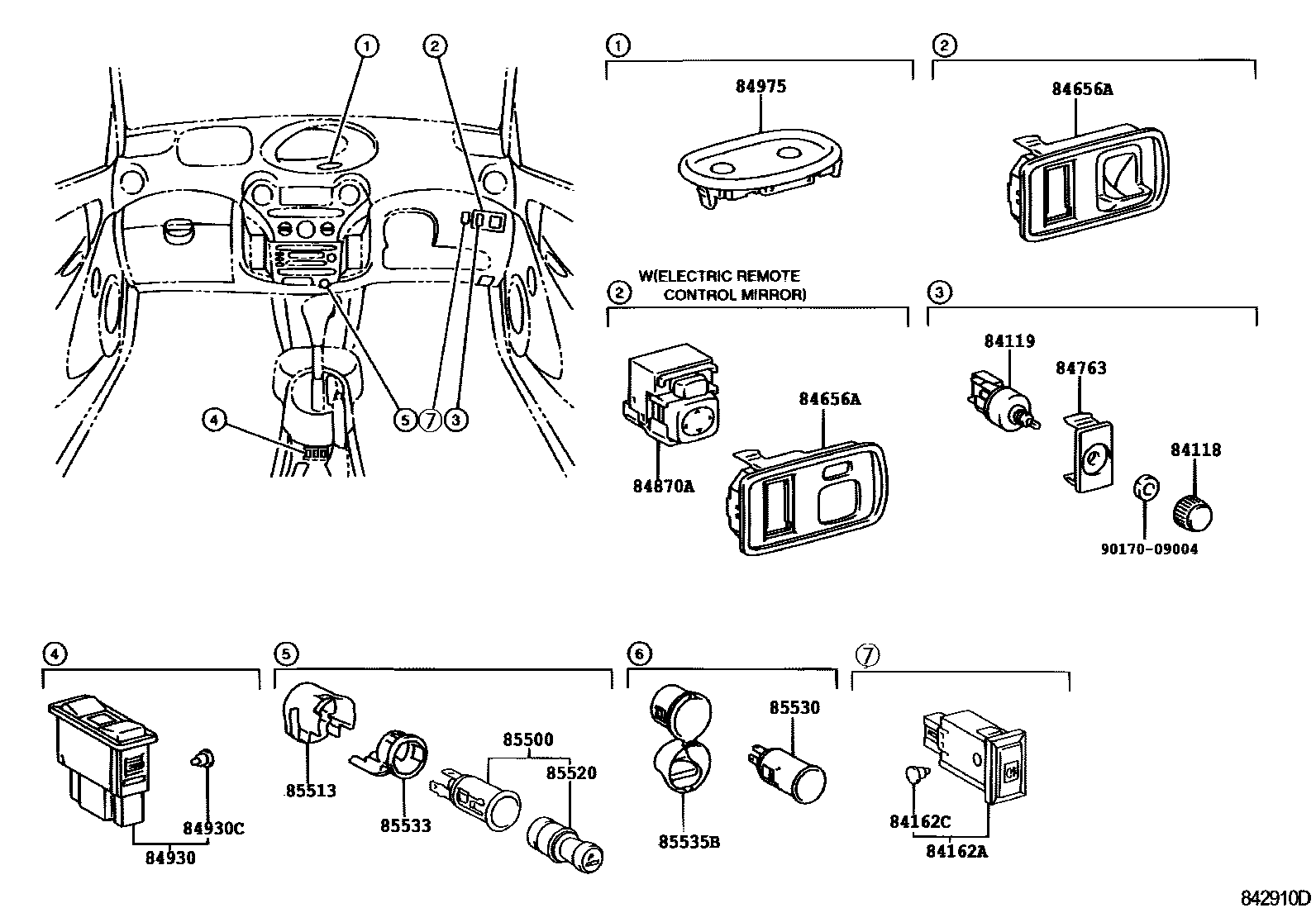

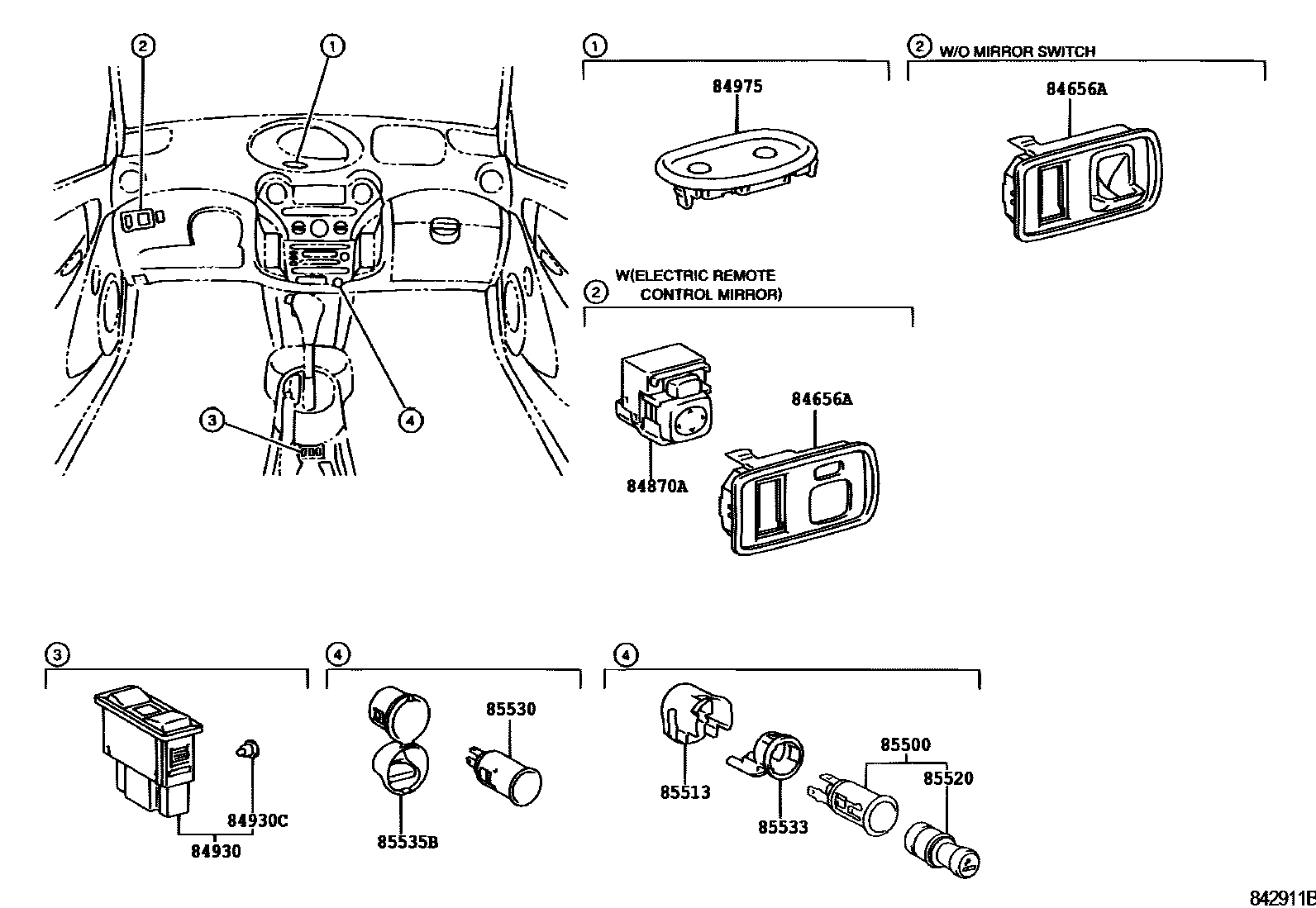

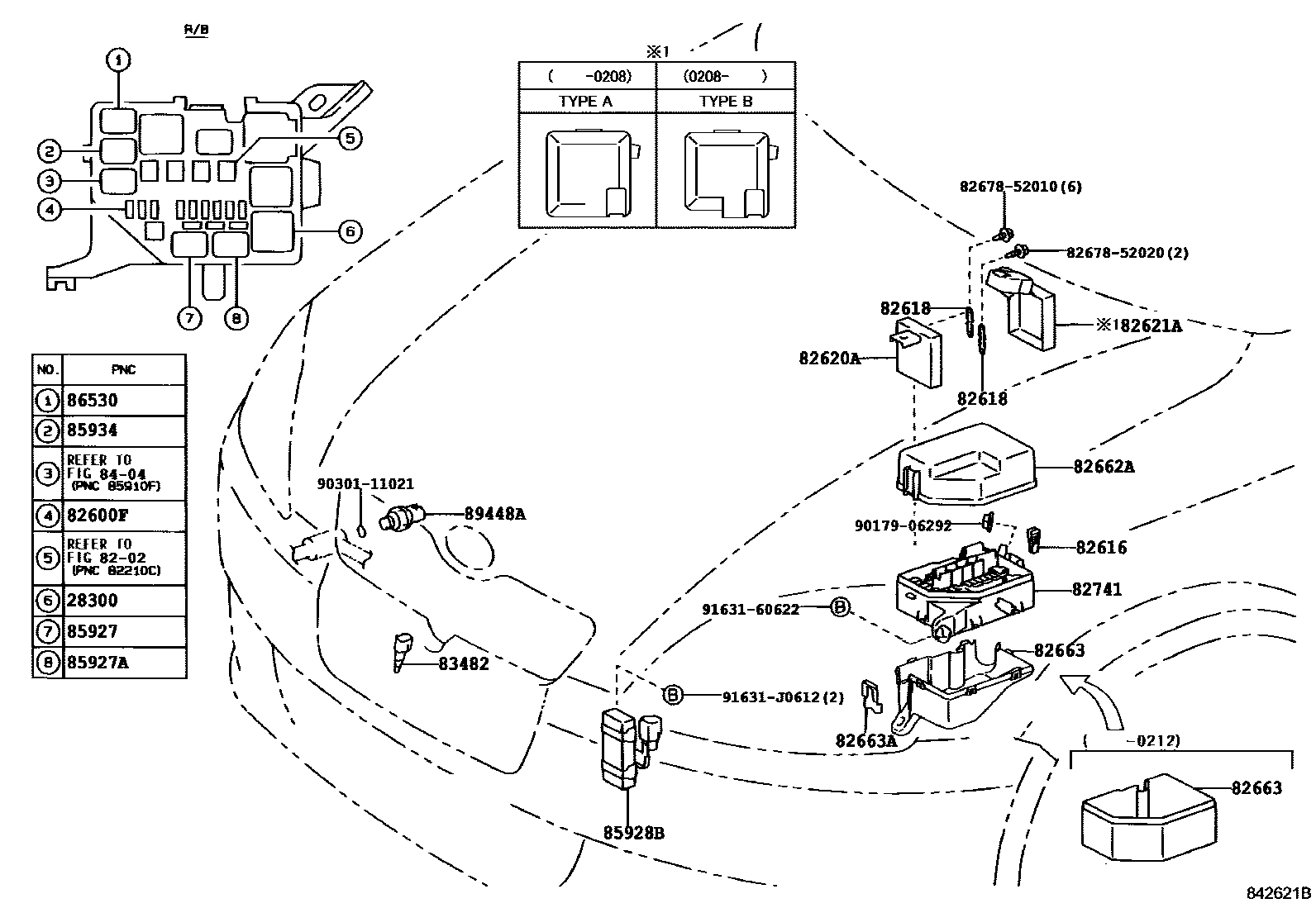

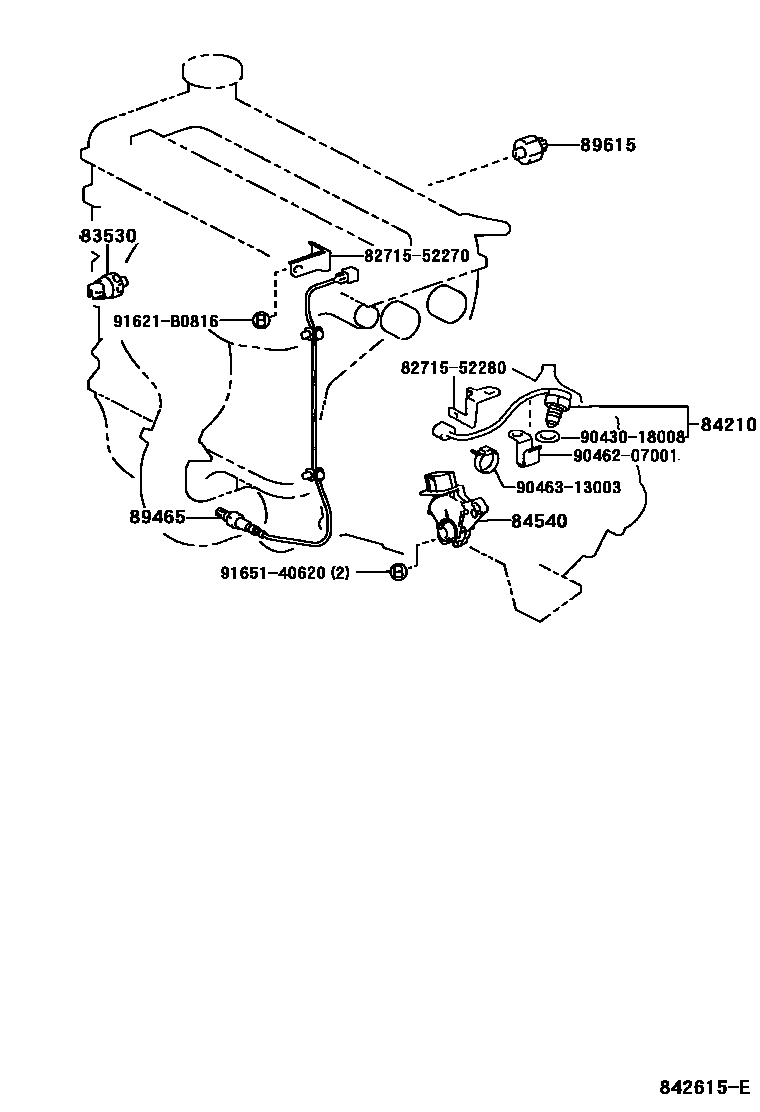

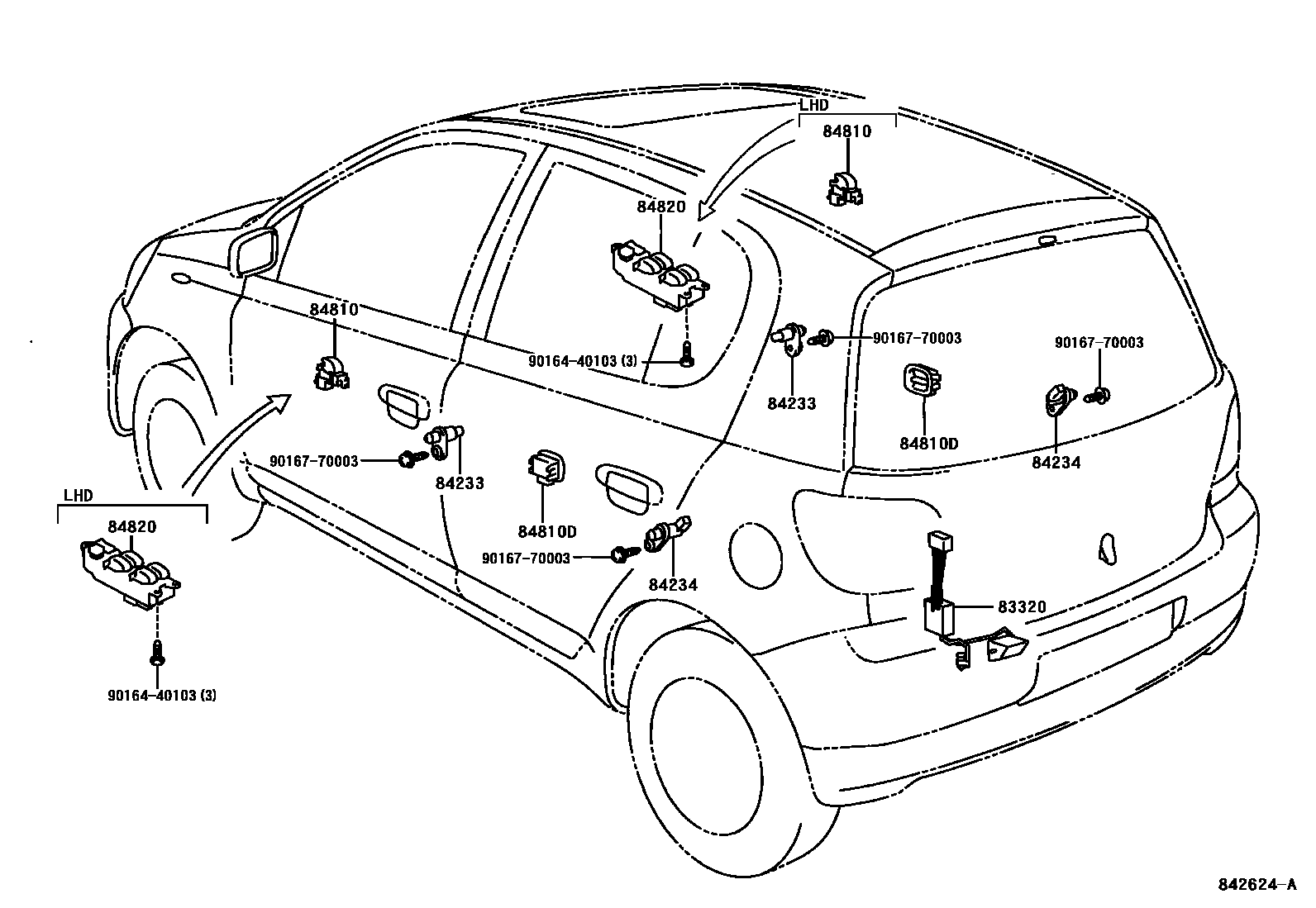

Toyota YARIS EPC diagram 8401, 开关和继电器和ECU, with 11 images and 63 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28300 | Starter relay assembly | 28300-10020 |
| 33855A | Shift lock unit cover | 33855-52010 |
| 81980 | Turn signal flasher relay assembly | 81980-50020 · 81980-50030 |
| 82600F | Spare fuse | 90982-09008 · 90982-09009 · 90982-09010 · 90982-09011 · 90982-09012 · 90982-09013 |
| 82616 | fuse puller | 82616-20010 |
| 82618 | Spare fuse | 82618-52010 · 82618-52020 · 82618-52030 |
| 82620A | Fuse box assembly | 82620-52010 · 82620-52011 |
| 82621A | Fuse cover | 82621-52010 · 82621-52011 · 82621-52020 · 82621-52021 |
| 82662A | No. 1 relay box upper cover | 82662-52010 · 82662-52020 · 82662-52160 · 82662-52230 |
| 82663 | Relay box lower cover | 82663-52010 · 82663-52040 |
| 82663A | No. 2 relay box lower cover | 82663-52050 |
| 82666 | Connector holder | 82666-52010 |
| 82683 | Fuse box warning nameplate | 82683-52010 · 82683-52011 · 82683-52020 · 82683-52040 · 82683-52041 · 82683-52090 · 82683-52150 · 82683-52170 · 82683-52200 |
| 82730 | Instrument panel junction box assembly | 82732-52010 · 82732-52020 · 82732-52030 |
| 82741 | Engine room relay box | 82741-52010 |
| 82821B | Connector cover | 82821-52020 |
| 83320 | Fuel gauge sensor assembly | 83320-52020 · 83320-52021 · 83320-52060 · 83320-52061 |
| 83482 | Outside car ambient temperature sensor | 83482-02010 |
| 83530 | Oil pressure switch assembly (for engine) | 83530-28020 · 83530-60020 |
| 84052 | Unlock warning switch assembly | 84052-60010 |
| 84118 | Light control rheostat button | 84118-20011 |
| 84119 | Light control rheostat | 84119-20082 |
| 84140 | Headlight dimmer switch assembly | 84140-12510 · 84140-42010 · 84140-42020 · 84140-52010 · 84140-52020 |
| 84162A | Rear fog light switch | 84165-52010 |
| 84162C | Bulb (for rear fog light switch) | 90010-09009 |
| 84210 | Reversing light switch assembly | 84210-12040 · 84210-60030 |
| 84233 | Door control light switch assembly (for front door) | 84231-52010 |
| 84234 | Door control light switch assembly (for rear door) | 84231-52020 |
| 84306 | Spiral cable sub-assembly | 84306-52010 · 84306-52070 |
| 84312 | Speaker contact piece | 84312-52010 |
| 84340 | brake light switch assembly | 84340-32050 |
| 84450 | Ignition or starter switch assembly | 84450-52010 |
| 84540 | Neutral start switch assembly | 84540-52010 |
| 84550 | Parking brake switch assembly | 84550-30080 |
| 84650D | Windshield wiper switch assembly with wiper control relay | 84652-52010 · 84652-52030 · 84652-52040 · 84652-52050 · 84652-52070 · 84652-52080 · 84652-52120 · 84652-52140 |
| 84727B | Shift lock switch and solenoid valve assembly | 84727-52010 |
| 84810 | Electric window lift switch assembly | 84810-12080 |
| 84820 | Electric window lift main switch assembly | 84820-10090 · 84820-10100 · 84820-52010 · 84820-52180 · 84820-52300 · 84820-60080 · 84820-60090 |
| 84870A | Exterior rearview mirror switch assembly | 84870-52010 · 84872-52030 |
| 84930 | Door control switch assembly | 84930-52010 |
| 84930C | Light bulb (for door control switch) | 84999-10310 |
| 85431 | Shift lock solenoid valve | 85431-52010 |
| 85500 | Cigarette lighter assembly | 85500-28050 |
| 85513 | Cigarette lighter cover | 85513-12020 · 85513-28010 |
| 85520 | Cigarette lighter button and cigarette lighter core assembly | 85520-28010 |
| 85530 | No. 1 power socket assembly | 85530-33020 |
| 85533 | Cigarette lighter indicator lamp shade | 85533-30060 |
| 85535B | No. 1 power outlet cover | 85535-52010 · 85535-52050 |
| 85910C | Relay assembly (for heater blower motor) | 90987-04006 · 90987-04010 |
| 85916D | fog light relay | 90987-02012 · 90987-02027 |
| 85927 | cooling fan relay | 90987-02012 · 90987-02022 · 90987-02027 |
| 85927A | Cooling fan relay No. 2 | 90987-04004 |
| 85928B | Cooling fan resistor | 85928-52010 |
| 85934 | Electromagnetic clutch relay | 90987-02012 · 90987-02022 · 90987-02028 |
| 85937 | Shift lock control protection device | 85937-52010 |
| 85939 | Power window relay | 90987-02012 · 90987-02027 |
| 85980 | Door control relay assembly | 85980-52010 · 85980-52031 · 85980-52051 · 85980-52160 · 85980-52180 · 85980-52190 · 85980-52210 · 85980-52220 |
| 86530 | Speaker relay assembly | 90987-02012 · 90987-02022 · 90987-02027 |
| 89428 | No. 2 temperature detection switch | 89428-20110 |
| 89448A | Power steering oil pressure sensor | 89448-51010 |
| 89465 | oxygen sensor | 89465-52010 · 89465-52050 · 89465-52190 |
| 89465A | Oxygen sensor No. 2 | 89465-52060 · 89465-52120 · 89465-52200 |
| 89615 | knock control sensor | 89615-22050 · 89615-52010 · 89615-52030 · 89615-52040 |
