Toyota YARIS 蓄电池和蓄电池电缆 — Figure 8201

Toyota YARIS EPC diagram 8201, 蓄电池和蓄电池电缆, with 1 images and 2 PNC and OE references.

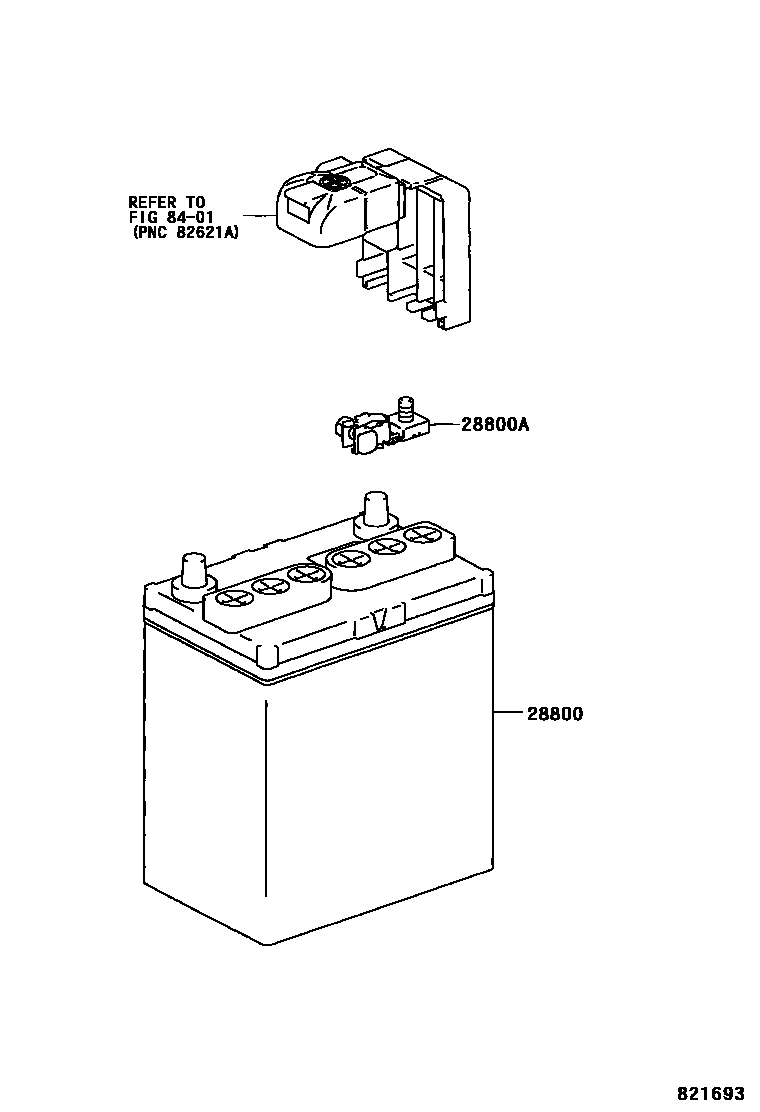

Toyota YARIS 蓄电池和蓄电池电缆 EPC diagram — 821693
蓄电池和蓄电池电缆 — 821693 (199903 – 999999)

PNC and OE references

PNCPart nameOE numbers
28800battery28800-21060 · 28800-21070 · 28800-21100 · 28800-21140 · 28800-24040 · 28800-74231
28800Abattery positive terminal90982-05052 · 90982-05053
