Toyota YARIS 后组合灯 — Figure 8111

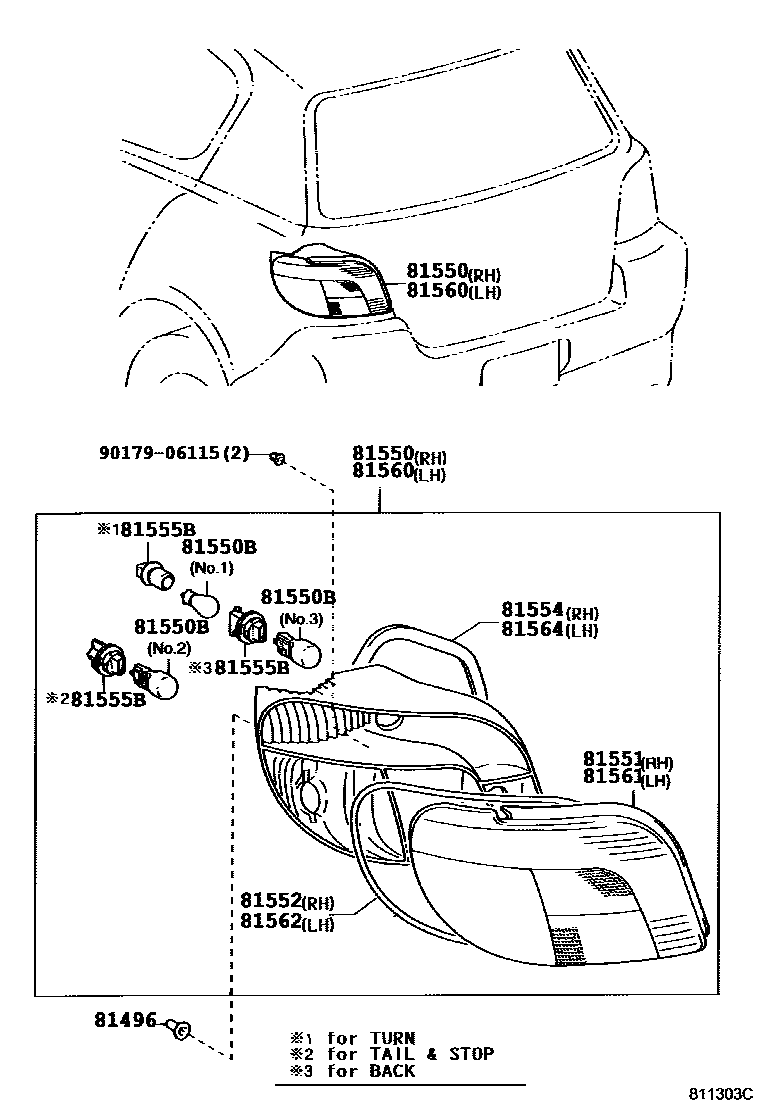

Toyota YARIS EPC diagram 8111, 后组合灯, with 1 images and 11 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 81496 | Rear combination light guide block | 81496-52010 |
| 81550 | Right rear combination light assembly | 81550-52040 · 81550-52130 · 81550-52180 · 81550-52280 |
| 81550B | Bulb (for rear combination lights) | 90981-11048 · 90981-13043 · 90981-13044 · 90981-15009 |
| 81551 | Right rear combination lamp shade | 81551-52040 · 81551-52130 · 81551-52180 · 81551-52280 |
| 81552 | Right rear combination lamp shade gasket | 81552-52020 · 81552-52280 |
| 81554 | Right rear combination lamp body gasket | 81554-52020 · 81554-52280 |
| 81555B | No. 1 lamp holder plug | 90075-60015 · 90075-60017 · 90075-60019 · 90075-60052 |
| 81560 | Left rear combination light assembly | 81560-52030 · 81560-52120 · 81560-52160 · 81560-52260 |
| 81561 | Left rear combination lamp shade | 81561-52030 · 81561-52120 · 81561-52160 · 81561-52260 |
| 81562 | Left rear combination lamp shade gasket | 81552-52020 · 81552-52280 |
| 81564 | Left rear combination lamp body gasket | 81564-52020 · 81564-52260 |
