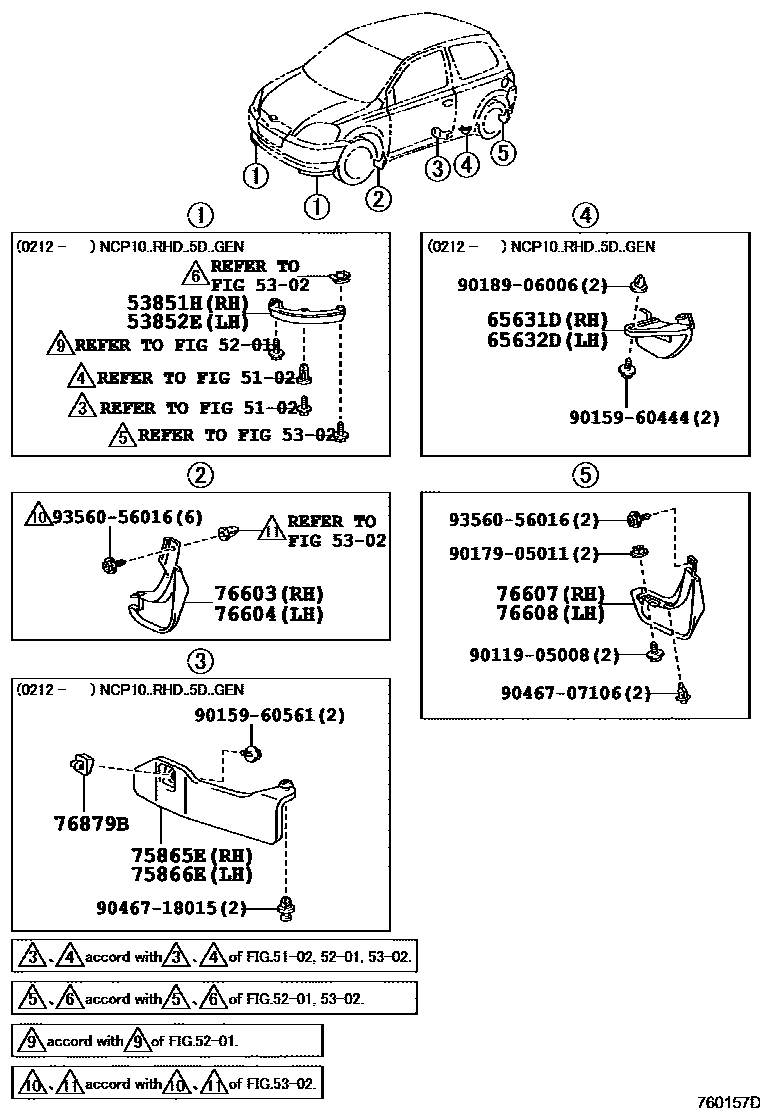

Toyota YARIS 挡泥板和扰流板 — Figure 7601
Toyota YARIS EPC diagram 7601, 挡泥板和扰流板, with 2 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 53851H | Right front spoiler pad | 53851-52010 |
| 53852E | Left front spoiler pad | 53852-52010 |
| 65631D | Right rear wheel house front panel | 65631-52010 |
| 65632D | Left rear wheel house front panel | 65632-52010 |
| 75865E | Right side door sill panel protective strip protective cover | 75865-52010 |
| 75866E | Left side door sill panel protective strip protective cover | 75866-52010 |
| 76085 | Rear spoiler sub-assembly | 76871-52900 |
| 76603 | Right front fender fender sub-assembly | 76621-52010 |
| 76604 | Left front fender fender sub-assembly | 76622-52010 |
| 76607 | Right rear side fender sub-assembly | 76625-52010 · 76625-52040 · 76625-52050 · 76625-52100 |
| 76608 | Left rear side fender sub-assembly | 76626-52010 · 76626-52040 · 76626-52050 · 76626-52100 |
| 76835 | No. 1 rear side spoiler fixing piece | 76835-52010 |
| 76873A | Right rear spoiler protective strip | 76873-52010 |
| 76874B | Left rear spoiler protective strip | 76874-52010 |
| 76879B | No. 2 rear spoiler clip | 76879-52010 |
| 76887 | Rear spoiler seal | 76887-52010 |
| 76915F | Right front fender | 76915-52900 |
| 76916F | Left front fender | 76916-52900 |
| 76923 | Side fender fixings | 76923-52020 |
| 76924 | No. 2 side fender fixings | 76924-52020 · 76924-52021 |
