Toyota YARIS 后排座椅和座椅滑轨 — Figure 7102

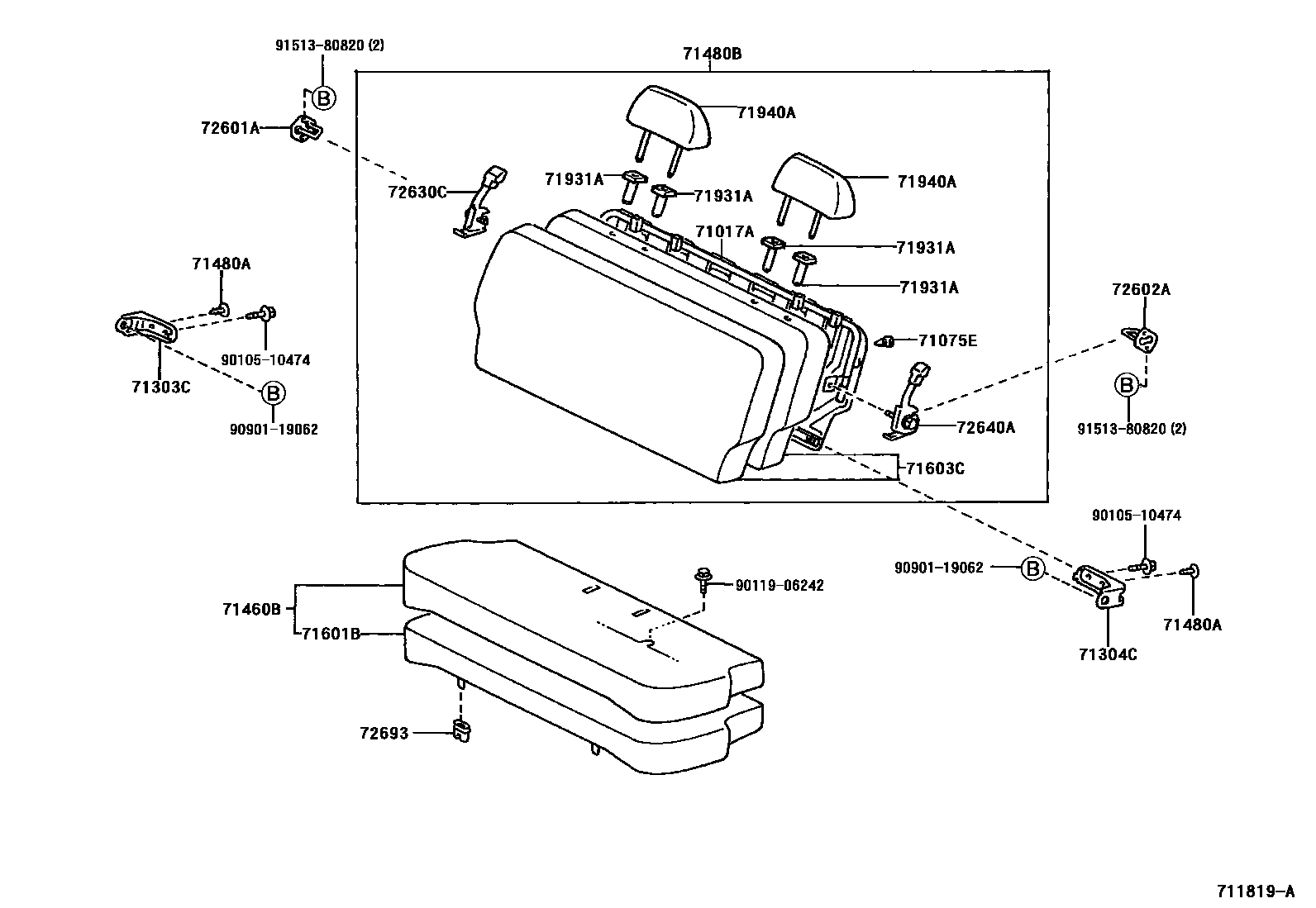

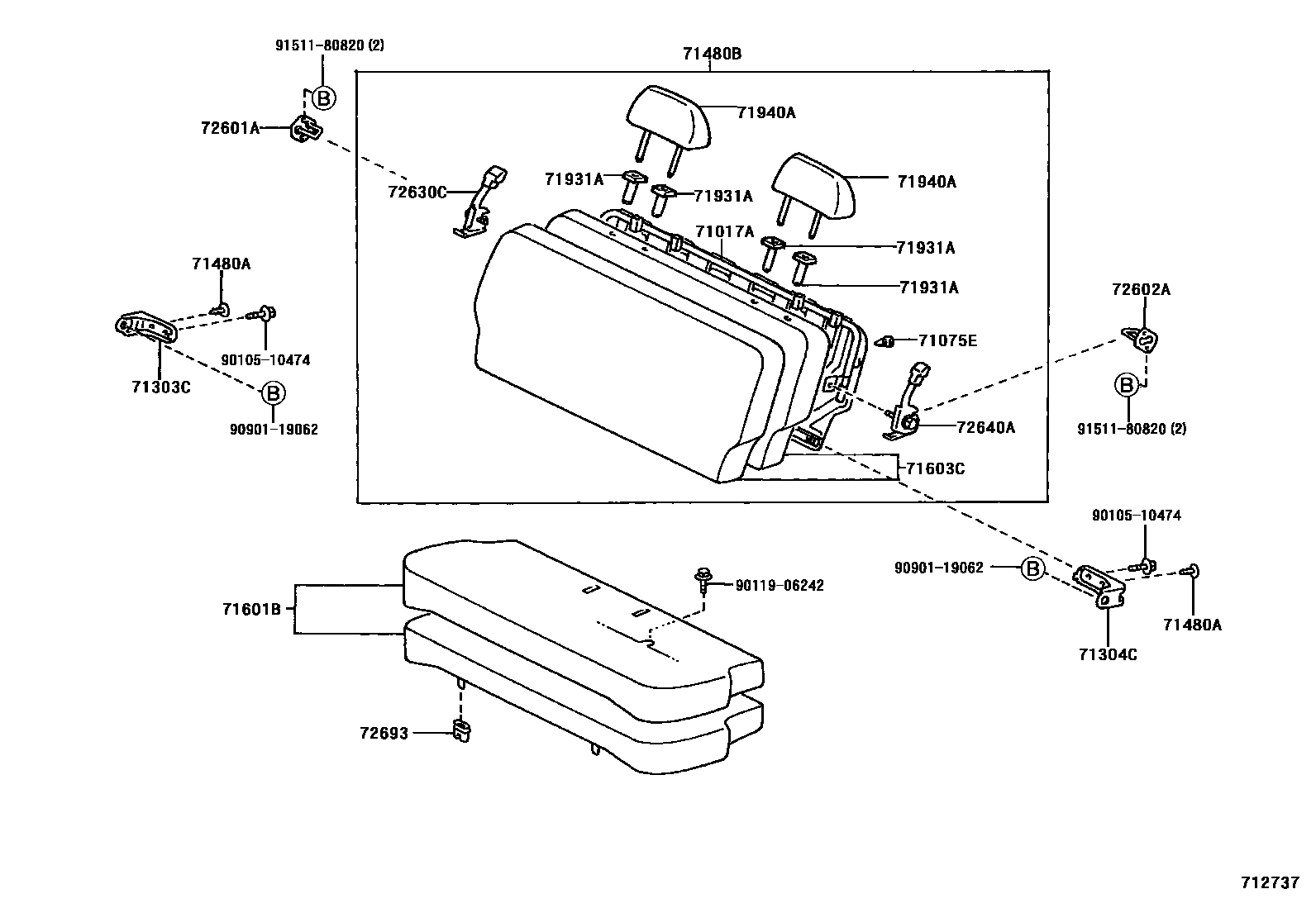

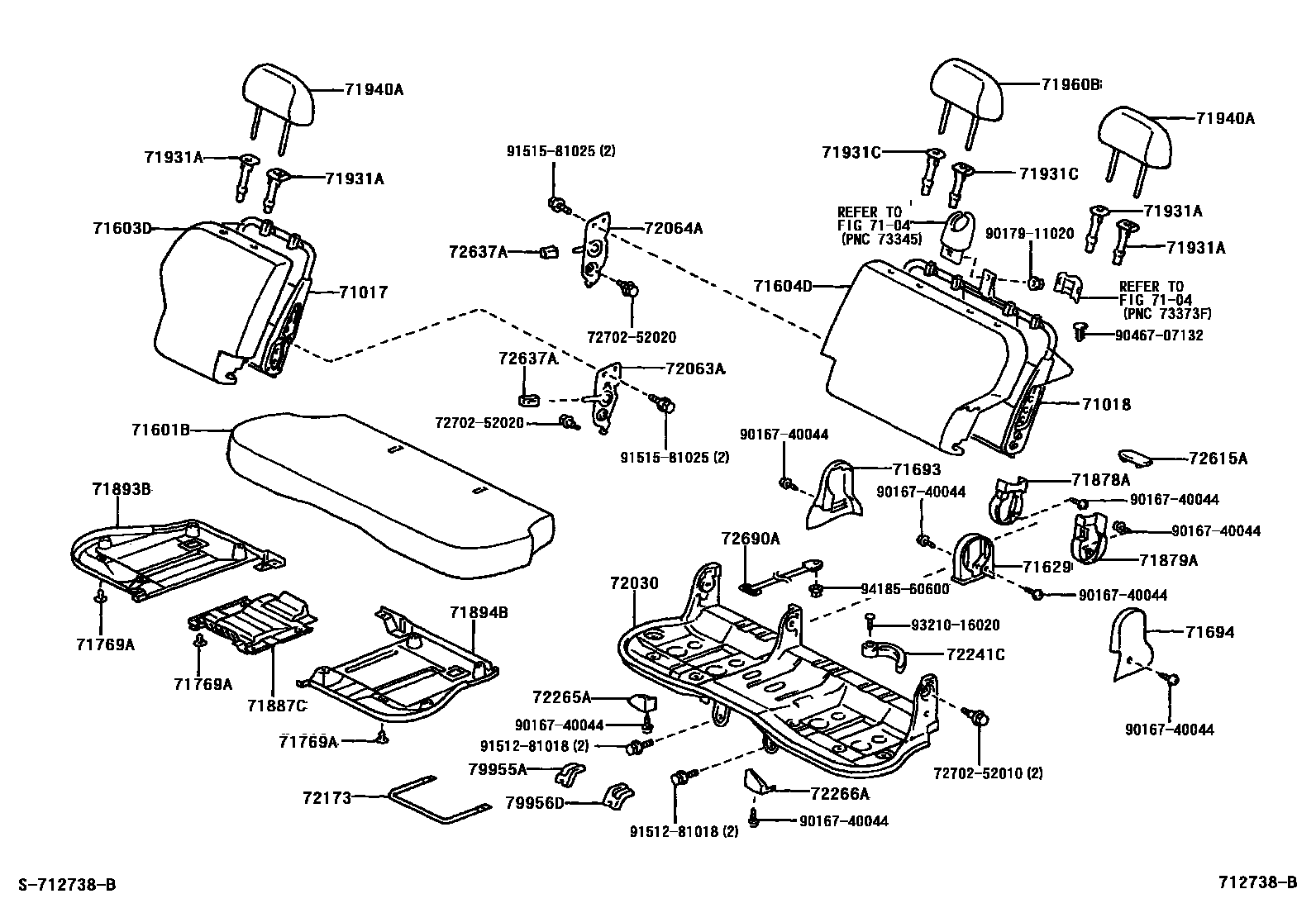

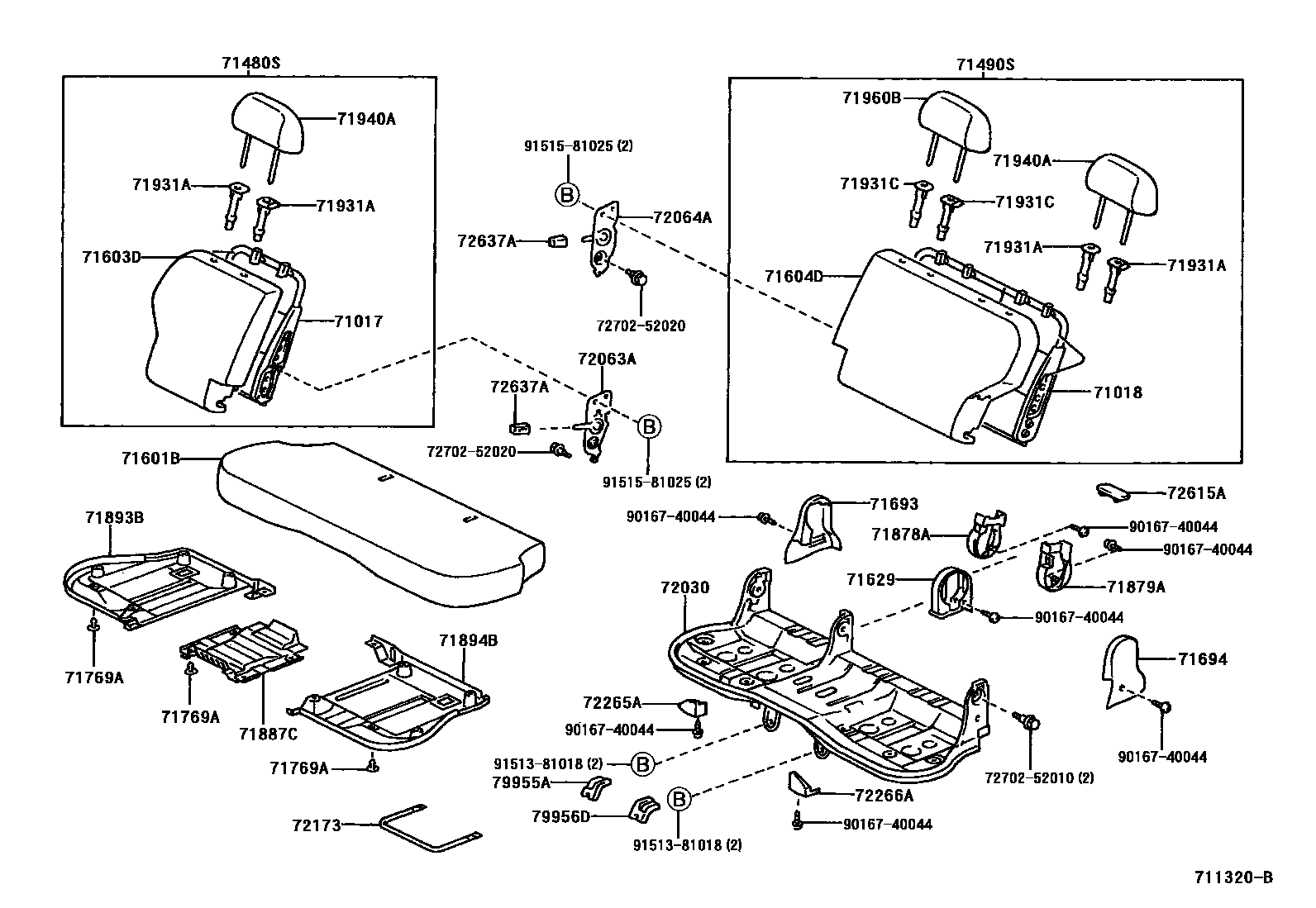

Toyota YARIS EPC diagram 7102, 后排座椅和座椅滑轨, with 4 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 71017 | Right rear seat back frame sub-assembly | 71017-52020 · 71017-52190 |
| 71017A | Rear seat back frame sub-assembly | 71017-52030 · 71017-52040 · 71017-52380 · 71017-52390 |
| 71018 | Rear left seat back frame sub-assembly | 71018-52020 · 71018-52030 · 71018-52120 · 71018-52130 · 71018-52290 · 71018-52300 |
| 71075E | Clip (for rear seats) | 90467-09118 |
| 71303C | Rear right seat backrest hinge sub-assembly | 71345-52010 |
| 71304C | Rear left seat back hinge sub-assembly | 71345-52010 |
| 71769A | Rear seat back panel clip | 90467-10018 |
| 72030 | Rear No. 1 seat adjuster assembly | 72030-52010 · 72030-52020 · 72030-52070 |
| 72063A | Right rear seat back lock arm sub-assembly | 72063-52010 |
| 72064A | Rear left seat back lock arm sub-assembly | 72064-52010 · 72064-52020 |
| 72173 | Rear seat slide adjustment handle | 72173-52010 · 72173-52020 |
| 72601A | Right rear seat back lock sub-assembly | 72601-52010 · 72601-52120 |
| 72602A | Rear left seat back lock sub-assembly | 72601-52010 · 72601-52120 |
| 72630C | Rear right seat back lock assembly | 72630-52010 |
| 72640A | Rear left seat back lock assembly | 72640-52010 |
| 72690A | Rear seat lock release strap assembly | 72690-52020 |
| 72693 | Rear seat cushion hook | 72693-10040 |
