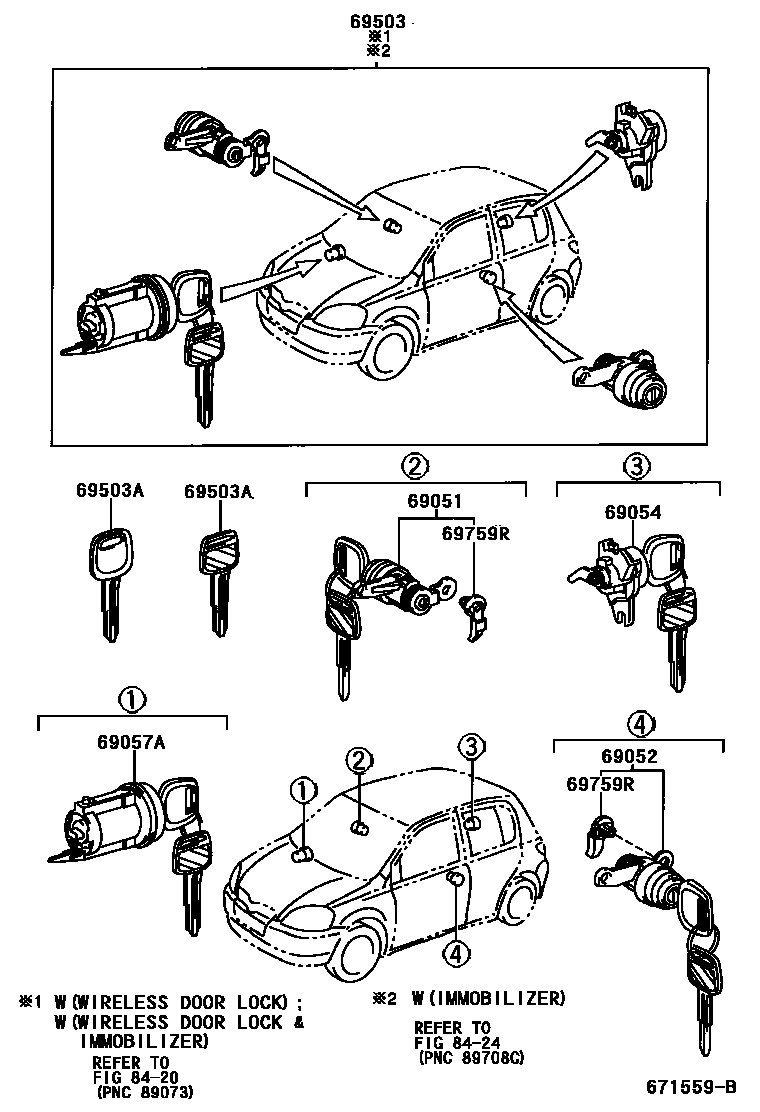

Toyota YARIS 锁芯组件 — Figure 6712
Toyota YARIS EPC diagram 6712, 锁芯组件, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 69051 | Right door lock cylinder and key assembly | 69051-52010 · 69051-52030 · 69051-52040 · 69051-52170 · 69051-52310 |
| 69052 | Left door lock cylinder and key assembly | 69052-52010 · 69052-52030 · 69052-52040 · 69052-52160 · 69052-52260 |
| 69054 | Rear door lock cylinder and key assembly | 69055-52010 · 69055-52030 · 69055-52040 · 69055-52200 · 69055-52220 · 69055-52350 |
| 69057A | Ignition switch lock cylinder and key assembly | 69057-12580 · 69057-52010 · 69057-52030 · 69057-52100 · 69057-52200 · 69057-52260 · 69057-52280 |
| 69503 | Door lock cylinder components | 69005-52010 · 69005-52030 · 69005-52031 · 69005-52370 · 69005-52380 · 69005-52570 |
| 69503A | external tooth key | 90999-00149 · 90999-00166 · 90999-00167 · 90999-00186 · 90999-00199 |
| 69759R | Front door lock cylinder buckle | 69759-32090 · 69759-32100 |
