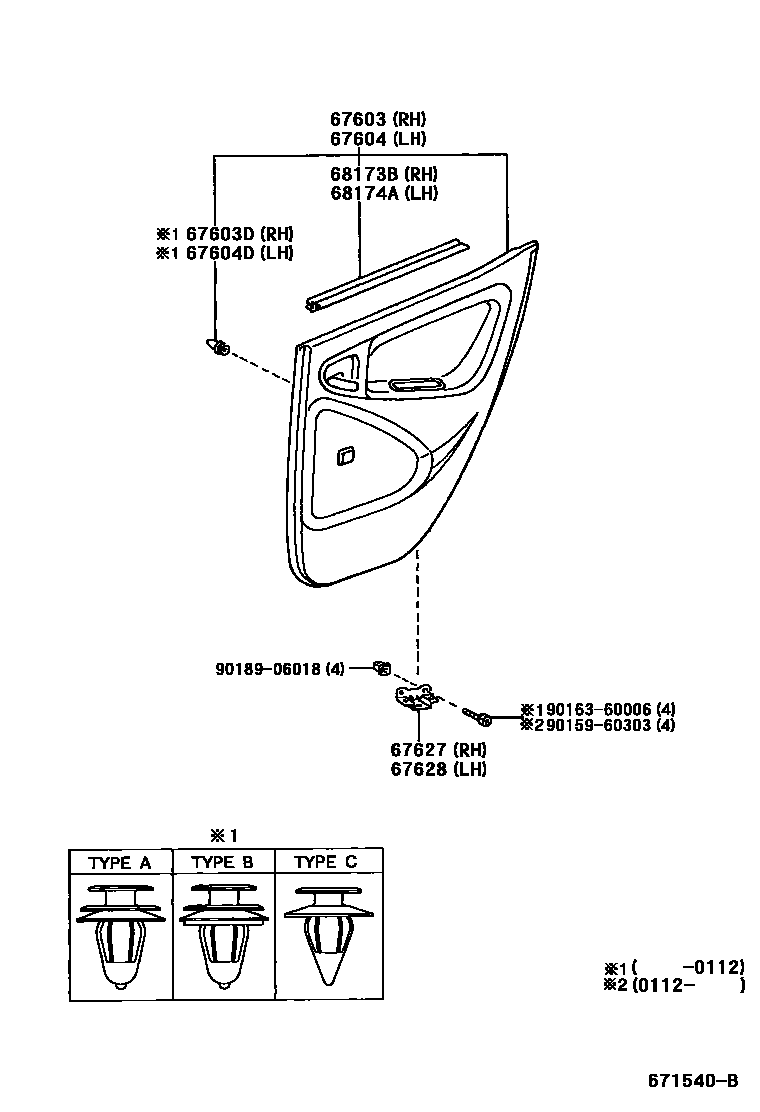

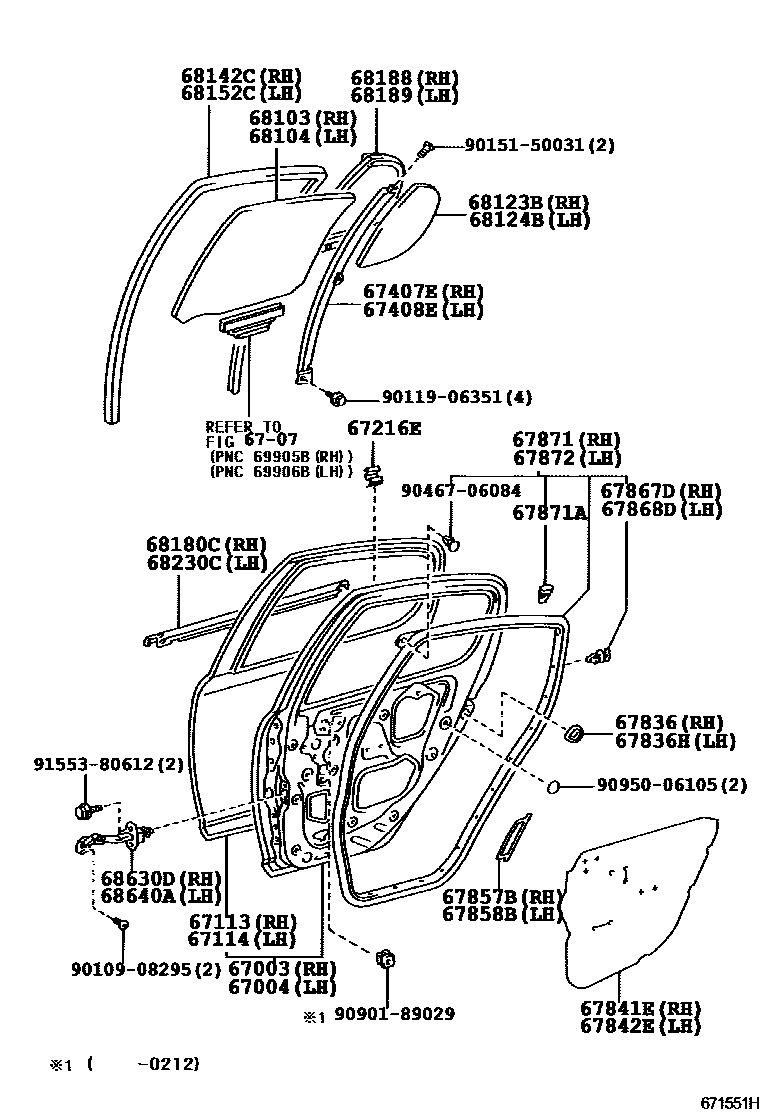

Toyota YARIS 后门板和后门玻璃 — Figure 6705
Toyota YARIS EPC diagram 6705, 后门板和后门玻璃, with 2 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 67003 | Right rear door panel sub-assembly | 67003-52010 · 67003-52011 · 67003-52012 · 67003-52020 · 67003-52021 |
| 67004 | Left rear door panel sub-assembly | 67004-52010 · 67004-52011 · 67004-52012 · 67004-52020 · 67004-52021 |
| 67113 | Right rear door outer panel | 67113-52010 |
| 67114 | Left rear door outer panel | 67114-52010 |
| 67216E | No. 2 rear door glass upper stop | 67216-52010 |
| 67407E | Right rear door window divider sub-assembly | 67407-52010 · 67407-52120 |
| 67408E | Left rear door window divider sub-assembly | 67408-52010 · 67408-52120 |
| 67603D | Right rear door trim panel fixing | 67771-12050 · 67771-16170 · 67771-28020 |
| 67604D | Left rear door trim panel fixing | 67771-12050 · 67771-16170 · 67771-28020 |
| 67627 | Right rear door trim panel bracket | 67625-52010 |
| 67628 | Left rear door trim panel bracket | 67625-52010 |
| 67836 | Right rear door lock child restraint cover | 67836-52010 |
| 67836H | Left rear door lock child restraint cover | 67846-52010 |
| 67841E | Right rear door access hole cover | 67841-52010 |
| 67842E | Left rear door access hole cover | 67841-52010 |
| 67857B | Right rear door panel protector | 67857-52010 · 67857-52011 · 67857-52012 |
| 67858B | Left rear door panel protector | 67858-52010 · 67858-52011 · 67858-52012 |
| 67867D | Right rear door seal strip fixing | 67867-12150 |
| 67868D | Left rear door seal strip fixing | 67867-12150 |
| 67871 | Right rear door sealing strip | 67871-52010 |
| 67871A | Fixings (for rear door sealing strip) | 67867-52010 · 67867-52040 |
| 67872 | Left rear door sealing strip | 67872-52010 |
| 68103 | Right rear door glass sub-assembly | 68113-52010 · 68113-52020 |
| 68104 | Left rear door glass sub-assembly | 68114-52010 · 68114-52020 |
| 68123B | Right rear door corner window glass | 68123-52010 · 68123-52020 |
| 68124B | Left rear door corner window glass | 68124-52010 · 68124-52020 |
| 68142C | Right rear door glass lift slot | 68142-52010 · 68142-52011 |
| 68152C | Left rear door glass lift slot | 68152-52010 · 68152-52011 |
| 68173B | Right rear door glass inner sealing strip | 68173-52020 · 68173-52021 |
| 68174A | Left rear door glass inner sealing strip | 68174-52010 · 68174-52011 |
| 68180C | Right rear door glass outer sealing strip assembly | 68180-52010 |
| 68188 | Right rear door corner window seal | 68188-52010 |
| 68189 | Left rear door corner window seal | 68189-52010 |
| 68230C | Left rear door glass outer sealing strip assembly | 68230-52010 |
| 68630D | Right rear door opening limiter assembly | 68630-52010 |
| 68640A | Left rear door opening limiter assembly | 68640-52010 |
