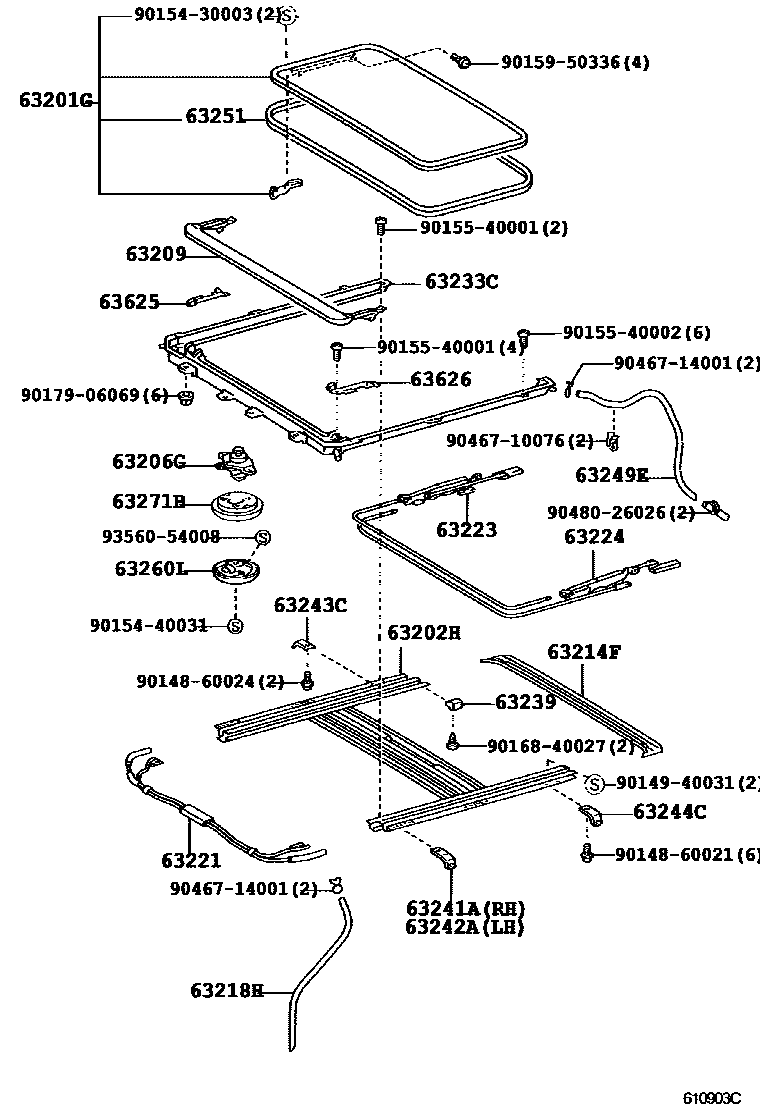

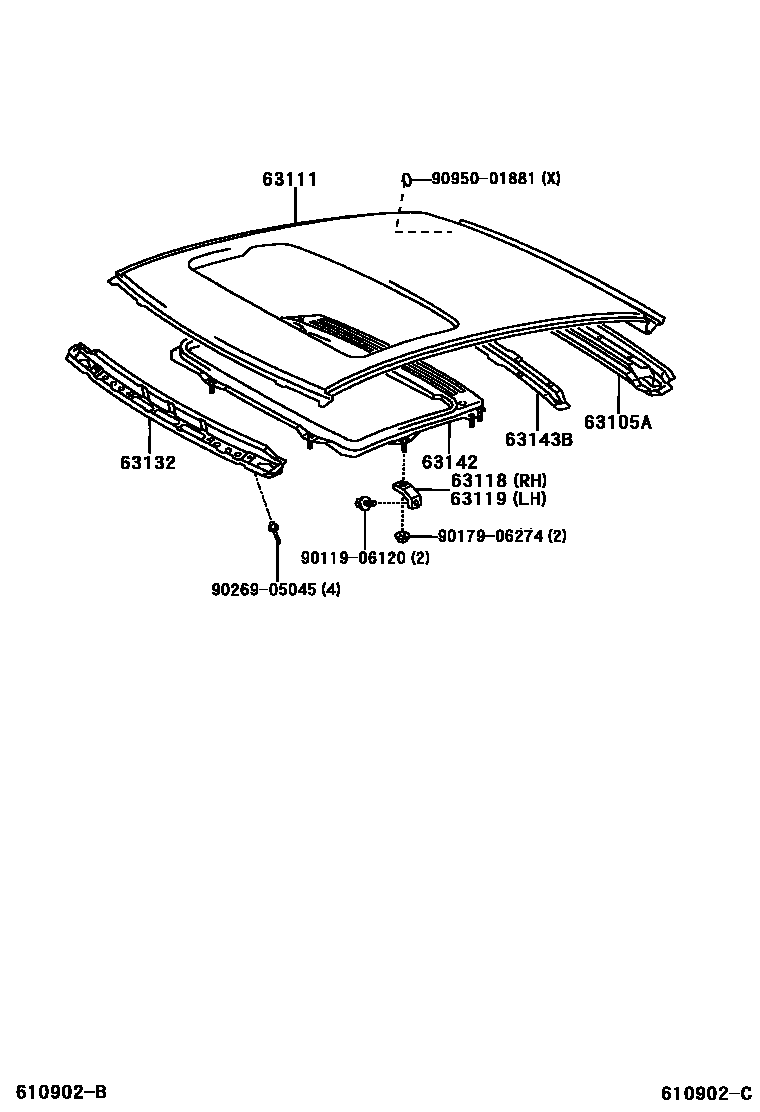

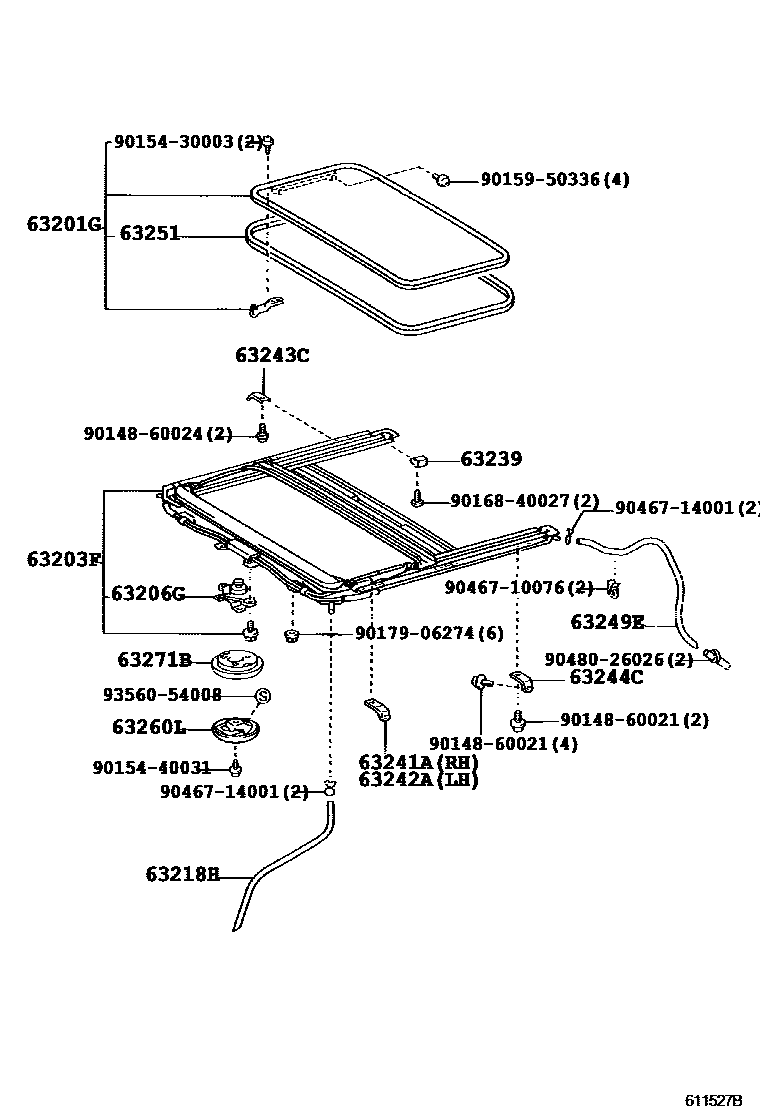

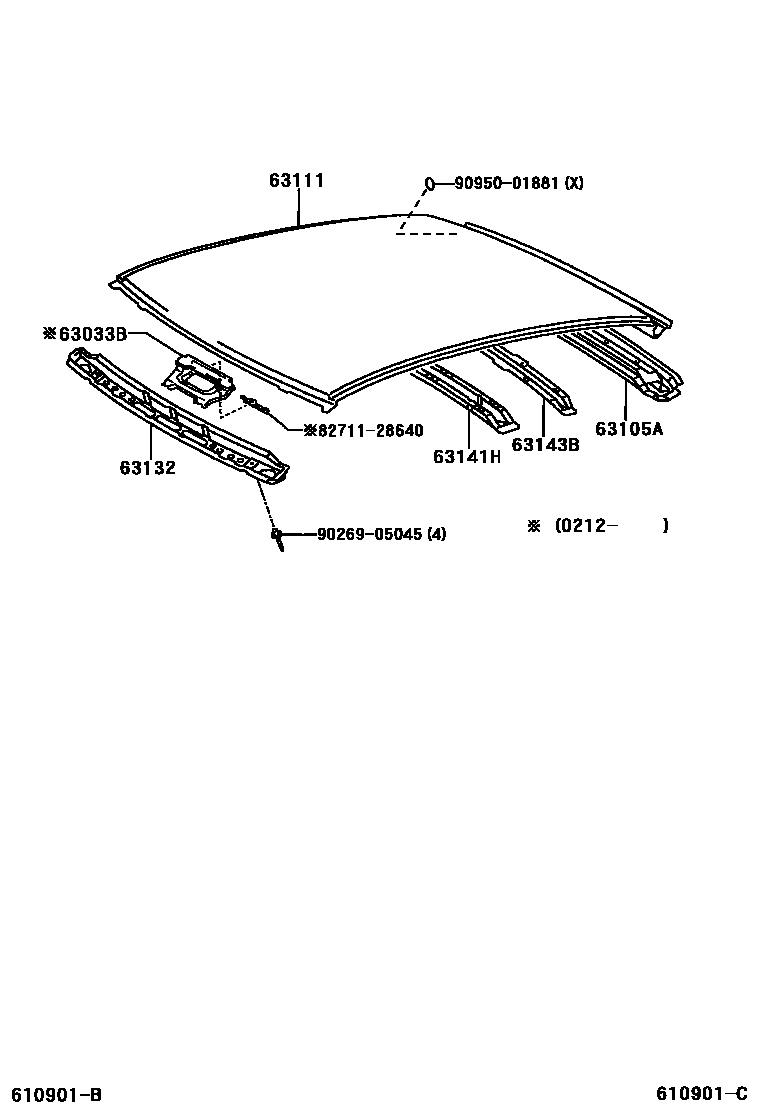

Toyota YARIS 天窗板和背窗玻璃 — Figure 6104
Toyota YARIS EPC diagram 6104, 天窗板和背窗玻璃, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 63033B | No. 1 interior light bracket sub-assembly | 63033-52020 |
| 63105A | Back door opening frame sub-assembly | 63105-52010 · 63105-52011 |
| 63111 | roof panel | 63111-52010 · 63111-52020 · 63111-52360 · 63111-52370 |
| 63118 | Right roof panel bracket | 63118-52010 |
| 63119 | Left roof panel bracket | 63118-52010 |
| 63132 | Windshield inner roof panel | 63132-52010 · 63132-52011 |
| 63141H | Center roof panel reinforcement | 63141-52010 |
| 63142 | No. 2 roof panel reinforcement | 63142-52010 |
| 63143B | No. 3 roof panel reinforcement | 63143-52010 |
| 63201G | Sliding sunroof glass sub-assembly | 63201-52010 · 63201-52011 · 63201-52012 |
| 63202H | Sliding sunroof longitudinal beam sub-assembly | 63202-52010 |
| 63203F | Sliding sunroof frame sub-assembly | 63200-52090 · 63200-52091 |
| 63206G | Sliding sunroof driving gear sub-assembly | 63260-52020 |
| 63209 | Roof deflector sub-assembly | 63209-52010 · 63209-52030 |
| 63214F | Roof rear drain channel | 63214-12060 |
| 63218H | Sliding skylight drain hose | 63249-52010 · 63249-52150 · 63249-52151 |
| 63221 | Sliding sunroof cable duct | 63221-52010 |
| 63223 | Right sliding sunroof transmission cable | 63223-52010 |
| 63224 | Left sliding sunroof transmission cable | 63224-52010 |
| 63233C | Sliding skylight shelf | 63233-52010 |
| 63239 | Sliding roof panel stop | 63239-12030 |
| 63241A | Sliding sunroof frame right front mounting bracket | 63241-52010 |
| 63242A | Sliding sunroof frame left front mounting bracket | 63241-52010 |
| 63243C | Sliding sunroof frame right center mounting bracket | 63243-52010 |
| 63244C | Sliding sunroof frame left center mounting bracket | 63243-52010 |
| 63249E | Sliding skylight drain hose | 63249-52020 |
| 63251 | Sliding sunroof panel or removable roof seal | 63251-12160 · 63251-12161 |
| 63625 | Right sliding sunroof guide block | 63625-12040 |
| 63626 | Left sliding sunroof guide block | 63626-12040 |
