Toyota YARIS 侧梁 — Figure 6101

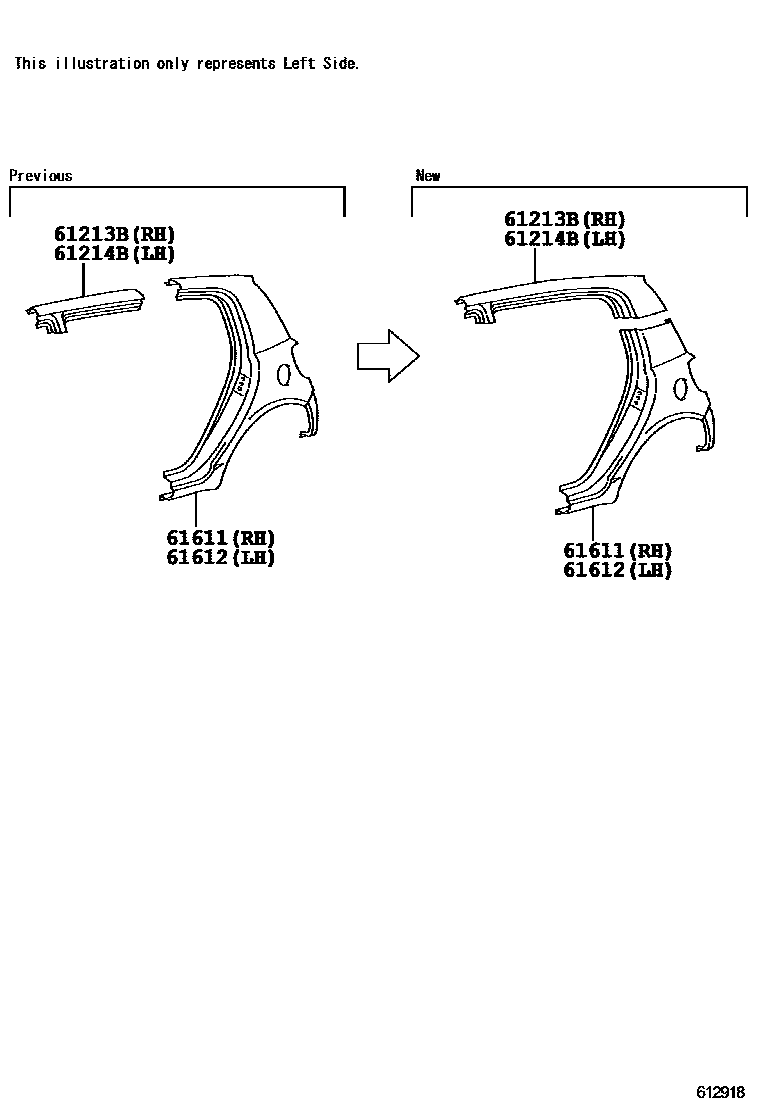

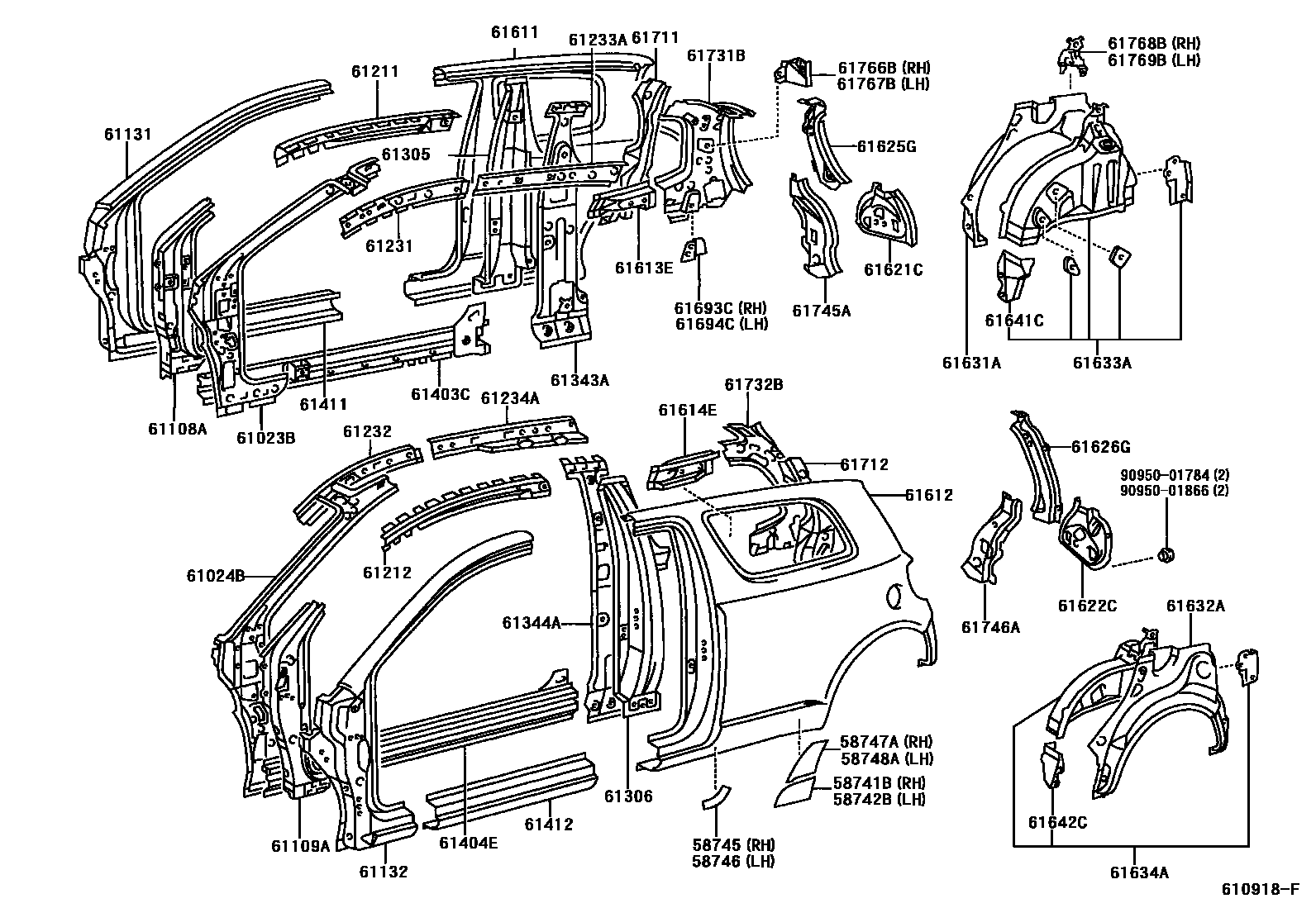

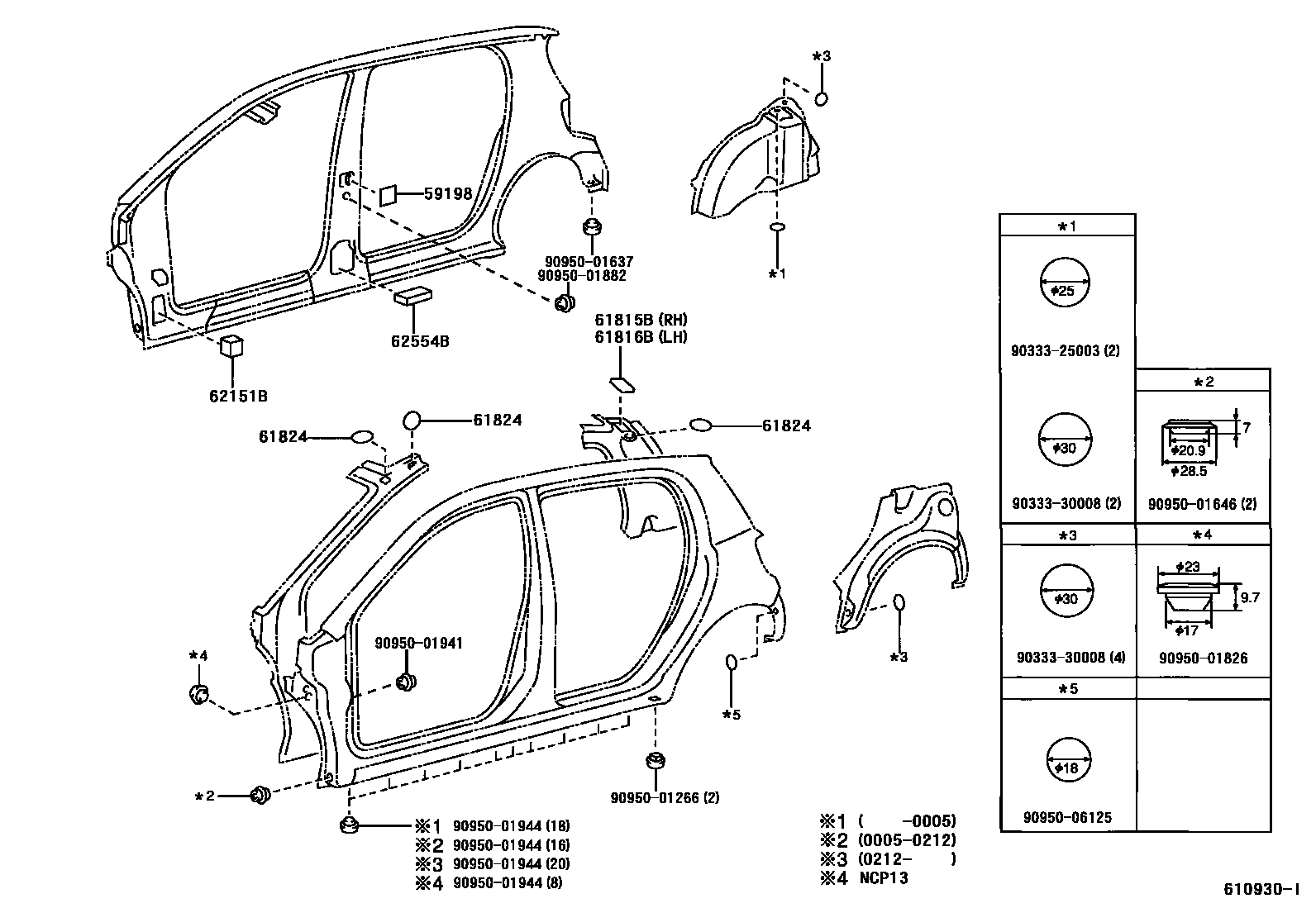

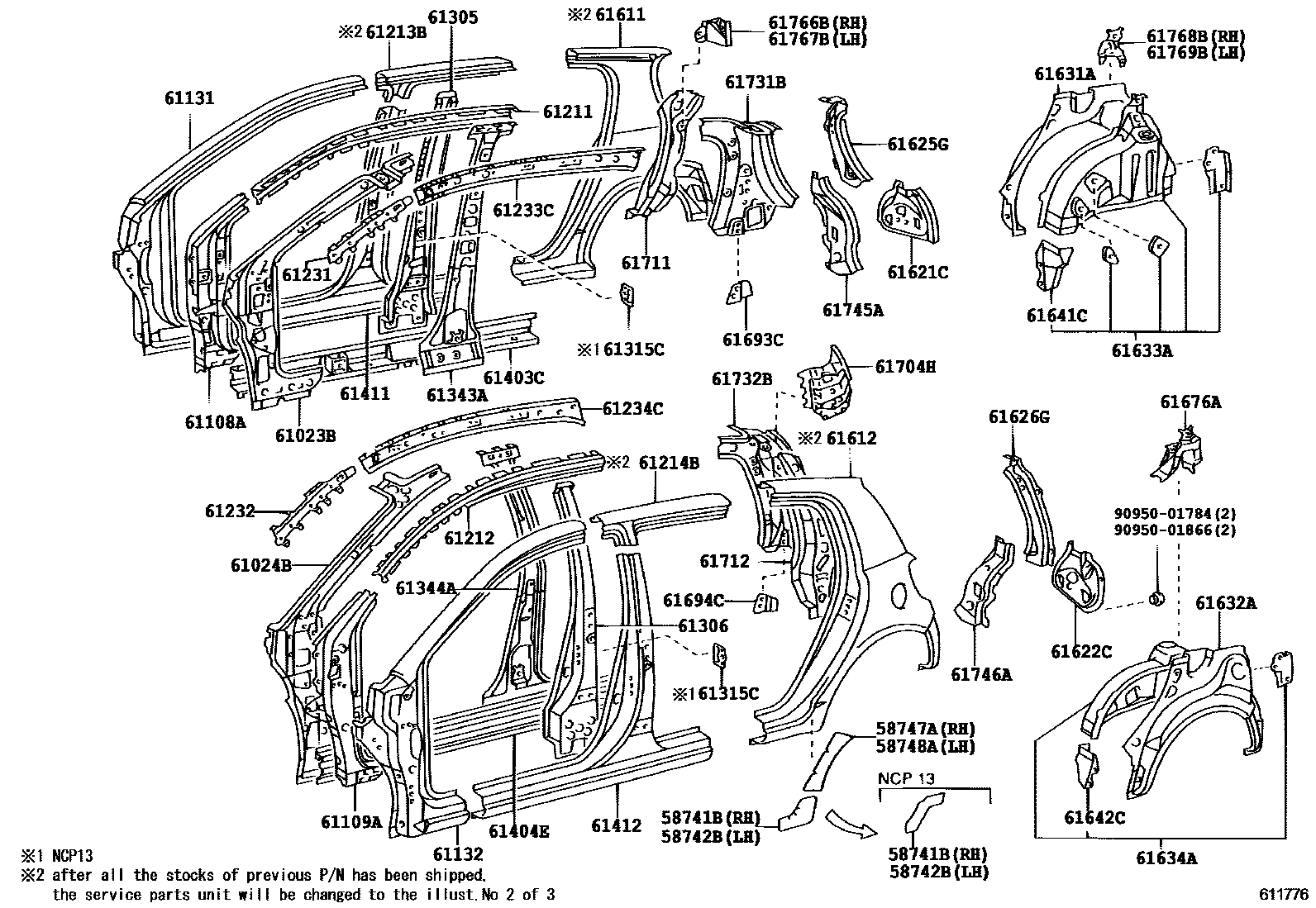

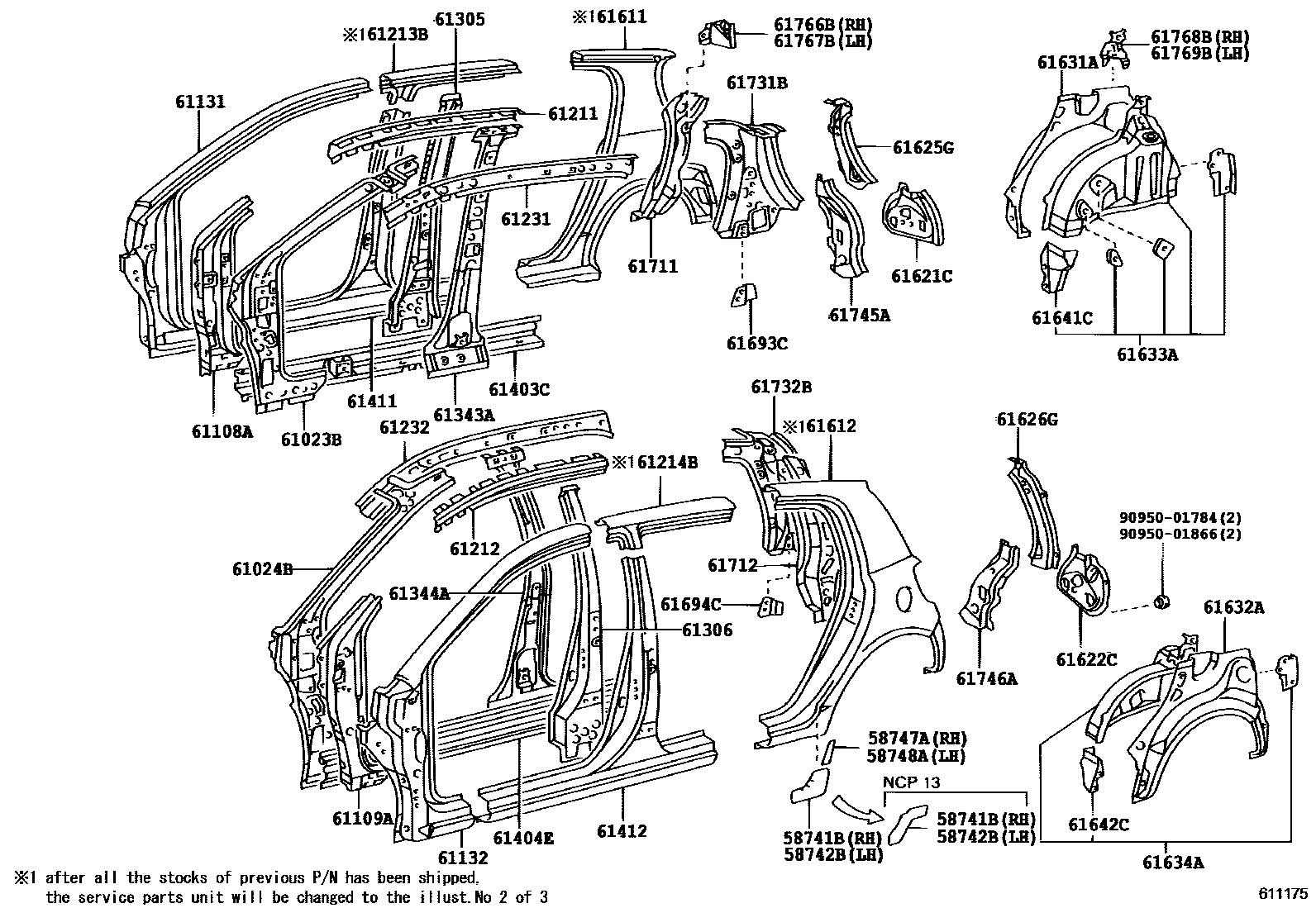

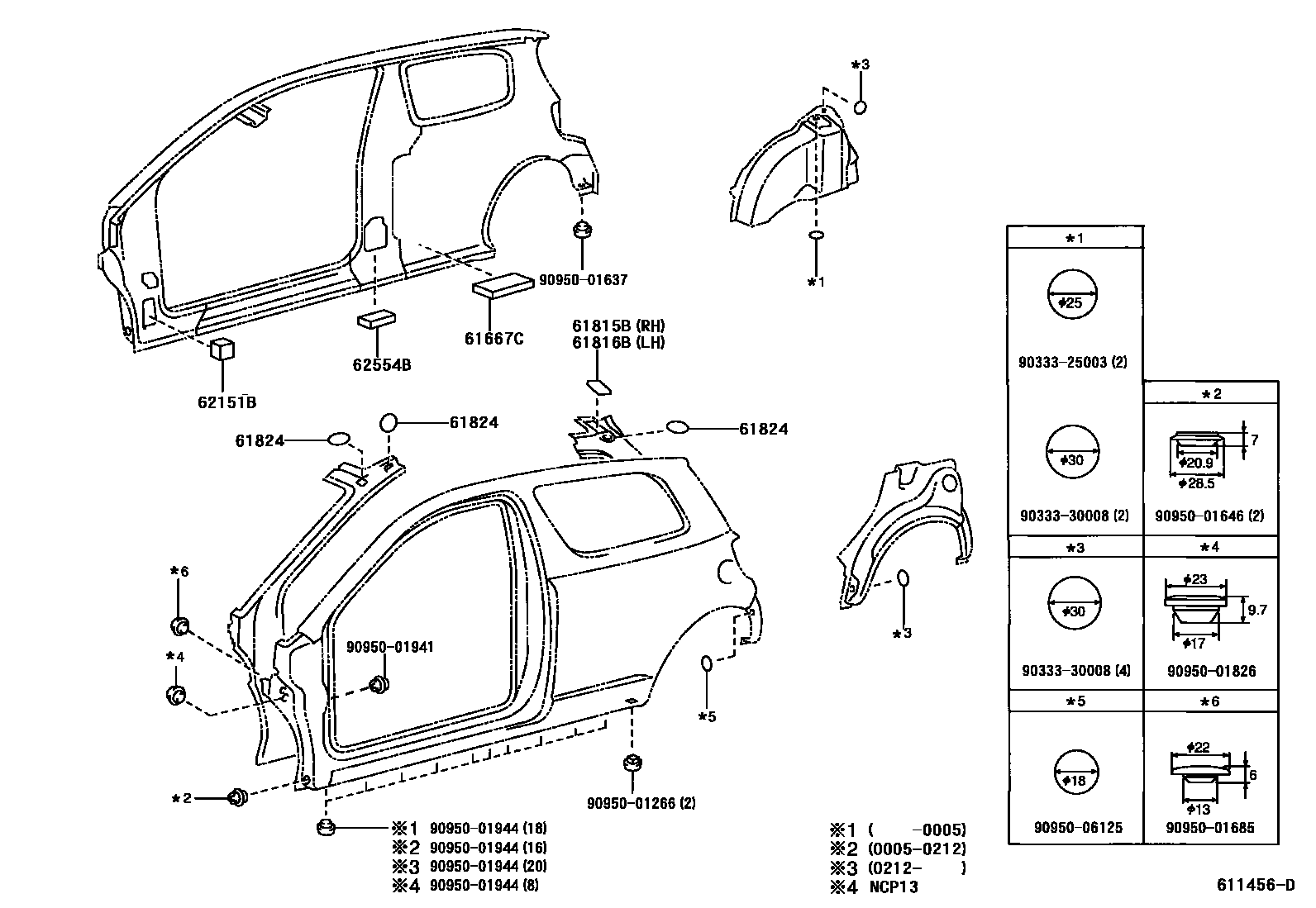

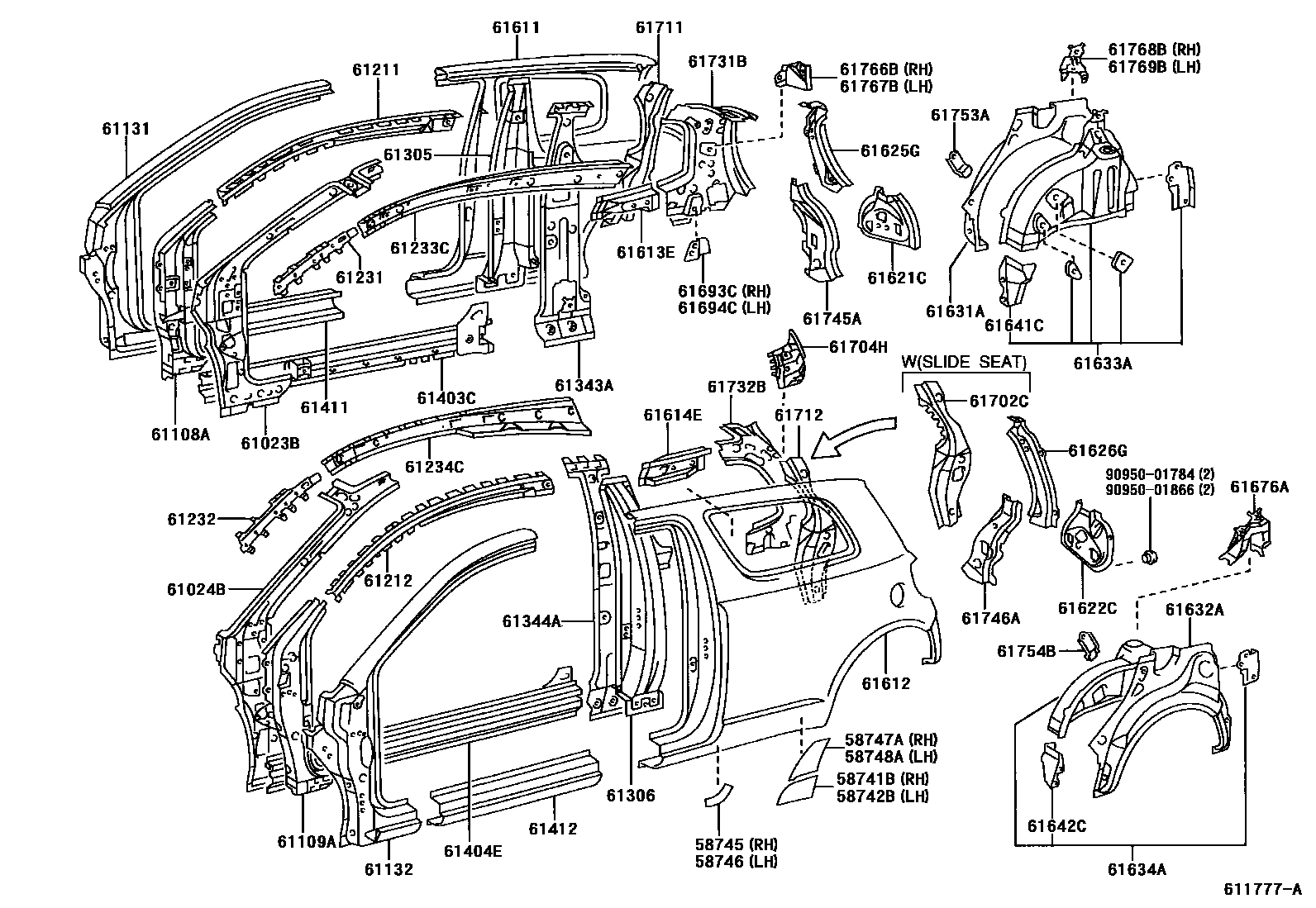

Toyota YARIS EPC diagram 6101, 侧梁, with 7 images and 69 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58741B | Right side enclosure protection panel | 58741-52010 · 58741-52011 · 58741-52012 · 58741-52020 · 58741-52021 · 58741-52022 · 58741-52080 |
| 58742B | Left side enclosure protection panel | 58742-52010 · 58742-52011 · 58742-52012 · 58742-52020 · 58742-52021 · 58742-52022 · 58742-52080 |
| 58745 | Right front side panel protector | 58745-52010 |
| 58746 | Left front side panel protector | 58746-52010 |
| 58747A | Right rear side panel protector | 58747-52010 · 58747-52011 · 58747-52012 · 58747-52020 · 58747-52021 · 58747-52022 |
| 58748A | Left rear side panel protector | 58748-52010 · 58748-52011 · 58748-52012 · 58748-52020 · 58748-52021 · 58748-52022 |
| 59198 | Silencer panel seal | 59198-12010 |
| 61023B | Right body inner front pillar sub-assembly | 61023-52010 · 61023-52011 · 61023-52100 |
| 61024B | Left body inner front pillar sub-assembly | 61024-52010 · 61024-52011 · 61024-52080 |
| 61108A | Right body front pillar lower reinforcement sub-assembly | 61108-52010 · 61108-52011 · 61108-52090 · 61108-52100 |
| 61109A | Left side body front pillar lower reinforcement sub-assembly | 61109-52010 · 61109-52011 · 61109-52090 · 61109-52120 |
| 61131 | Right body outer front upper pillar | 61131-52010 · 61131-52090 |
| 61132 | Left body outer front upper pillar | 61132-52010 · 61132-52080 |
| 61211 | Roof right outer longitudinal beam | 61201-52050 · 61201-52060 · 61211-52010 · 61211-52011 · 61211-52020 · 61211-52021 |
| 61212 | Roof left outer longitudinal beam | 61202-52050 · 61202-52060 · 61212-52010 · 61212-52011 · 61212-52020 · 61212-52021 |
| 61213B | No. 2 longitudinal beam on the outer right side of the roof | 61213-52010 |
| 61214B | No. 2 longitudinal beam on the left side of the roof | 61214-52010 |
| 61231 | Inner longitudinal beam on the right side of the roof | 61231-52020 · 61231-52021 · 61231-52031 · 61231-52040 · 61231-52041 · 61231-52250 |
| 61232 | Roof left inner longitudinal beam | 61232-52020 · 61232-52021 · 61232-52031 · 61232-52040 · 61232-52041 · 61232-52260 |
| 61233A | No. 2 longitudinal beam inside the right side of the roof | 61233-52020 · 61233-52021 |
| 61233C | Right seat belt cover fastener | 61233-52120 · 61233-52130 · 61233-52140 · 61233-52150 |
| 61234A | No. 2 longitudinal beam on the inner left side of the roof | 61234-52020 · 61234-52021 |
| 61234C | Left-hand seat belt cover fastener | 61234-52120 · 61234-52130 · 61234-52140 · 61234-52150 |
| 61305 | Right body center pillar lower reinforcement sub-assembly | 61305-52010 · 61305-52011 · 61305-52021 · 61305-52070 · 61305-52901 |
| 61306 | Left body center pillar lower reinforcement sub-assembly | 61306-52010 · 61306-52011 · 61306-52021 · 61306-52090 · 61306-52901 |
| 61315C | Right door latch fastener | 61315-22020 |
| 61343A | Right body inner center pillar | 61343-52900 · 61343-52901 · 61343-52903 · 61343-52904 |
| 61344A | Left body inner center pillar | 61344-52900 · 61344-52901 · 61344-52903 · 61344-52904 |
| 61403C | Right door outer sill reinforcement sub-assembly | 61403-52010 · 61403-52020 · 61403-52101 · 61403-52110 · 61403-52120 |
| 61404E | Left door outer sill reinforcement sub-assembly | 61404-52010 · 61404-52020 · 61404-52101 · 61404-52110 · 61404-52120 |
| 61411 | Right door outer sill panel | 61411-52010 · 61411-52020 · 61411-52110 · 61411-52120 |
| 61412 | Left door outer sill panel | 61412-52010 · 61412-52020 · 61412-52110 · 61412-52120 |
| 61611 | Right side hoarding | 61601-52010 · 61601-52120 · 61611-52020 · 61611-52120 |
| 61612 | left side panel | 61602-52010 · 61602-52020 · 61602-52130 · 61602-52140 |
| 61613E | Right side inner panel | 61613-52010 |
| 61614E | Left side inner panel | 61614-52010 |
| 61621C | Luggage right opening slot | 61621-52010 |
| 61622C | Luggage trunk left opening slot | 61622-52010 |
| 61625G | Right rear side panel extension | 61625-52010 |
| 61626G | Left rear side panel extension | 61626-52010 |
| 61631A | Right wheel cover outer panel | 61631-52010 |
| 61632A | Left side wheel cover outer panel | 61632-52010 |
| 61633A | Right wheel housing lining panel | 61607-52900 · 61607-52901 · 61607-52902 · 61607-52903 · 61607-52912 · 61607-52913 · 61607-52914 · 61607-52915 |
| 61634A | Left side wheel housing lining panel | 61608-52900 · 61608-52901 · 61608-52902 · 61608-52903 · 61608-52912 · 61608-52913 · 61608-52914 · 61608-52915 |
| 61641C | Right front side wheel housing corner panel | 61641-52010 |
| 61642C | Left front side wheel housing corner panel | 61642-52010 |
| 61667C | No. 1 side panel seal | 61667-12130 |
| 61676A | Left No. 2 seat belt anchor upper reinforcement | 61709-52020 |
| 61693C | Rear right seat backrest assembly fastener | 61693-52010 · 61693-52100 |
| 61694C | Rear left seat back assembly fastener | 61694-52010 · 61694-52100 |
| 61702C | Roof left outer panel sub-assembly | 61702-52060 |
| 61704H | Left side enclosure inner panel sub-assembly | 61704-52021 · 61704-52031 |
| 61711 | Roof right side outer panel | 61711-52010 · 61711-52011 · 61711-52020 |
| 61712 | Roof left outer panel | 61712-52010 · 61712-52011 · 61712-52020 · 61712-52110 |
| 61731B | Roof right inner panel | 61731-52010 · 61731-52011 · 61731-52020 · 61731-52021 |
| 61732B | Roof left inner panel | 61732-52010 · 61732-52011 · 61732-52020 · 61732-52021 · 61732-52150 · 61732-52180 |
| 61745A | Back door opening lower right reinforcement | 61745-52010 |
| 61746A | Rear door opening lower left reinforcement | 61746-52010 |
| 61753A | Side panel lower fixings | 61753-10050 |
| 61754B | Left side decorative panel lower fixing piece | 61754-10040 |
| 61766B | Right seat belt anchor to roof inner reinforcement | 61766-52010 |
| 61767B | Left-hand seat belt anchor to roof inner reinforcement | 61767-52010 |
| 61768B | Rear right seat belt anchor to roof inner reinforcement | 61768-52010 |
| 61769B | Rear left seat belt anchor to roof inner reinforcement | 61769-52010 |
| 61815B | Right inner upper cover of the roof | 61815-32020 · 61825-52010 |
| 61816B | Roof left inner upper cover | 61815-32020 · 61825-52010 |
| 61824 | Noise Control Panel No. 1 | 61824-12040 · 61824-52010 |
| 62151B | Front cowl side silencer pads | 62151-12130 · 62151-52010 |
| 62554B | No. 4 column pad | 62554-12130 |
