Toyota YARIS 地板隔热垫 — Figure 5802

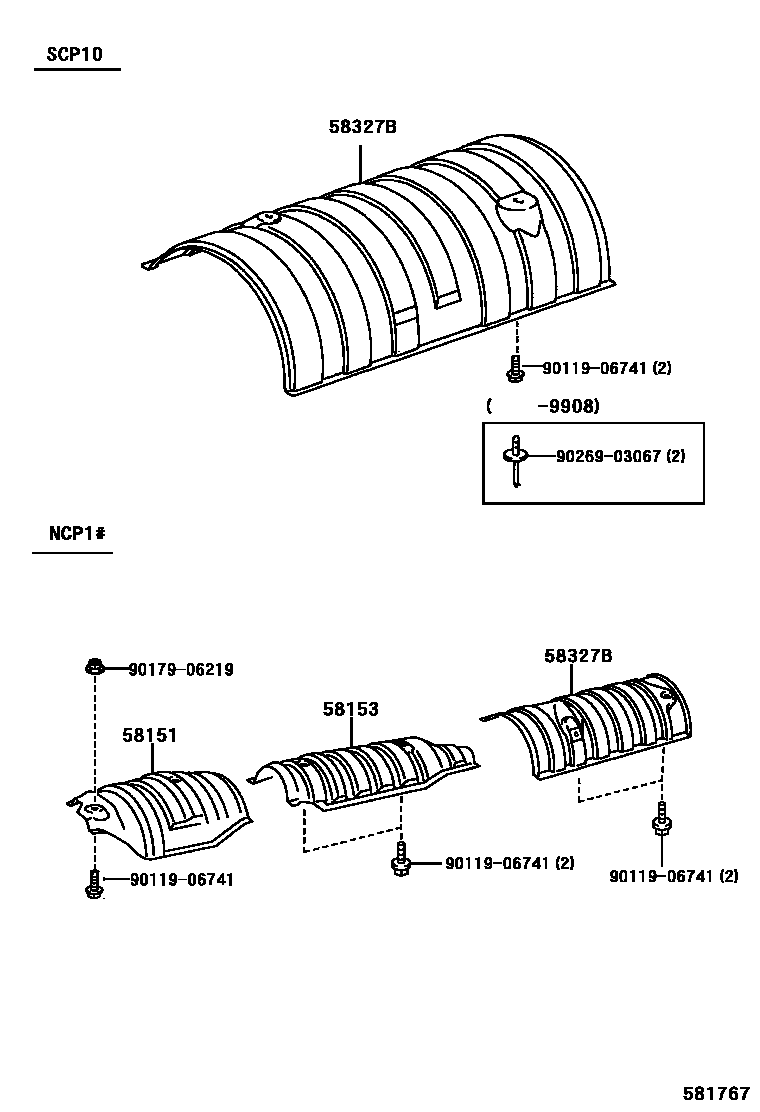

Toyota YARIS EPC diagram 5802, 地板隔热垫, with 1 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 58151 | Front floor insulation mat No. 1 | 58151-52010 |
| 58153 | Front floor insulation mat No. 2 | 58153-52011 |
| 58327B | Main muffler heat insulation pad | 58327-52010 · 58327-52011 · 58327-52050 |
