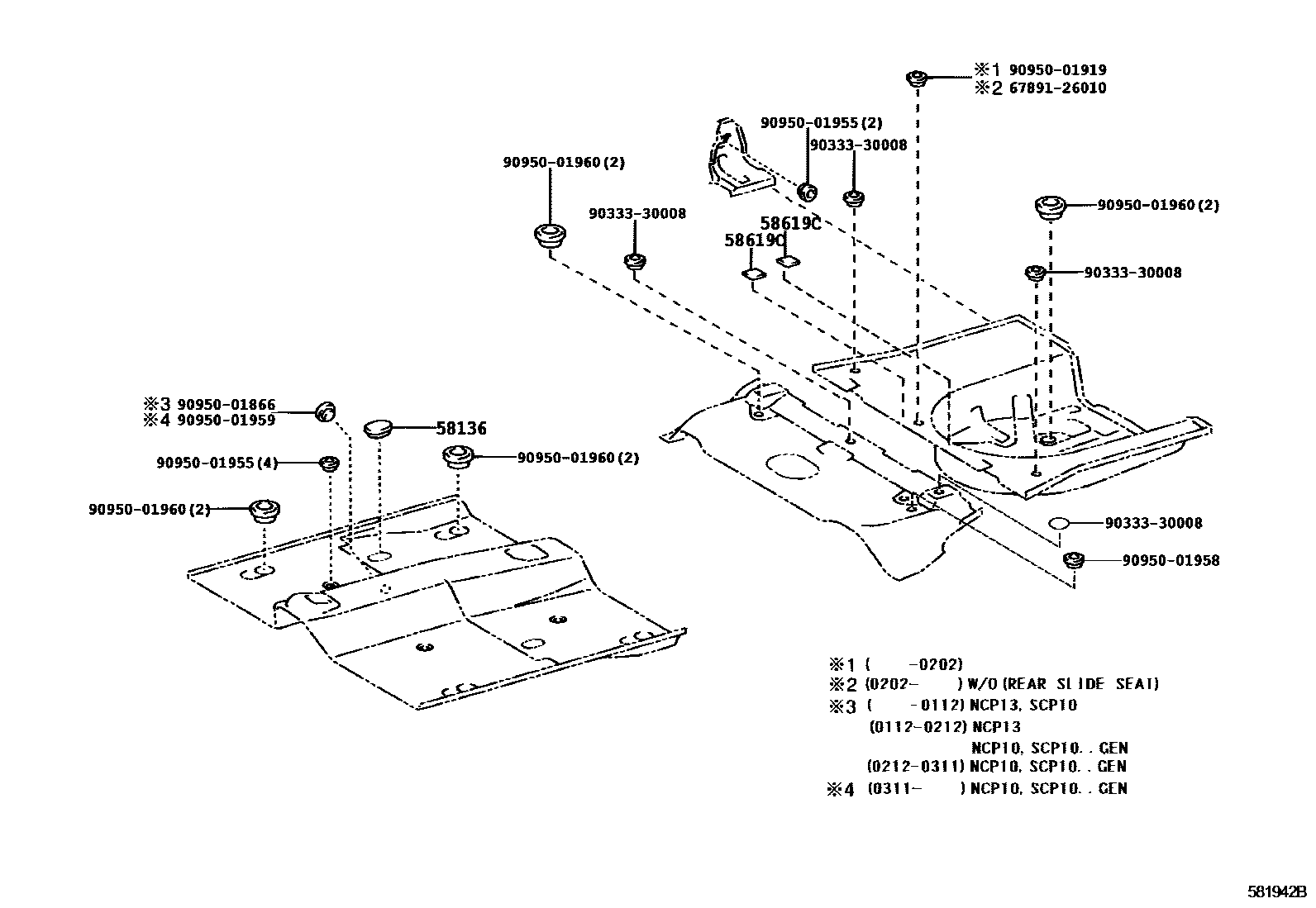

Toyota YARIS 浅盘形地板和车身下背板 — Figure 5801
Toyota YARIS EPC diagram 5801, 浅盘形地板和车身下背板, with 2 images and 31 PNC and OE references.

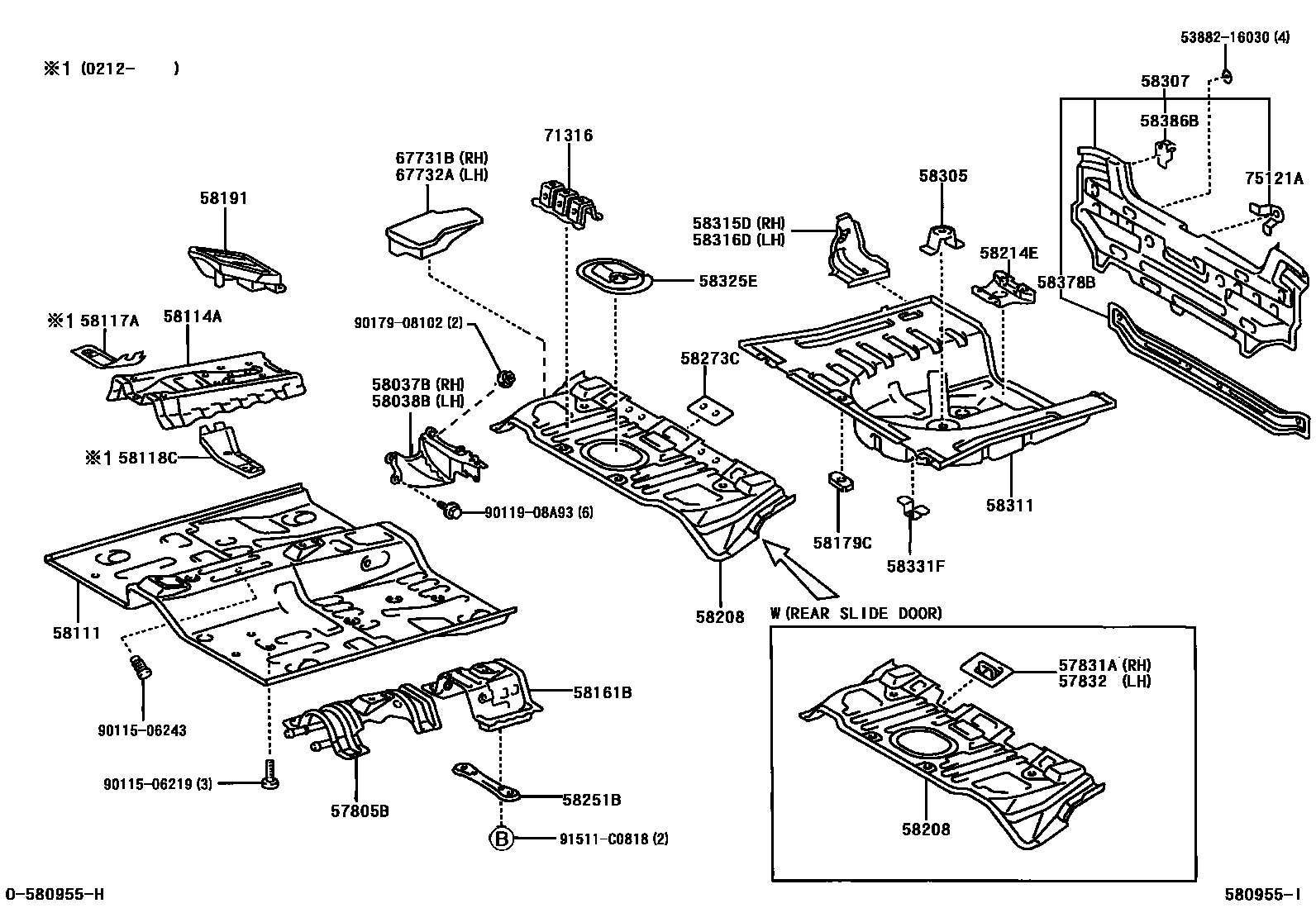

PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 57805B | Right seat belt anchor reinforcement sub-assembly | 57805-52010 · 57805-52011 · 57805-52021 · 57805-52022 · 57805-52110 · 57805-52120 |
| 57831A | No. 1 rear seat support No. 1 front reinforcement | 57831-52010 · 57831-52040 |
| 57832 | Rear No. 1 seat support No. 2 front reinforcement | 57832-52010 |
| 58037B | Right center pillar to floor reinforcement | 58037-52010 |
| 58038B | Left center pillar to floor reinforcement | 58038-52010 |
| 58111 | front floor pan | 58111-52900 · 58111-52906 |
| 58114A | front floor reinforcement | 58103-52010 · 58103-52011 · 58114-52010 |
| 58117A | Front floor right reinforcement | 58117-52040 |
| 58118C | Front floor left reinforcement | 58118-52030 |
| 58136 | Front floor hole cover | 58136-52010 |
| 58161B | Seat belt anchor to floor pan reinforcement | 58161-52010 |
| 58179C | floor clip bracket | 58179-48010 |
| 58191 | Front floor footrest | 58191-52010 · 58191-52020 · 58191-52060 · 58191-52061 |
| 58208 | central floor base | 58211-52010 · 58211-52011 · 58211-52012 · 58211-52013 · 58211-52020 · 58211-52021 · 58211-52022 · 58211-52023 |
| 58214E | jack stand | 58214-52010 |
| 58251B | front floor bracket | 58251-52010 |
| 58273C | Seat belt anchors to center floor reinforcement | 58273-52010 |
| 58305 | Spare tire clamp bracket sub-assembly | 58351-32010 · 58351-33010 |
| 58307 | Body lower back panel sub-assembly | 58307-52010 · 58307-52020 · 58307-52030 · 58307-52150 · 58307-52190 · 58307-52330 |
| 58311 | rear floor pan | 58311-52010 · 58311-52011 · 58311-52120 · 58311-52121 |
| 58315D | Rear floor pan right extension | 58315-52010 |
| 58316D | Rear floor pan left extension | 58316-52010 |
| 58325E | Rear floor access hole cover | 58325-52010 |
| 58331F | Rear floor insulation pad bracket No. 3 | 58331-10010 · 58331-10011 |
| 58378B | Body lower back panel reinforcement | 58378-52010 · 58378-52070 |
| 58386B | Rear bumper cover bracket No. 2 | 58386-52010 · 58386-52030 · 58386-52031 |
| 58619C | Central floor sub-muffler panel | 58619-52010 |
| 67731B | No. 1 side decorative spacer | 67731-52010 |
| 67732A | No. 2 side decorative spacer | 67732-52010 |
| 71316 | Rear seat bracket | 71316-52010 |
| 75121A | Rear license plate bracket | 75121-52010 · 75121-52030 · 75122-52020 |
