Toyota YARIS 后保险杠及附件 — Figure 5202

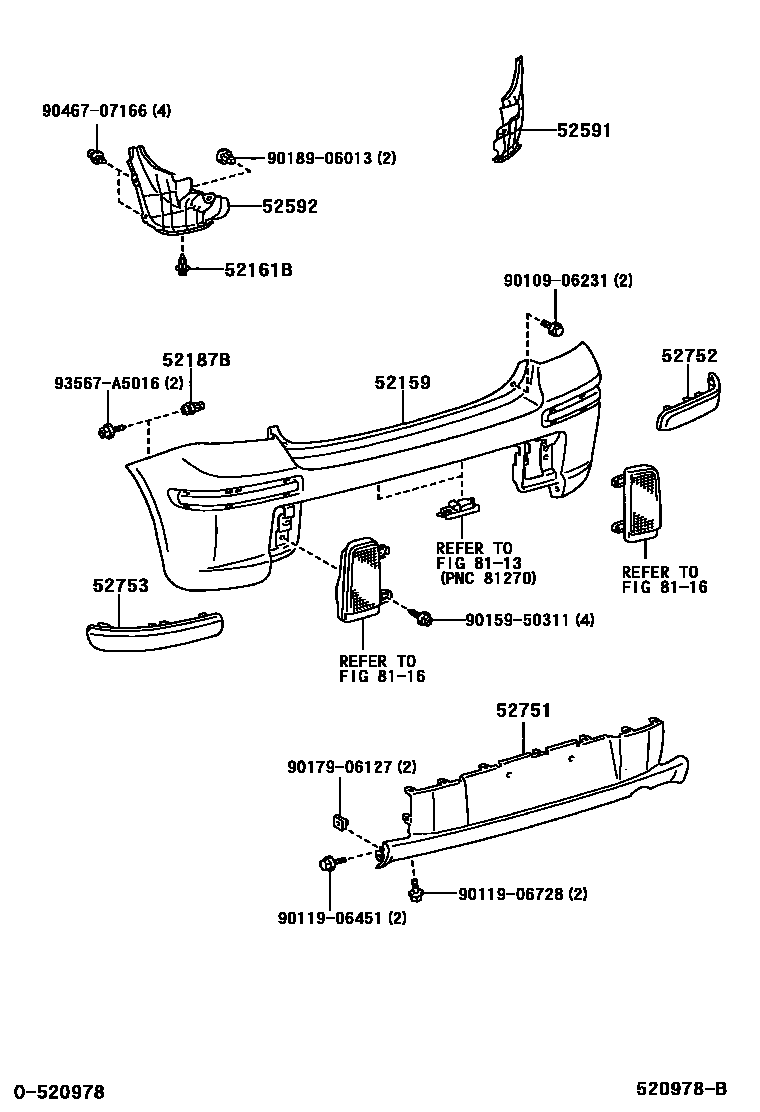

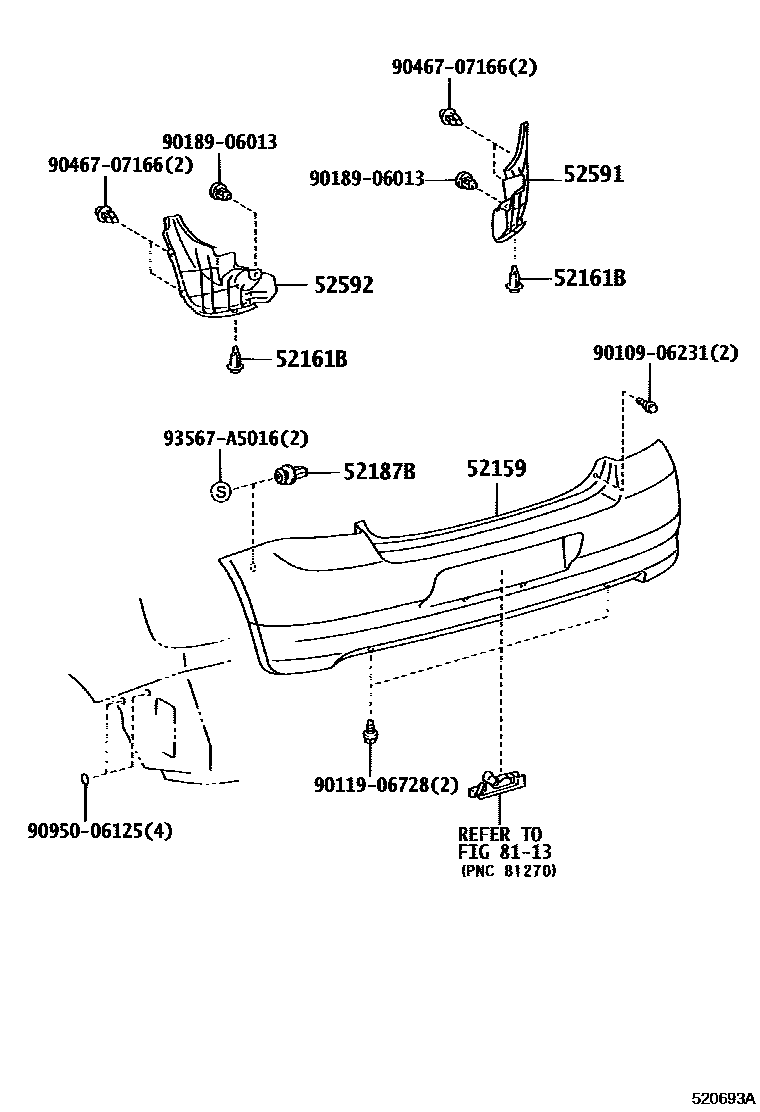

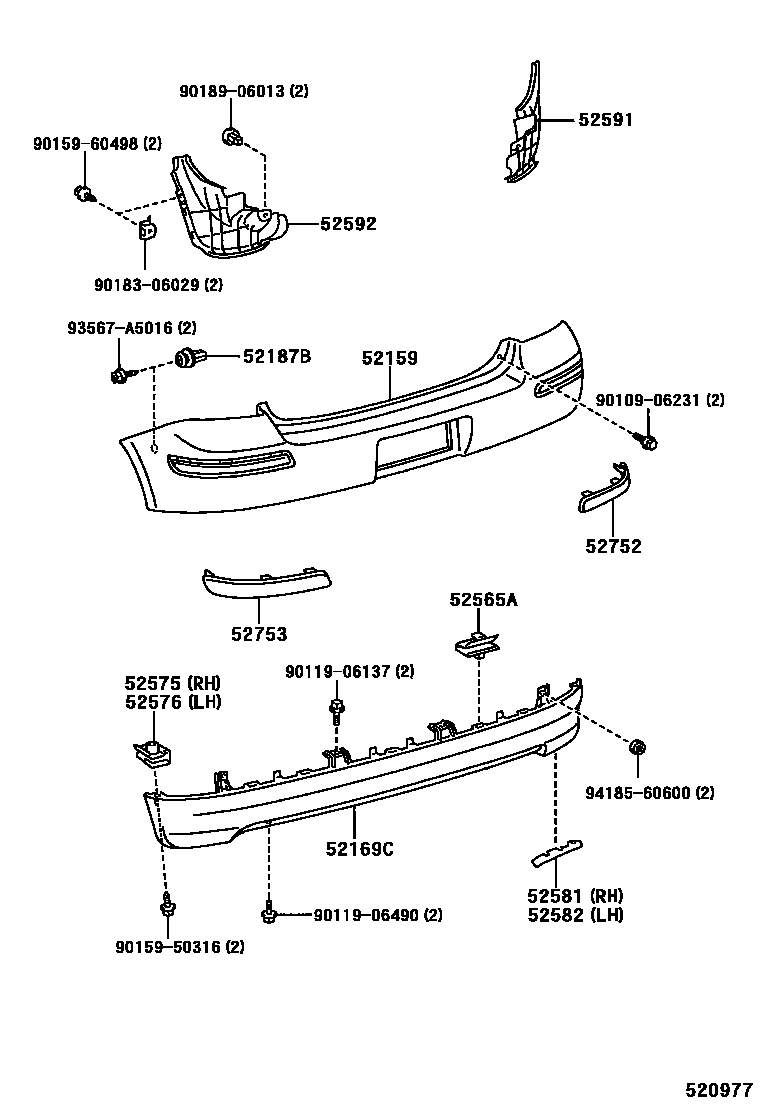

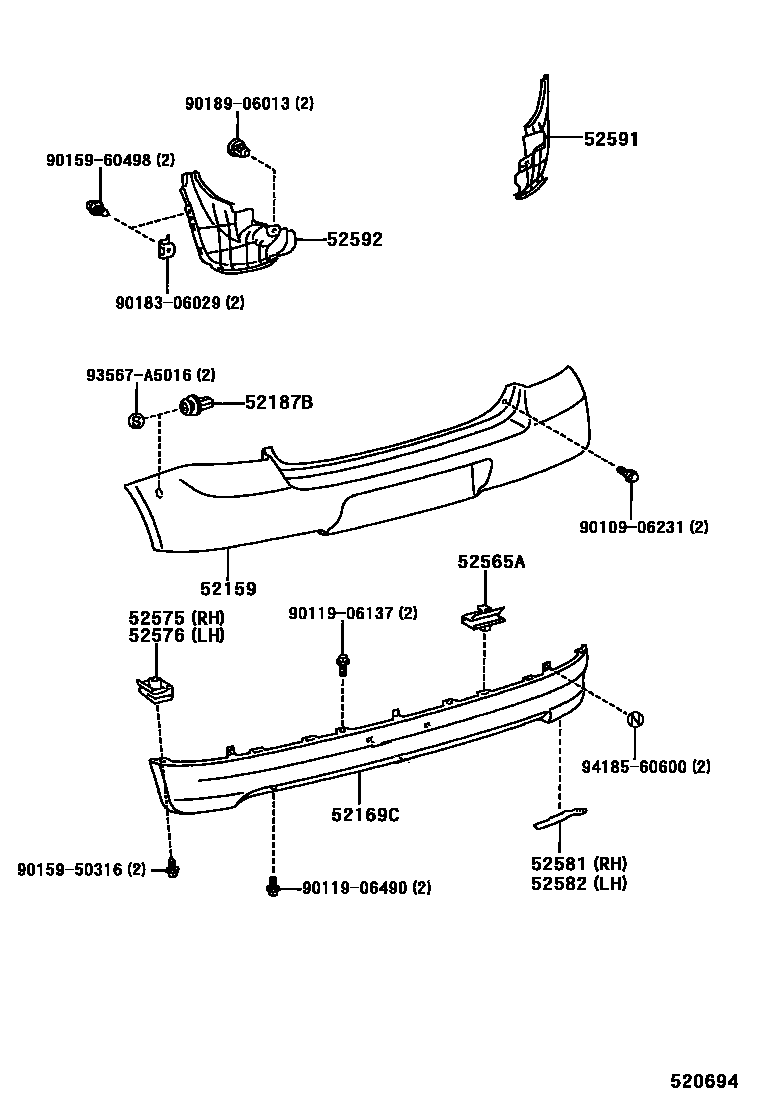

Toyota YARIS EPC diagram 5202, 后保险杠及附件, with 4 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 52159 | rear bumper cover | 52159-52010 · 52159-52011 · 52159-52031 · 52159-52300 · 52159-52420 · 52159-52904 · 52159-52916 |
| 52161B | Rear bumper insert | 52161-16010 |
| 52169C | Rear bumper lower cover | 58381-52020 · 58381-52040 |
| 52187B | Rear bumper positioning guide rod | 52187-52010 |
| 52565A | Rear bumper lower fixing bracket | 52565-52010 |
| 52575 | Rear bumper right side fixing bracket | 52575-52010 |
| 52576 | Rear bumper left side fixing bracket | 52576-52010 |
| 52581 | Rear bumper right side protector | 52581-52020 · 52581-52050 |
| 52582 | Rear bumper left protector | 52582-52010 · 52582-52040 |
| 52591 | Rear bumper right seal | 52591-52010 · 52591-52050 · 52591-52070 · 52591-52150 |
| 52592 | Rear bumper left seal | 52592-52010 · 52592-52050 · 52592-52060 · 52592-52140 |
| 52751 | Rear bumper protection strip | 52751-52030 |
| 52752 | Rear bumper right side protective strip | 52752-52010 |
| 52753 | Rear bumper left protective strip | 52753-52010 |
