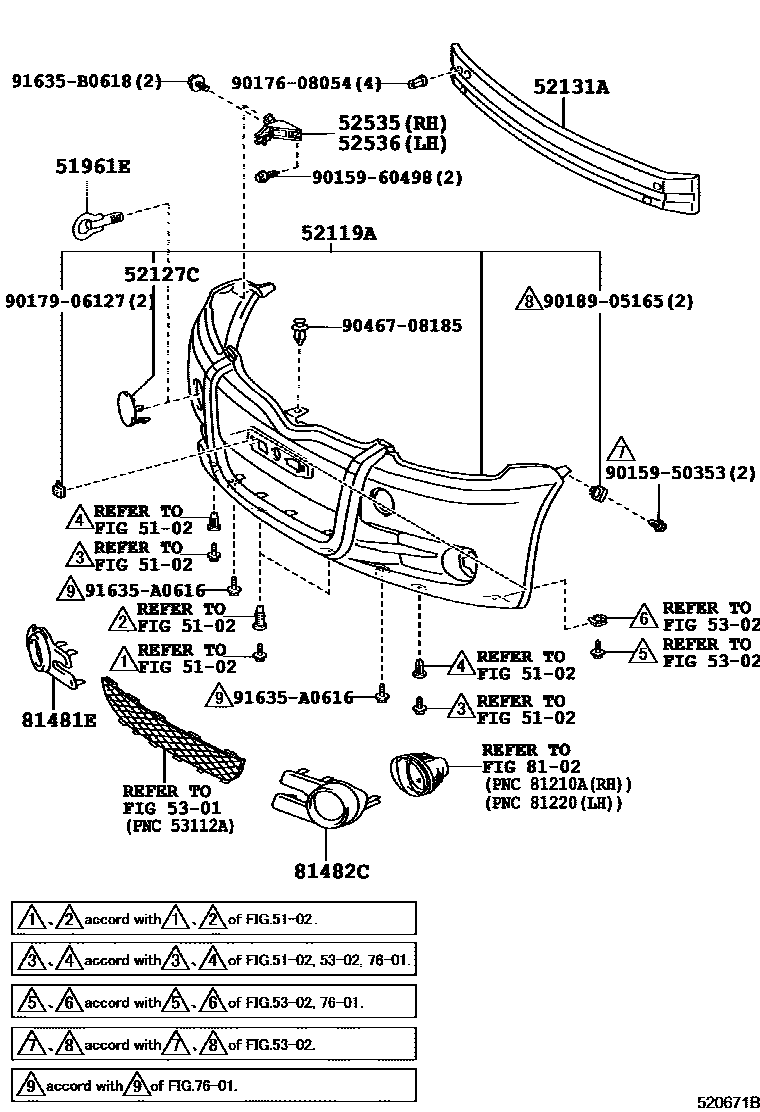

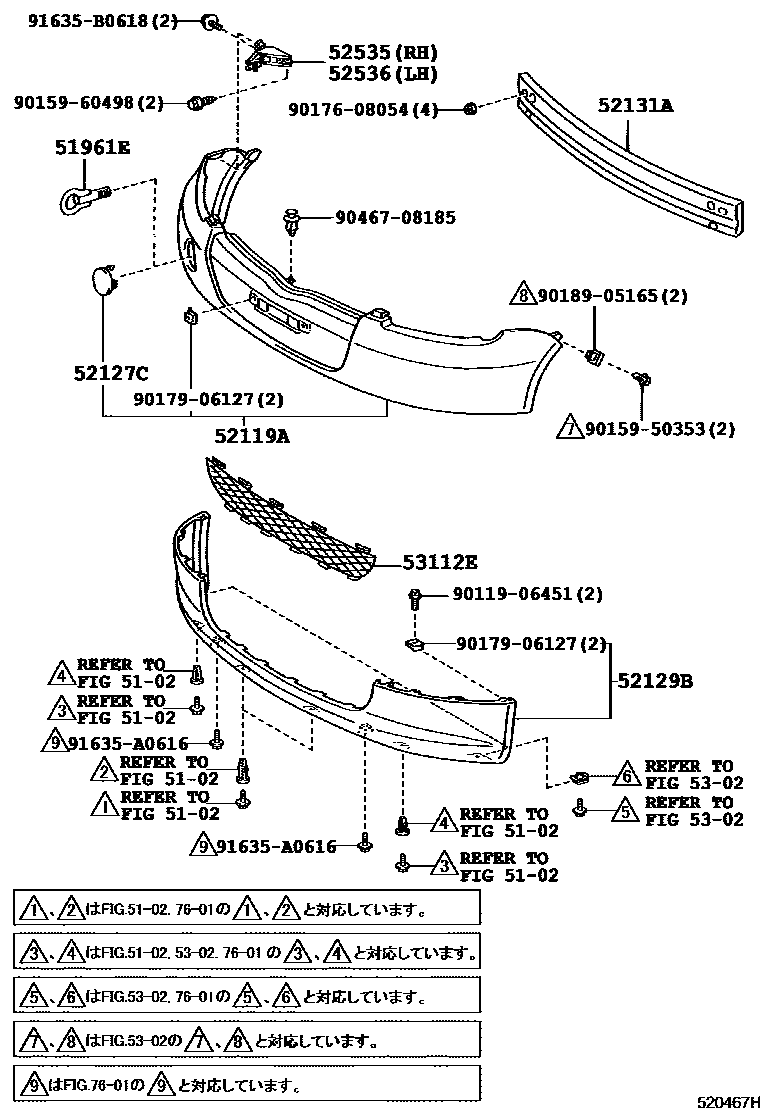

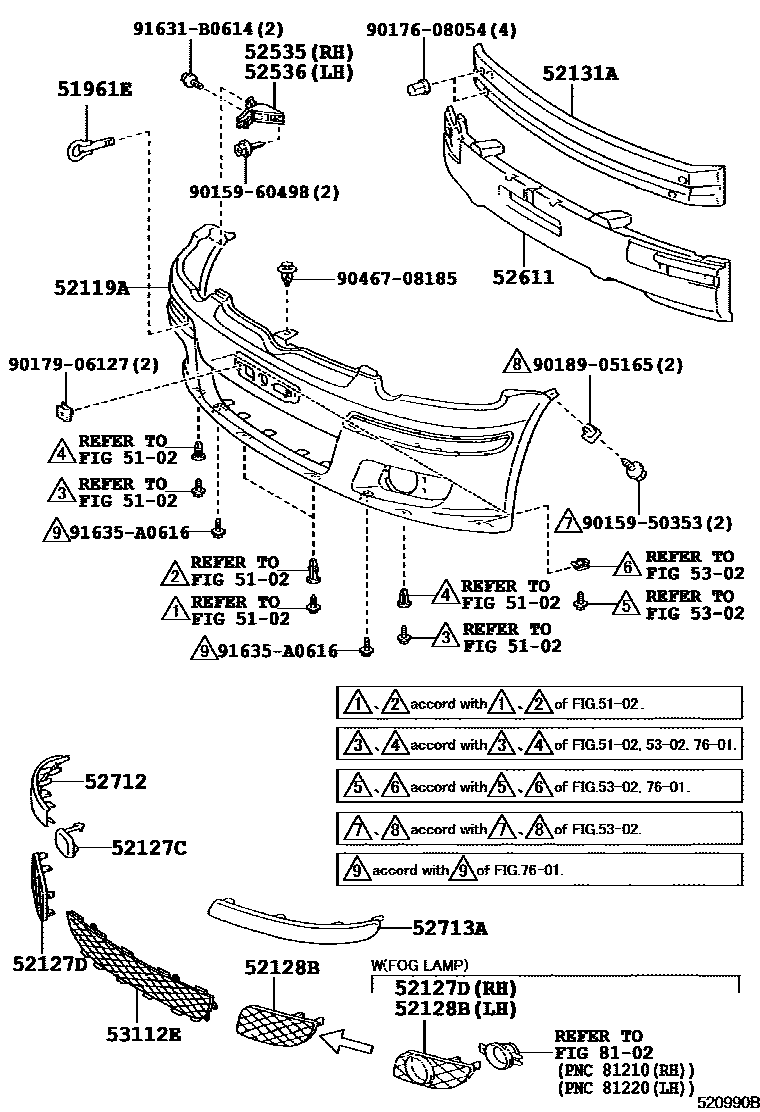

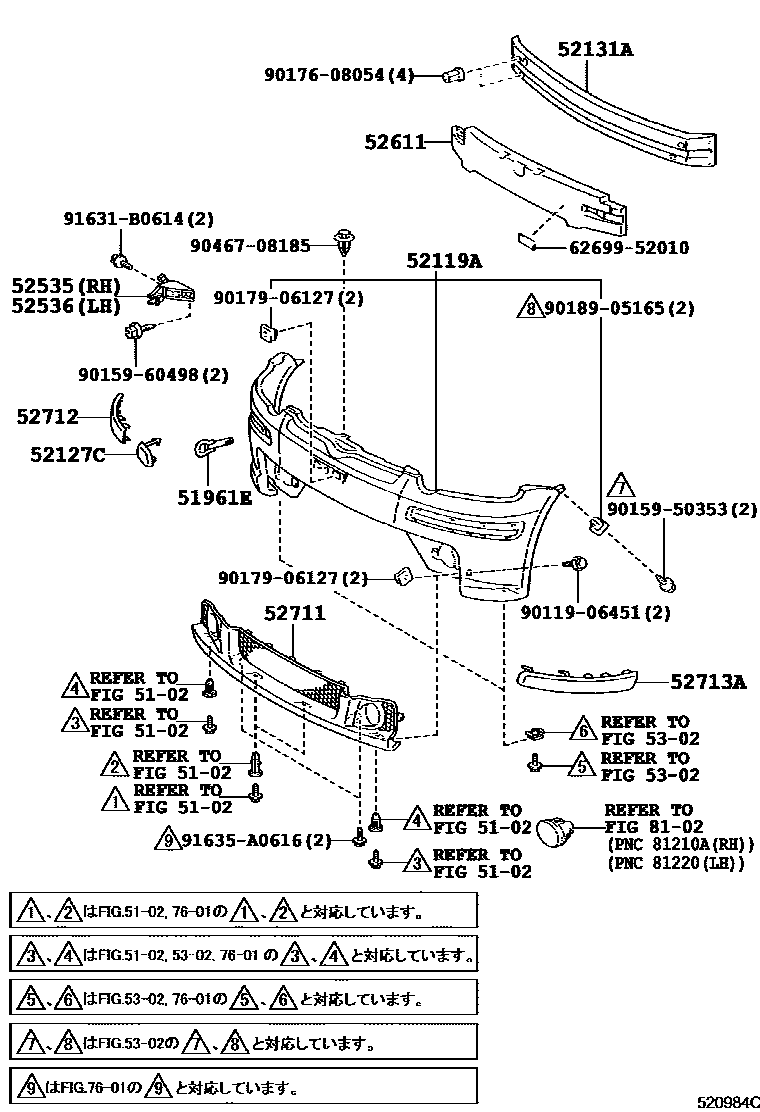

Toyota YARIS 前保险杠及附件 — Figure 5201
Toyota YARIS EPC diagram 5201, 前保险杠及附件, with 4 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 51961E | front hook | 51960-52010 · 51960-52040 |
| 52119A | front bumper cover | 52119-52900 · 52119-52904 · 52119-52908 · 52119-52913 · 52119-52918 |
| 52127C | Front bumper hole cover | 52127-52010 · 52127-52011 · 52721-52010 · 52721-52900 |
| 52127D | Front bumper right hole cover | 52127-52130 · 52127-52220 |
| 52128B | Front bumper left hole cover | 52128-52010 · 52128-52040 |
| 52129B | Front bumper lower cover | 52129-52900 |
| 52131A | Front bumper reinforcement | 52131-52010 · 52131-52060 · 52131-52070 |
| 52535 | Front bumper right side fixing bracket | 52535-52011 · 52535-52012 |
| 52536 | Front bumper left fixed bracket | 52536-52011 · 52536-52012 |
| 52611 | front bumper energy absorber | 52611-52010 · 52611-52060 |
| 52711 | Front bumper protection strip | 52711-52040 |
| 52712 | Front bumper right side protective strip | 52712-52050 · 52712-52900 |
| 52713A | Front bumper left protective strip | 52713-52050 · 52713-52900 |
| 53112E | No. 1 radiator lower grille | 53112-52010 · 53112-52060 |
| 81481E | Right fog light cover | 81481-52010 |
| 81482C | Left fog light cover | 81482-52010 |
