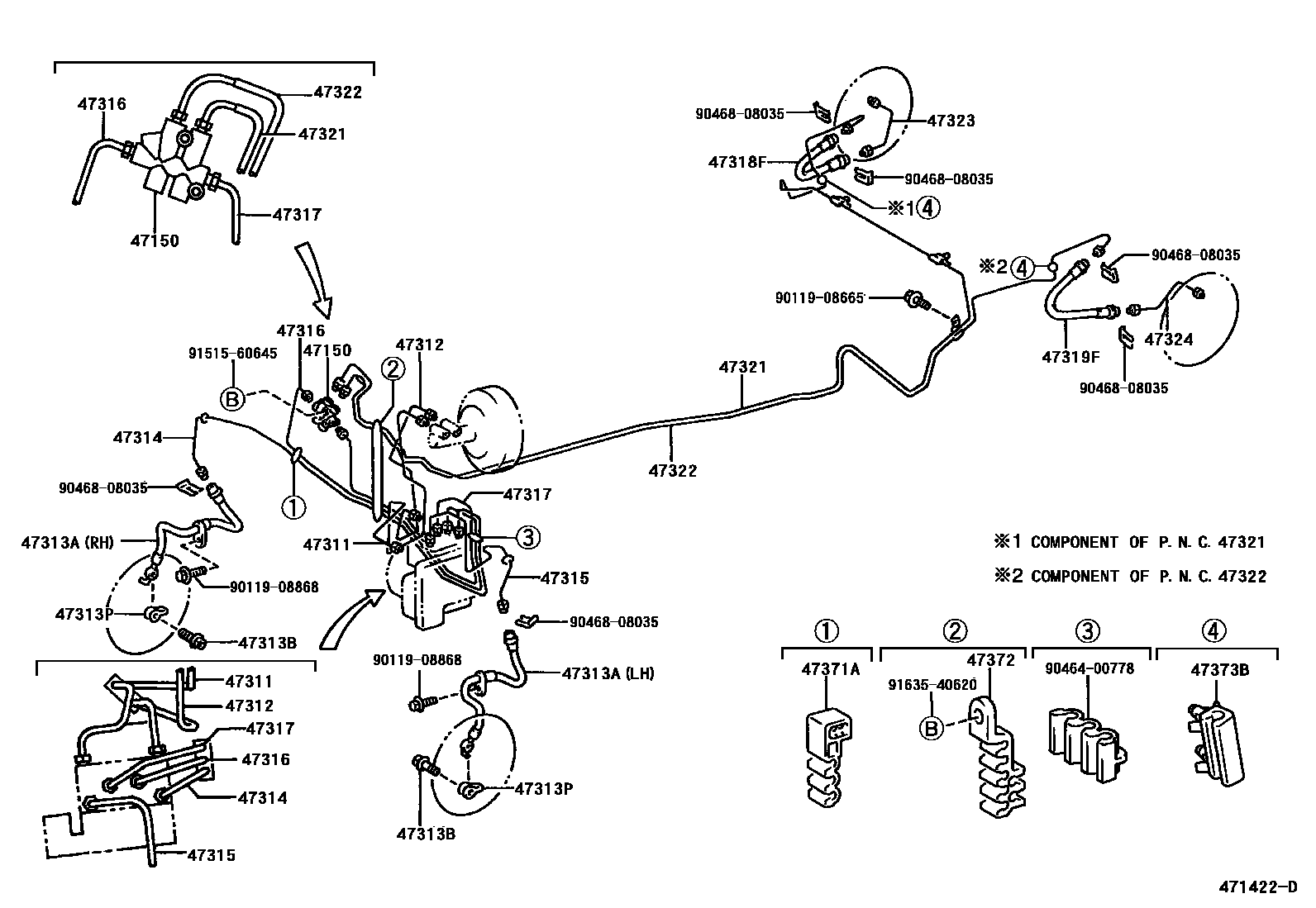

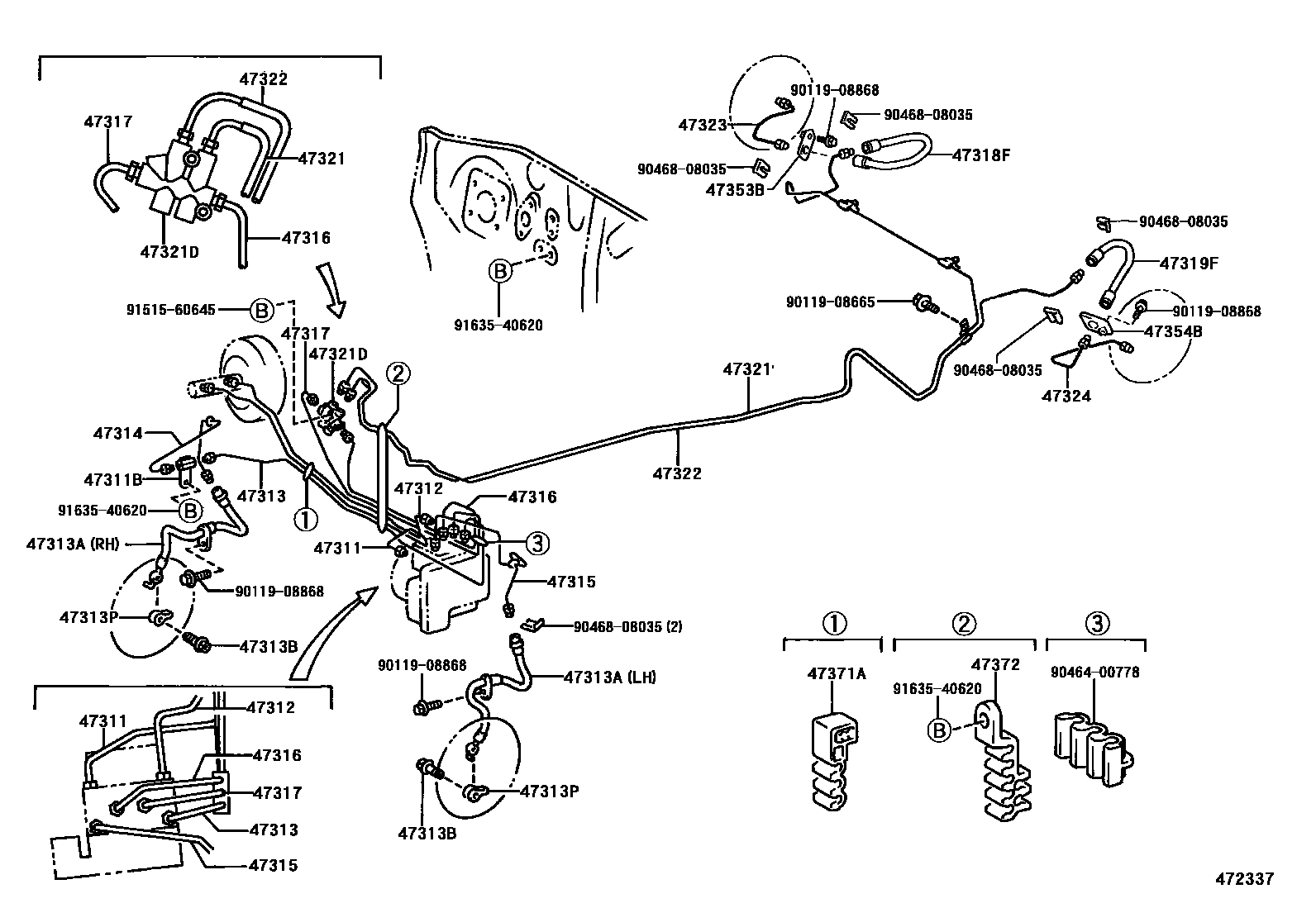

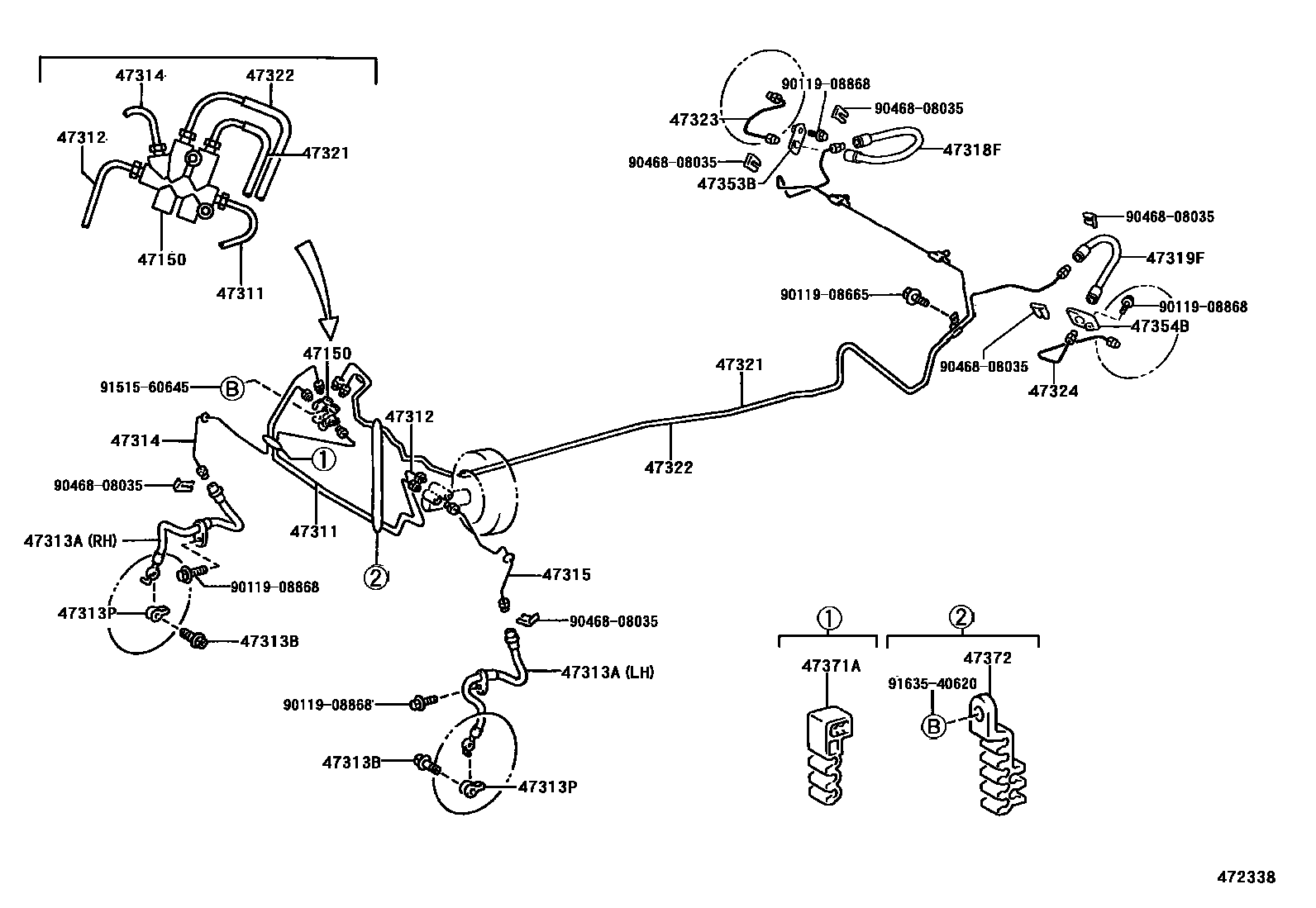

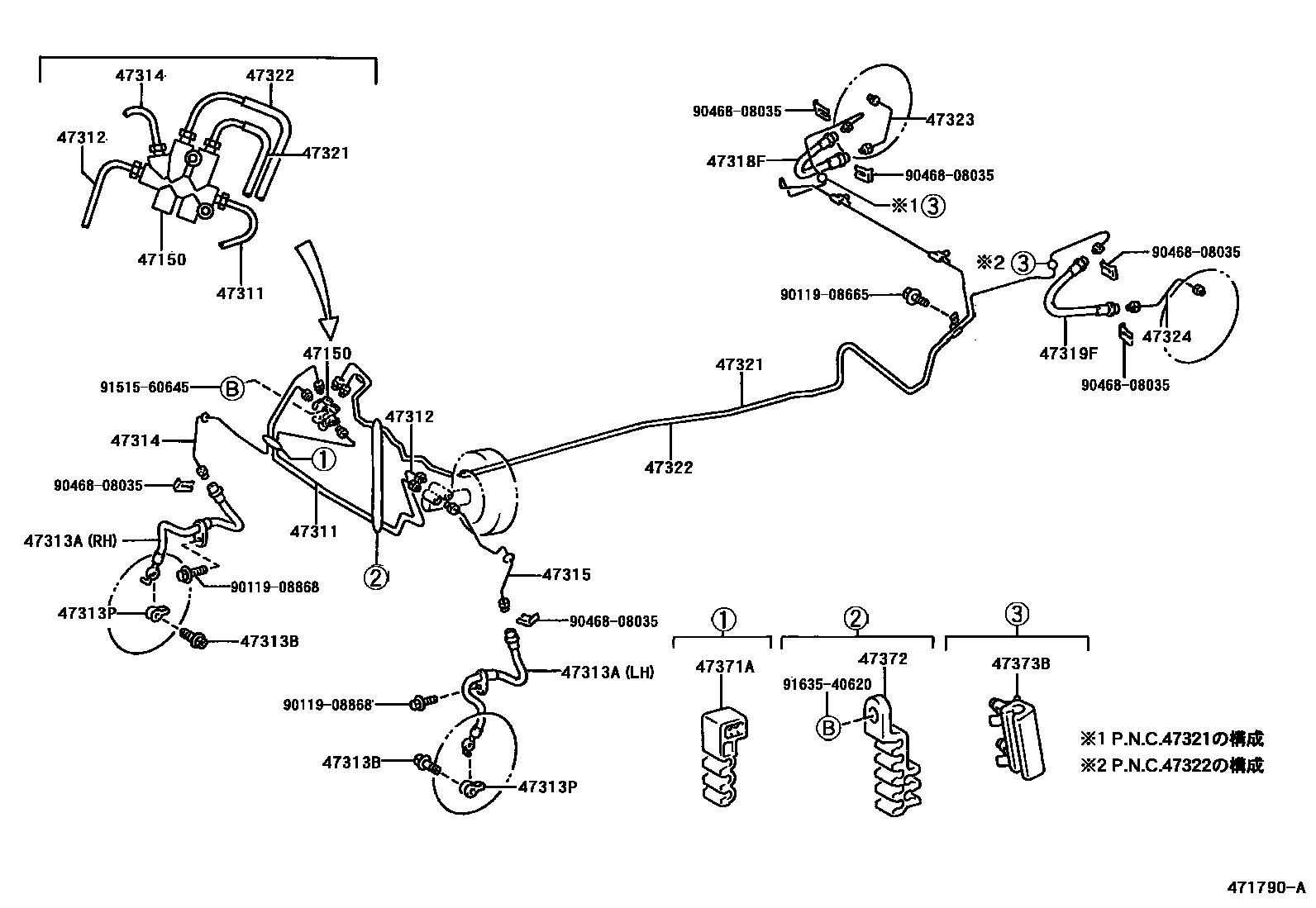

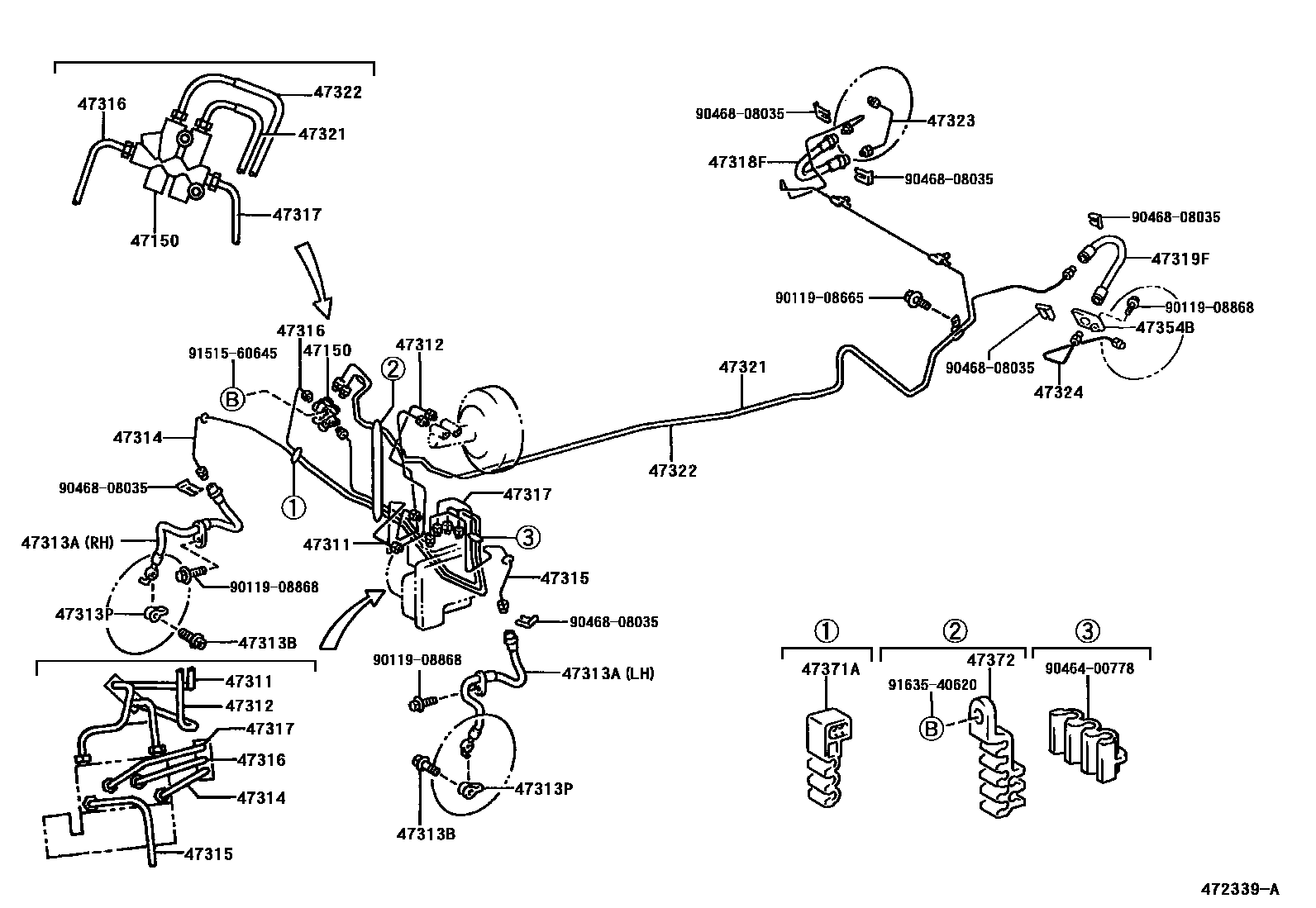

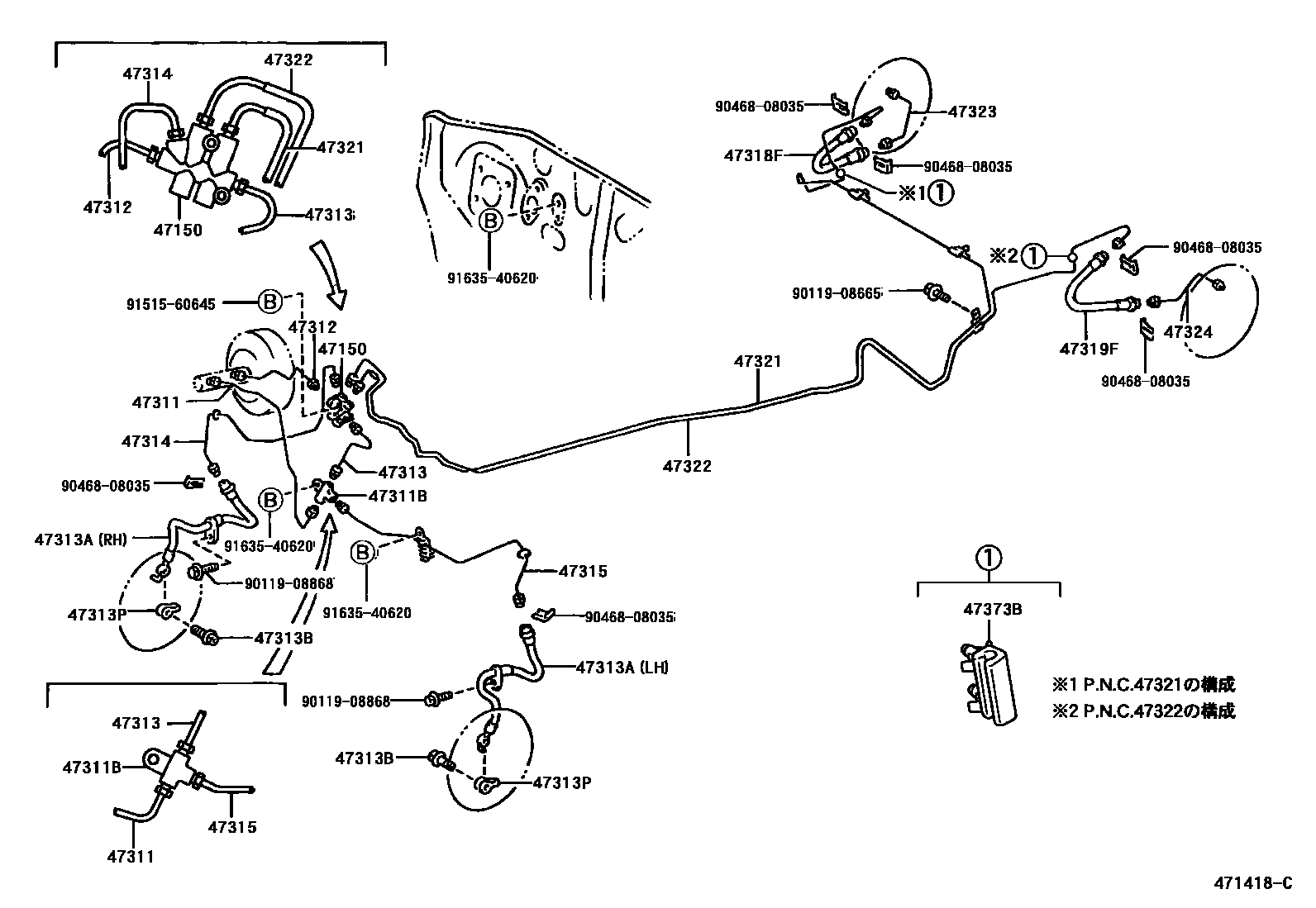

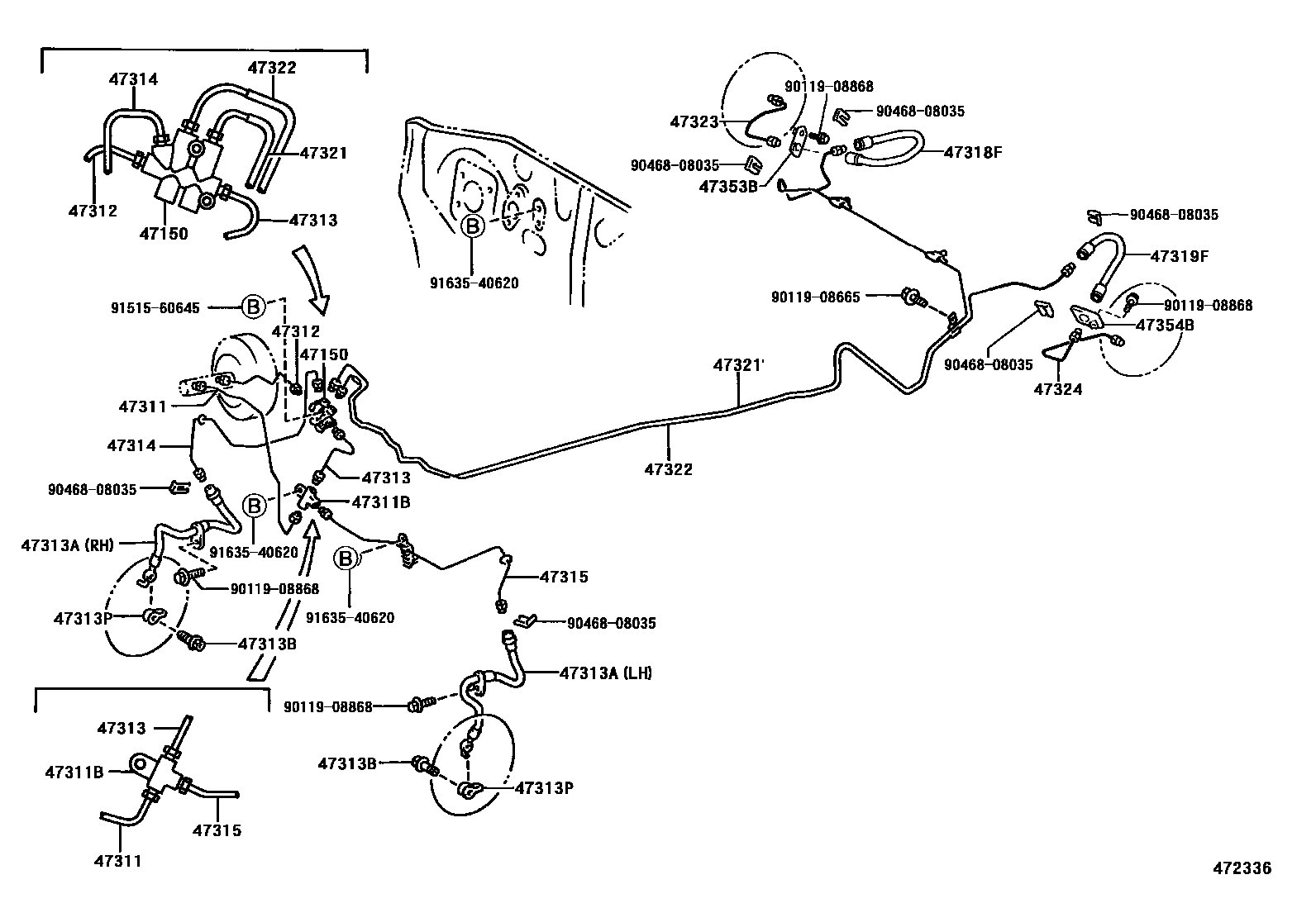

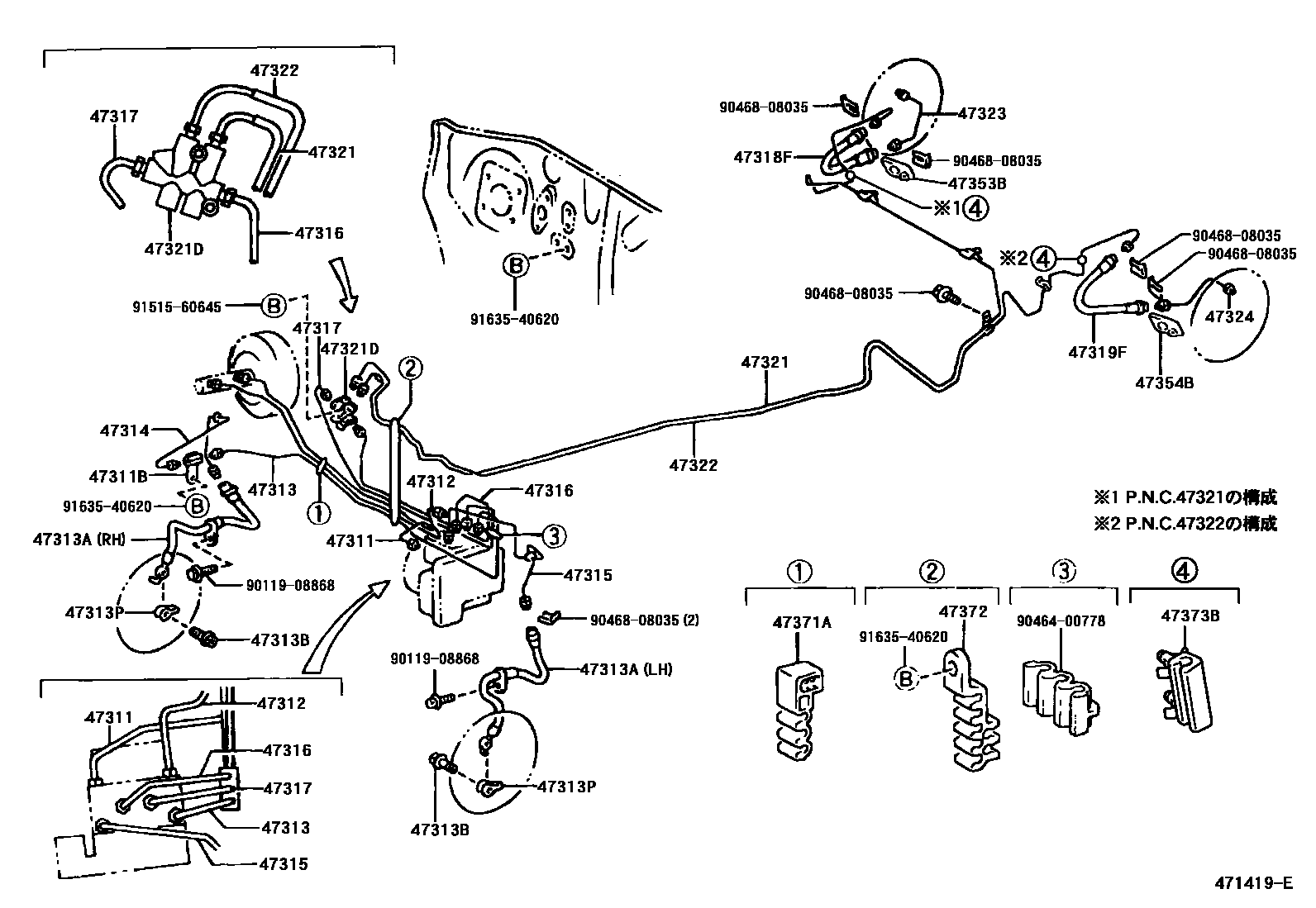

Toyota YARIS 制动配管和卡箍 — Figure 4708
Toyota YARIS EPC diagram 4708, 制动配管和卡箍, with 10 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

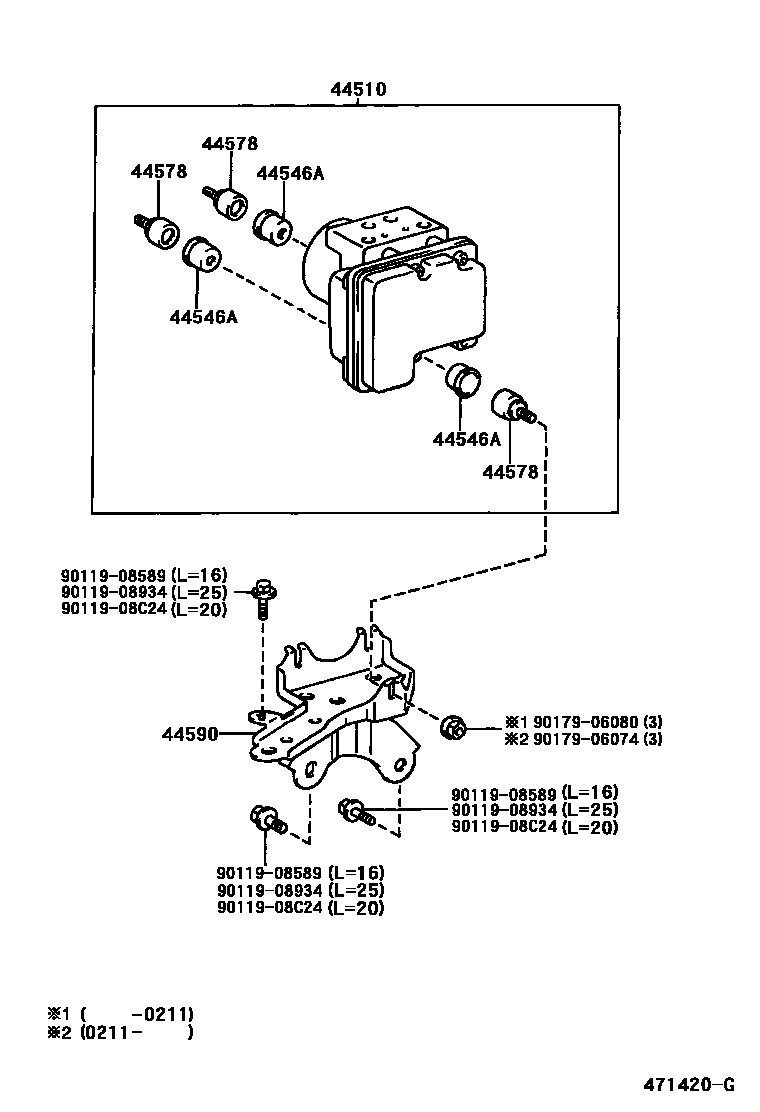

| 44510 | brake actuator assembly | 44050-52030 · 44050-52031 · 44050-52190 |
| 44546A | Brake actuator bolt cushion | 44546-52010 |
| 44578 | Brake actuator cushion bolt | 44578-52010 |
| 44590 | Brake actuator bracket assembly | 44590-52010 · 44590-52011 · 44590-52020 · 44590-52021 |
| 47150 | Proportional valve assembly | 47150-12150 · 47150-12240 · 47150-33090 |
| 47311 | No. 1 front brake pipe | 47311-52010 · 47311-52011 · 47311-52012 · 47311-52021 · 47311-52022 · 47311-52031 · 47311-52040 · 47311-52041 · 47311-52042 · 47311-52051 · 47311-52052 · 47311-52061 · 47311-52120 |
| 47311B | No. 1 pipe joint (for front brake pipe) | 90412-10228 · 90412-10235 · 90413-10286 · 90413-10786 |
| 47312 | No. 2 front brake pipe | 47312-52010 · 47312-52011 · 47312-52021 · 47312-52031 · 47312-52040 · 47312-52041 · 47312-52051 · 47312-52061 |
| 47313 | No. 3 front brake pipe | 47313-52010 · 47313-52011 · 47313-52020 · 47313-52021 |
| 47313A | No. 1 front flexible hose | 90947-02A45 · 90947-02A46 · 90947-02C31 · 90947-02C32 · 90947-02D76 · 90947-02D77 |
| 47313B | Connector bolt (for front flex hose) | 90401-10058 |
| 47313P | Gasket (for front flex hose) | 47389-50020 |
| 47314 | No. 4 front brake pipe | 47314-52010 · 47314-52011 · 47314-52020 · 47314-52021 · 47314-52022 · 47314-52031 · 47314-52041 · 47314-52042 · 47314-52070 |
| 47315 | No. 5 front brake pipe | 47315-52010 · 47315-52011 · 47315-52021 · 47315-52030 · 47315-52031 · 47315-52032 · 47315-52041 · 47315-52061 |
| 47316 | No. 6 front brake pipe | 47316-52010 · 47316-52011 · 47316-52021 |
| 47317 | No. 7 front brake pipe | 47317-52010 · 47317-52011 · 47317-52021 |
| 47318F | Right rear flexible hose | 90947-02A47 · 90947-02C30 |
| 47319F | Left rear flexible hose | 90947-02A47 · 90947-02C30 |
| 47321 | No. 1 rear brake pipe | 47321-52010 · 47321-52011 · 47321-52012 |
| 47321D | No. 1 pipe joint (for rear brake pipe) | 90412-10640 |
| 47322 | No. 2 rear brake pipe | 47322-52010 · 47322-52011 · 47322-52012 |
| 47323 | No. 3 rear brake pipe | 47323-52010 · 47323-52011 · 47323-52012 · 47323-52080 |
| 47324 | No. 4 rear brake pipe | 47324-52010 · 47324-52011 · 47324-52012 · 47324-52070 |
| 47353B | No. 3 Flexible Hose Bracket | 47353-52010 |
| 47354B | No. 4 Flexible Hose Bracket | 47354-52010 |
| 47371A | No. 1 brake pipe clamp | 47371-52010 |
| 47372 | No. 2 brake pipe clamp | 47372-52010 |
| 47373B | No. 3 brake pipe clamp | 47371-52030 |
