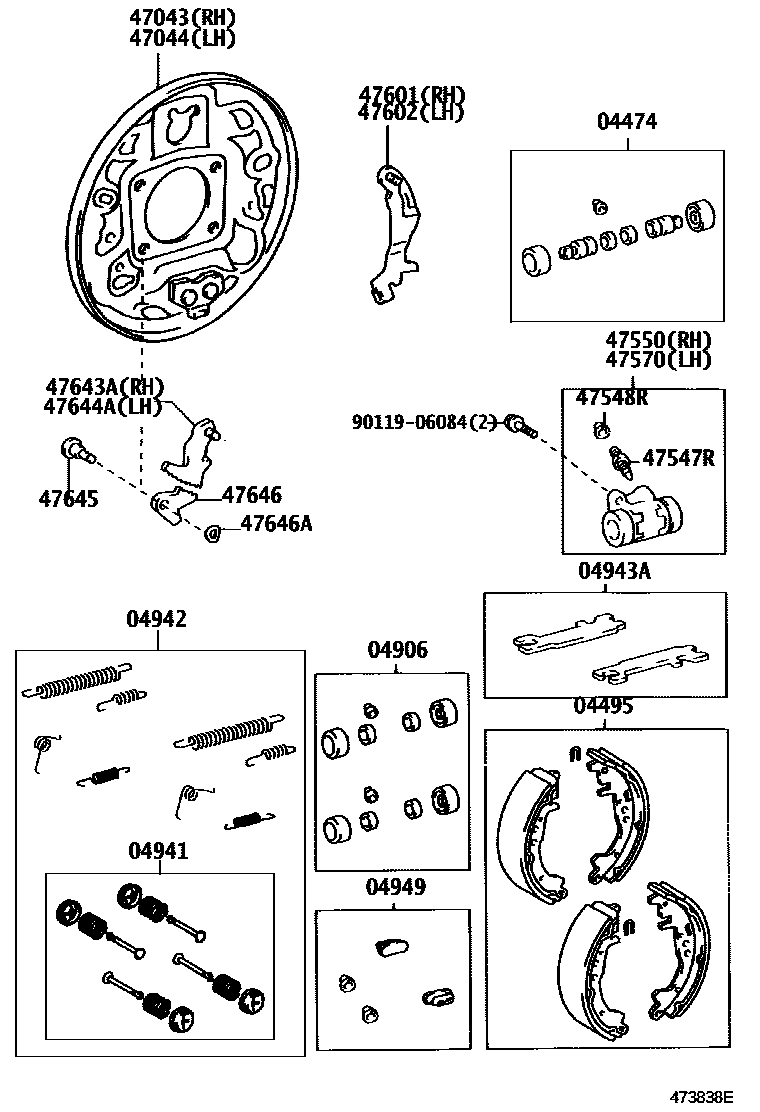

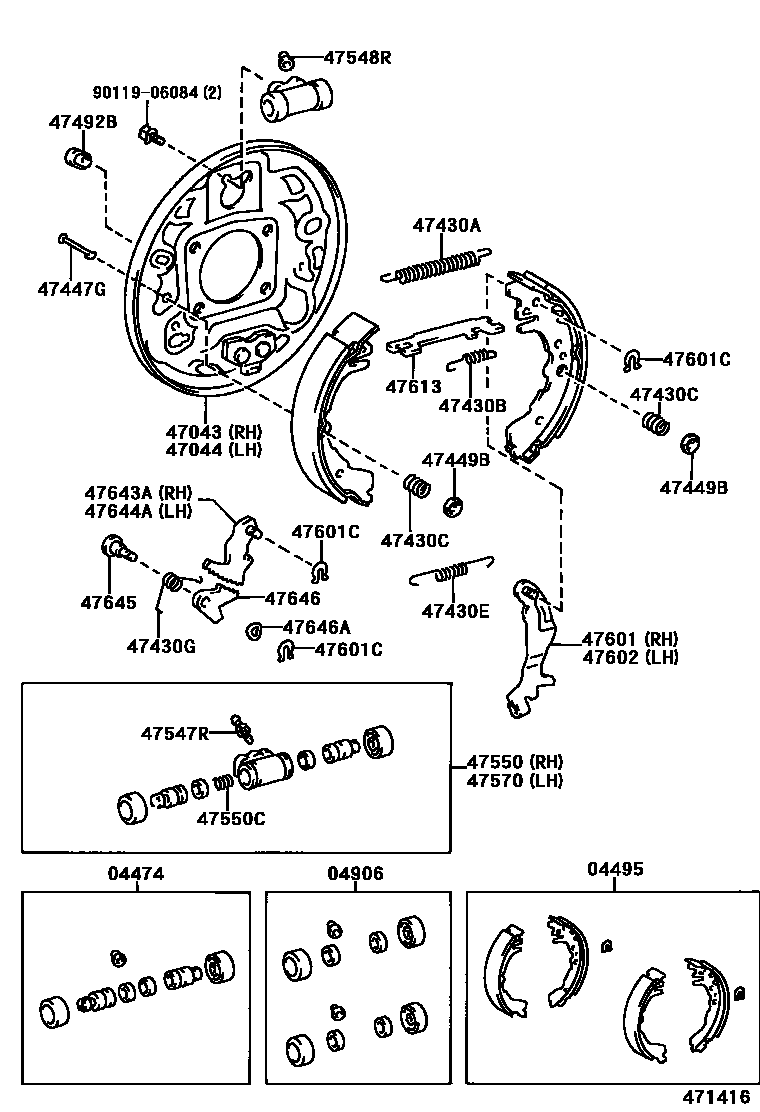

Toyota YARIS 后鼓式制动器分泵和底板 — Figure 4706
Toyota YARIS EPC diagram 4706, 后鼓式制动器分泵和底板, with 3 images and 31 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04474 | rear wheel pump assembly | 04474-52010 |
| 04495 | Rear brake shoe assembly | 04495-52010 |
| 04906 | Rear wheel pump cup assembly | 04906-52010 |
| 04941 | Rear brake shoe limit spring assembly | 04941-52010 |
| 04942 | Rear brake spring assembly | 04942-52010 |
| 04943A | Rear brake bracket assembly | 04943-52010 |
| 04949 | Rear brake plug assembly | 04949-52010 · 04949-52030 |
| 47043 | Right rear brake base plate sub-assembly | 47043-52020 |
| 47044 | Left rear brake base plate sub-assembly | 47044-52020 |
| 47430A | Tension spring (for rear brake shoe return) | 90506-18081 |
| 47430B | Tension spring (for rear brake shoe return) | 90506-14075 · 90506-14076 |
| 47430C | Limit spring (for rear brake shoe) | 90501-16166 |
| 47430E | Tension spring (for rear brake shoe return) | 90506-16068 |
| 47430G | Tension spring (for rear wheel brake automatic adjustment lever) | 90949-03085 · 90949-03086 |
| 47447G | Brake shoe limit spring pin (for rear wheel brake) | 47447-10020 |
| 47449B | Brake shoe limit spring seat (for rear wheel brake) | 47449-20011 |
| 47492B | Brake shoe inspection plug (for rear brake) | 47491-20020 |
| 47547R | Bleed plug (for rear drum brake) | 47547-20010 |
| 47548R | Bleeder plug cap (for rear drum brake) | 31478-30010 |
| 47550 | Rear wheel brake cylinder assembly (for front right or upper right) | 47550-52010 · 47550-52011 |
| 47550C | Compression spring (for rear wheel brake cylinder) | 90029-60014 · 90501-07006 |
| 47570 | Rear wheel brake cylinder assembly (for front left or upper left) | 47570-52010 · 47570-52011 |
| 47601 | Right parking brake shoe lever sub-assembly (for rear wheel brake) | 47601-52010 |
| 47601C | C-shaped washer (for rear brake) | 90213-04001 |
| 47602 | Left parking brake shoe lever sub-assembly (for rear wheel brake) | 47602-52010 |
| 47613 | Parking brake shoe push rod (for rear wheel brake) | 47613-52010 |
| 47643A | Right rear wheel brake automatic adjustment lever | 47608-52010 |
| 47644A | Left rear wheel brake automatic adjustment lever | 47609-52010 |
| 47645 | Automatic lever pin (for rear brake) | 47645-52010 |
| 47646 | Automatically adjusting latch (for rear brakes) | 47646-52010 · 47646-52020 |
| 47646A | Flat washer (for rear brake automatic adjustment latch) | 90206-06008 |
