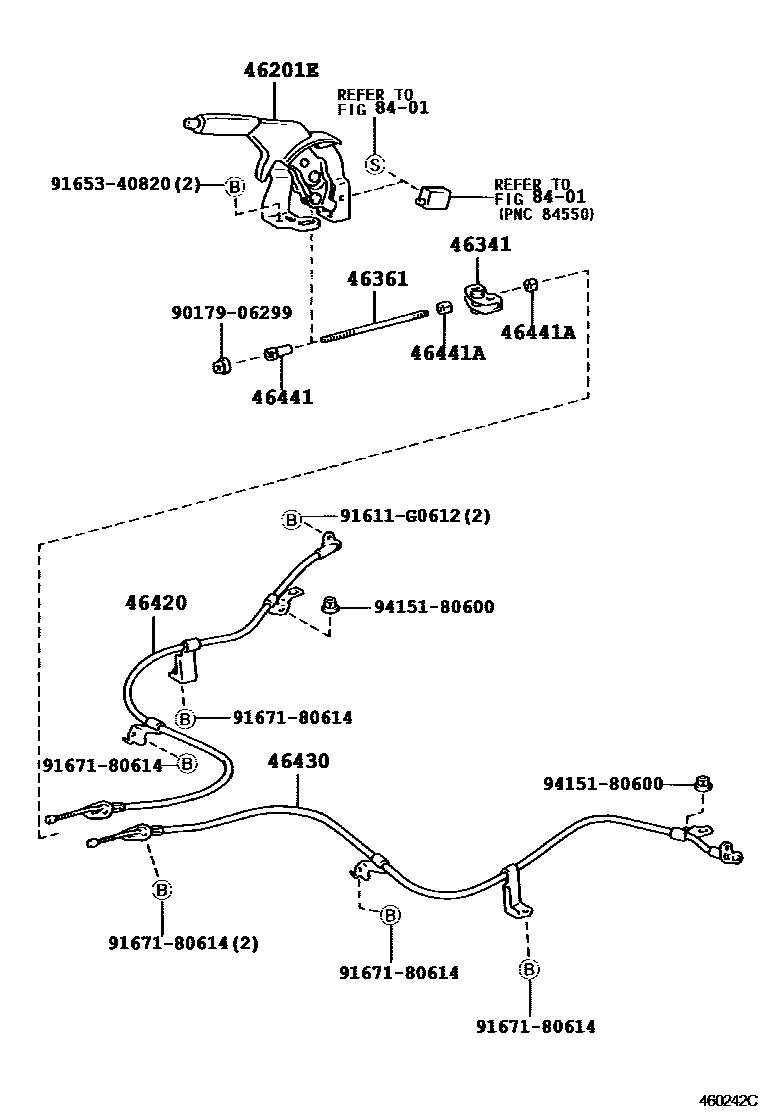

Toyota YARIS Parking Brake & Cable — Figure 4601
Toyota YARIS EPC diagram 4601, Parking Brake & Cable, with 1 images and 6 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 46341 | Parking brake balancer | 46341-52010 |
| 46361 | Parking brake lever | 46361-52010 |
| 46420 | Parking brake No. 2 cable assembly | 46420-52020 |
| 46430 | Parking brake No. 3 cable assembly | 46430-52020 |
| 46441 | No. 1 cable adjustment nut | 46441-52010 |
| 46441A | No. 2 cable adjustment nut | 90170-06014 |
