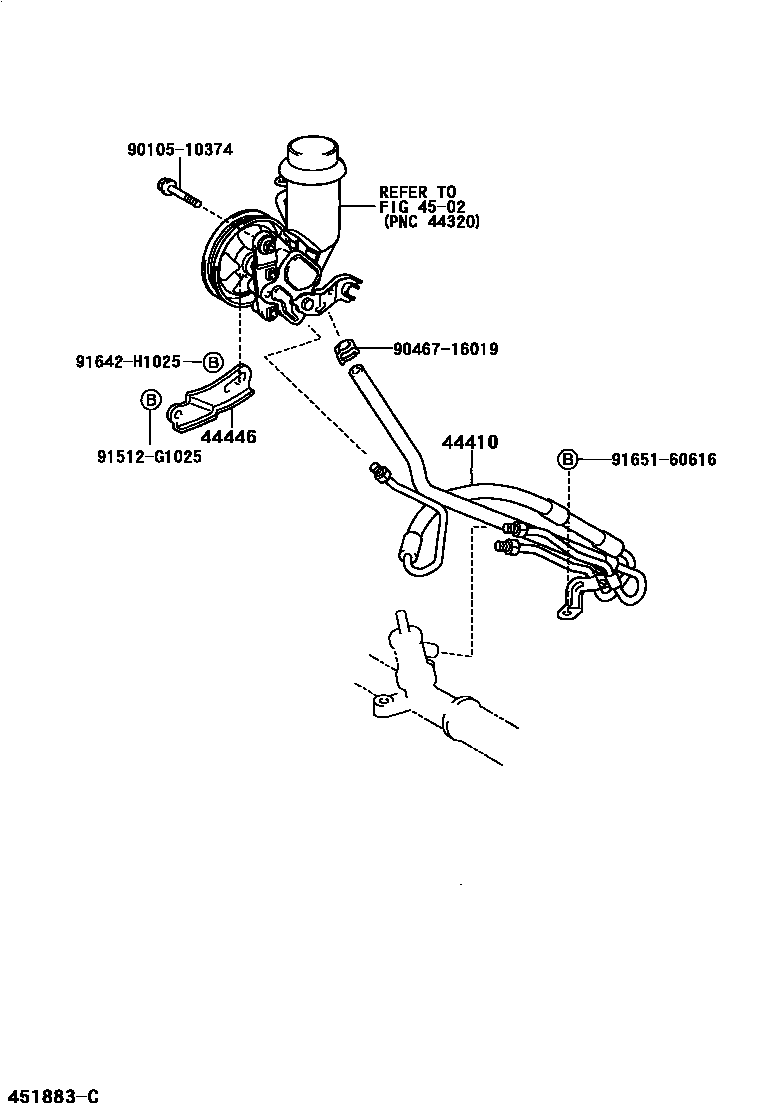

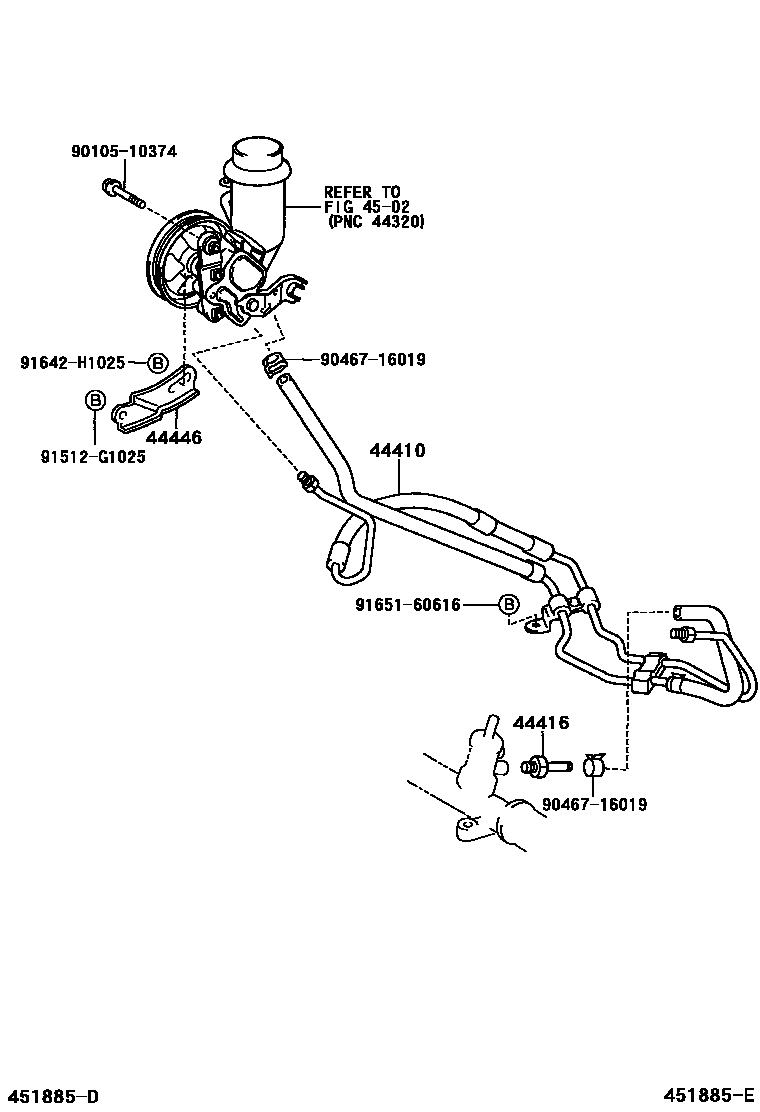

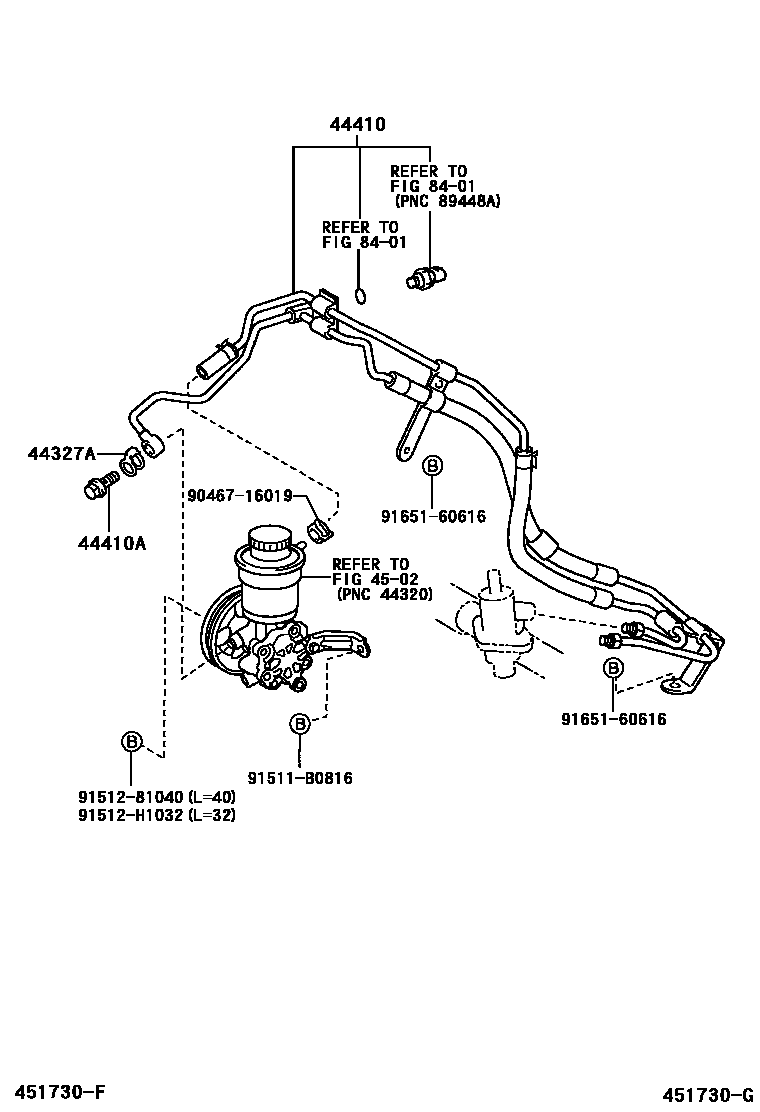

Toyota YARIS 动力转向配管 — Figure 4503
Toyota YARIS EPC diagram 4503, 动力转向配管, with 3 images and 5 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 44327A | No. 1 pressure hole gasket | 44327-12010 |
| 44410 | Pressure supply pipe assembly | 44410-52040 · 44410-52041 · 44410-52060 · 44410-52061 · 44410-52070 |
| 44410A | Connector bolt (for pressure supply pipe) | 96341-41603 |
| 44416 | Oil return pipe (for steering gear outlet) | 44416-52010 |
| 44446 | Adjust the stand | 44446-52010 |
