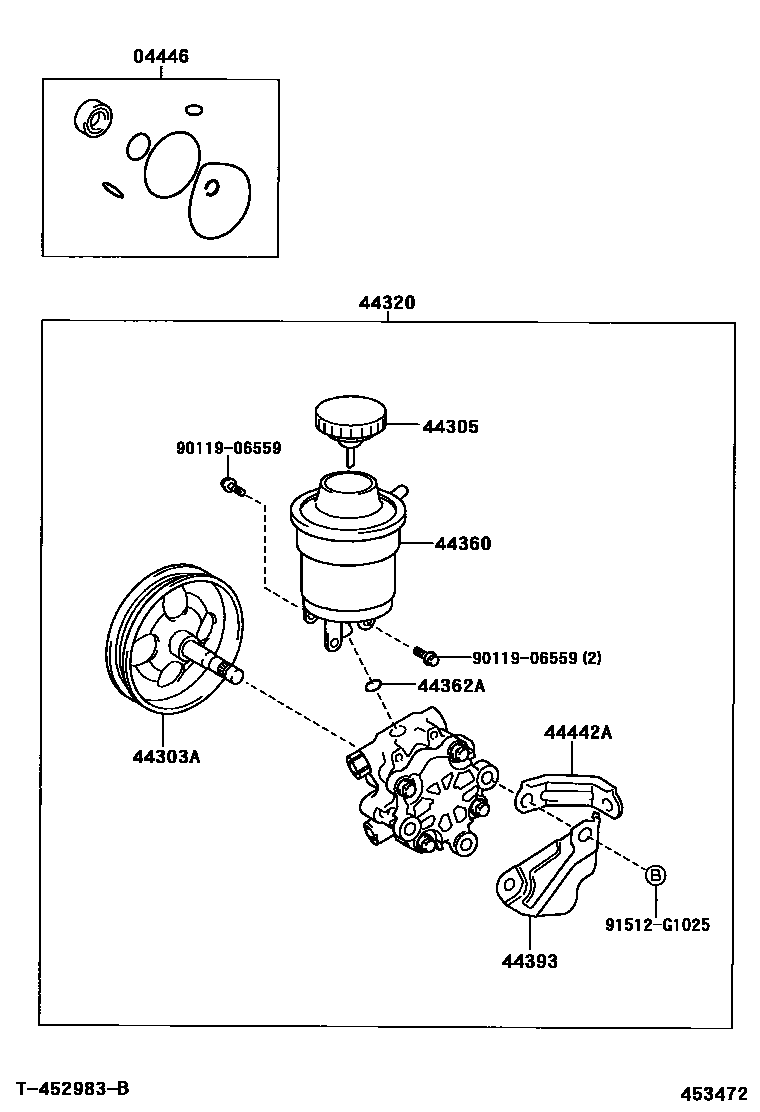

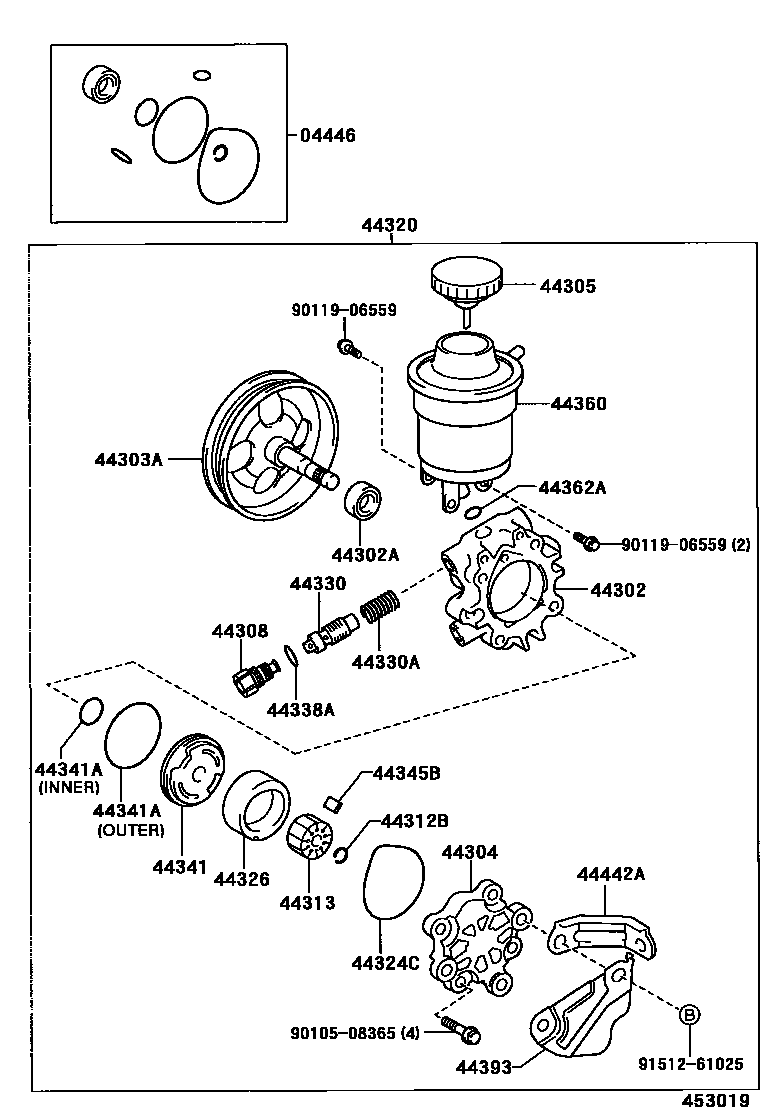

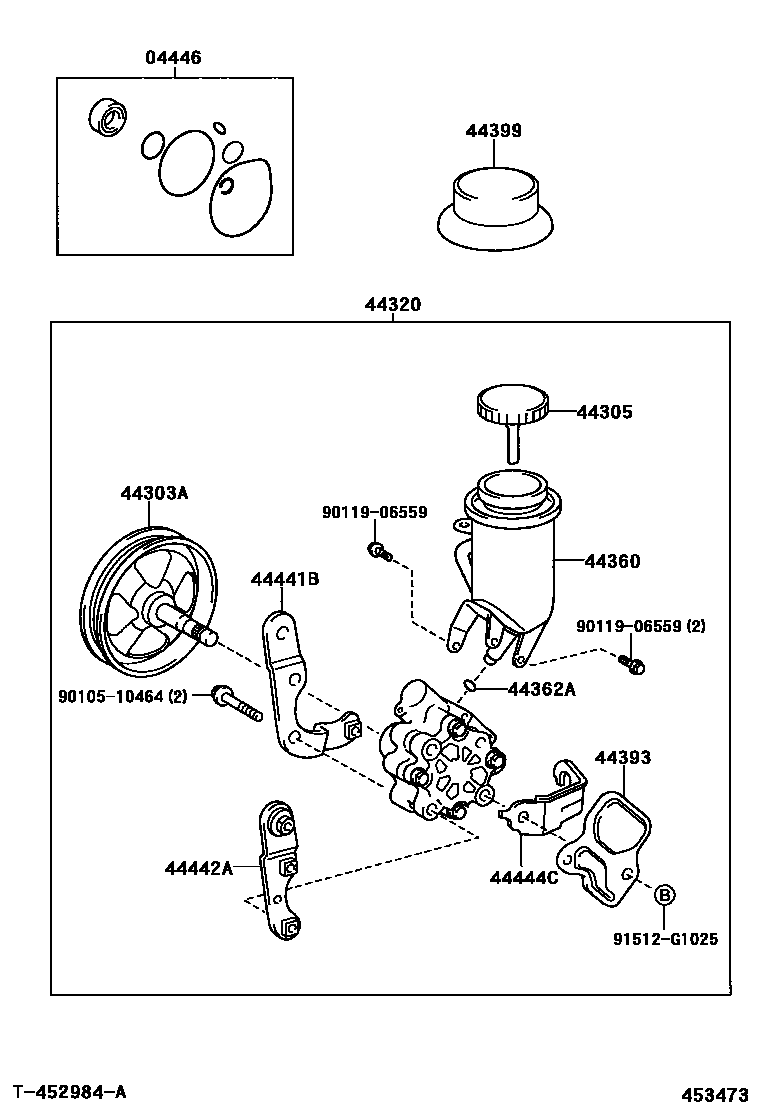

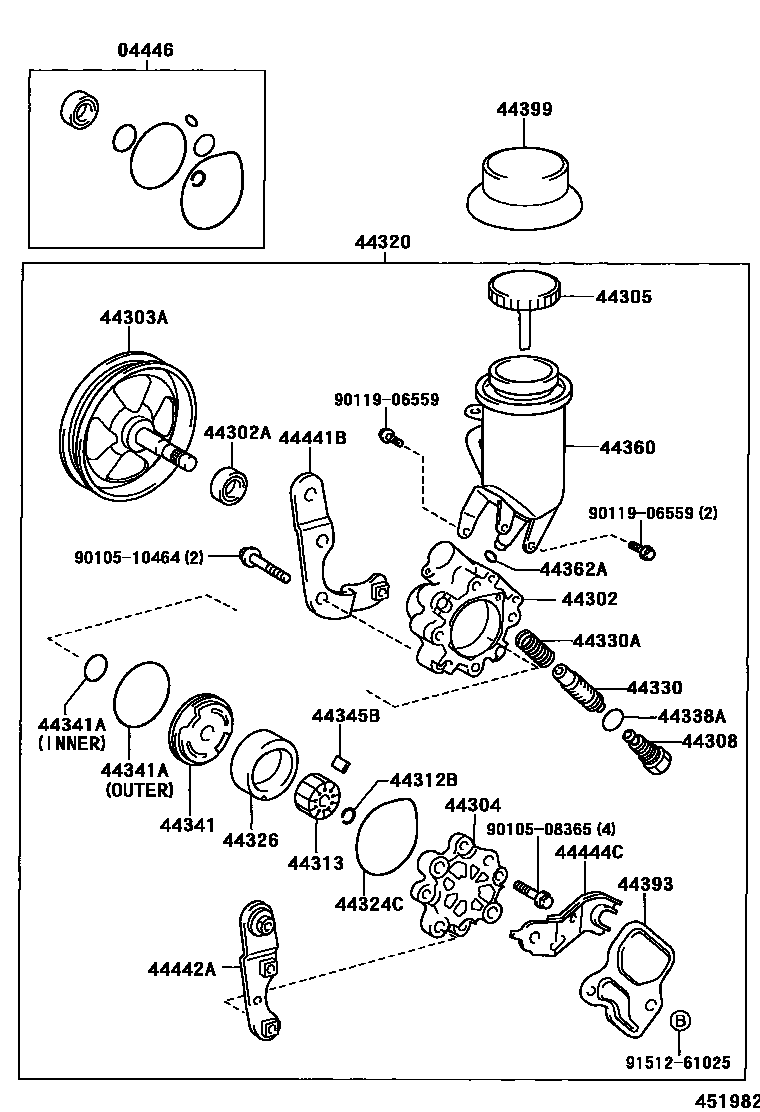

Toyota YARIS 叶片泵和储油罐(动力转向) — Figure 4502
Toyota YARIS EPC diagram 4502, 叶片泵和储油罐(动力转向), with 4 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-32050 |
| 44302 | Front vane pump housing sub-assembly | 44302-52010 · 44302-52020 |
| 44302A | No. 1 oil seal (for vane pump housing) | 90311-15012 |
| 44303A | Shaft sub-assembly with pulley | 44303-52010 · 44303-52020 |
| 44304 | Vane pump rear housing sub-assembly | 44304-52010 · 44304-52020 · 44304-52021 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-50010 |
| 44308 | Pressure hole connector sub-assembly | 44308-52010 · 44308-52020 |
| 44312B | No. 1 snap ring (for vane pump shaft) | 90520-10003 |
| 44313 | vane pump rotor | 44313-32060 · 44313-32070 · 44313-32080 · 44313-32090 · 44313-32100 |
| 44320 | Vane pump assembly | 44310-52010 · 44310-52011 · 44310-52012 · 44310-52020 |
| 44324C | O-ring (for pump rear housing) | 90903-01007 |
| 44326 | Cam ring (for vane pumps) | 44325-32340 · 44325-32350 · 44325-32360 · 44325-32370 · 44325-32380 · 44325-52010 · 44325-52020 · 44325-52030 · 44325-52040 · 44325-52050 |
| 44330 | Flow control valve assembly | 44330-52010 · 44330-52020 · 44330-52030 · 44330-52040 · 44330-52050 · 44330-52060 |
| 44330A | Compression spring (for flow control valve) | 90501-12103 |
| 44338A | O-ring (for pressure port connector) | 90301-18009 |
| 44341 | Vane pump front cover | 44341-32030 · 44341-32031 |
| 44341A | O-ring (for vane pump front cover) | 90301-16012 · 90301-45003 |
| 44345B | vane pump disc | 44345-32100 · 44345-32110 · 44345-32120 · 44345-32130 · 44345-32140 |
| 44360 | Vane pump oil storage tank assembly | 44306-52010 · 44306-52020 |
| 44362A | O-ring (for vane pump oil storage tank) | 90301-11020 |
| 44393 | Power steering pump insulation pad | 44393-52010 · 44393-52030 |
| 44399 | Vane pump oil storage tank cover | 44399-52010 |
| 44441B | Pump front bracket | 44441-52010 |
| 44442A | Vane pump rear bracket | 44442-52010 · 44442-52011 · 44442-52020 |
| 44444C | Vane pump back stay | 44444-52010 |
