Toyota YARIS 车轮和车轮盖 — Figure 4103
Toyota YARIS EPC diagram 4103, 车轮和车轮盖, with 3 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

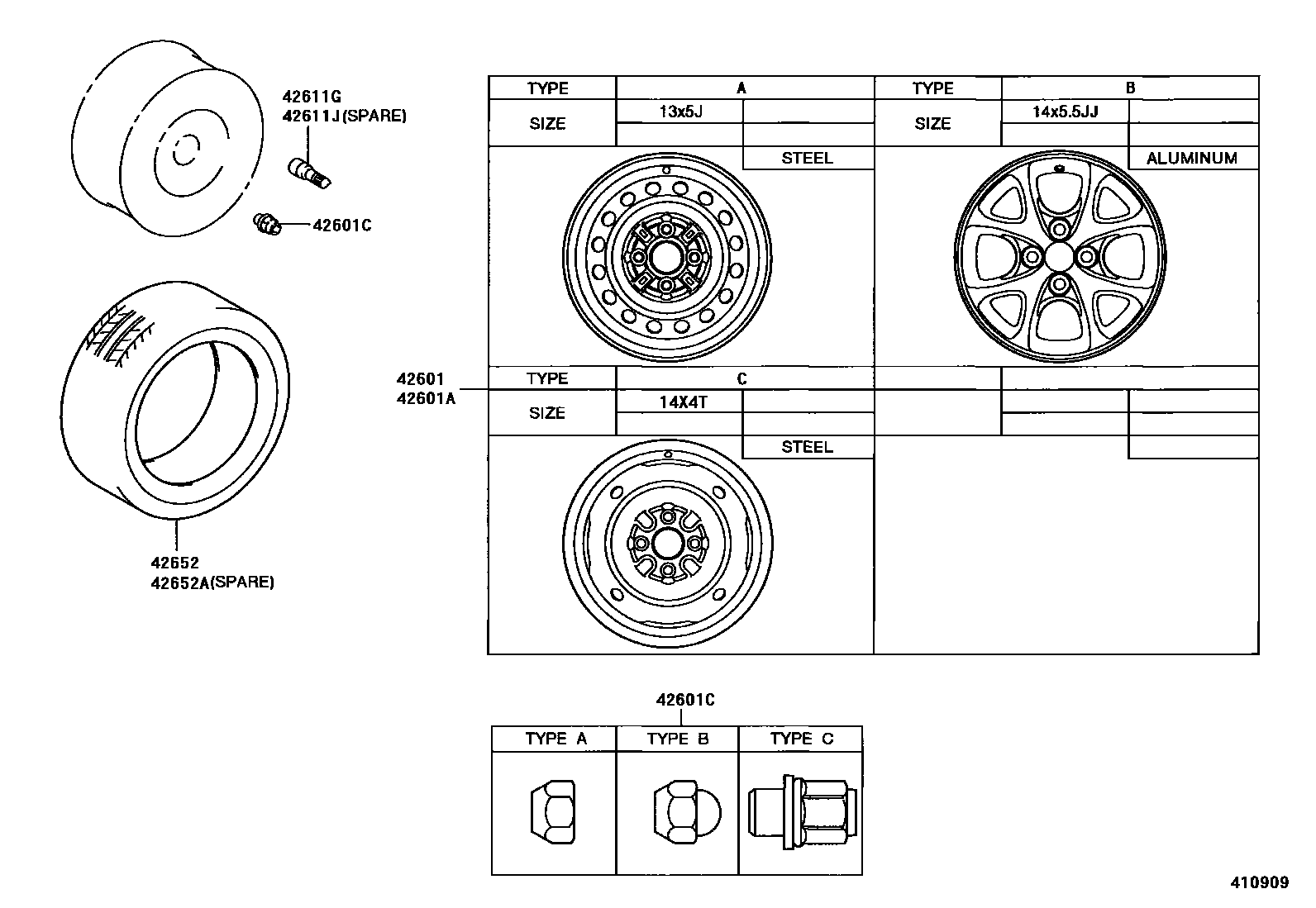

| 42601 | spoke wheel | 42611-52010 · 42611-52020 · 42611-52030 · 42611-52040 |
| 42601A | Spoke wheel (for spare tire) | 42611-16310 |
| 42601C | Hub nut (for axle) | 90942-01007 · 90942-01021 · 90942-01033 · 90942-01082 |

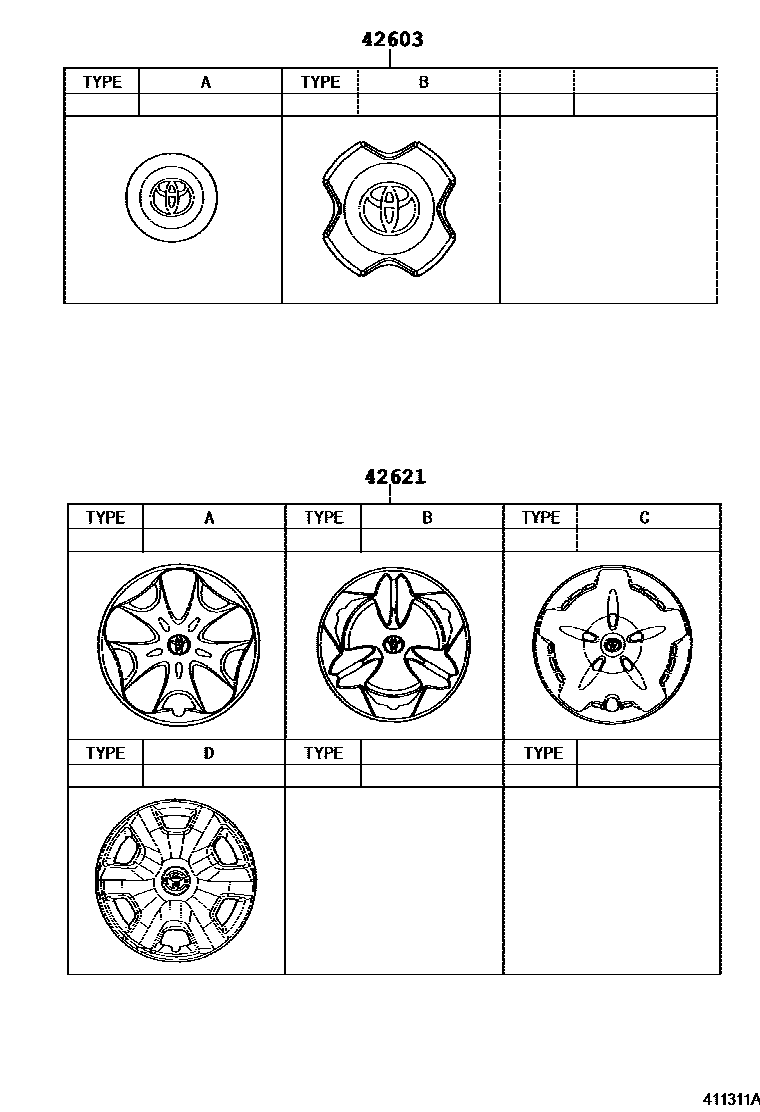

| 42603 | Wheel hub decorative parts sub-assembly | 42603-52010 · 42638-12290 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42621 | wheel cover | 42602-52020 · 42602-52030 · 42602-52040 · 42602-52240 |
| 42652 | tires | 42652-52030 · 42652-52031 · 42652-52040 · 42652-52041 · 42652-52050 · 42652-52051 · 42652-52060 · 42652-52061 |
| 42652A | Tire (for Spare Wheel) | 42652-16220 |
