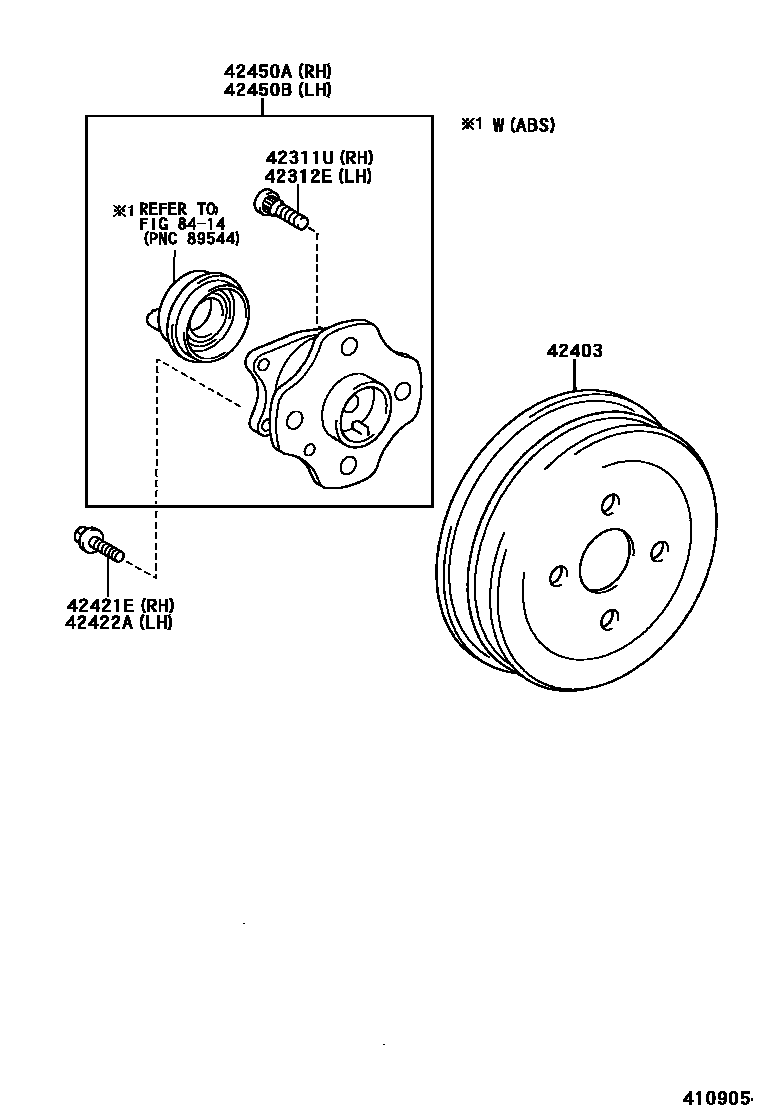

Toyota YARIS 后桥半轴和后桥轮毂 — Figure 4102
Toyota YARIS EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 7 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311U | Hub bolt (for rear axle right) | 90942-02047 |
| 42312E | Hub bolt (for left rear axle) | 90942-02047 |
| 42403 | Rear brake drum sub-assembly | 42431-52010 · 42431-52011 |
| 42421E | Bolt (for rear axle right bearing housing) | 90105-10470 · 90105-10507 |
| 42422A | Bolt (for rear axle left bearing housing) | 90105-10470 · 90105-10507 |
| 42450A | Rear axle right hub and bearing assembly | 42410-52020 · 42410-52021 · 42450-52020 · 42450-52021 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42410-52020 · 42410-52021 · 42450-52020 · 42450-52021 |
