Toyota YARIS 节气阀连杆和阀杆(ATM) — Figure 3513

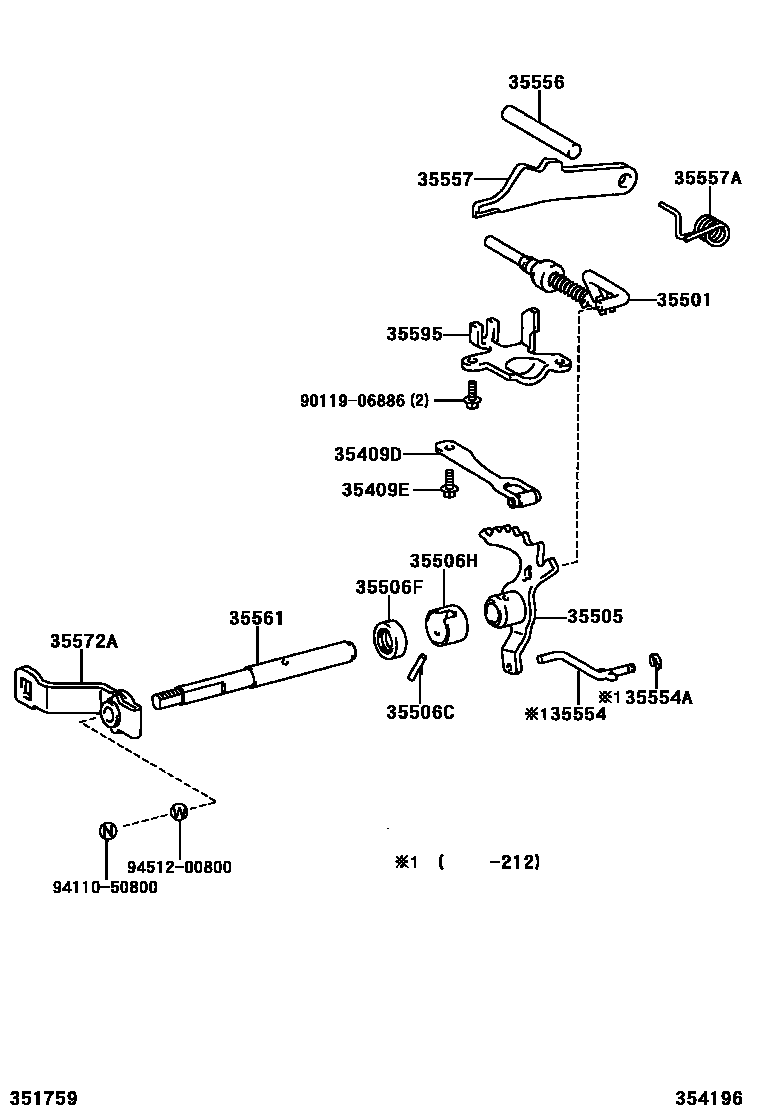

Toyota YARIS EPC diagram 3513, 节气阀连杆和阀杆(ATM), with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35409D | Manual lock spring sub-assembly | 35409-52010 |
| 35409E | Bolt (for manual locking spring) | 90105-06053 |
| 35501 | Parking lock lever sub-assembly | 35501-52010 |
| 35505 | Manual valve stem sub-assembly | 35505-52010 |
| 35506C | Slotted spring pin (for manual valve stem shaft) | 90254-04011 |
| 35506F | Oil seal (for manual valve stem shaft) | 90311-12002 |
| 35506H | Spacer (for manual valve stem shaft) | 90560-20006 |
| 35554 | Manual valve connecting rod | 35554-52010 |
| 35554A | E-ring (for manual valve connecting rod) | 96160-00400 |
| 35556 | Parking lock pawl shaft | 35556-52010 |
| 35557 | Parking pawl | 35557-52010 |
| 35557A | Torsion spring (for parking pawl) | 90949-03084 |
| 35561 | Manual valve stem shaft | 35561-52010 |
| 35572A | transmission control lever | 35572-52010 · 35572-52020 |
| 35595 | Parking lock pawl bracket | 35595-52010 |
