Toyota YARIS 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510

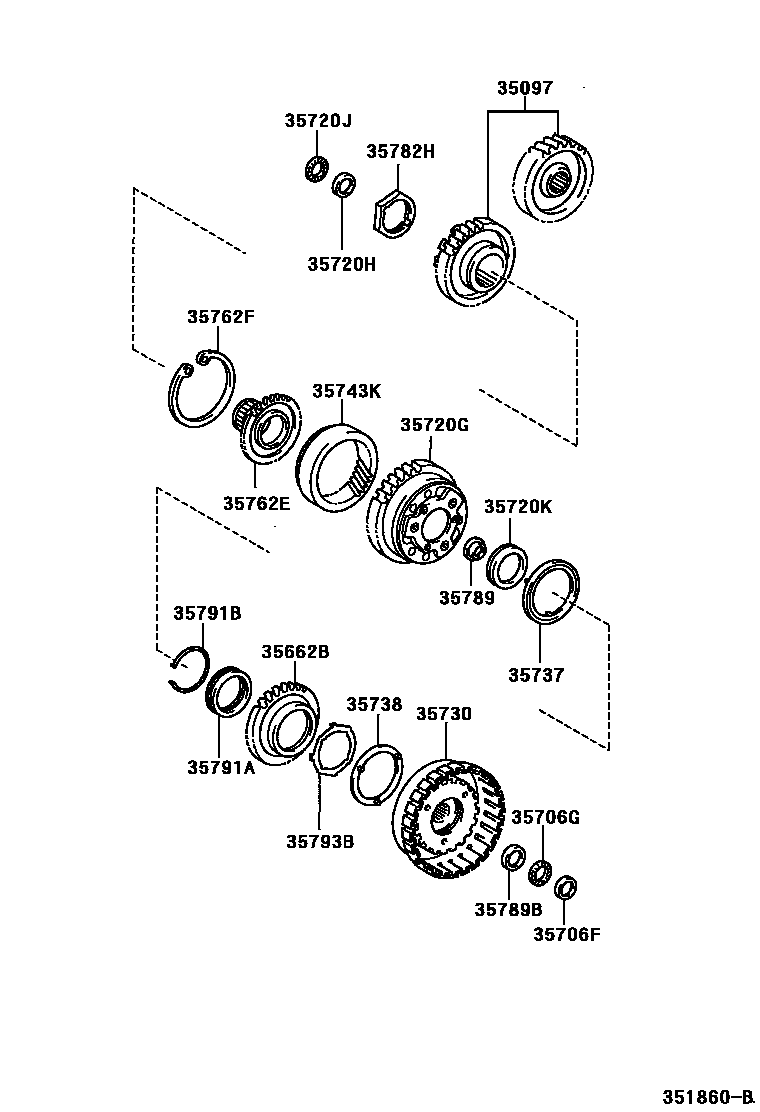

Toyota YARIS EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 1 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35097 | Automatic transmission axle countershaft gear assembly | 35097-52010 · 35097-52011 |
| 35662B | Second gear brake hub | 35662-52010 |
| 35706F | Rear thrust bearing race (for sun gear) | 35789-52050 |
| 35706G | Rear thrust bearing (for sun gear) | 90374-18004 |
| 35720G | Planetary gear assembly | 35720-52010 |
| 35720H | Thrust bearing race (for planetary gears) | 35789-52010 |
| 35720J | Front thrust needle roller bearing (for planetary gears) | 90374-17001 |
| 35720K | Rear thrust needle roller bearing (for planetary gears) | 90374-42006 |
| 35730 | Rear planetary gear train sun gear assembly | 35730-52010 |
| 35737 | Planetary gear carrier thrust washer | 35737-52010 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-52020 |
| 35743K | Planetary ring gear | 35743-52010 |
| 35762E | Planetary ring gear flange | 35762-52010 |
| 35762F | Hole snap ring (for planetary ring gear) | 90520-89003 |
| 35782H | Nut (for countershaft drive gear) | 90179-44001 |
| 35789 | Front thrust bearing race (for front planetary gear flange) | 35789-52020 |
| 35789B | Rear thrust bearing race (for front planetary gear flange) | 35789-52040 |
| 35791A | No. 1 one-way clutch | 35791-52010 |
| 35791B | Hole snap ring (for one-way clutch) | 90520-69003 |
| 35793B | One way clutch retaining ring | 35793-52010 |
