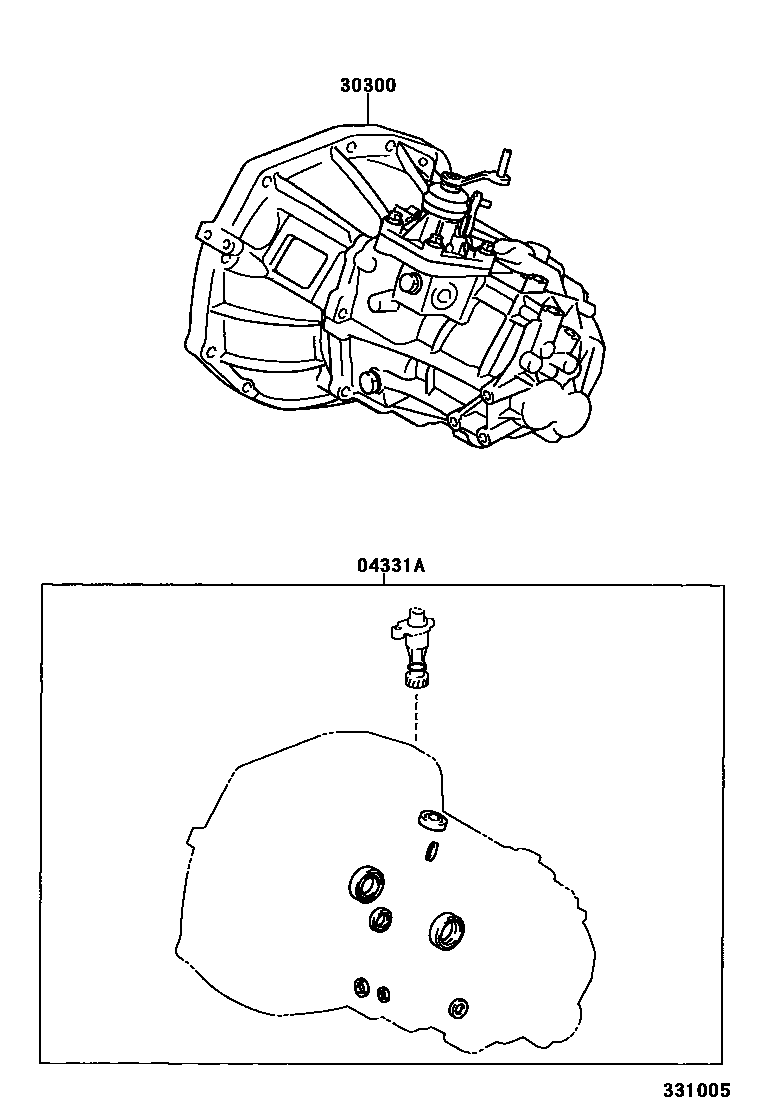

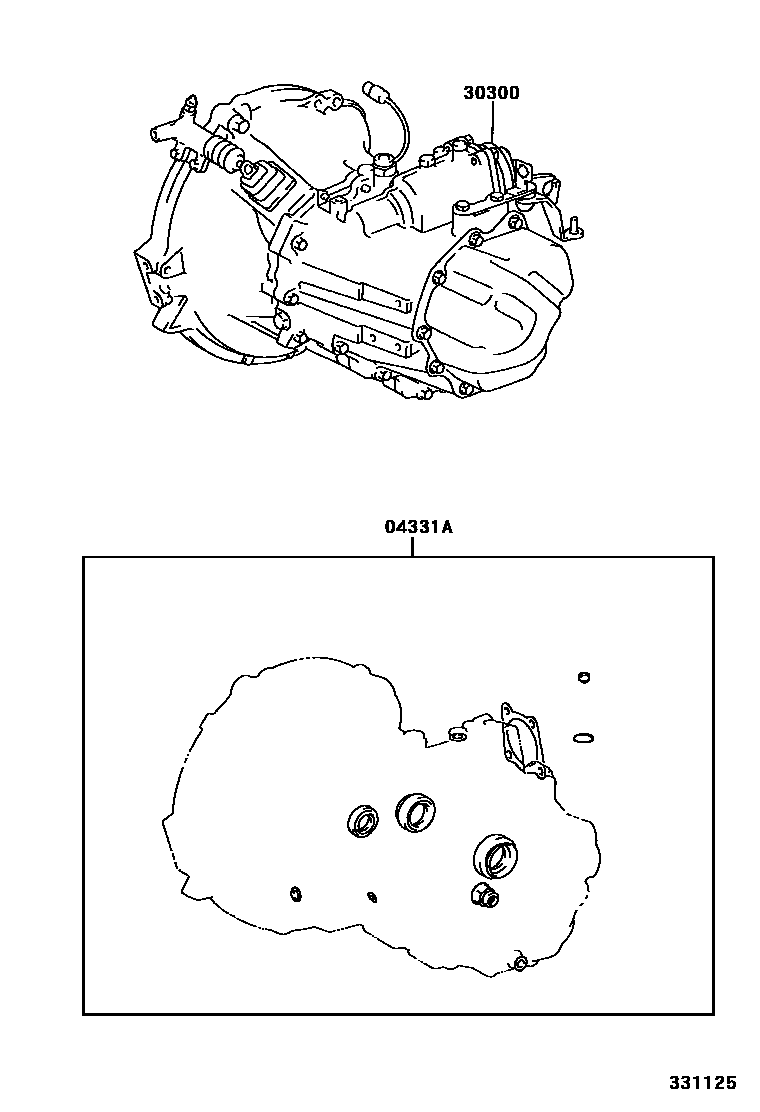

Toyota YARIS 传动桥或变速器总成和衬垫组件(MTM) — Figure 3301
Toyota YARIS EPC diagram 3301, 传动桥或变速器总成和衬垫组件(MTM), with 2 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04331A | Transaxle overhaul pad assembly (MTM) | 04331-52010 · 04331-52040 · 04331-52120 · 04331-52170 · 04331-52310 |
| 30300 | Manual transmission axle assembly | 30300-52020 · 30300-52021 · 30300-52030 · 30300-52031 · 30300-52050 · 30300-52051 · 30300-52130 · 30300-52131 |
