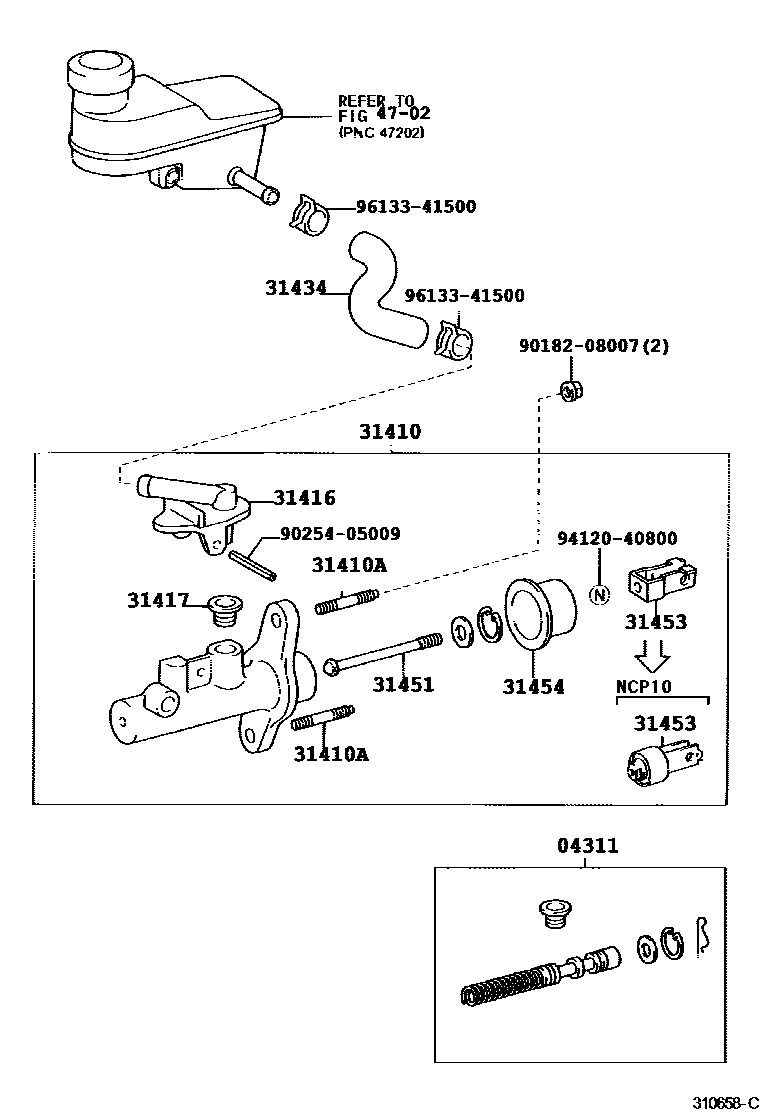

Toyota YARIS 离合器总泵 — Figure 3103
Toyota YARIS EPC diagram 3103, 离合器总泵, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04311 | Clutch master cylinder assembly | 04311-12110 |
| 31410 | Clutch master cylinder assembly | 31420-16020 · 31420-52010 · 31420-52020 · 31420-52030 |
| 31410A | Bolt (for securing clutch master cylinder) | 90116-08146 |
| 31416 | Clutch master cylinder oil inlet joint | 31416-42010 · 31416-52010 |
| 31417 | Clutch reservoir retaining ring | 31417-35010 |
| 31434 | Clutch reservoir connecting pipe | 31434-52011 · 31434-52030 · 31434-52040 |
| 31451 | Clutch master cylinder push rod | 31451-20090 · 31451-36040 · 31451-52010 |
| 31453 | Clutch master cylinder push rod U-shaped clamp | 31404-17010 · 31453-10040 |
| 31454 | Clutch master cylinder dust boot | 31454-16010 |
